RAM Action Camera / GoPro Mount with Motorcycle Fork Stem Base - Short Arm

RAM-B-176-A-GOP1U RAM® Motorcycle Fork Stem Mount with Universal Action Camera Adapter (Short Arm)

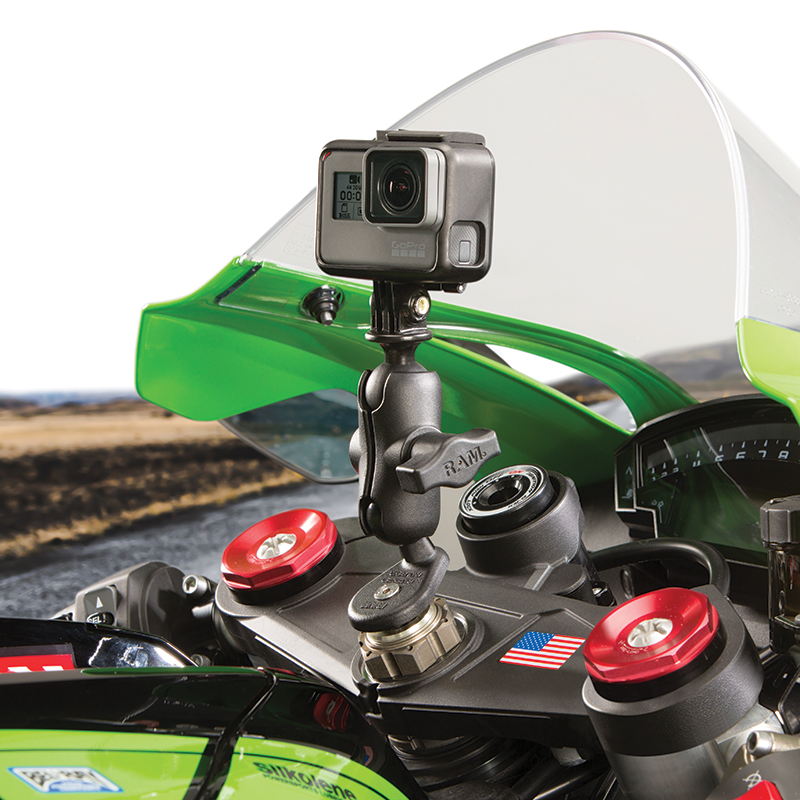

The RAM-B-176-A-GOP1U mounts a GoPro® or most other action cameras into your motorcycle's fork stem, using an expanding base that grips inside the steering stem bore. A short B-size double socket arm and a universal action camera adapter complete the kit for a clean, central forward view.

Key Features

• Action camera adapter with a 1" B-size RAM® ball; fits GoPro® and most other brands
• Expanding fork-stem base grips inside stems from 12.7mm to 38mm (0.5" to 1.49")
• Short B-size double socket arm for near-infinite adjustment
• High-strength composite and powder-coated marine-grade aluminium; lifetime warranty

Dimensions & Specifications

• Fits fork stems: 12.7mm to 38mm (0.5" to 1.49") bore

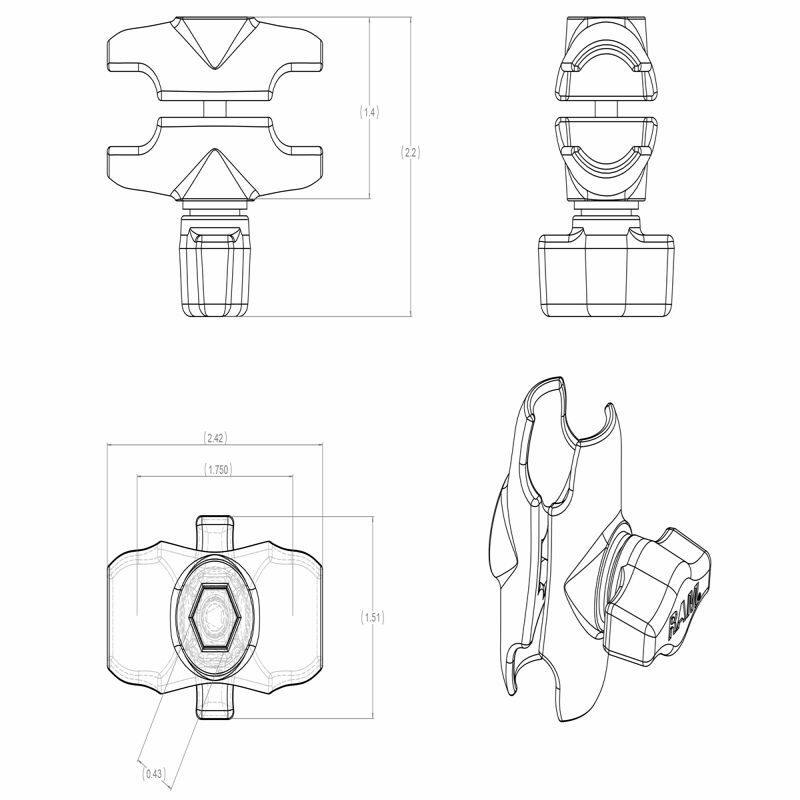

• Arm length: overall 60.5mm (2.38"), socket-to-socket 51mm (2")
• Ball size: 1" rubber ball, B size
• Weight: 272g (0.6 lb)
• Materials: high-strength composite, powder-coated marine-grade aluminium

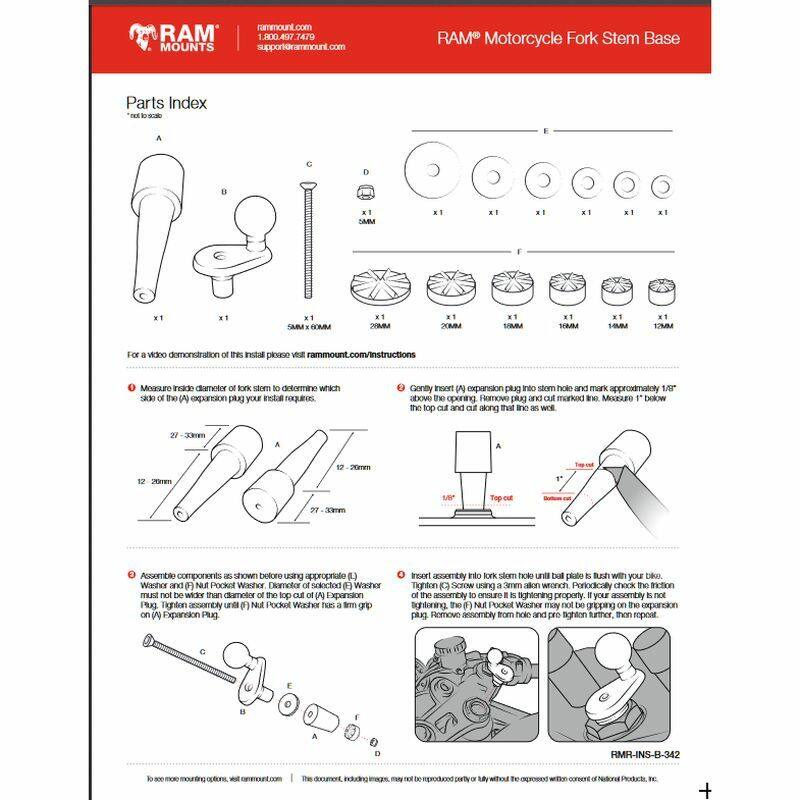

Hardware Included

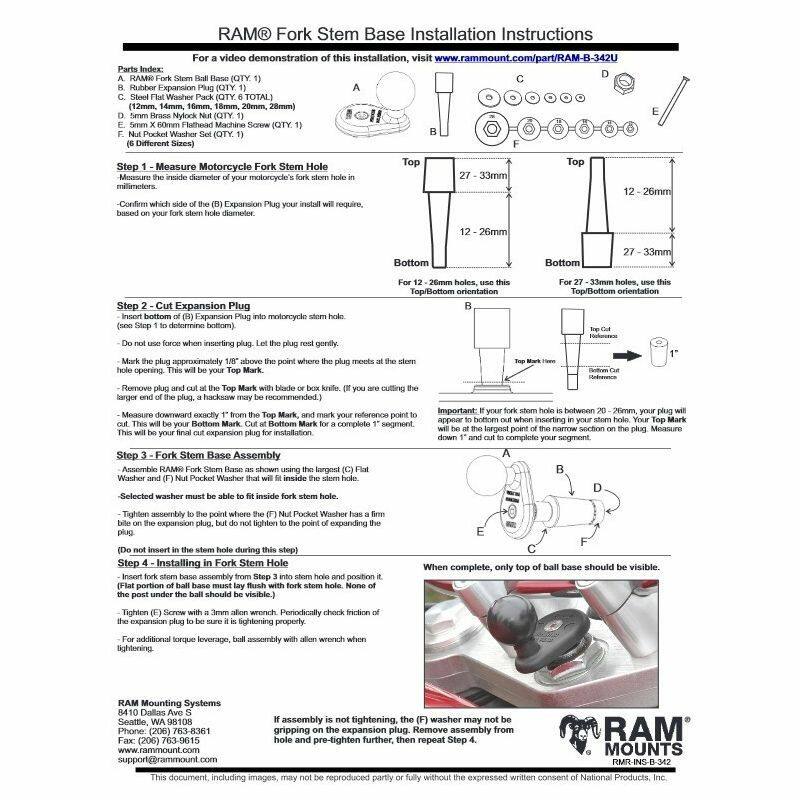

• One expansion plug for 12.7mm to 38mm (0.5" to 1.49") fork stem holes
• One M5 x 60mm machine screw
• One steel washer set
• One nut pocket washer set
• One brass nylock nut

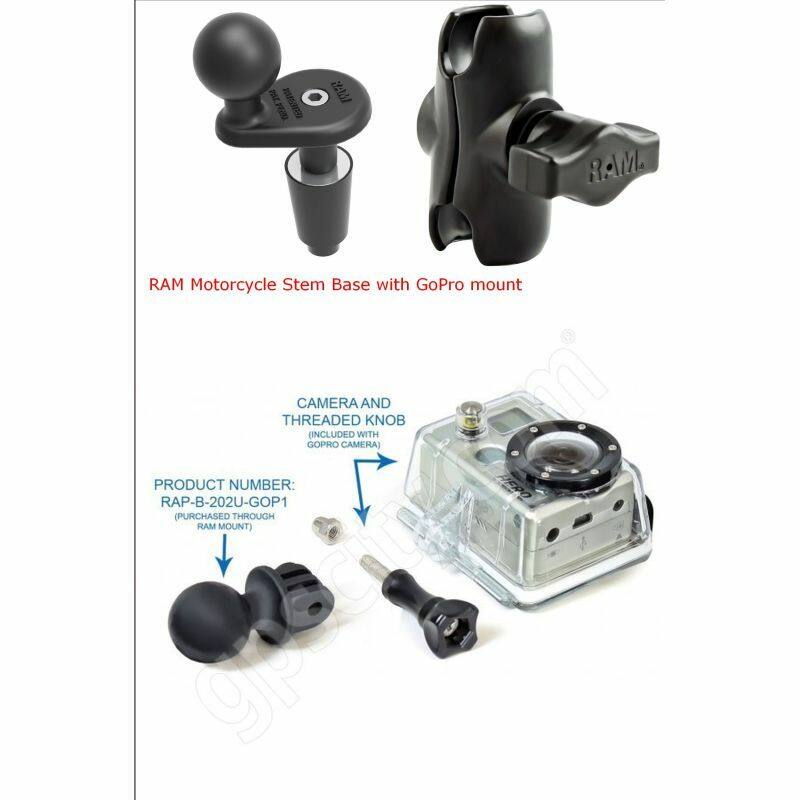

What's Included

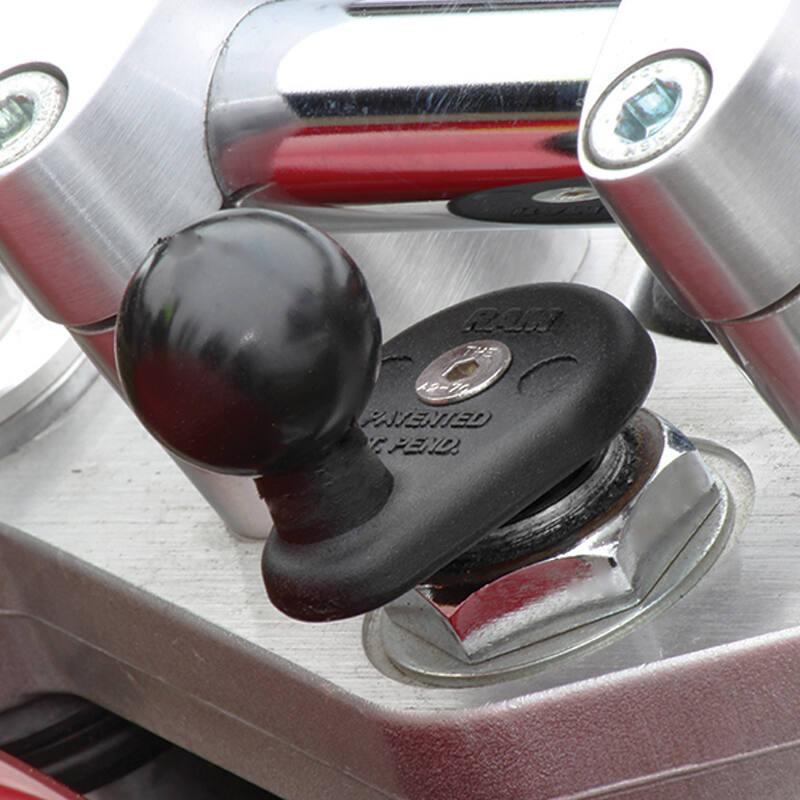

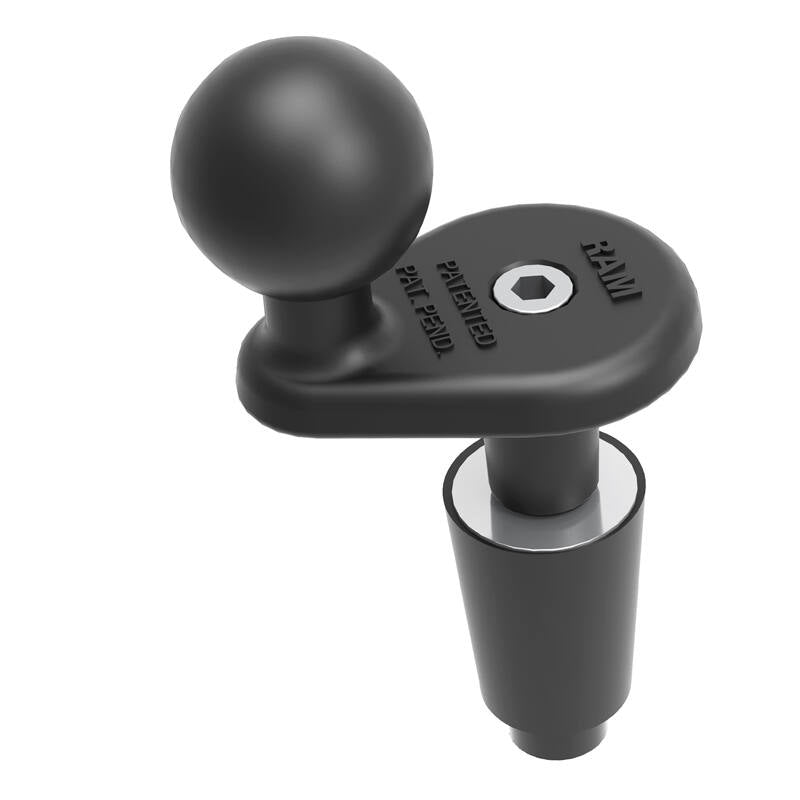

• RAM-B-342U: motorcycle fork stem base with 1" ball

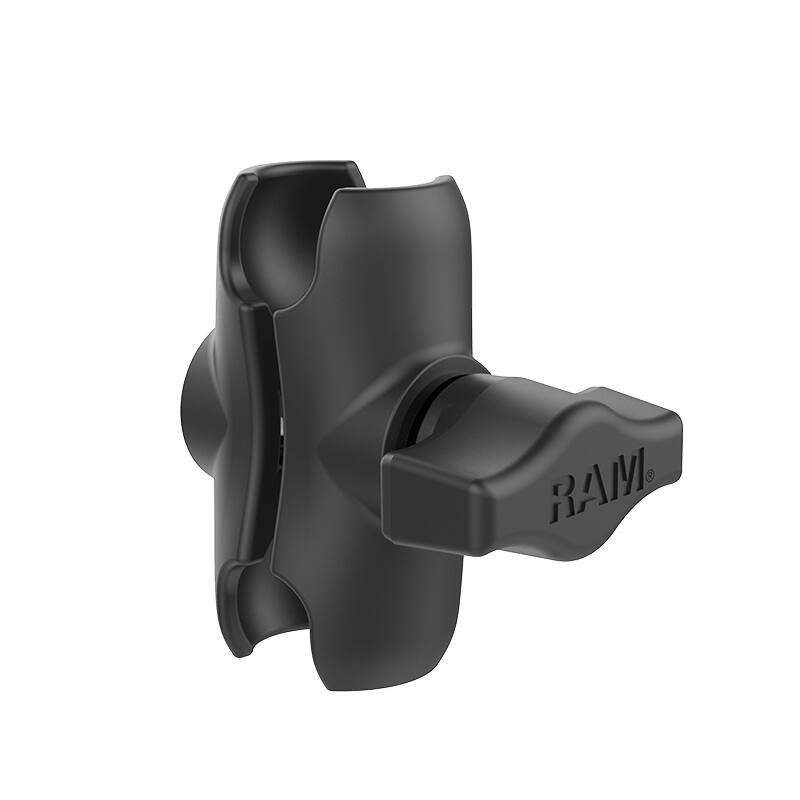

• RAM-B-201U-A: short double socket arm

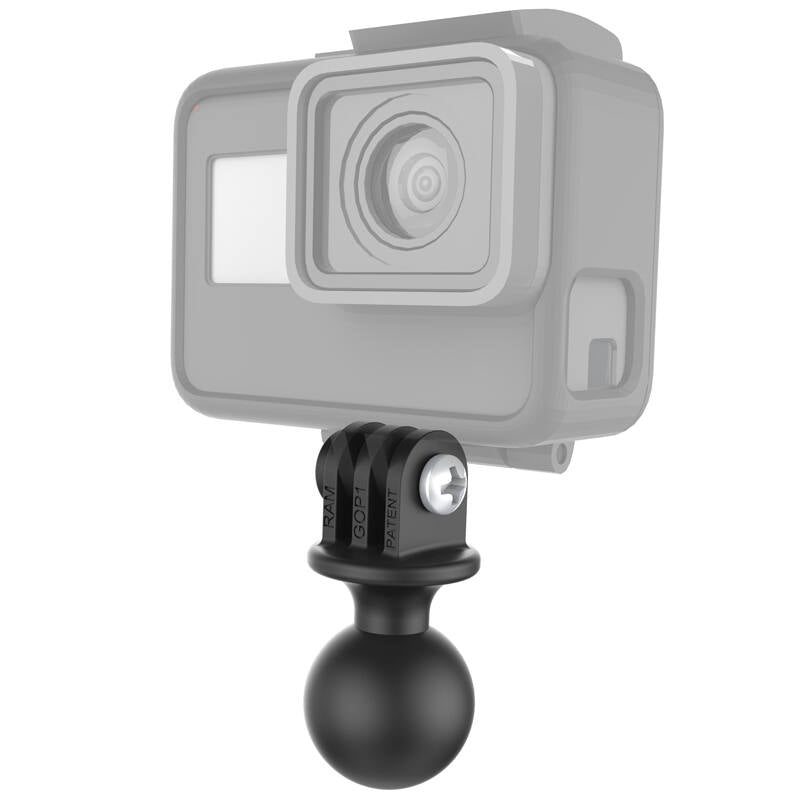

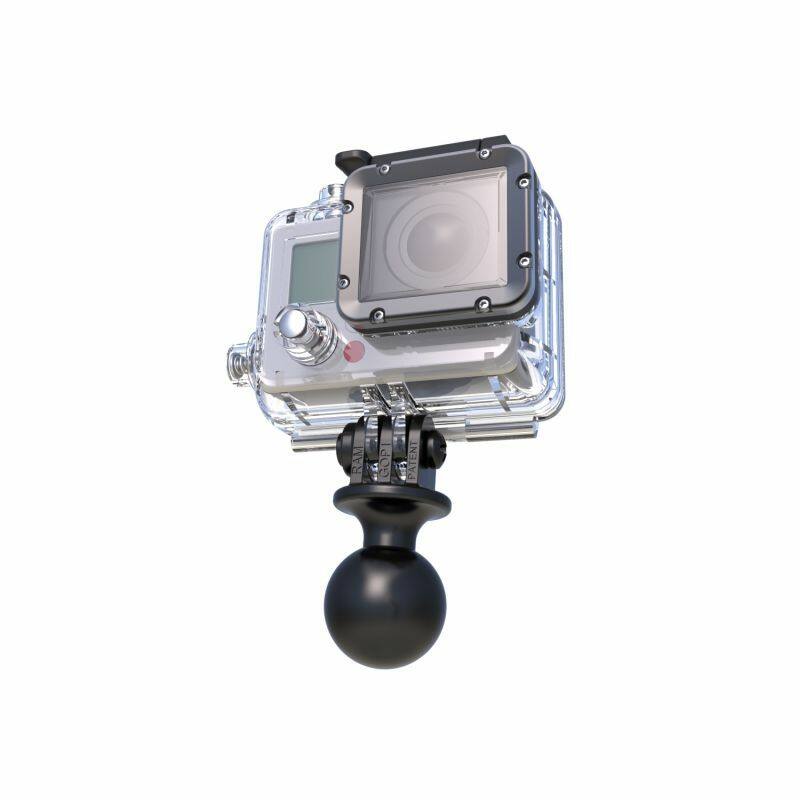

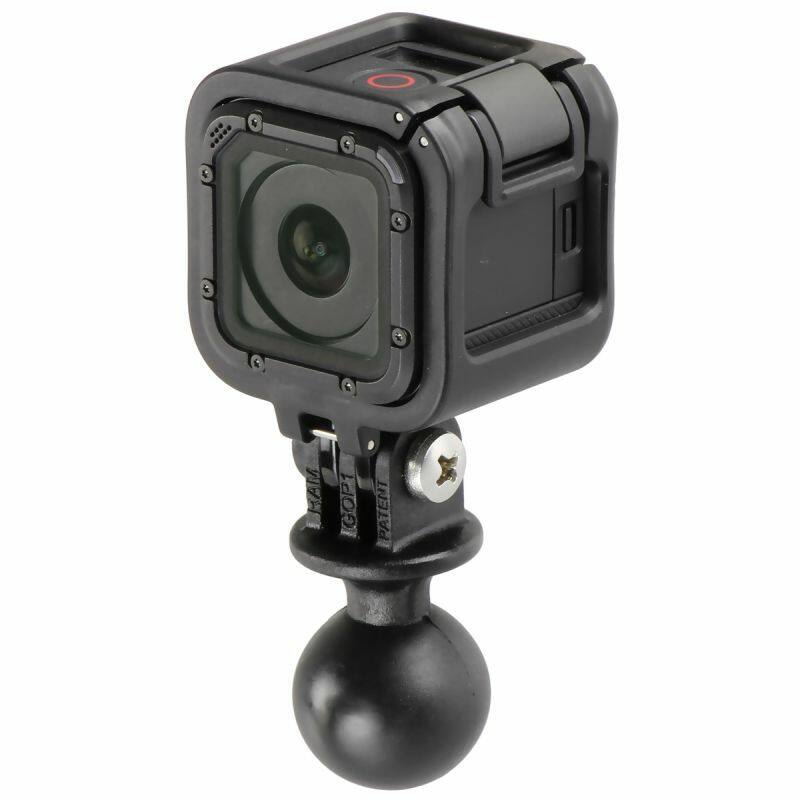

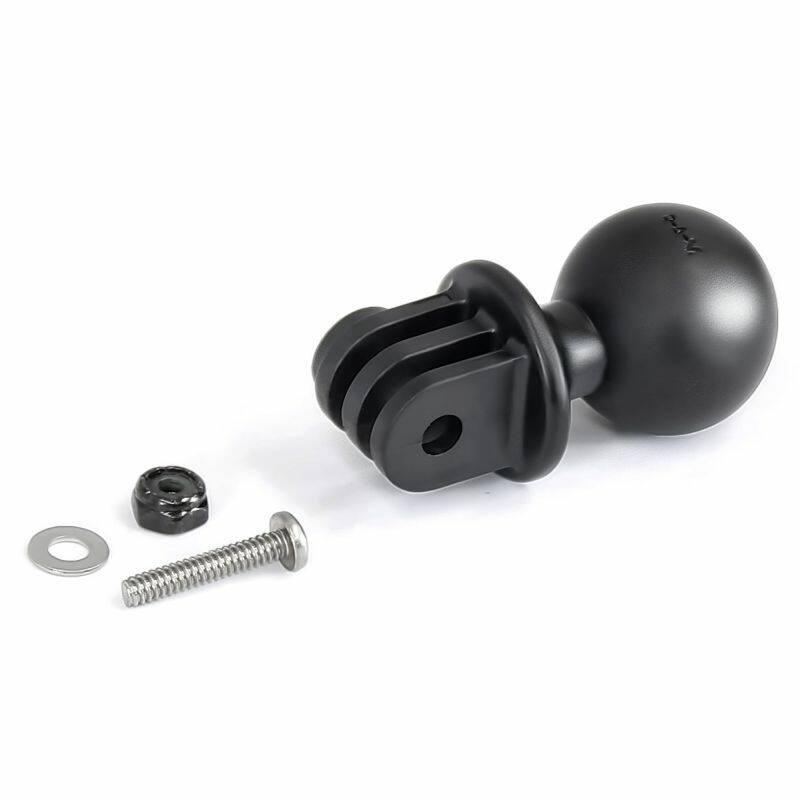

• RAP-B-202U-GOP1: universal action camera adapter

Compatible Devices

• ACTIVEON: CX Gold
• AEDILYS: 4K WiFi Sports
• AEE: ACE S70 Black 16MP 2"
• AKASO: EK7000 4K WiFi Sports
• Discovery: Kids Photo & Video Adventure Camera
• Garmin: VIRB®
• GoPro®: HERO, Session
• Kyocera / Yashica: YAC-400
• Lightdow: LD4000 1080P HD
• Muvi / veho: K-Series K-2 Pro 4K
• SJCAM: SJ4000, SJ5000X Elite 4K
• Vivitar: HD
• Vtin: 4K WiFi
• WiMiUS: Q2 Black 1080P WiFi
• Xcel: 1080C

FAQs

Will it fit my bike? It suits fork stems with a bore from 12.7mm to 38mm (0.5" to 1.49"); the expanding plug grips inside the stem.

Short arm or medium? This short-arm version keeps the camera low and central; the RAM-B-176-GOP1U medium arm gives more reach.
