RAM-B-404-366U RAM® Tough-Claw™ Medium Clamp Mount with 1/4"-20 Action Camera Adapter
Features
* Clamping mount used in place of a camera tripod while out on the trail
* B size 1" RAM® rubber ball with 1/4"-20 threaded stud for industry standard DSLR and mirrorless cameras
* Includes B size medium length socket arm

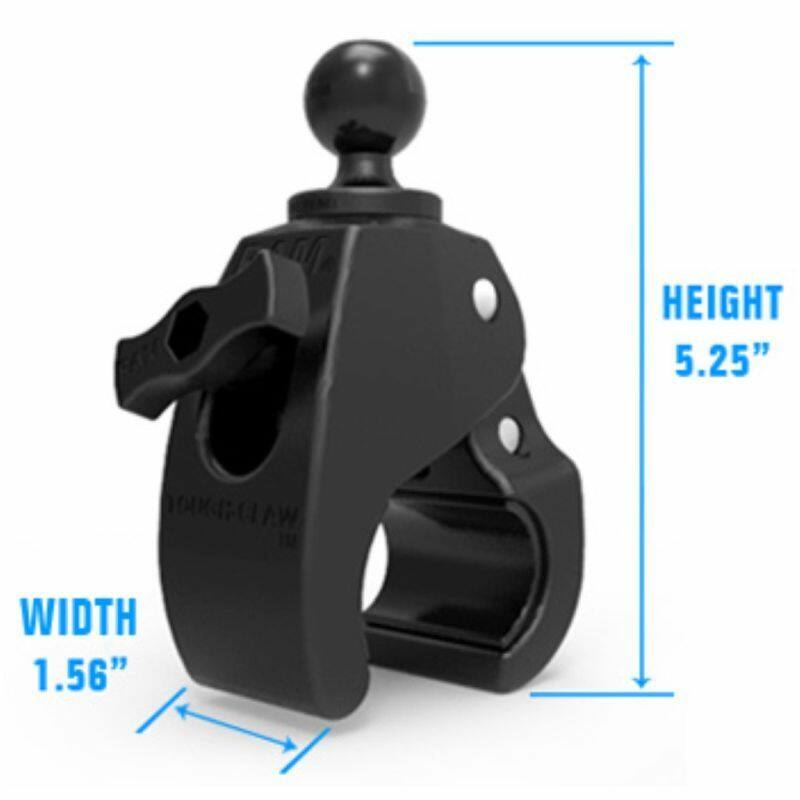

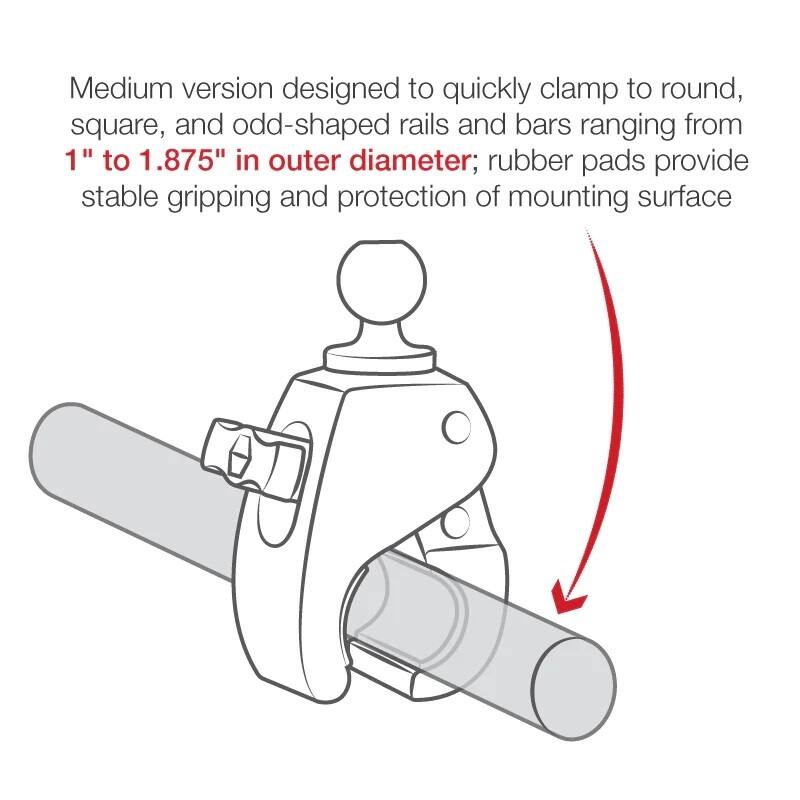

* Medium size RAM® Tough-Claw™ designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 25-41mm in outer diameter
* Rubber pads provide stable gripping and protection of mounting surface
* Backed by a lifetime warranty

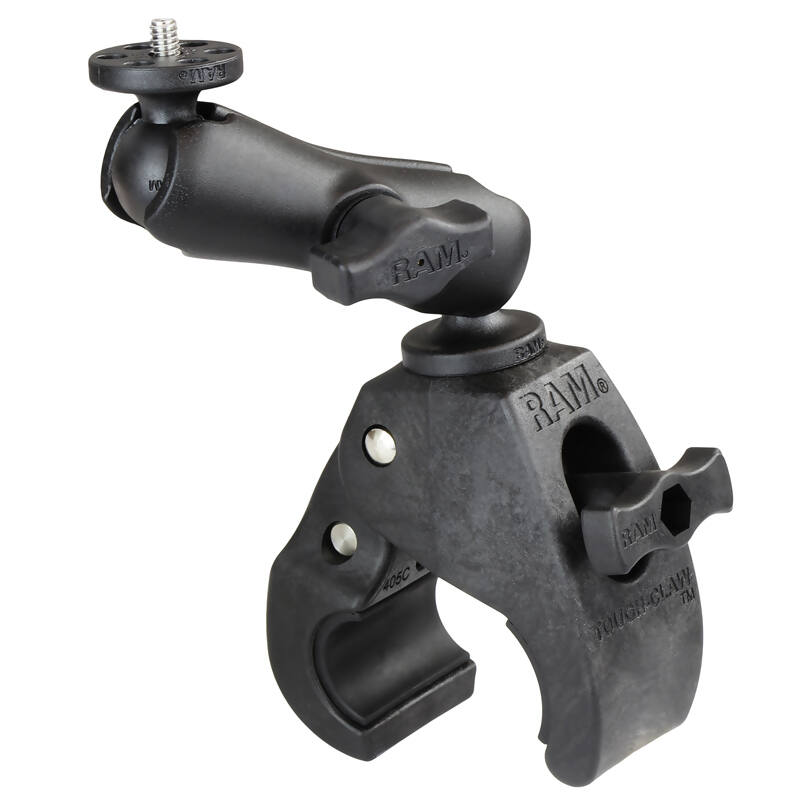

This mounting system consists of the medium Tough-Claw™ base, a double socket arm and a universal camera adaptor.

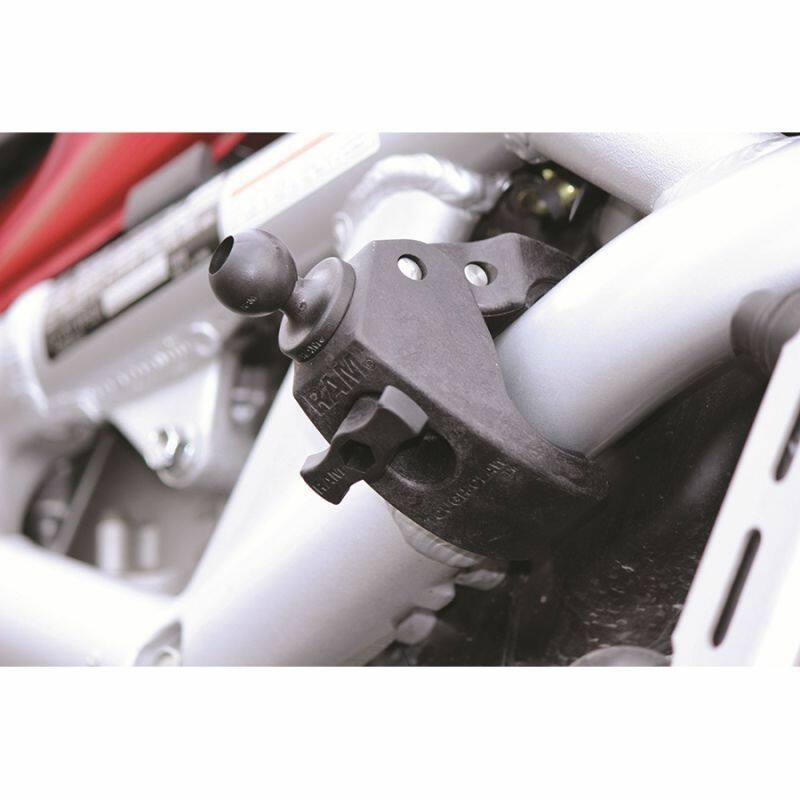

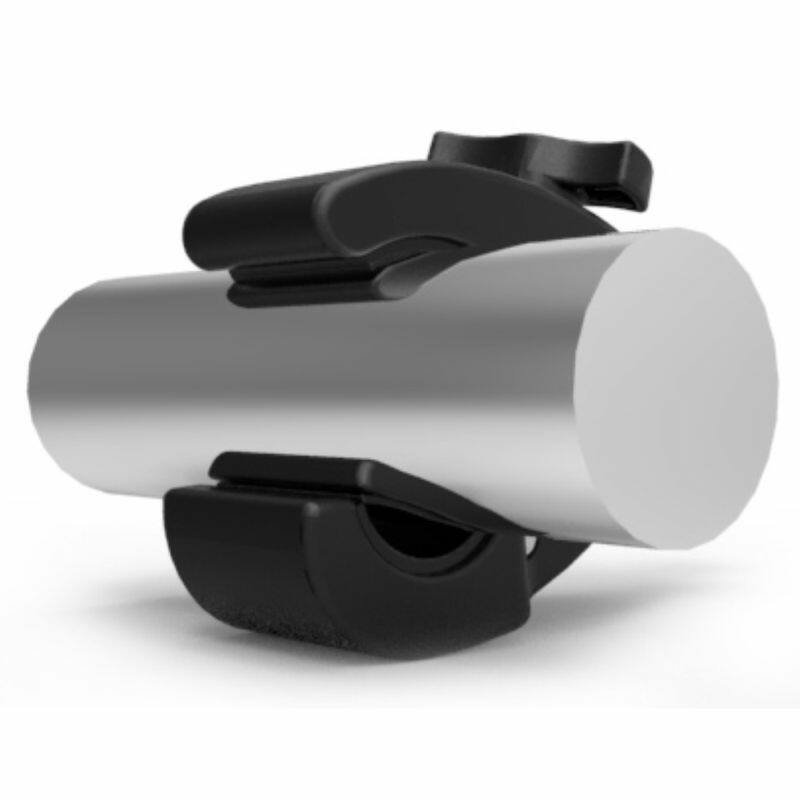

The RAM Tough-Claw™ is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw™ can be clamped on rails from 25-41mm outer diameter and is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm. This allows for almost infinite adjustment and perfect viewing angles.

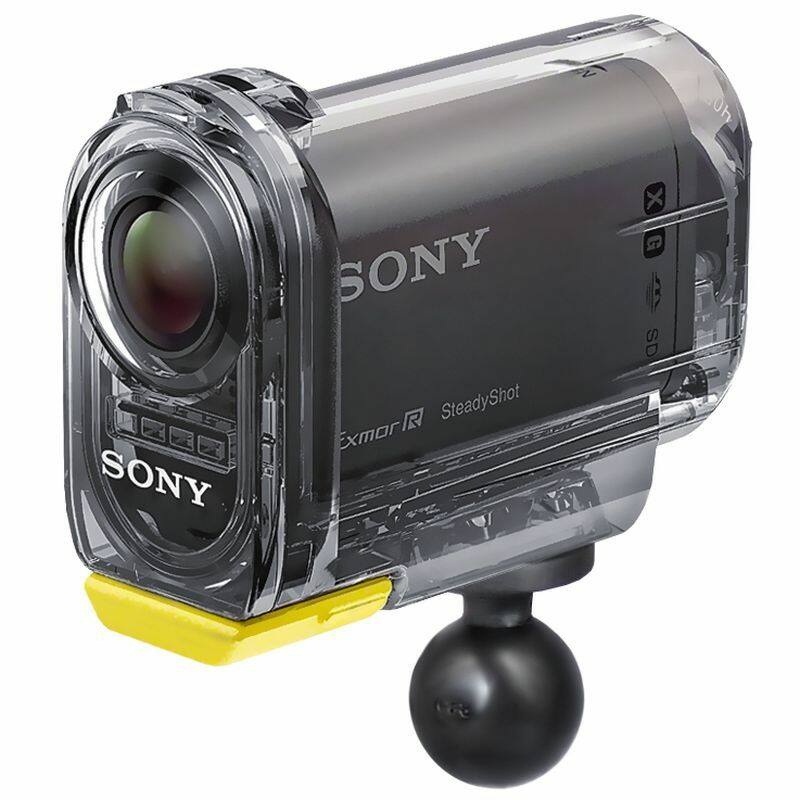

The universal camera adaptor and base is a 1" diameter rubber ball connected to a round plate with an industry standard 1/4"-20 threaded steel stud that will connect to any standard female thread found on camcorders and digital cameras.
Compatible Devices
All Cameras that contain 1/4"-20 Female Threaded Hole including the following:
GoPro HD HERO 1-4
Also any other camera or video camera with the standard camera thread mount including Sony, Midland, Garmin, Canon, Fuji, Nikon and more
Clamping Range
Rails/Tubes:
25.4 to 40.6mm (1" to 1.6")
Flat Surfaces:
0 to 40.6mm (0" to 1.6")
Arm Dimensions:
Overall:
94.7mm (3.73")
Socket-To-Socket:
76.2mm (3.0")
Material:
Marine-grade aluminium
High strength composite
Weight Capacity
907 grams (2 lbs )
Ball Size:
25.4mm/1" Rubber Ball "B" Size
Components

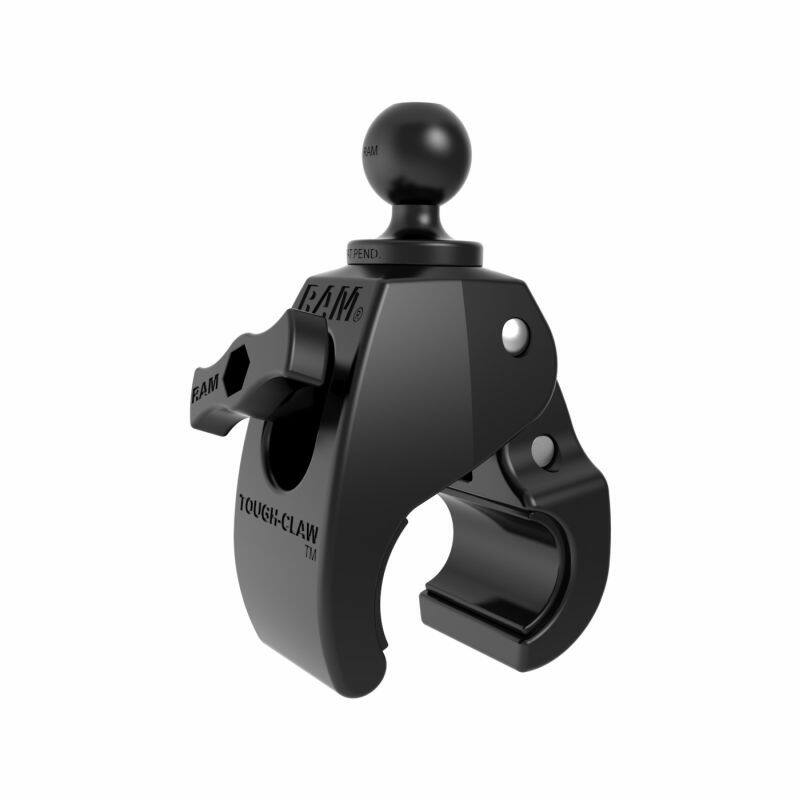

RAP-B-404U MED TOUGH-CLAW W 1" DIA BALL
RAM-B-201U DOUBLE SOCKET ARM FOR 1" BALL

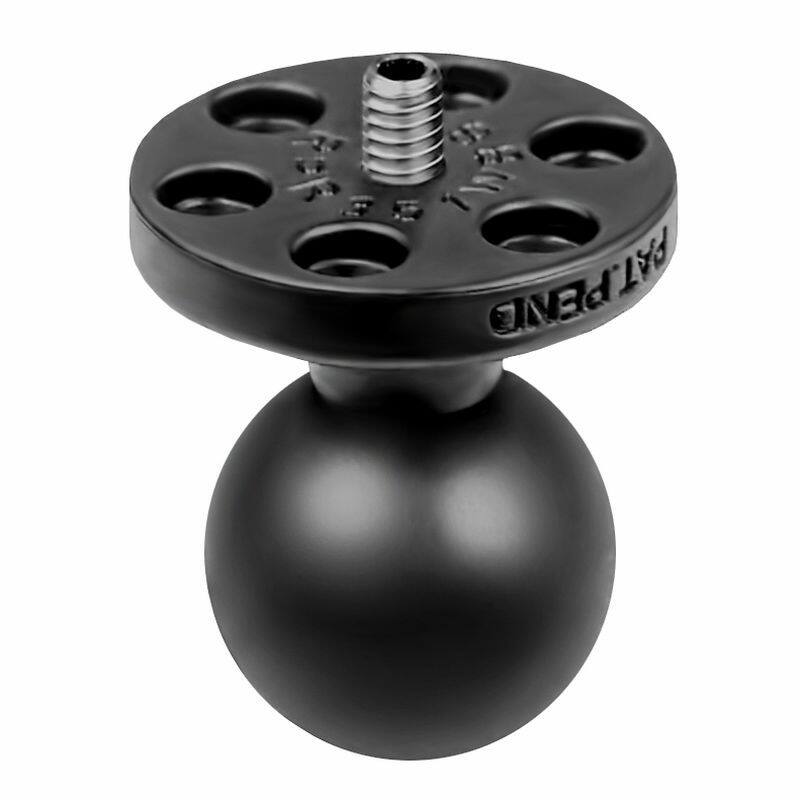

RAP-B-366U SMALL ROUND BASE 1/4"-20 THREAD
