RAM Adaptor / Backing Plate (53 mm x 66mm)

RAM-202-225B-2U – RAM® Steel Backing Plate (53.3mm x 66mm)

The RAM-202-225B-2U is a 53.3mm x 66mm (2.10" x 2.60") steel backing plate with dual hole patterns and hardware, attaching to RAM® ball bases such as the RAM-202U and RAM-202U-225.

Key Features

• Two hole patterns in one plate: 4-hole AMPS and 4-hole 2" x 2.5"
• Includes screws and lock washers for both patterns
• Backed by RAM Mounts' lifetime warranty

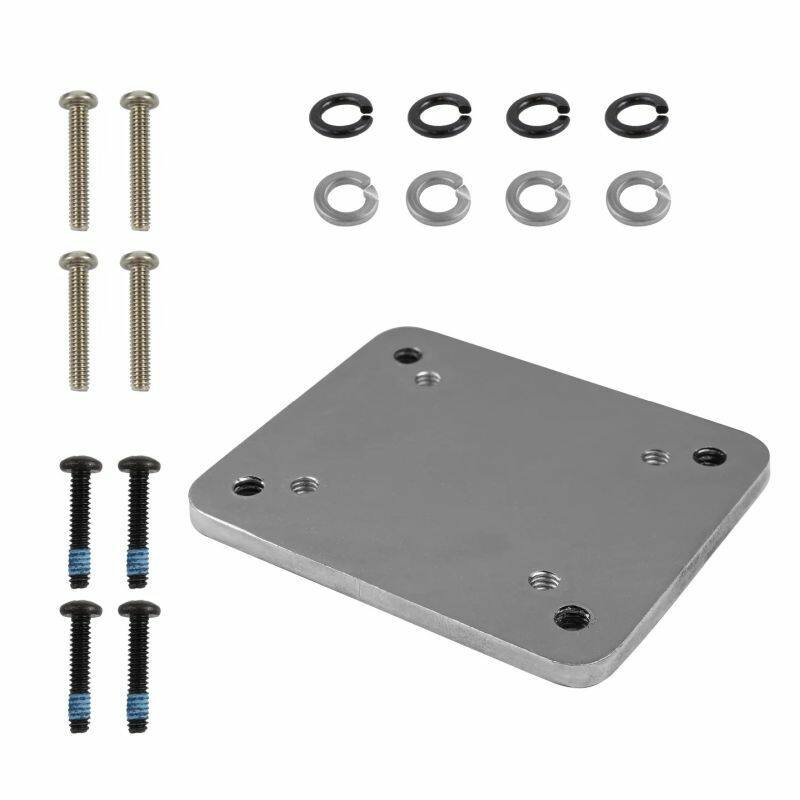

What's Included

• 1x 2.1" x 2.6" stainless steel backing plate
• 4x #10-24 x 1" machine screws
• 4x #10 lock washers
• 4x #8-32 x 1" machine screws
• 4x #8 lock washers

Dimensions & Specifications

• Overall size: 53.3mm x 66mm x 3.8mm (2.1" x 2.6" x 0.15")
• Hole pattern 1: 4-hole AMPS, 30mm x 38mm (1.181" x 1.496"), #8-32 threaded
• Hole pattern 2: 1.5" x 2", #10-24 threaded
• Material: steel
• Weight: 136g (0.3 lb)
