RAM Drill-Down Dashboard Backing Plate

RAM-202-225B-1U – RAM® Drill-Down Dashboard Backing Plate

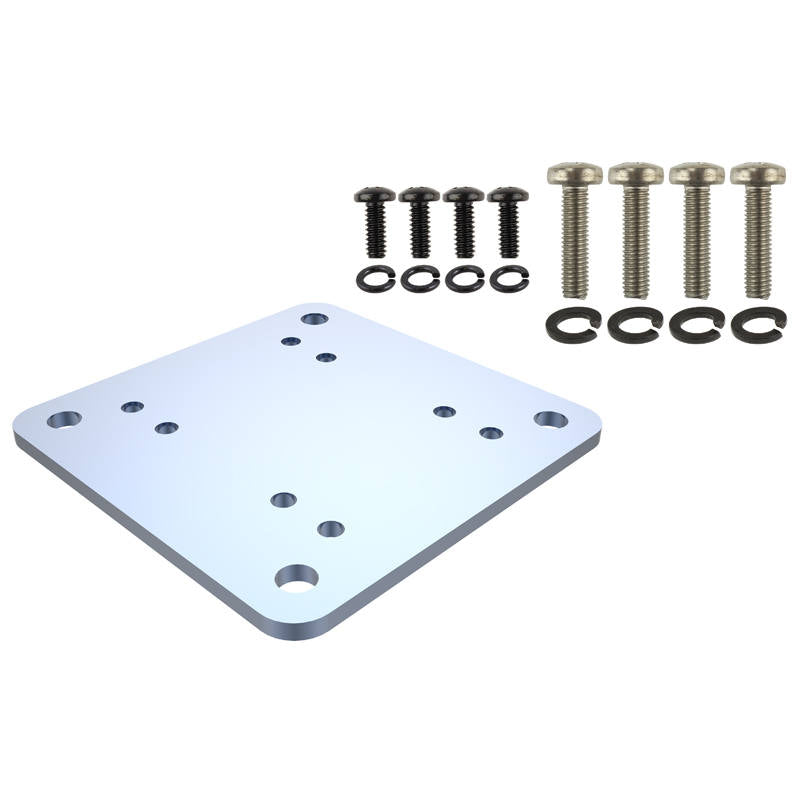

The RAM-202-225B-1U is a 76.2 x 76.2mm (3" x 3") stainless steel backing plate with a 60 x 60mm VESA hole pattern, used to reinforce drill-down installations. Hardware is included for attaching the plate to a RAM-202U round base and a Krone monitor.

Key Features

• 76.2 x 76.2mm (3" x 3") stainless steel backing plate spreads the load behind a dash or panel
• 60 x 60mm VESA hole pattern plus 4-hole AMPS and 1.5" x 2" patterns
• Hardware included for a RAM-202U round base and Krone monitor

Works With

RAM® round bases such as the RAM-202U in drill-down installations, and 60 x 60mm VESA monitors including Krone units.

Dimensions & Specifications

• Plate size: 76.2 x 76.2mm (3" x 3")
• Hole patterns: 4-hole AMPS, 1.181" x 1.496" (30mm x 38mm); 1.5" x 2"; VESA 60 x 60mm
• Material: stainless steel
• Hardware included: (1) backing plate, (4) M5 x 20 machine screws, (4) M5 lock washers, (4) #10-24 x 1/2" machine screws, (4) #10 lock washers

FAQs

Why use a backing plate?

Thin dashboards and panels can flex or crack under mount load; a steel backing plate on the reverse side spreads the force across a wider area for a stronger, longer-lasting installation.
