RAM Adaptor / Backing Plate (76 x 76mm)

RAM-202-225BU RAM® Backing Plate Adaptor (76 x 76mm)

The RAM-202-225BU is a 76mm x 76mm (3" x 3") steel backing plate that reinforces RAM® flat-surface mounts on dashboards and other thin-panel surfaces.

Key Features

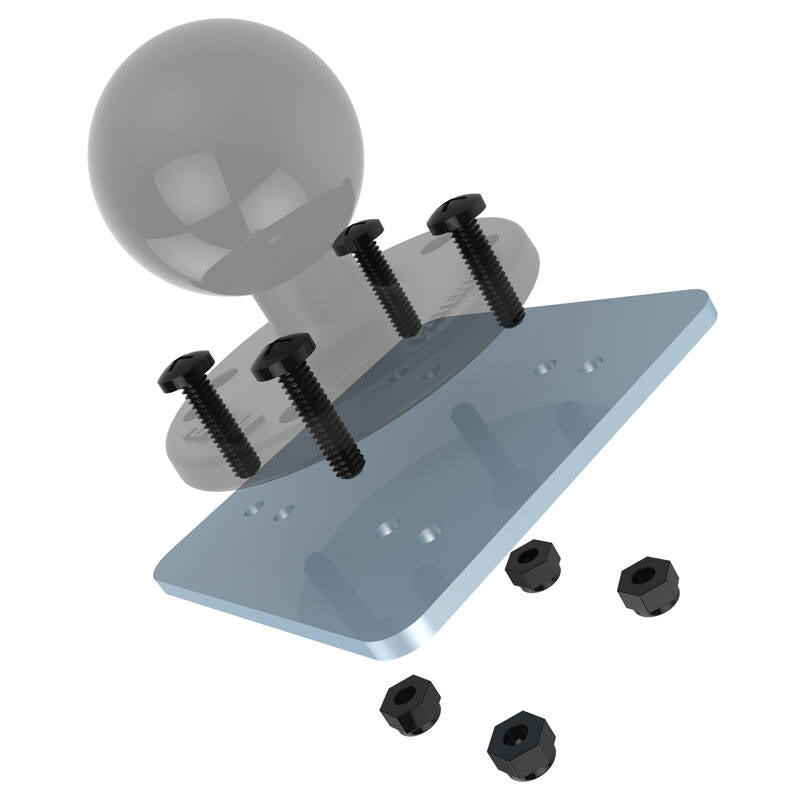

• Supports RAM flat-surface ball bases when mounted on dashboards or similar low-clearance surfaces
• Dual hole pattern: 4-hole AMPS with #8-32 threaded holes, and 4-hole 2" x 2.5" pattern with #10-24 threaded holes
• Compatible with ball bases such as RAM-202U and RAM-202-225-2U
• Steel construction for durability
• Backed by RAM's lifetime warranty

Dimensions & Specifications

• Plate size: 76mm x 76mm (3" x 3")
• 4-Hole AMPS: 1.181" x 1.496" (30mm x 38mm)
• Secondary hole pattern: 1.5" x 2"
• Material: Steel
• Weight: 159 grams (0.35 lbs)

Hardware Included

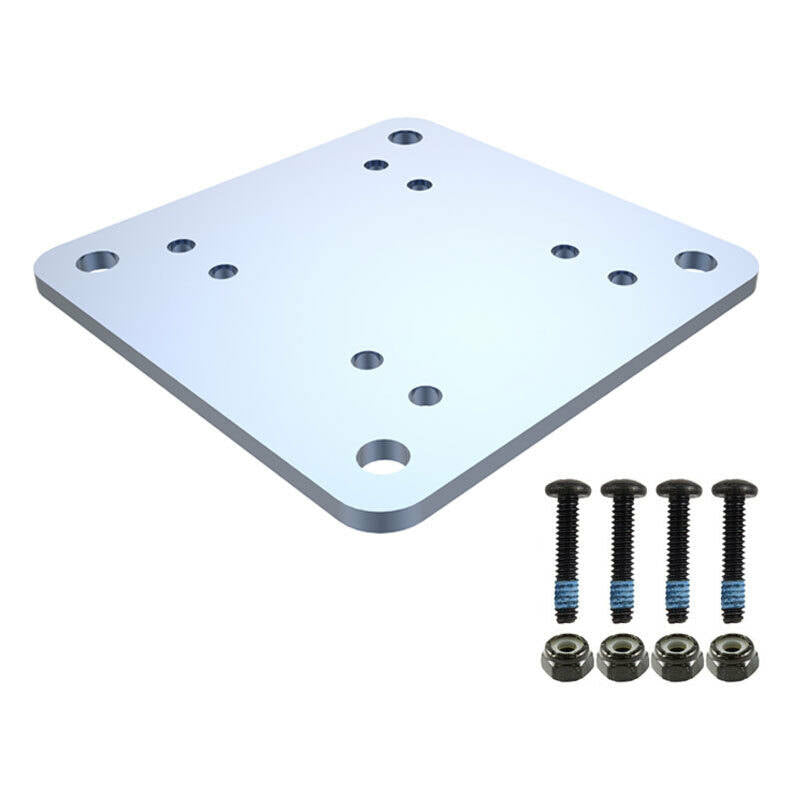

• 1 x 76mm x 76mm (3" x 3") steel backing plate
• 4 x #10-24 x 1" thread-locking screws
• 4 x #10-24 nylock nuts

FAQs

If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
