RAM Adaptor - Double Ball - B Series (1" Balls)

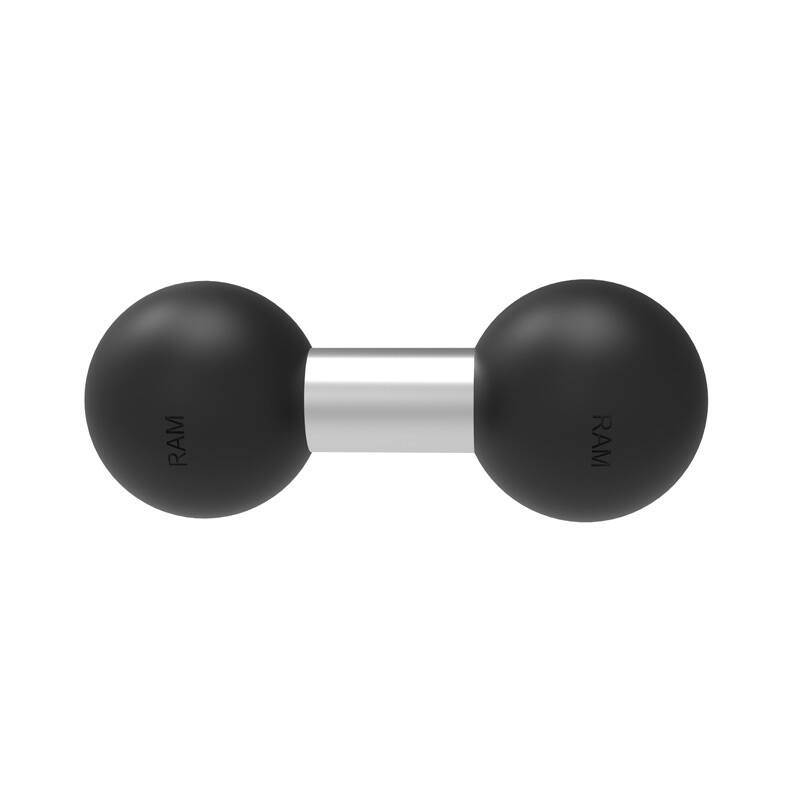

RAM-B-230U RAM® Double Ball Adaptor (B Size, 1" Ball)

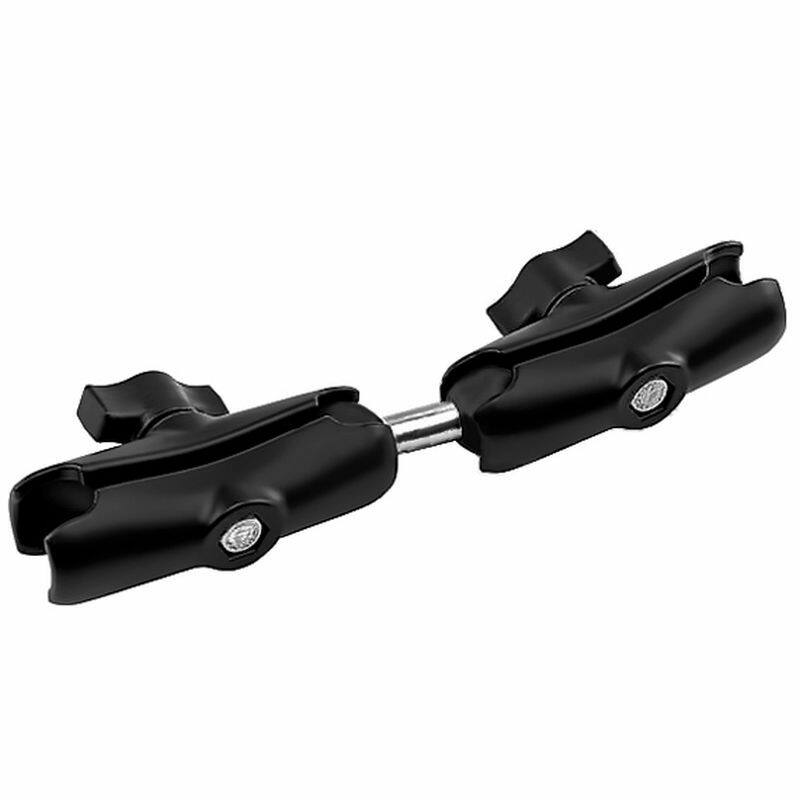

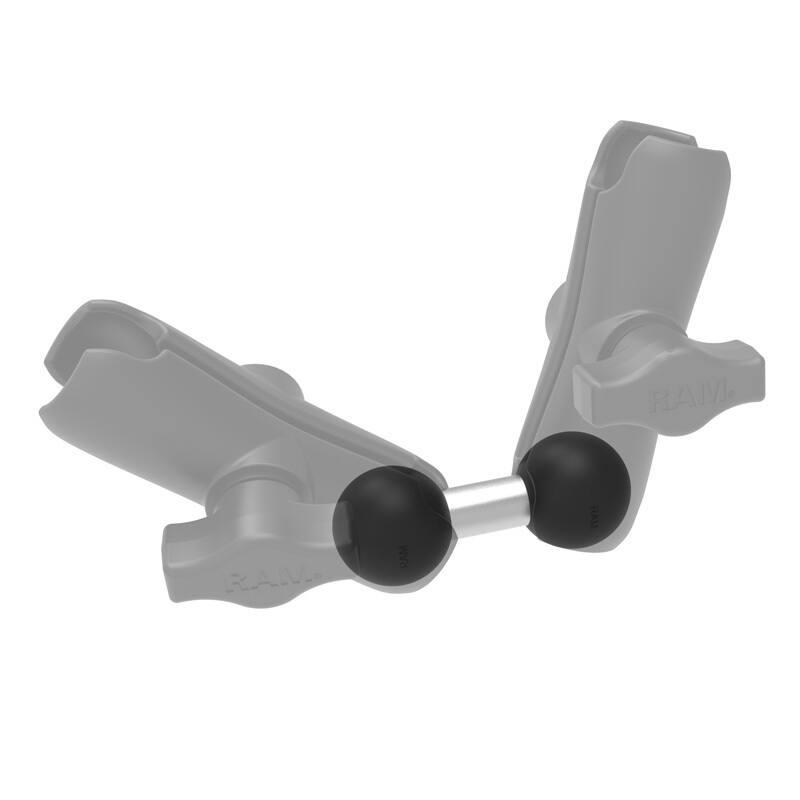

The RAM-B-230U is a double-ended ball adapter that joins two B size (1") RAM double socket arms together, giving you extra reach or an extra pivot point. Use it when your chosen arm is just too short, or when you need more adjustment to hit the right viewing angle. Made from powder-coated marine-grade aluminium and backed by a lifetime warranty.

Key Features

• Connects two B size 1" socket arms for extra extension or articulation
• Two 1" RAM rubber balls on a short connecting post
• Mix and match arm lengths: join a short arm to a long one, two mediums, whatever suits
• Powder-coated marine-grade aluminium for durability in demanding environments
• Backed by a lifetime warranty

Dimensions & Specifications

• Overall length: 64.5mm (2.54")
• Socket-to-socket length: 44.5mm (1.75")
• Ball size: 1" rubber B size ball (both ends)
• Material: powder-coated marine-grade aluminium
• Weight: 41 grams (0.09 lbs)

Weight Capacity

• Standard use: 0.9kg (2 lbs)
• Heavy-duty use: 0.45kg (1 lb)

Also Available In

This adapter also comes in C size (1.5", RAM-230U) and D size (2.25", RAM-D-230U).

FAQs

Will my mount be just as stable if I add this to extend it?
No. Any time you make a mount longer or add another pivot point, you trade away some stability, so expect a bit more potential for shake or vibration. It is a worthwhile trade when you need the reach, just keep your arms as short as the job allows.

Is it in stock and how fast do you ship?
When this shows as in stock, it is dispatched within one business day.

Is there a product video?
Yes, you can watch the double ball adapter in action on YouTube.
