RAM Adaptor - Octagonal Button with Diamond Plate

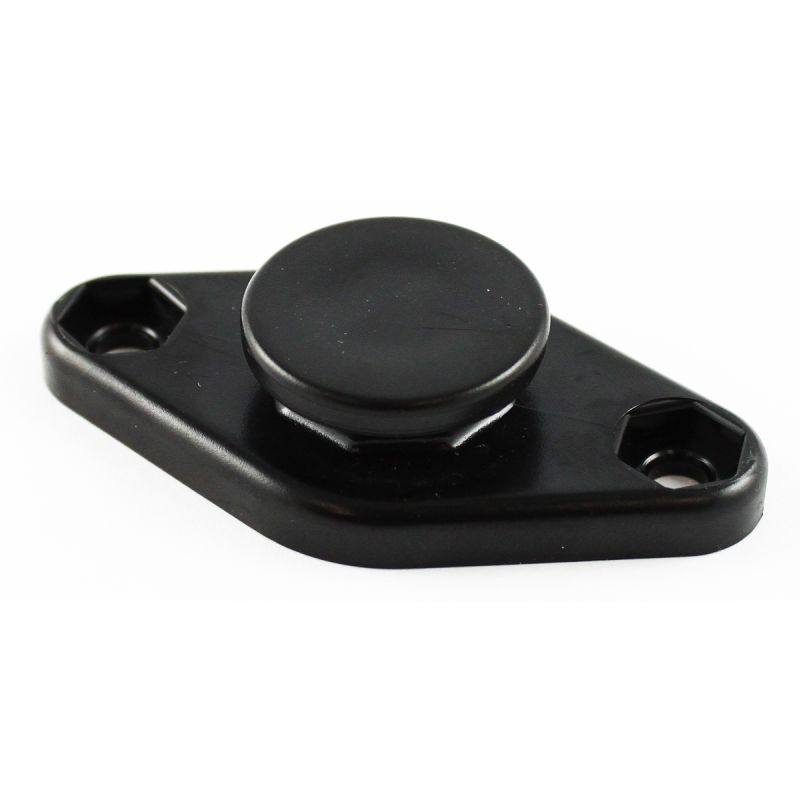

RAP-272U RAM® Composite Diamond Plate with Octagon Button

The High Strength Plastic Universal Plate has a 1.0" diameter Round Male Button on an Octagon Neck connected at right angles to a 1 1/4" x 2 1/2" Diamond Plate. The plate has two holes 48.56mm / 1.912" from centre to centre, positioned at either tip of the diamond plate.

NOTE: This base plate will attach to any of the RAM plastic HOL holders and the industry standard AMPS hole pattern.

Hole Pattern
2-Hole AMPS:
48.56mm / 1.912"

Materials
High strength composite

Weight
23 grams / 0.05 lbs.

Note: Ideal to connect to RAP-B-200-1U - RAM Single Ball Socket for B size 1” ball with Octagon Button Socket
