RAM-189BB-ALA1U RAM® Adaptor Plate for RAM® Twist-Lock™ Dual Suction Cup Base
Features
* Plate can be used with 2 RAM suction cup bases and diamond base to create dueal suction cup base
* Ideal when it is desired to have the ball base sitting closer to the mounting surface
* Made of powder-coated steel for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

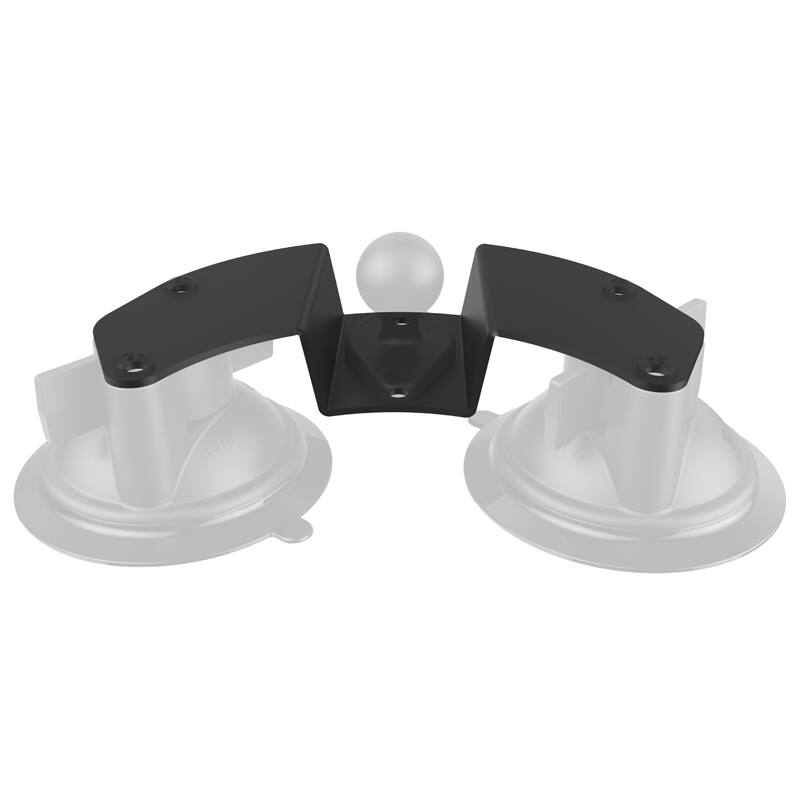

The RAM-189BB-ALA1U allows you to connect two suction cup bases to a single RAM® diamond base ball. This part can be useful if you would like to turn existing components into a double suction cup base with the base sitting closer to the mounting surface than is the case with the RAM-B-189BU

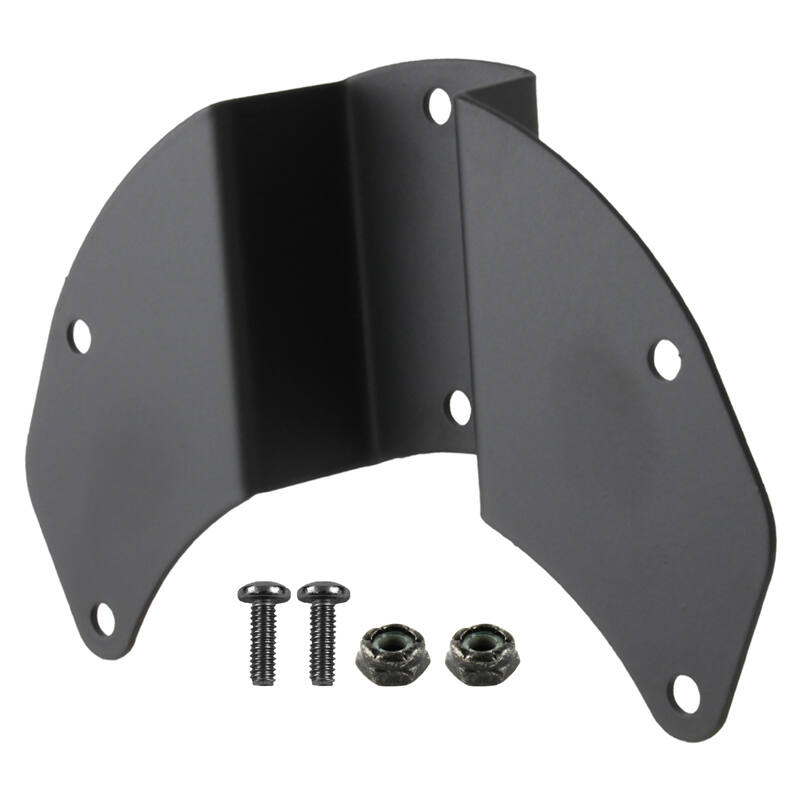

Hardware Included
(2) #8-32 x 1/2" Machine Screws
(2) #8-32 Thin Nylock Nuts
Hole Pattern
2-Hole AMPS 1.912" (3 sets)
Materials
Powder coated steel
Weight
362 grams (0.8 lbs.)
Parts Reference:
* Suction cup bases - RAM-224-1U
* Diamond Bases - RAM-238U, RAM-B-238U
