RAP-B-378-238U RAM® Flex Adhesive Double Ball Mount with Diamond Plate
Features
* Flex adhesive ball base provides a strong mounting surface in a wide variety of use cases, such as a vehicle dash
* Diamond base adaptor has 2 hole AMP's pattern to connect to many RAM cradles
* B size medium RAM® double socket arm with ball and socket technology allows for near-infinite adjustability
* Made of high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

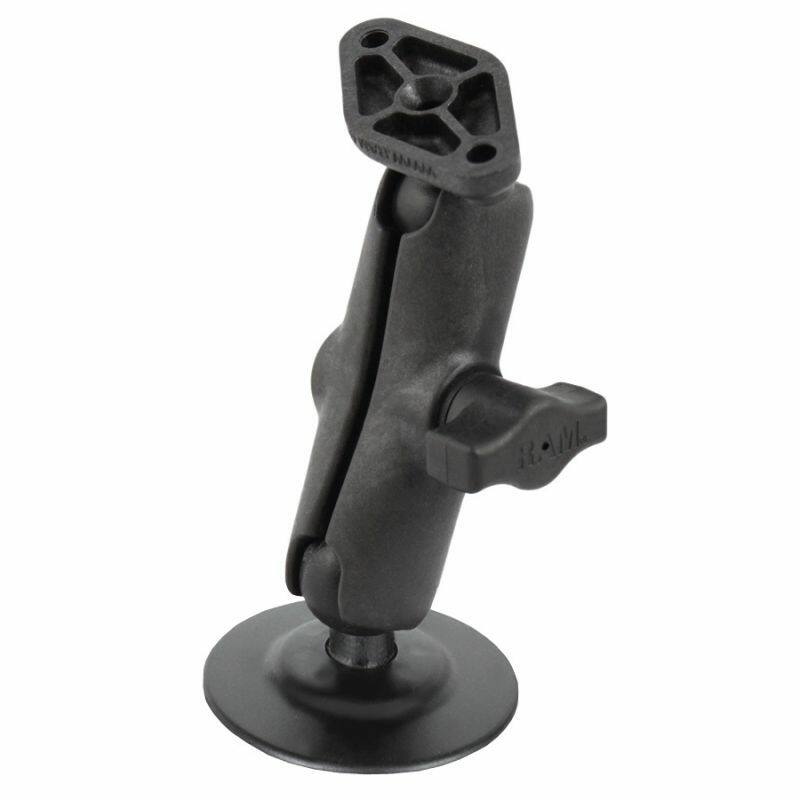

The RAP-B-378-238U consists of the flex adhesive base with 1" ball, standard double socket arm and and diamond base adaptor. The mount is designed with a 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

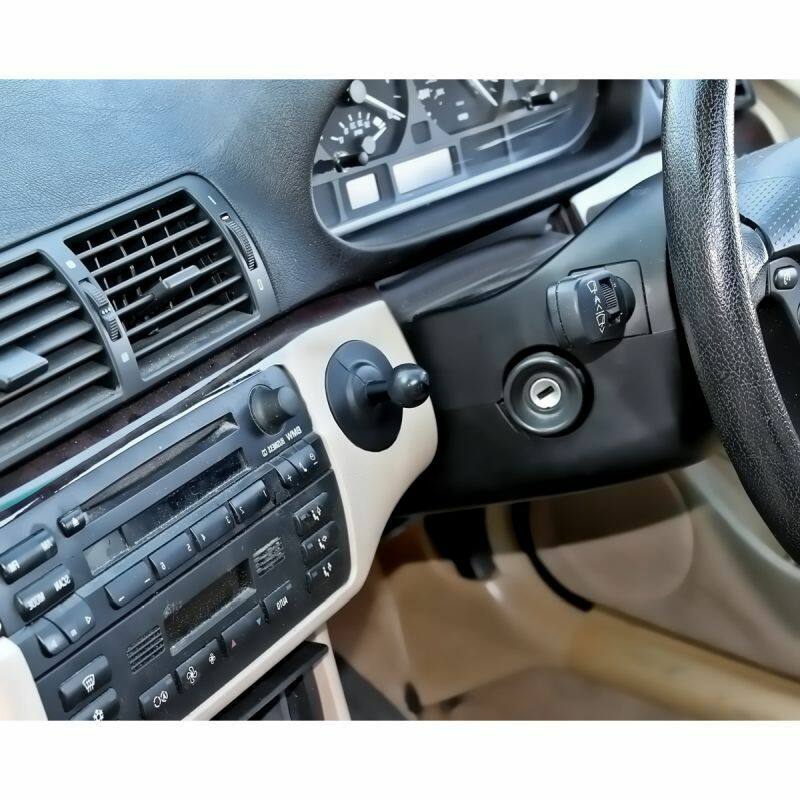

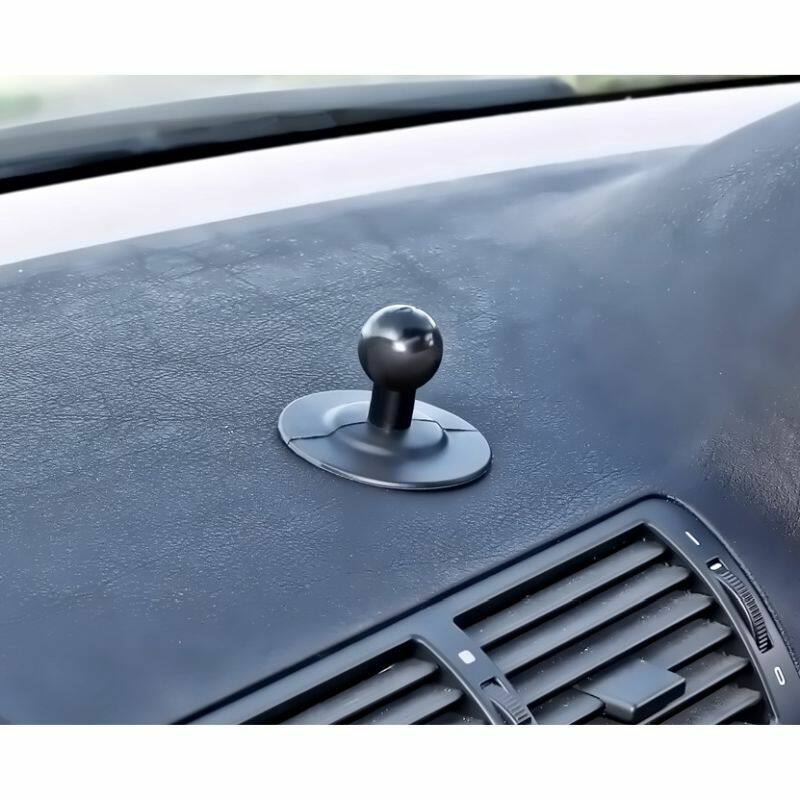

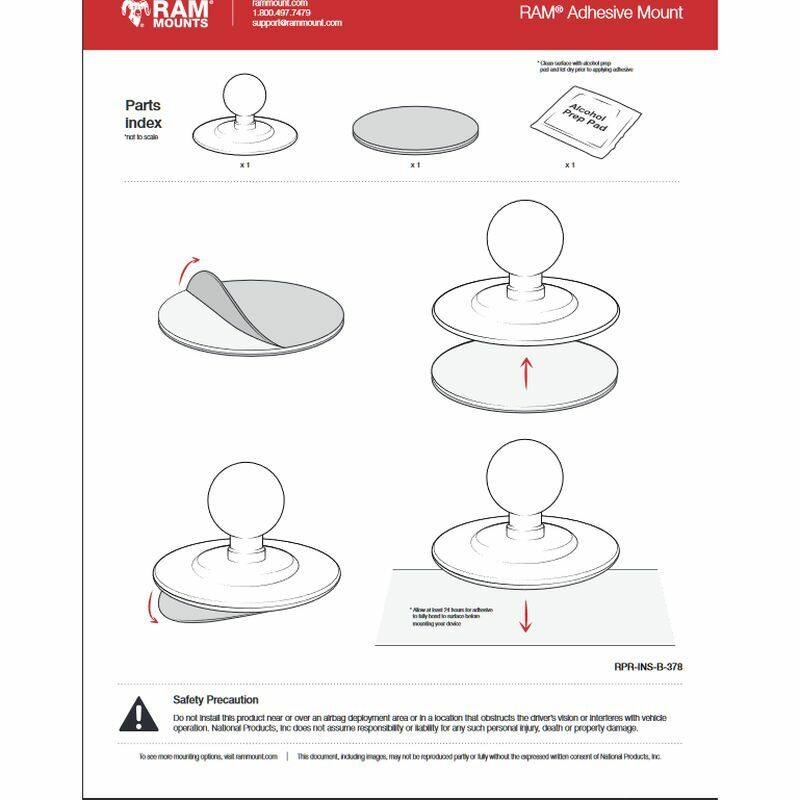

The 2 hole AMPs hole pattern found on the diamond base adapter will connect to most RAM cradles. The included RAM’s patented design dampens shock and vibration, helping to extend the life of your device. Using a PSA stick pad, put the flex adhesive mount practically anywhere you want to keep your portable electronics easy to see and always within your reach. Designed with a very small foot print, finding a home on your scooter, motorcycle, kayak, boat or vehicle dash is easy. Attaching the patented 1" rubber ball, to one of many RAM arms, creates the ultimate socket system with multiple adjustment points for articulation and perfect viewing angles.
Specifications/Features
Hole Pattern:
2-Hole AMPs:
1.912” (48.5mm)
Material:
High Strength Composite
Arm Dimensions:
Overall Length:
94.7mm (3.73")
Socket-To-Socket Length:
76.2mm (3.0")
Overall Height
104mm (4.1")
Ball Size:
1" (25mm) Rubber Ball "B" Size
Components:

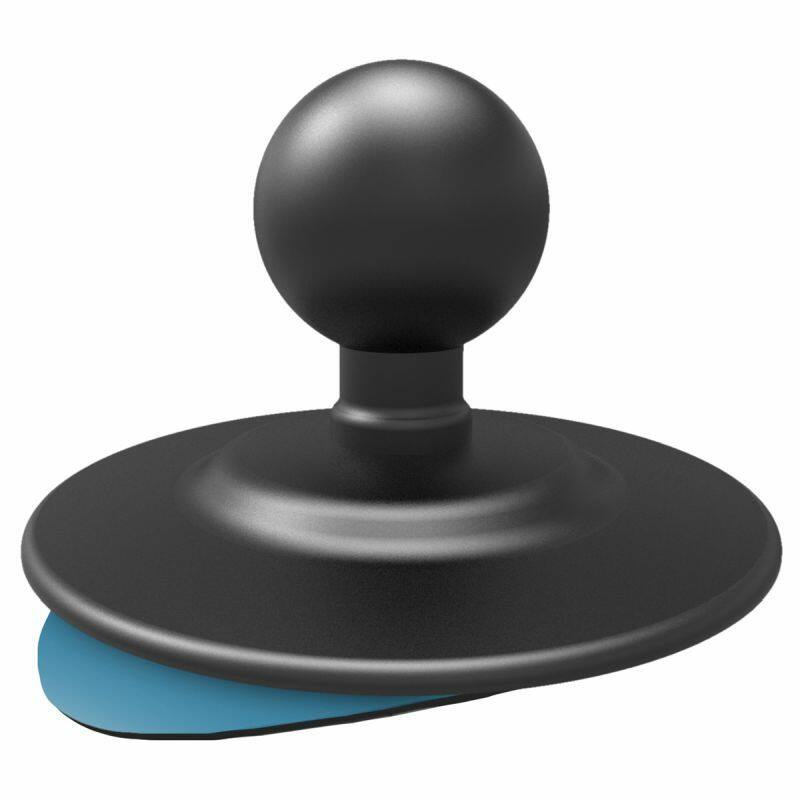

RAP-B-378U RAM FLEX ADHESIVE MNT SYST 1" BALL

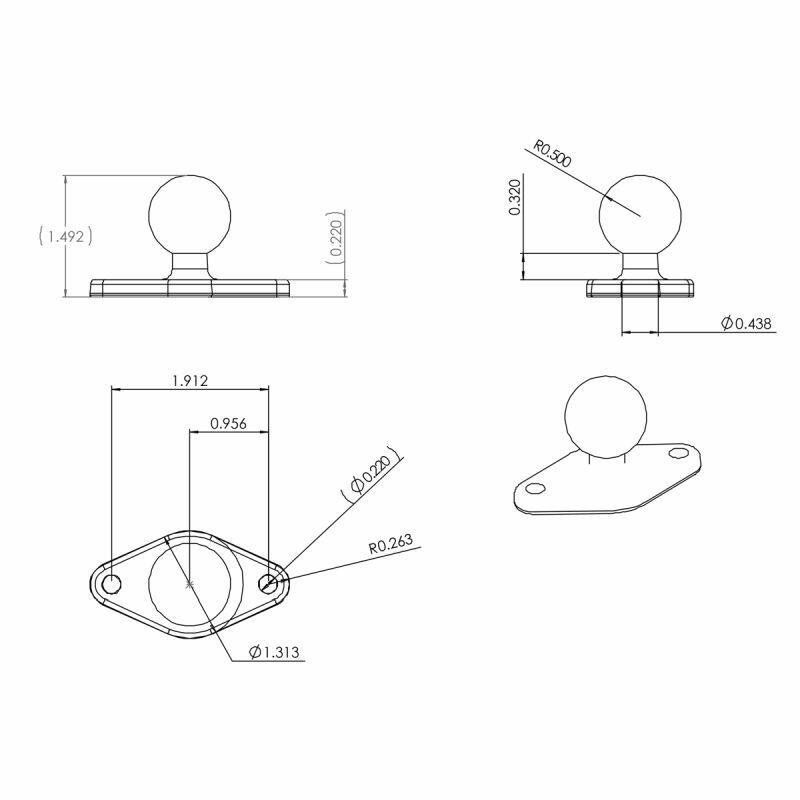

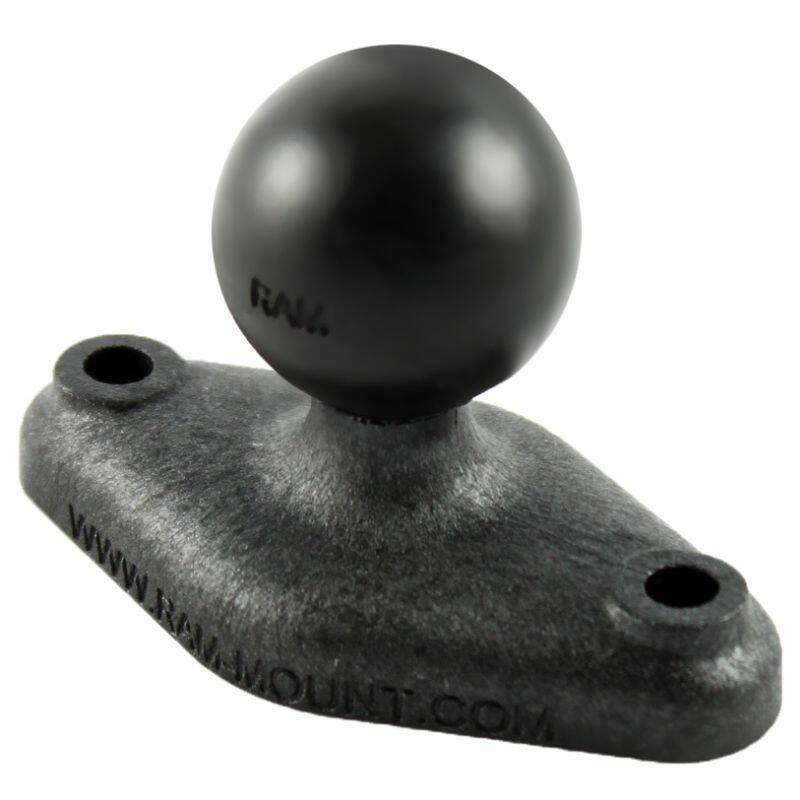

RAP-B-238U RAM 63 X 33mm BASE W/ BALL

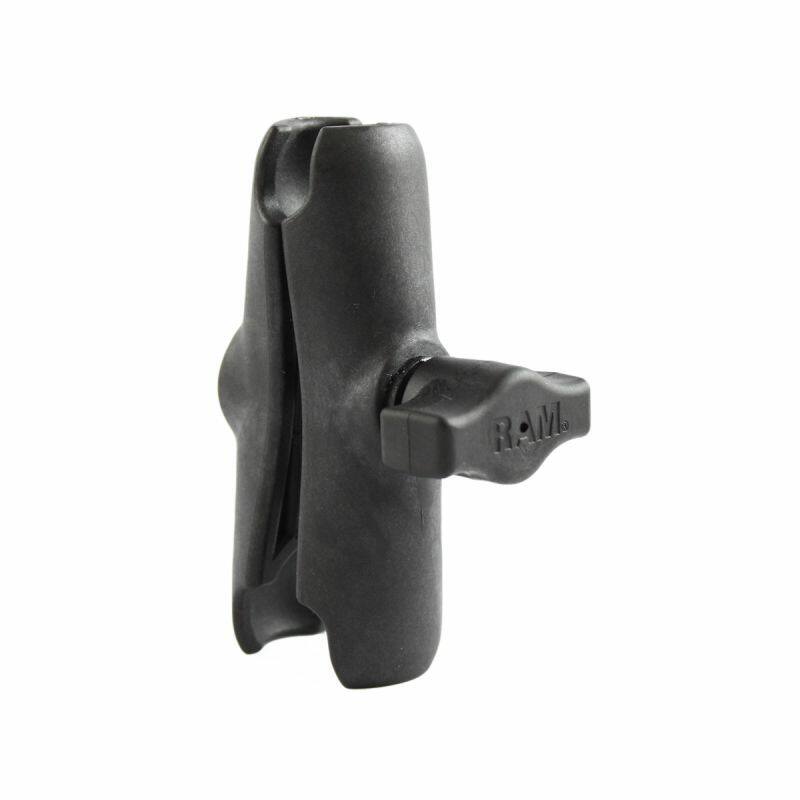

RAP-B-201U PLASTIC DBL SOCKET ARM B BALL
