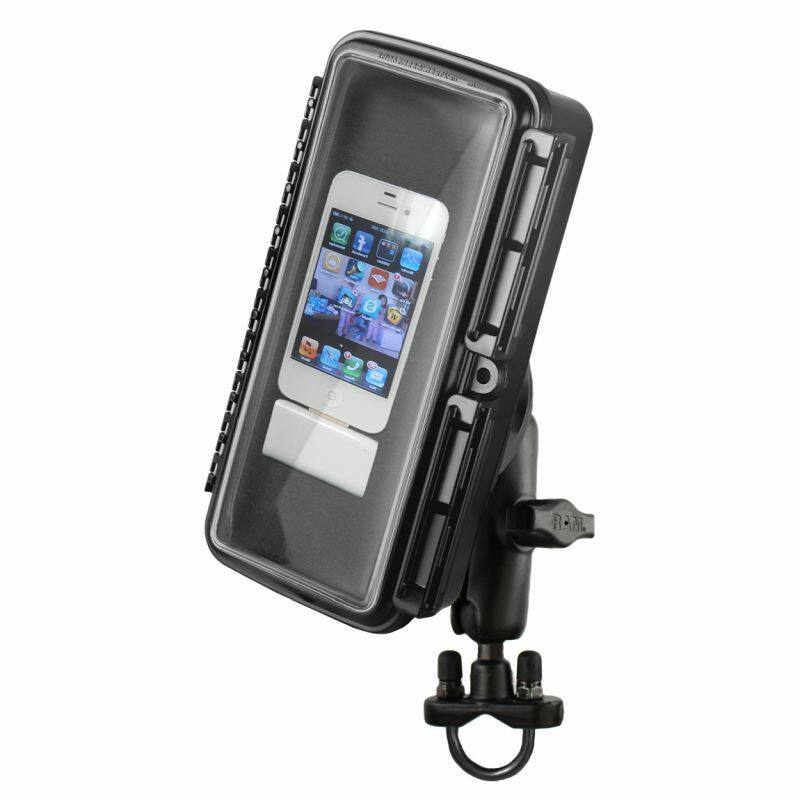

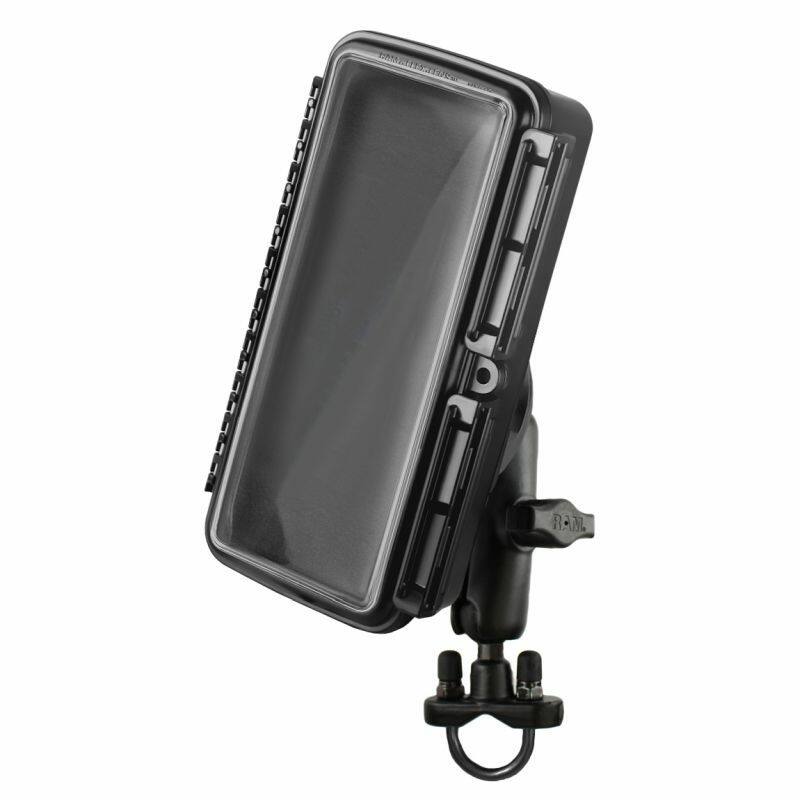

RAM-B-149Z-AQ1U RAM® Aqua Box® (Large) with Handlebar U-Bolt Mount
The RAM-B-149Z-AQ1U seals a large handheld device inside a weatherproof RAM® Aqua Box® with a touch-through Flex-Lens, mounted on a zinc-coated U-bolt base for rails 12.7mm to 31.8mm in diameter.
Key Features
Patented all-inclusive seal and Flex-Lens — touch through the lens to operate buttons

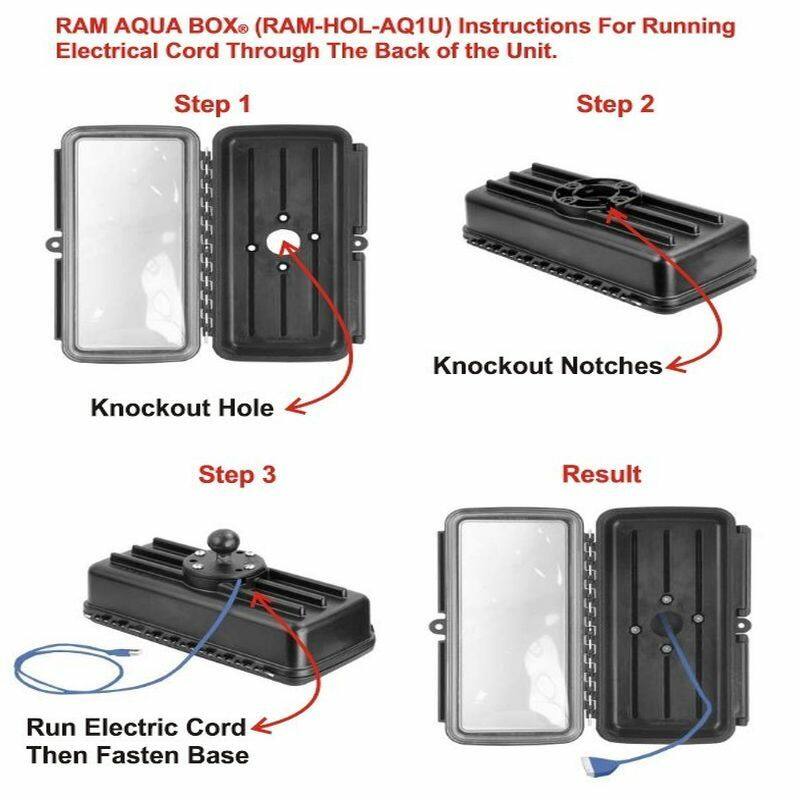

Power, earphone, and accessory cables route through a self-draining baffle to keep moisture out
Fits any RAM® mounting system — planes, motorcycles, boats, ATVs, bikes, and more
Locks with any standard mini padlock (lock not included)
All marine-grade construction including stainless steel hinge pin and hardware
Flex-Lens replaceable in seconds if scratched or damaged
Lifetime warranty on all components other than the Flex-Lens
Works With
Handlebars and rails 12.7mm to 31.8mm (0.5"-1.25") in diameter. Ideal for motorcycles and ATVs where devices need to stay safe, dry, and accessible.
Dimensions & Specifications

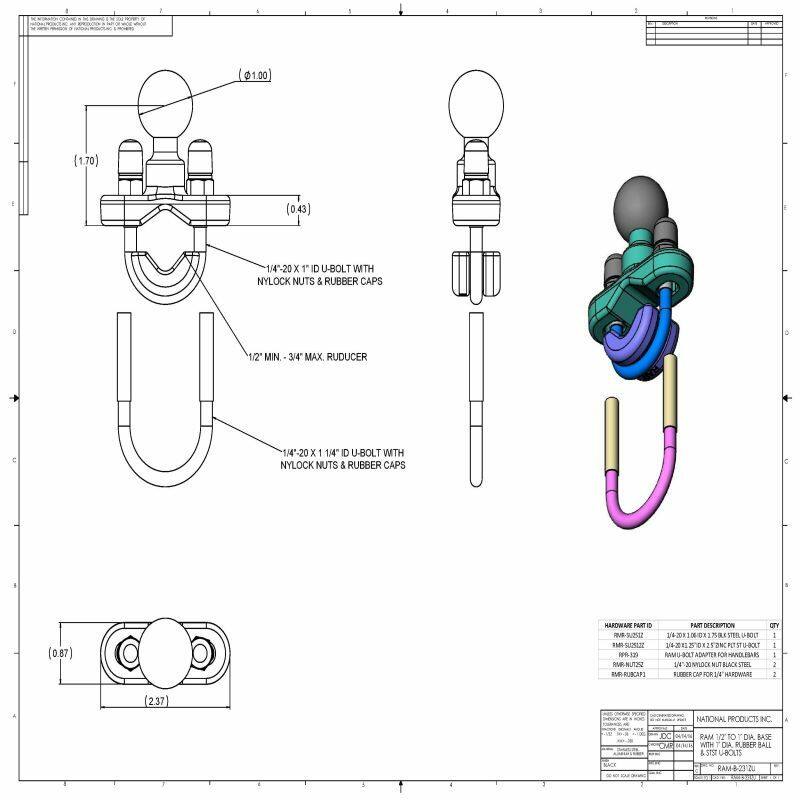

Rail diameter: 12.7mm–31.8mm (0.5"–1.25")
Internal dimensions: 88.9mm (W) x 214.1mm (H) x 57.2mm (D)
External dimensions: 114.3mm (W) x 222.3mm (H) x 76.2mm (D)

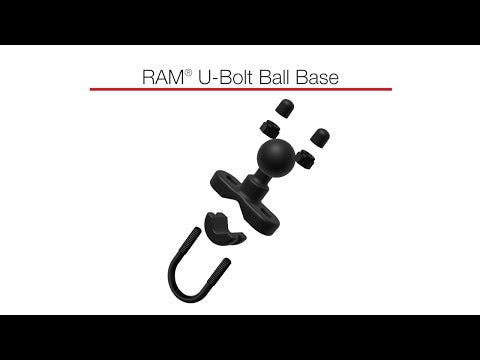

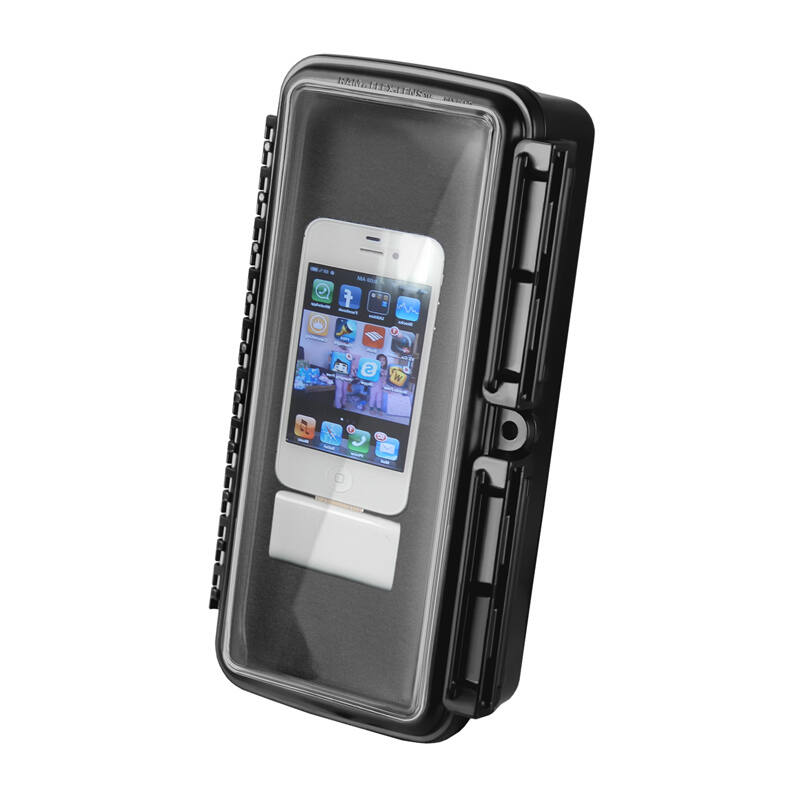

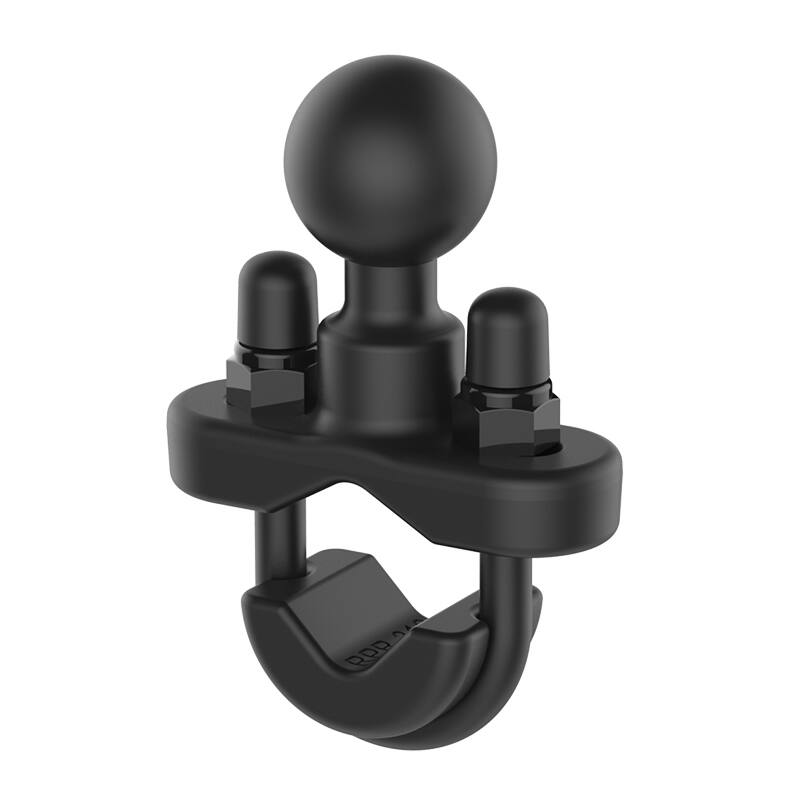

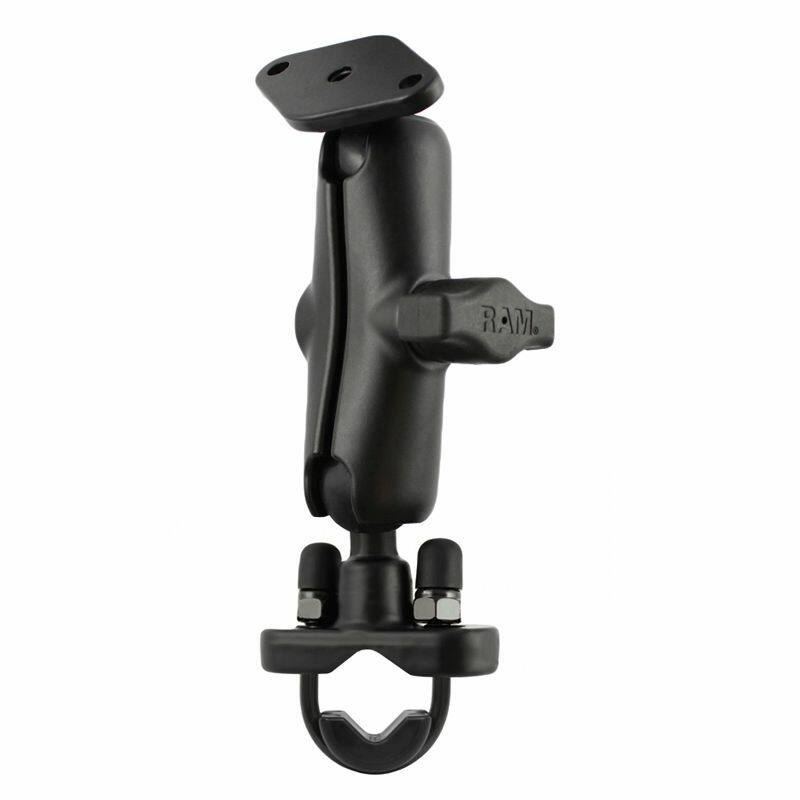

Components: RAM-B-201U double socket arm, RAM-B-202U 62mm round base with ball, RAM-B-231ZU rail base with U-bolt, RAM-HOL-AQ1U large Aqua Box.
FAQs
Is the padlock included? No — the Aqua Box accepts any standard mini padlock, sold separately.
