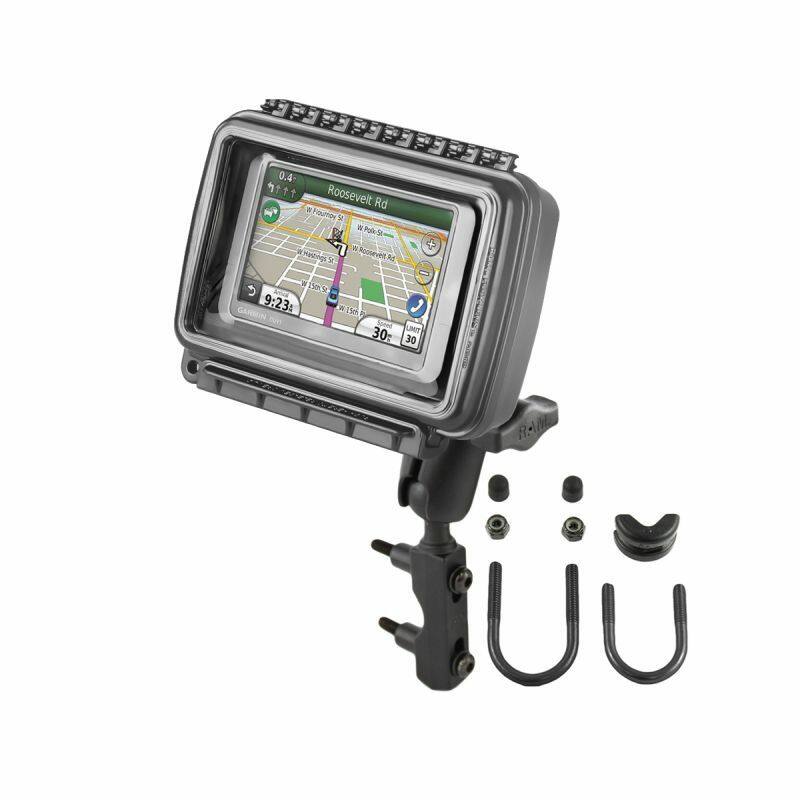

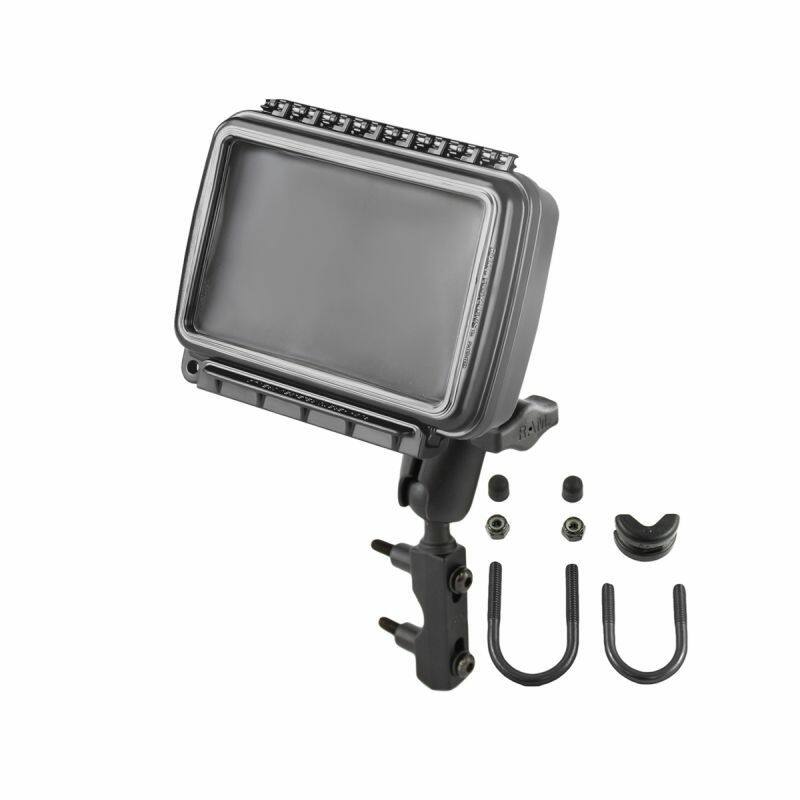

RAM-B-174-AQ6U RAM Aqua Box® with Brake/Clutch Reservoir Mount for Medium Wide Devices
Features:
* RAM® AQUA BOX provides sealed enclosure and protection for your hand held devices
* Full access to all ports
* Kit contains both reservoir and handlebar U-Bolt mounting options
* Includes medium length RAM double socket arm
* High strength composite and Marine-grade aluminium construction ensures product longevity
* Lifetime warranty
This system consists of hardware for mounting to either brake/clutch reservoirs and rails that are 12.7mm to 31.75mm (0.5" to 1.25") in diameter, double socket and sealed enclosed medium/wide size AQUA BOX®. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob, allows you to move the Aqua-Box mount to your optimum viewing position.

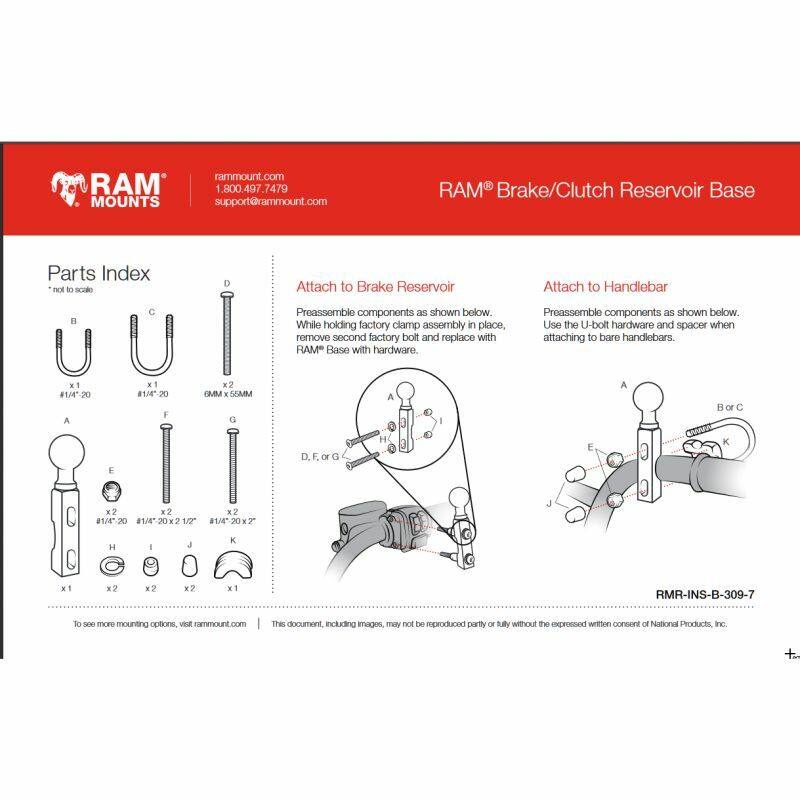

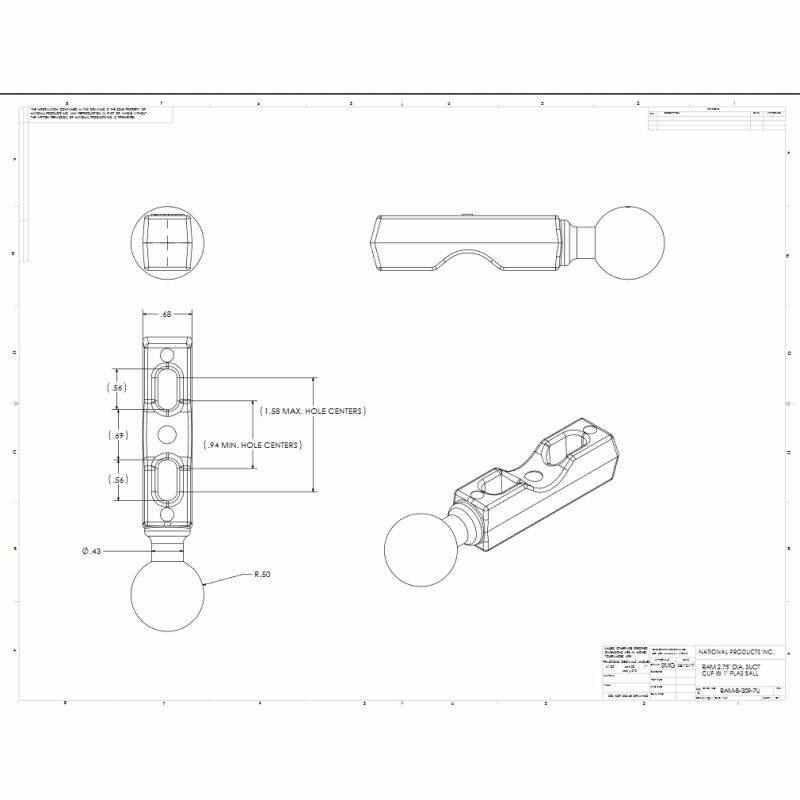

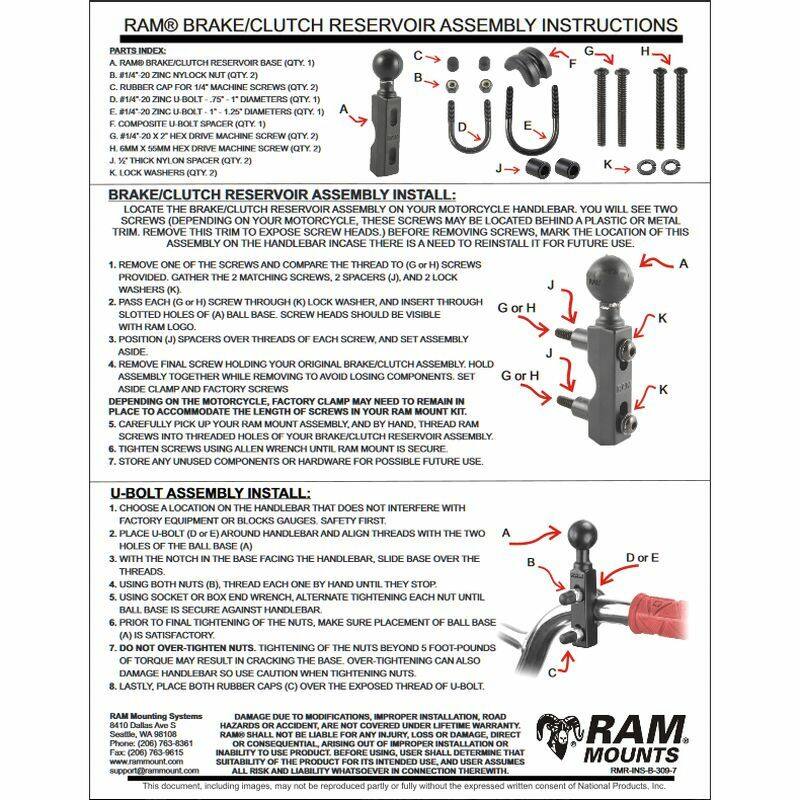

The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. To see if this will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centres have a minimum width of 23.9mm / 0.94" and a maximum of 40.1mm / 1.58".

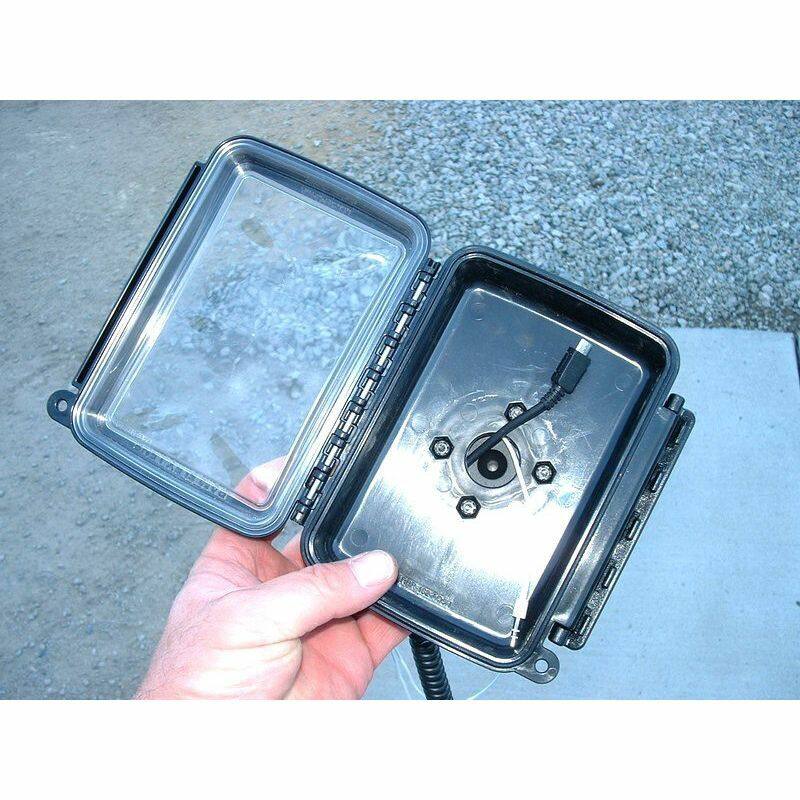

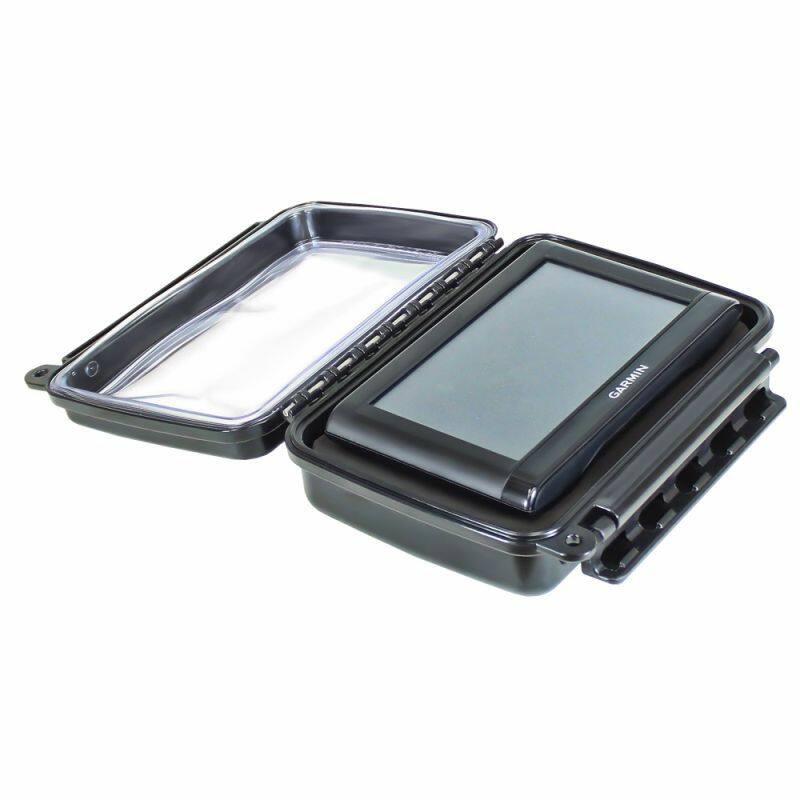

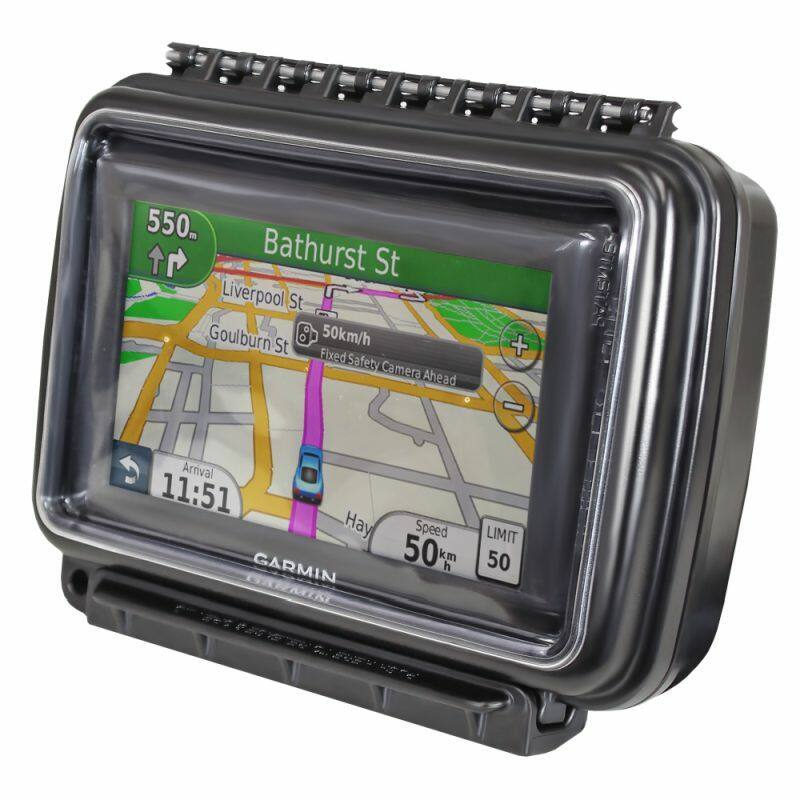

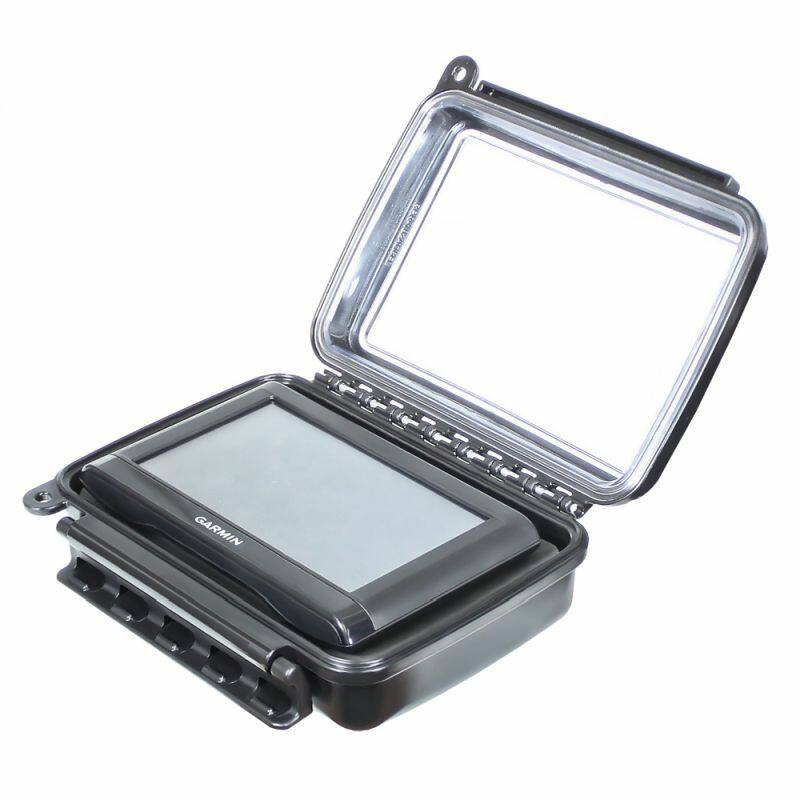

RAM AQUA BOX cases provide sealed enclosure and protection for your hand held devices. The clear, touch through screen allows you to view your electronics as well as use their function keys while in place. There is even a place for a small lock to serve as a theft deterrent. The AMPS hole pattern on the back of the box allows this enclosure to be attached to a multitude of RAM mounting bases and kits. Ideally suited to Motorcycles and ATVs, keep your portable devices safe, dry, and accessible.
Compatible Devices

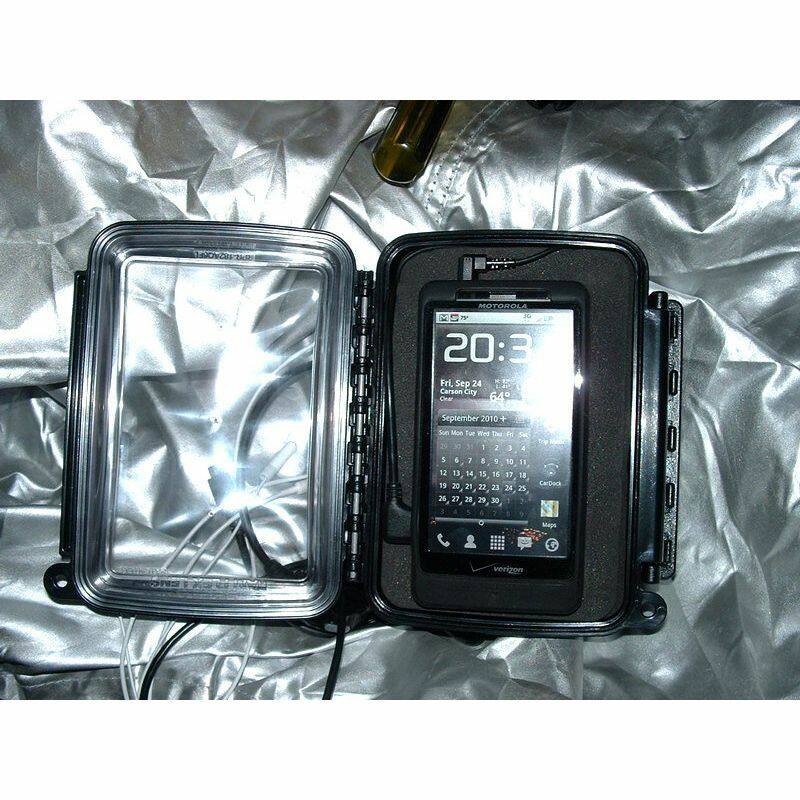

Most Cell Phones (check dimensions below)

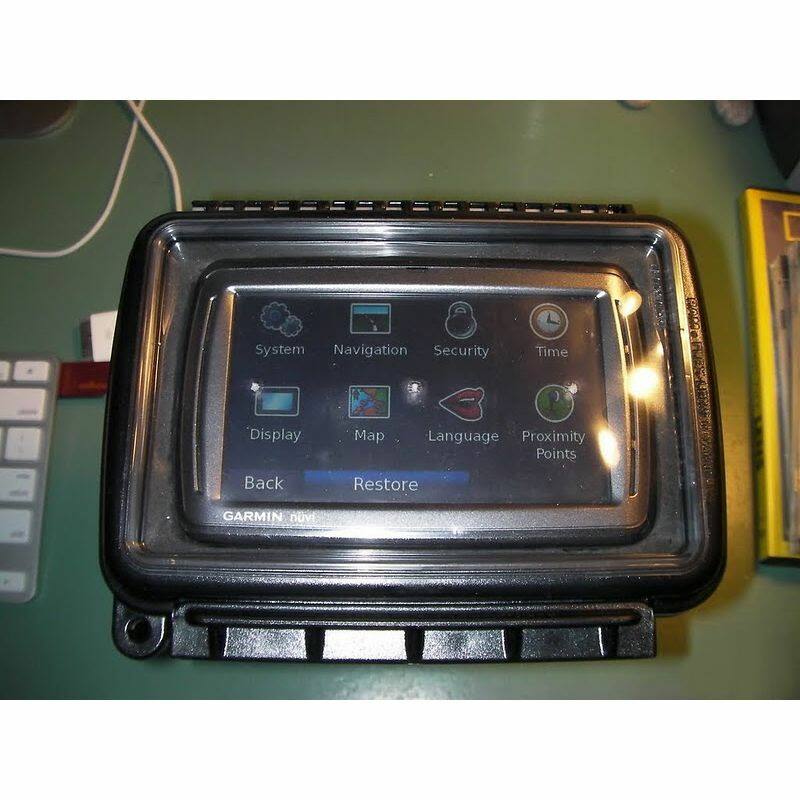

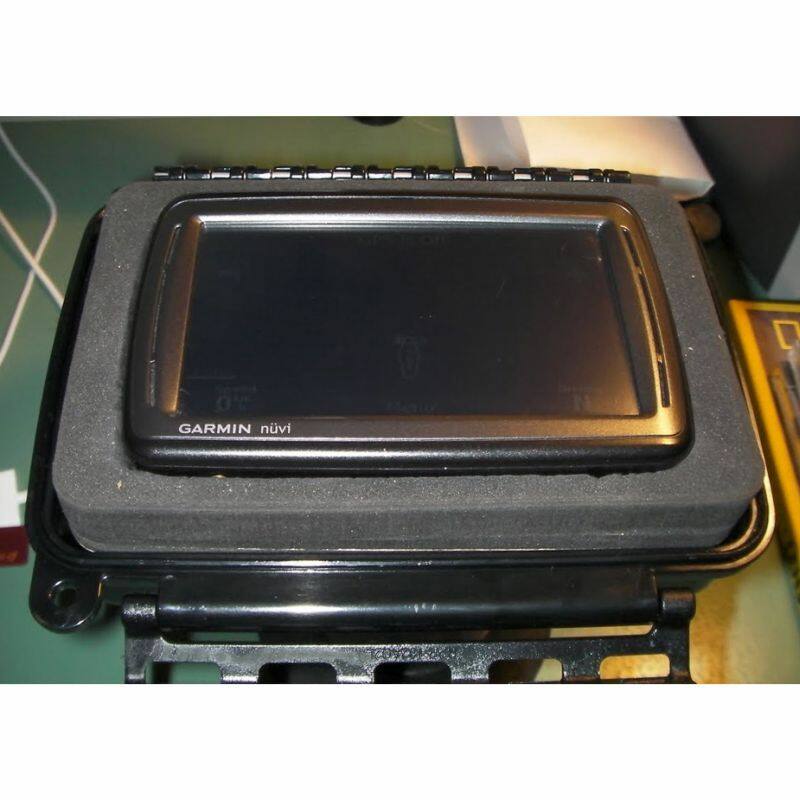

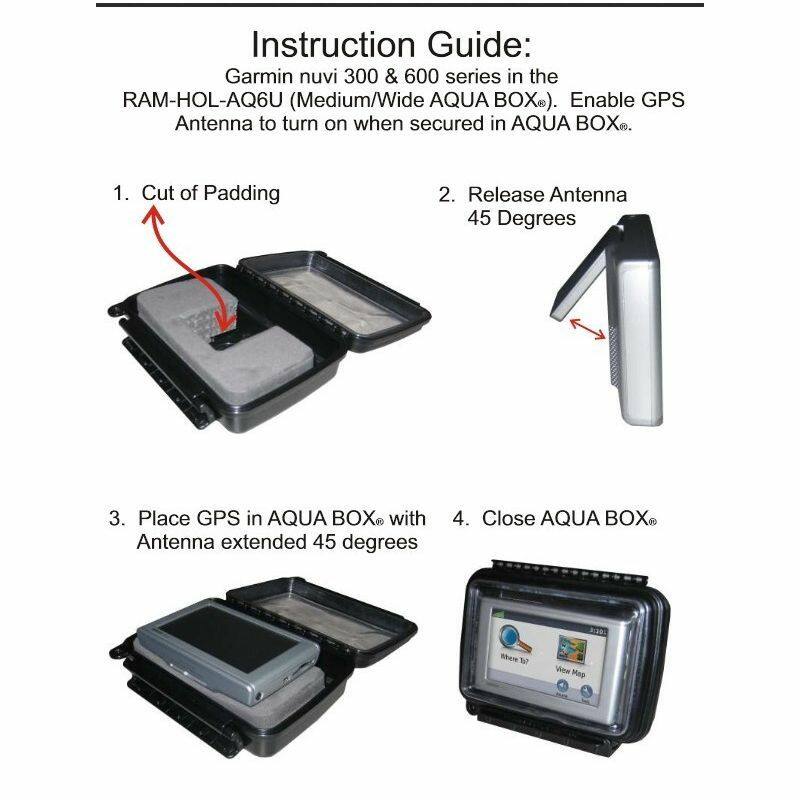

Most Small Garmin Nuvi Devices
Aqua-Box Dimensions
Internal:
W 152mm (6"), H 101mm (4"), D 44mm
External Dimensions:
W 165mm, H 133mm, D 51mm
Ball Size:
1" Rubber Ball "B" Size
Weight:
408 grams (0.9 lbs.)
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Components:

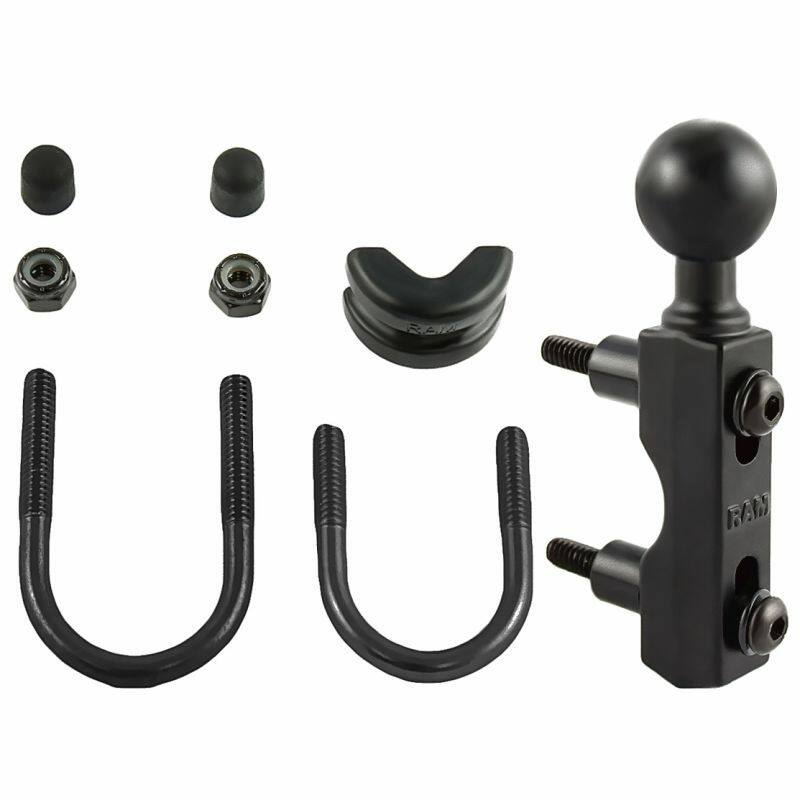

RAM-B-309-7U Combination Base for Handlebar or Brake/Clutch Reservoir with 1" Ball

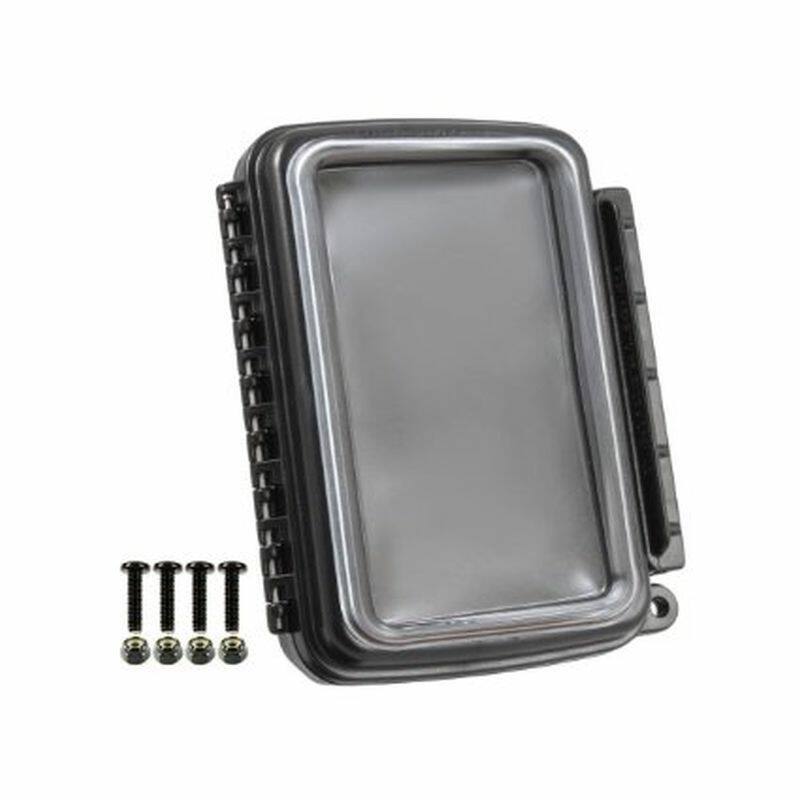

RAM-HOL-AQ6U Aqua-Box
RAM-B-201U double socket arm
