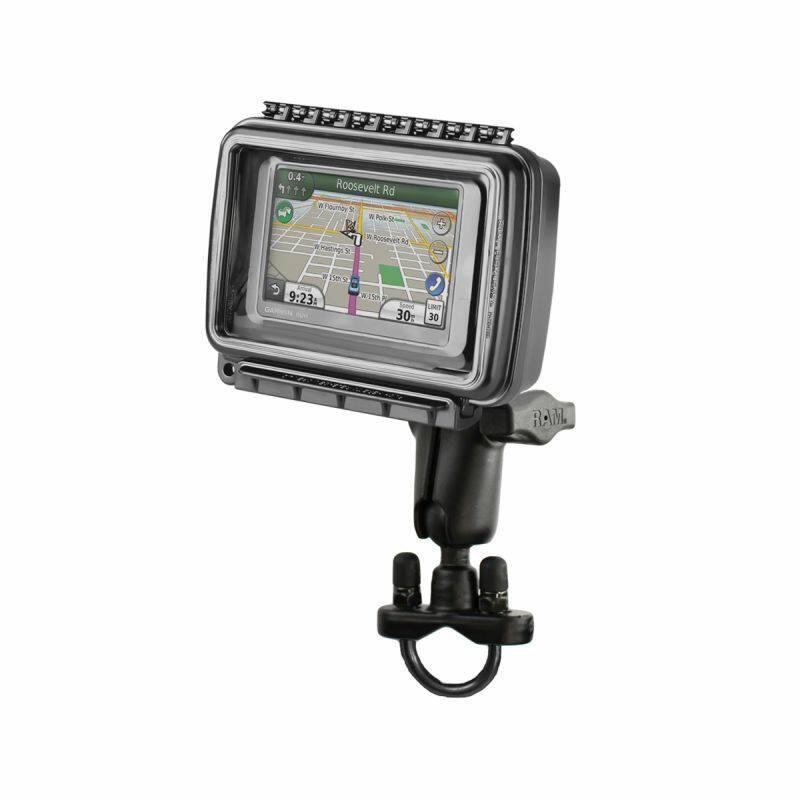

RAM-B-149Z-AQ6U RAM Handlebar U-Bolt Mount with Sealed Enclosure Medium/Wide Size Aqua Box
Features
* Enclosure for devices with unique, patented all inclusive seal and Flex-Lens. This is really cool stuff!
* Touch through lens to operate buttons.

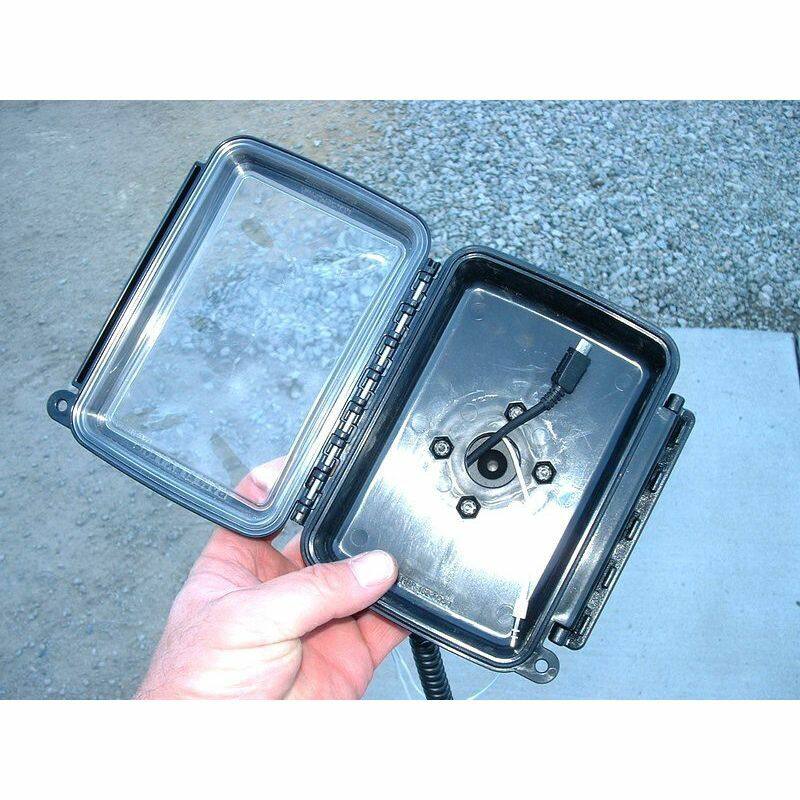

* Power, earphone and accessory cables are routed through a patented, self draining baffle design to keep moisture out.
* Easily locks with any standard mini padlock.
* Zinc-coated metal U-bolt base with 1" rubber ball is designed to sit at right angles to mounting rail and Fits bars 12.7 - 32mm diameter
* All marine grade construction including High Strength Composite and stainless steel hinge pin and mounting hardware for long life in real weather conditions

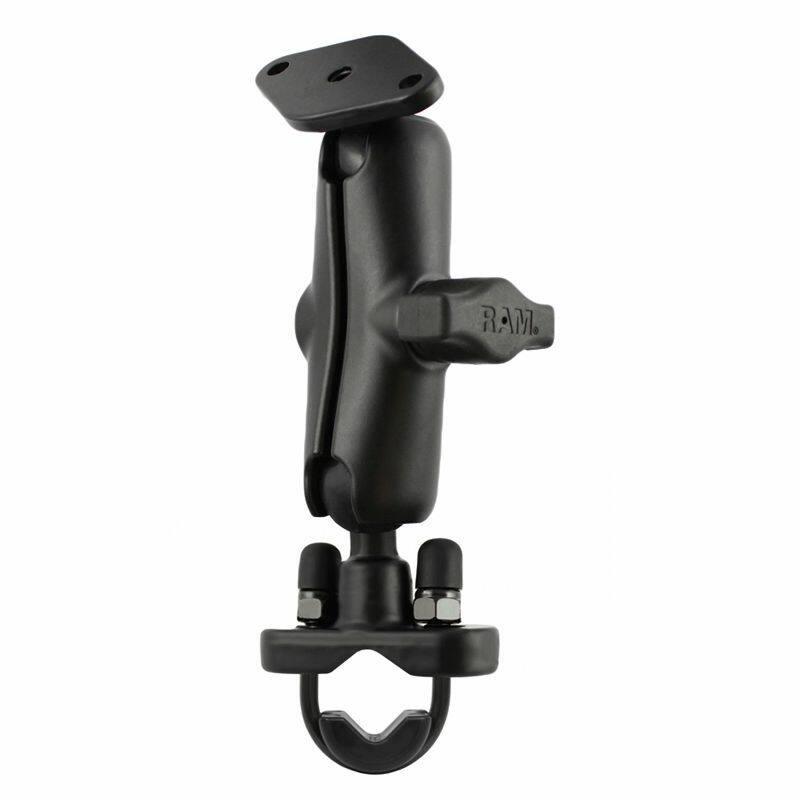

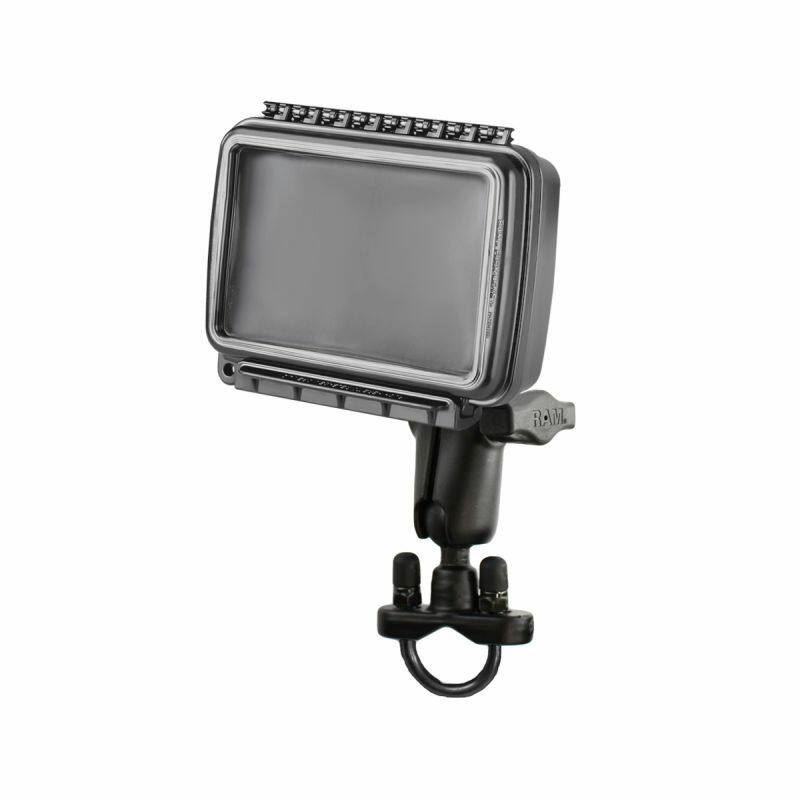

This consists of a zinc coated u-bolt base, double socket arm, round adapter base and sealed enclosed large size AQUA BOX®. The mount is designed for almost infinite adjustment and perfect viewing angles.
This will accommodate rails from 1.27cm to 3.18cm (0.50" to 1.25") in diameter.

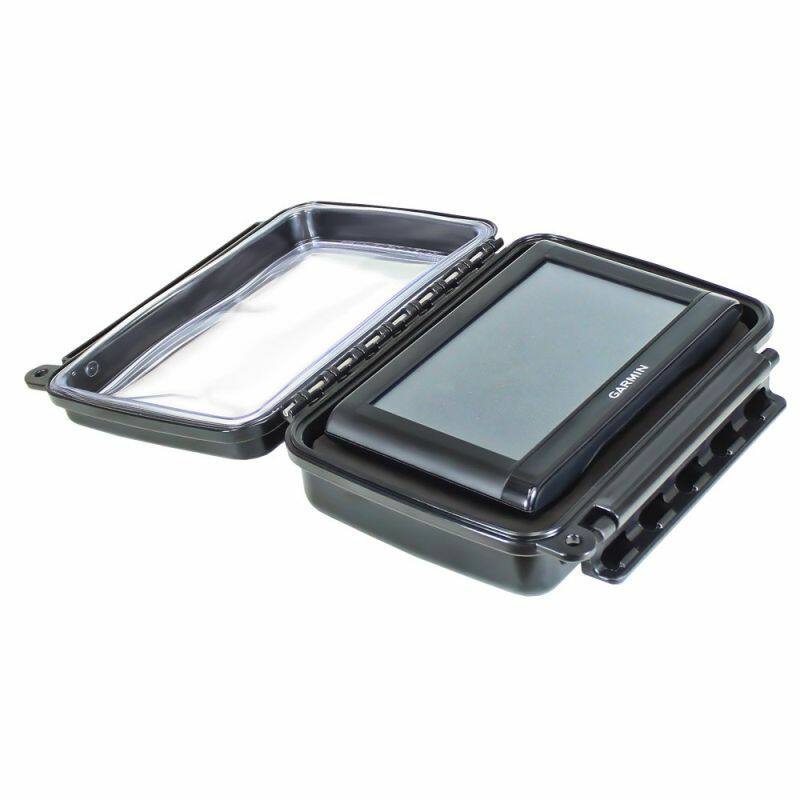

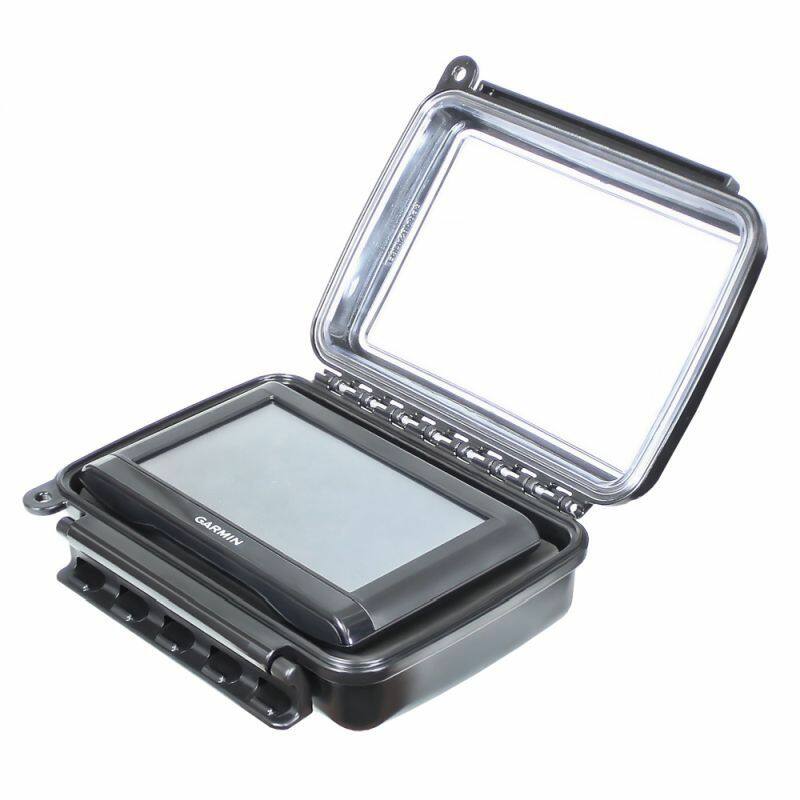

RAM AQUA BOX cases provide sealed enclosure and protection for your hand held devices. The clear, touch through screen allows you to view your electronics as well as use their function keys while in place. There is even a place for a small lock to serve as a theft deterrent. The AMPS hole pattern on the back of the box allows this enclosure to be attached to a multitude of RAM mounting bases and kits. Ideally suited to Motorcycles and ATVs, keep your portable devices safe, dry, and accessible.
Compatible Devices

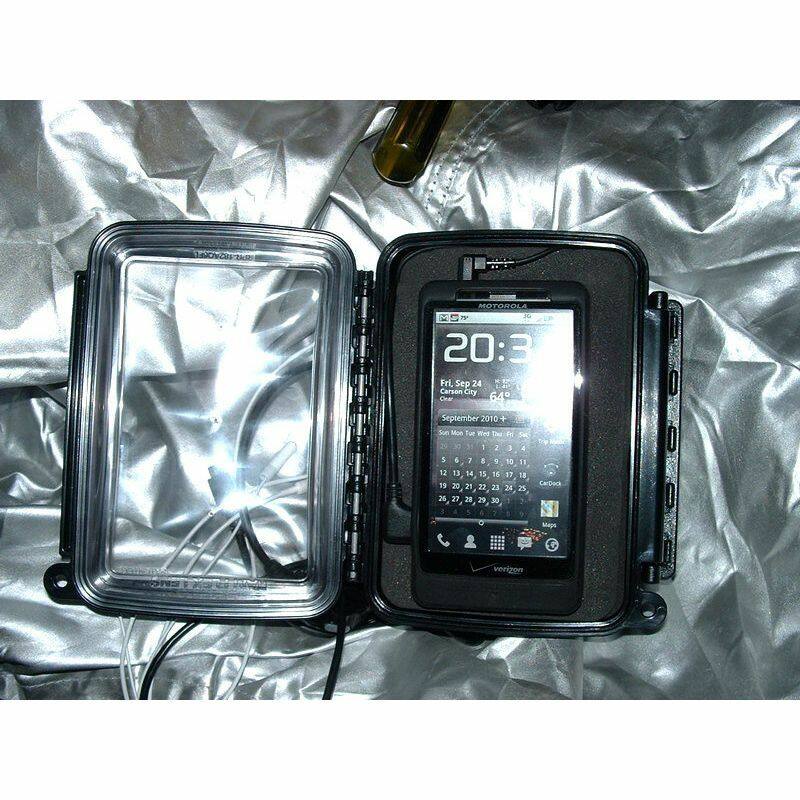

Most Cell Phones (check dimensions below)

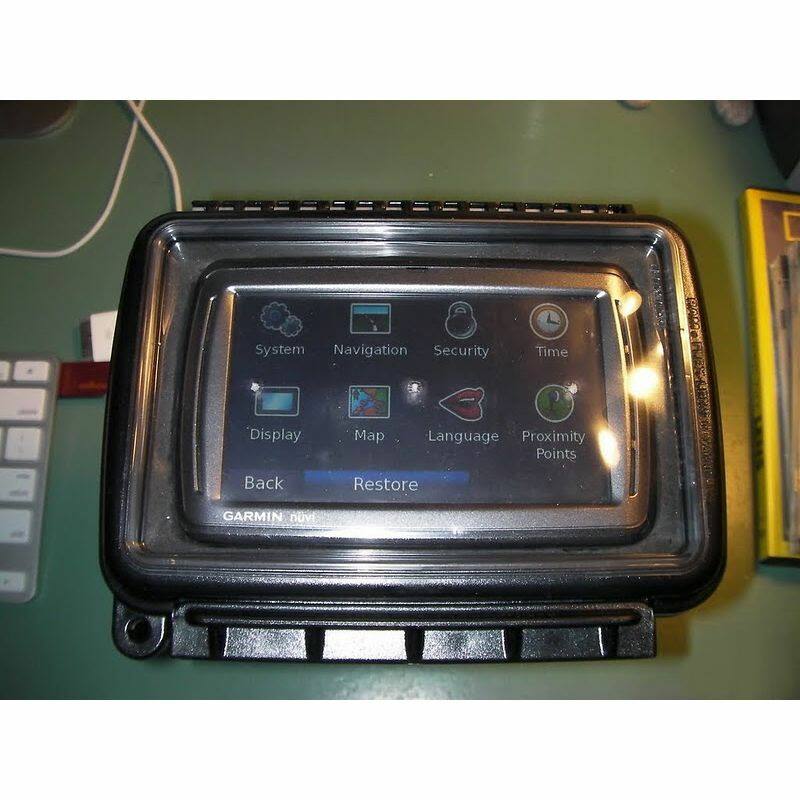

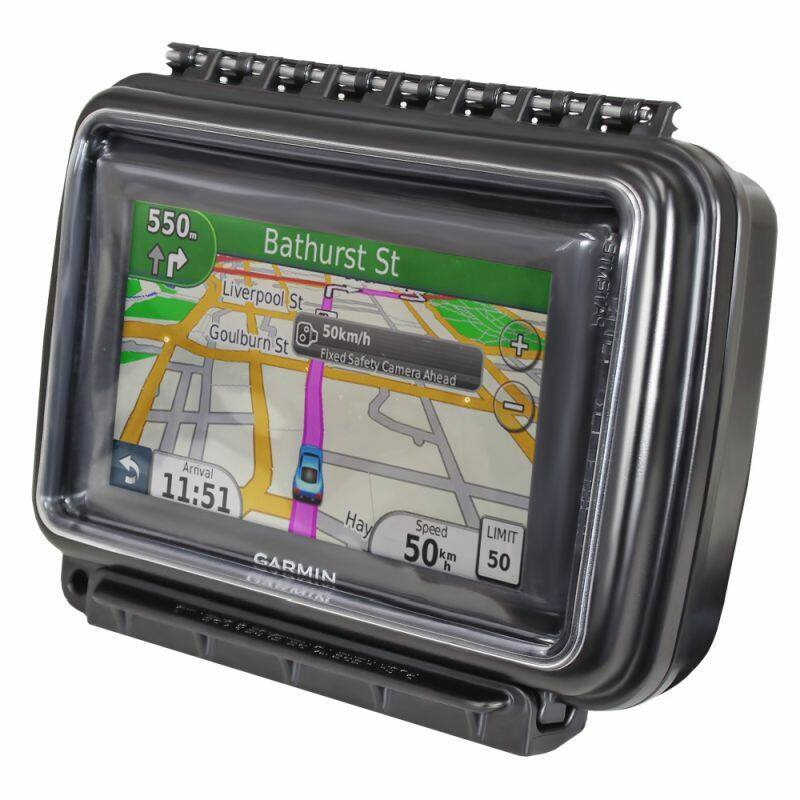

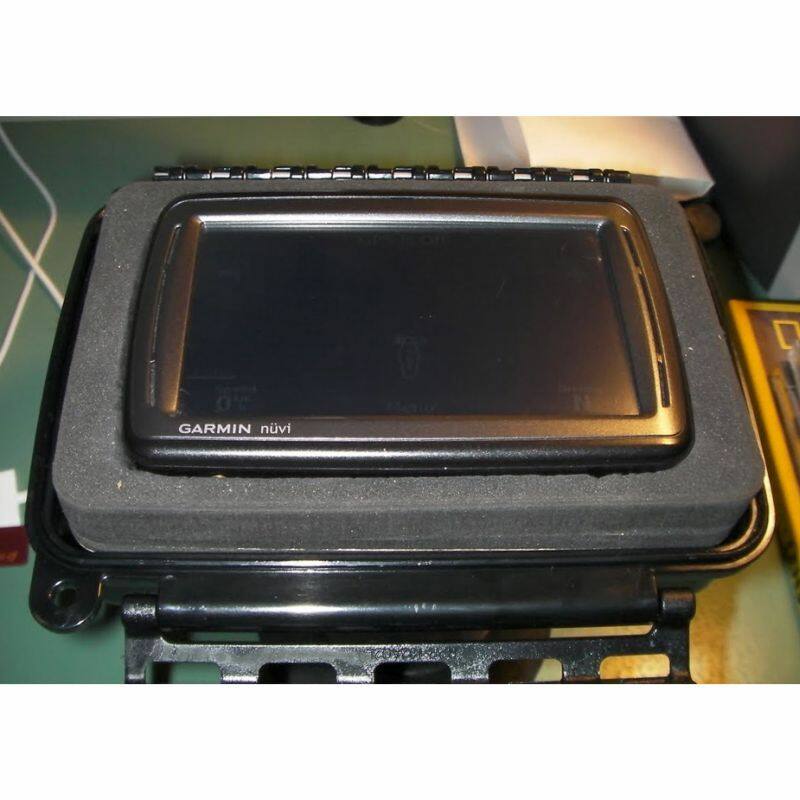

Most Small Garmin Nuvi Devices
Specifications/Features
Internal Dimensions:
Width = 152mm (6"), Height = 101mm (4"), Depth = 44mm
External Dimensions:
Width = 165mm, Height = 133mm, Depth = 51mm
Material:
High Strength Composite
Note:
The keyed-lock is not included with the purchase of this product.
Weight:
290 grams
YouTube:
https://www.youtube.com/watch?v=S8ky_uKTw98
Components:
RAM-B-201U UNPKD RAM DOUBLE SOCKET ARM FOR 1" BALL

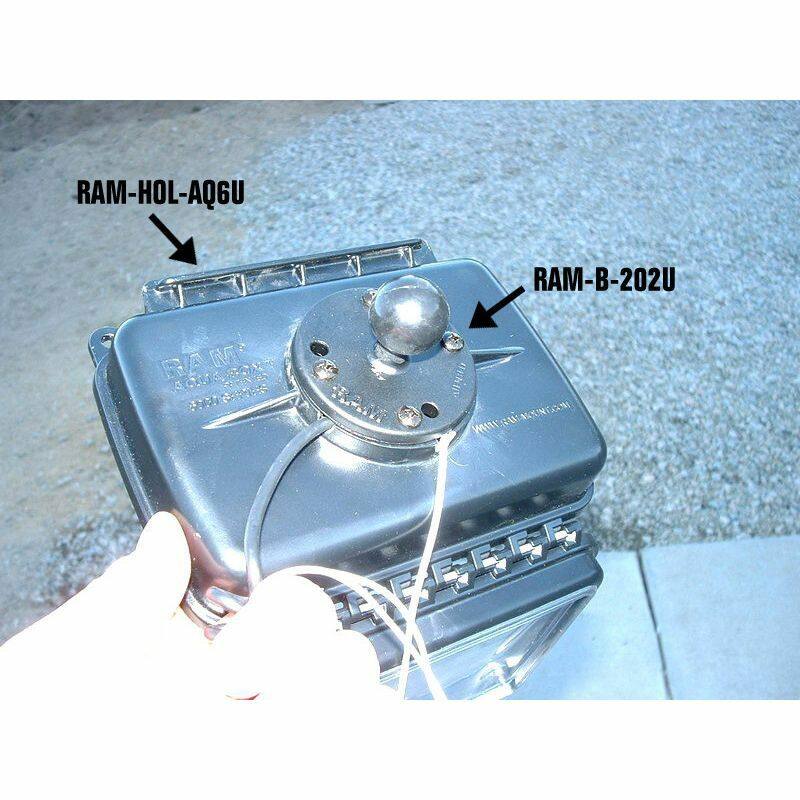

RAM-B-202U UNPKD. RAM 62mm DIA.BASE WITH 1" BALL

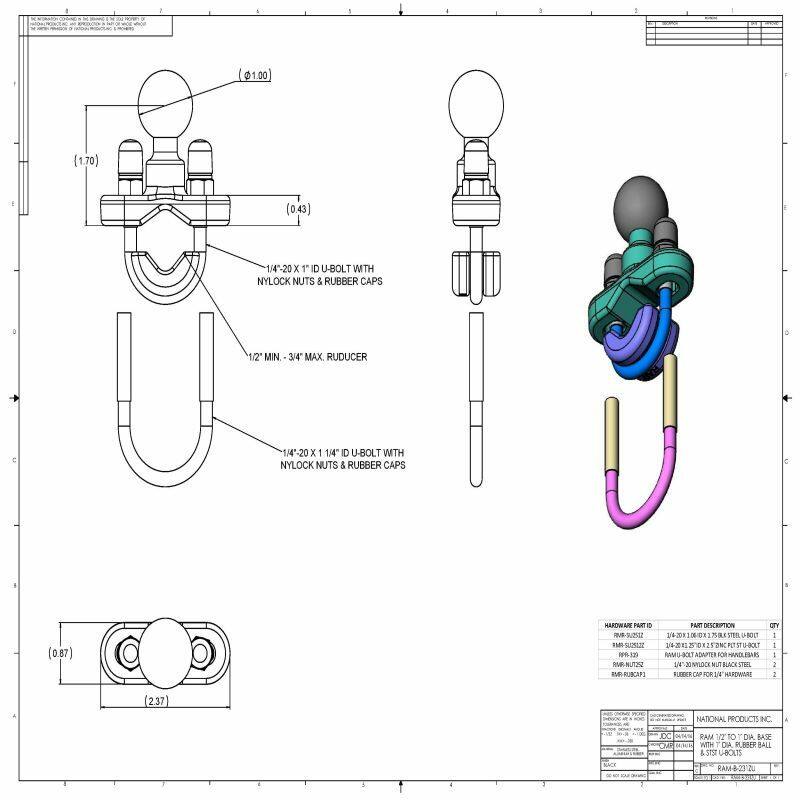

RAM-B-231ZU RAM RAIL BASE W/ U-BOLT FOR 13 - 32MM BARS

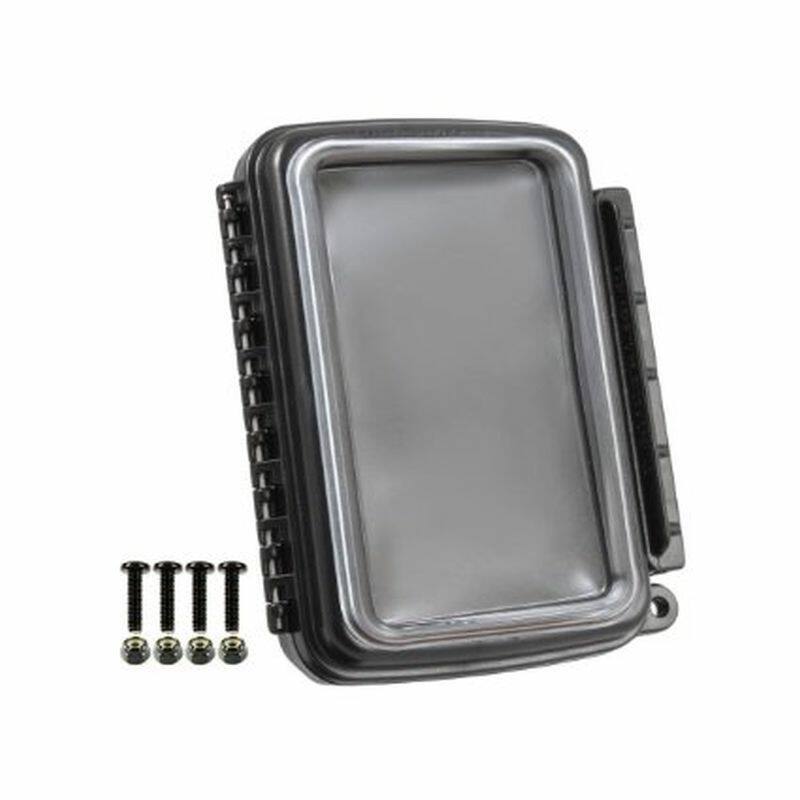

RAM-HOL-AQ6U medium/wide LARGE AQUA BOX
