RAM-B-174-AQ2U Brake/Clutch Reservoir / U-Bolt Combination mount with Sealed Enclosure Medium Size Aqua Box®
Features:
* RAM® AQUA BOX provides sealed enclosure and protection for your hand held devices
* Full access to all ports
* Kit contains both reservoir and handlebar U-Bolt mounting options
* Includes medium length RAM double socket arm
* High strength composite and Marine-grade aluminium construction ensures product longevity
* Lifetime warranty

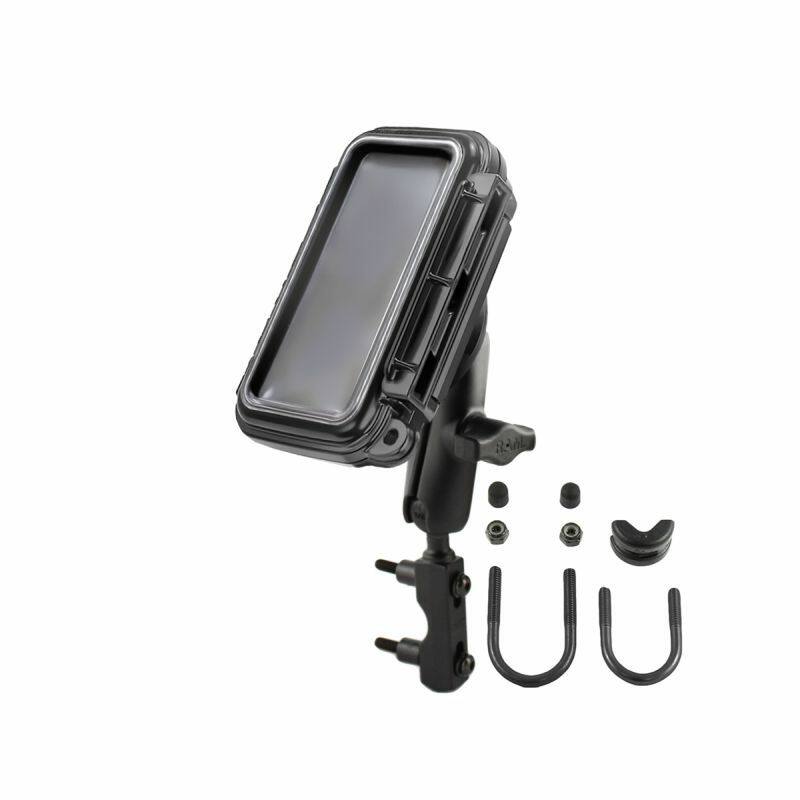

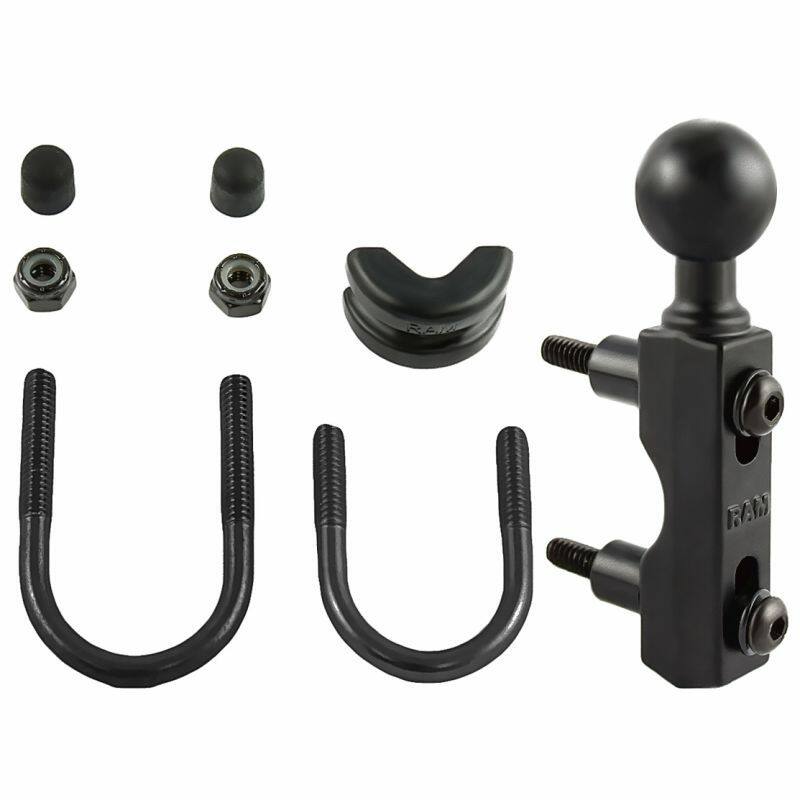

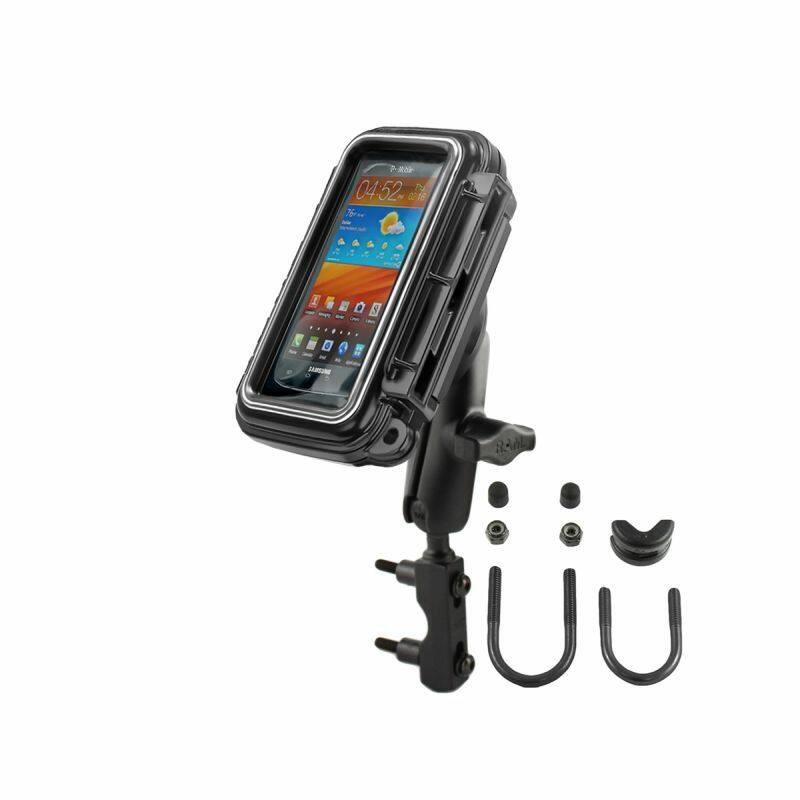

This consists of a hardware for mounting to both brake/clutch reservoirs and rails, 94mm double socket arm, round base and sealed enclosed medium size AQUA BOX®. The RAM 1" diameter patented rubber ball and socket system allows for almost infinite adjustment and perfect viewing angles.

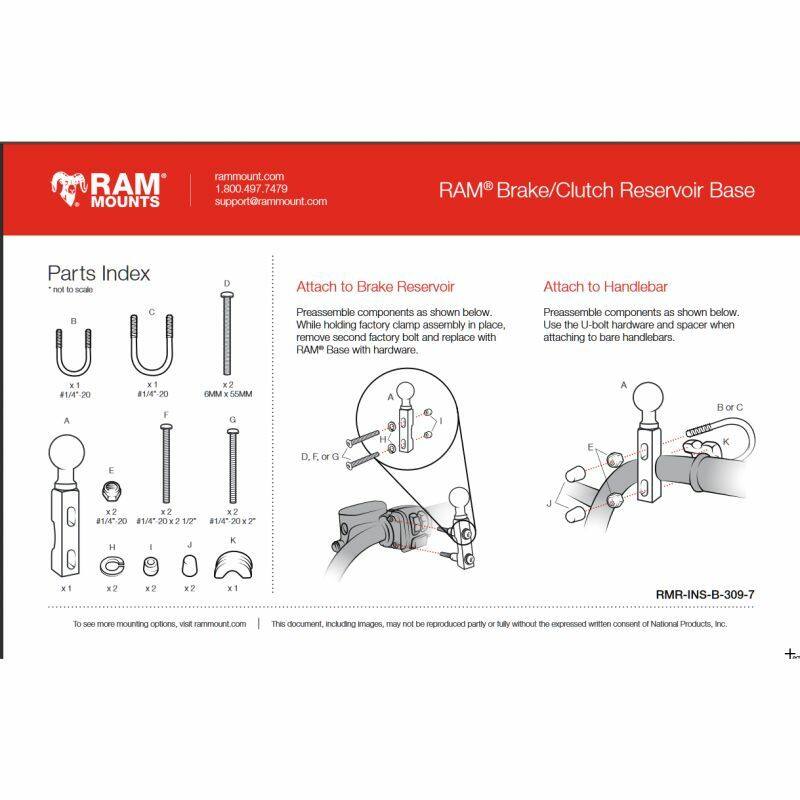

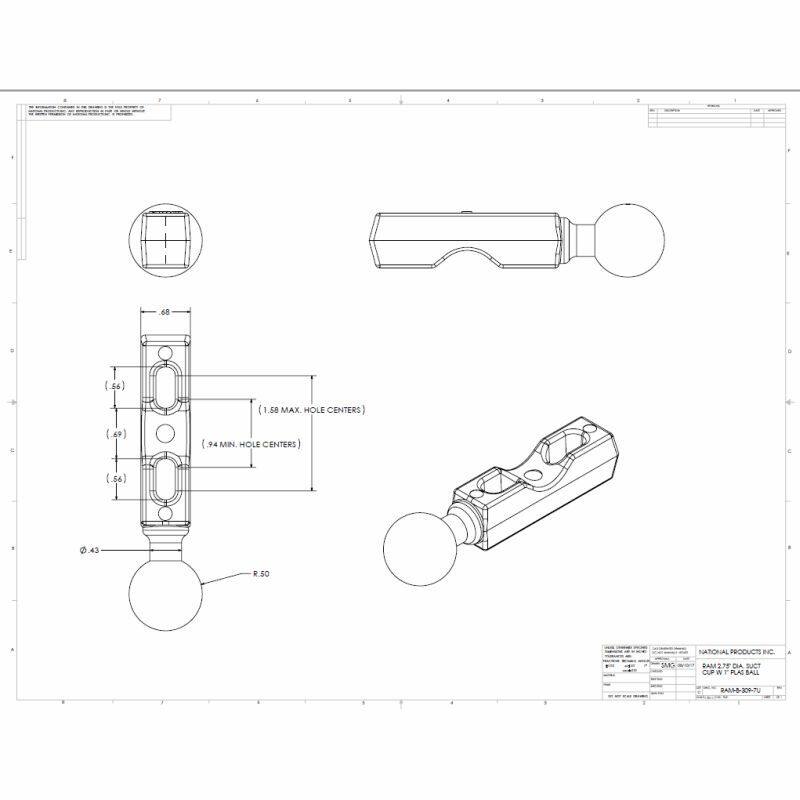

This can mount to both the brake/clutch reservoir or any round rail that is 0.5" to 1.25" (12.7 to 31.7mm) in diameter. To see if the base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The hole centres have a minimum width of 0.94" (23.8mm) and a maximum of 1.58" (40.1mm).

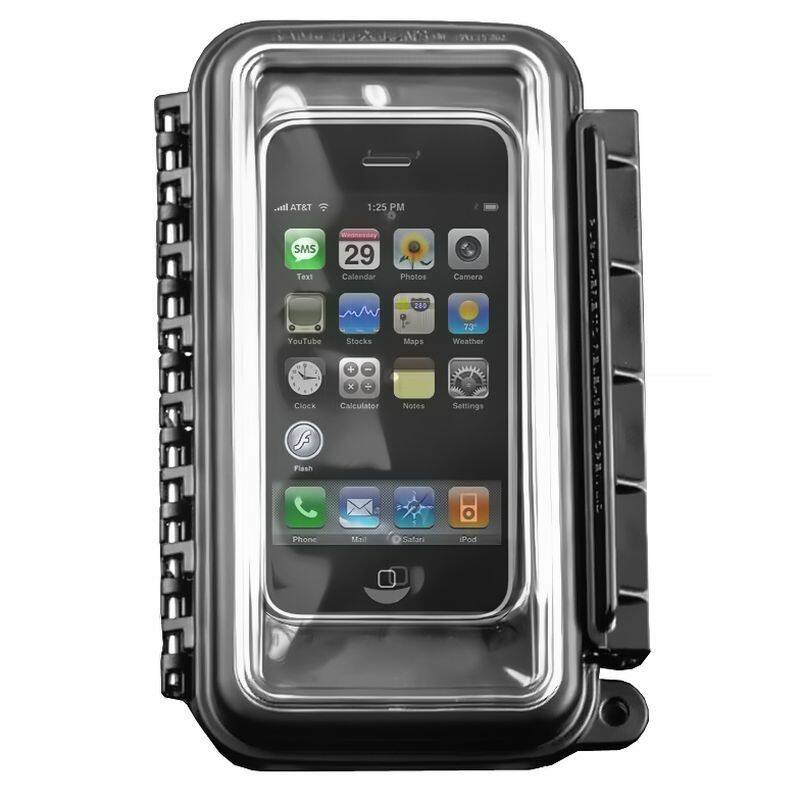

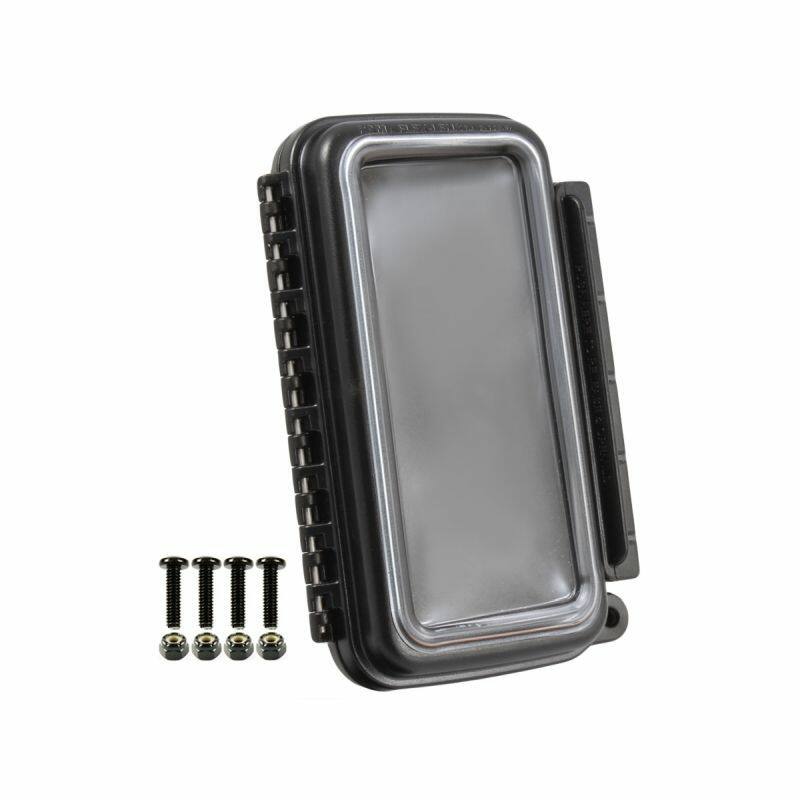

The RAM-HOL-AQ2U AQUA BOX® case provides sealed enclosure and protection for your handheld devices. The clear, touch through screen allows you to view your electronics as well as use their function keys while in place. Power, earphone and accessory cables are routed through a patented, self draining baffle design to keep moisture out. There is even a place for a standard mini padlock to serve as a theft deterrent. Flex-Lens may be replaced in seconds if scratched or damaged. (inexpensive)
AQUA BOX® Dimensions:
Internal
w7.32cm x H14.61cm x D3.02cm (2.88" x 5.75" x 1.188")
External
W10.16cm x H16.51cm x D5.08cm (4" x 6.5" x 2")
Compatible Devices
Most Cell Phones and GPS units that fit the internal dimensions above (most iPhones, Galaxy and other models)
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Round Base:
RAM-B-202U
YouTube:
https://www.youtube.com/watch?v=p3MnpfxCONI
