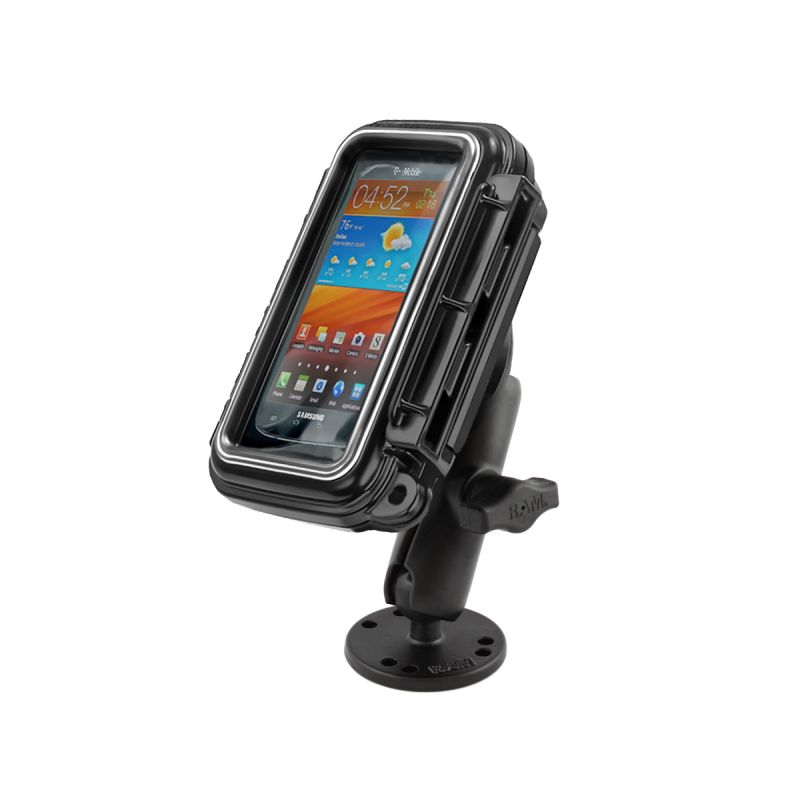

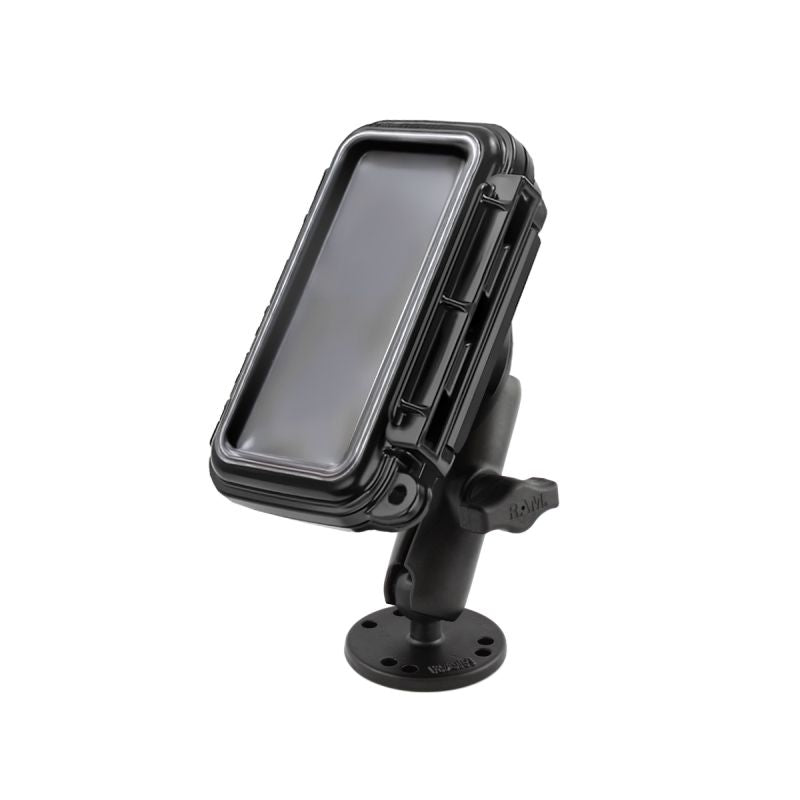

RAM-B-138-AQ2U Flat Surface Mount with Sealed Enclosure Medium Size Aqua Box®
Features
* Enclosure for devices with unique, patented all inclusive seal and Flex-Lens. This is really cool stuff!
* Touch through lens to operate buttons.
* Power, earphone and accessory cables are routed through a patented, self draining baffle design to keep moisture out.
* Easily locks with any standard mini padlock.
* 63mm round plate features 4 and 3 hole AMPs patterns
* Included B size RAM® double socket arm with ball and socket technology allows for near-infinite adjustability
* All marine grade construction including Powder Coated Marine Grade Aluminium, High Strength Composite and stainless steel hinge pin and mounting hardware for long life in real weather conditions

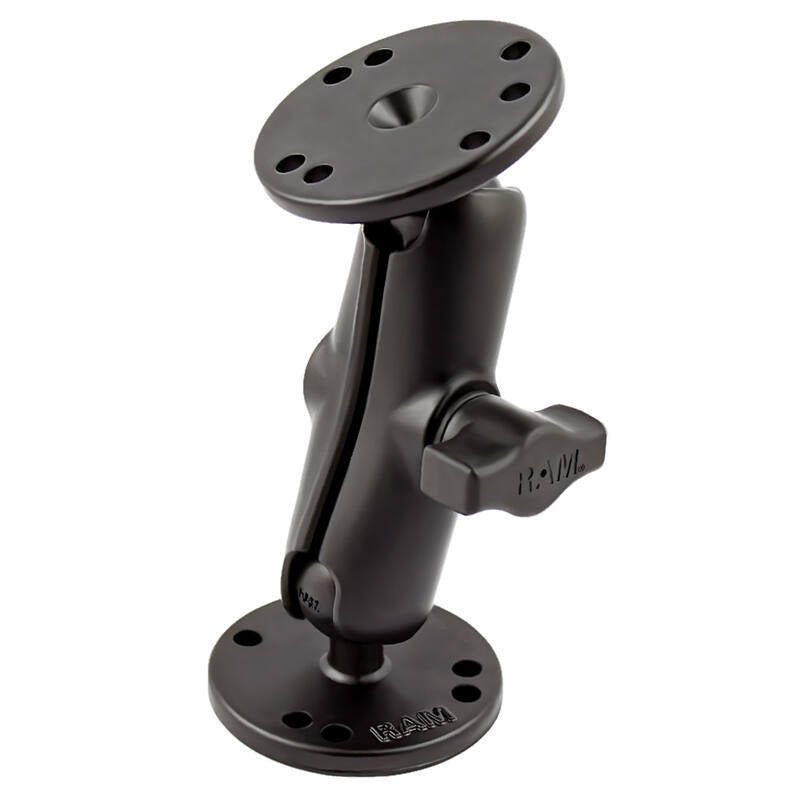

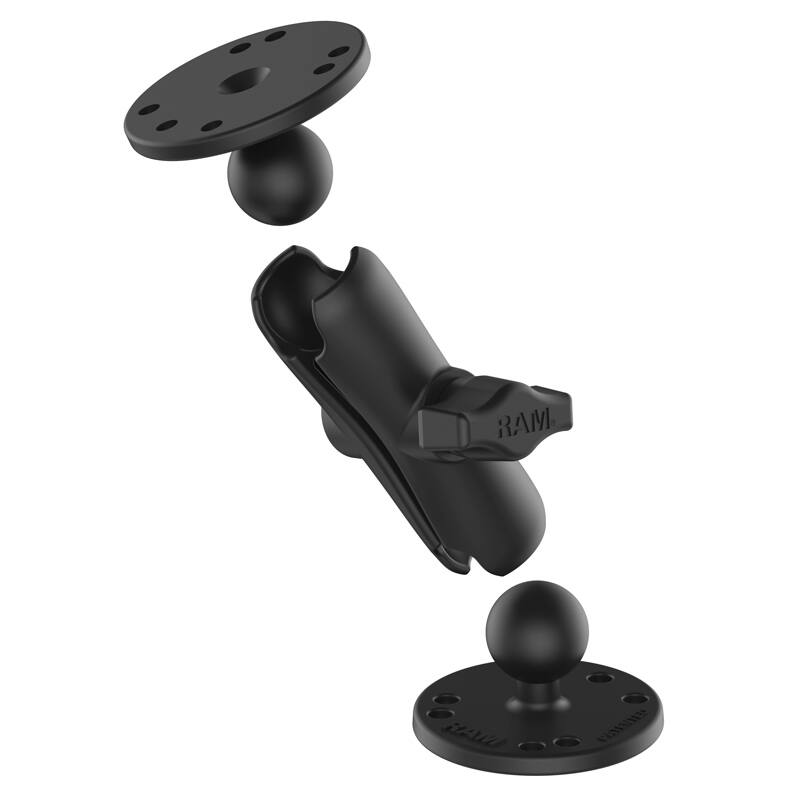

The RAM-B-138-AQ2U consists of a double socket arm, two 2.5" diameter round bases with the universal AMPS hole pattern and sealed enclosed medium size AQUA BOX®. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

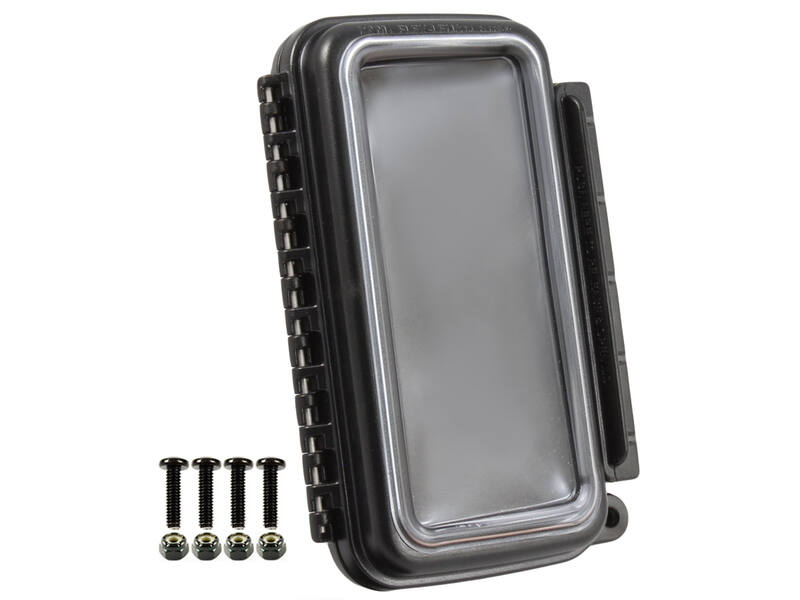

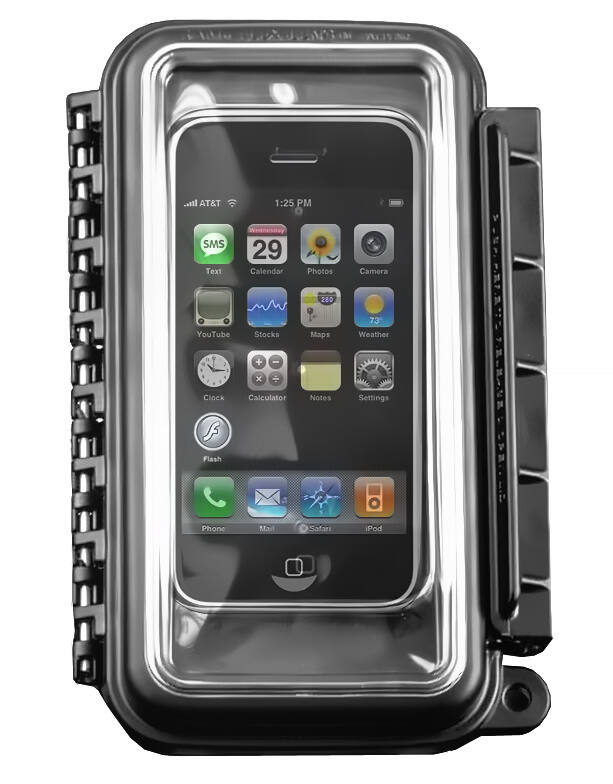

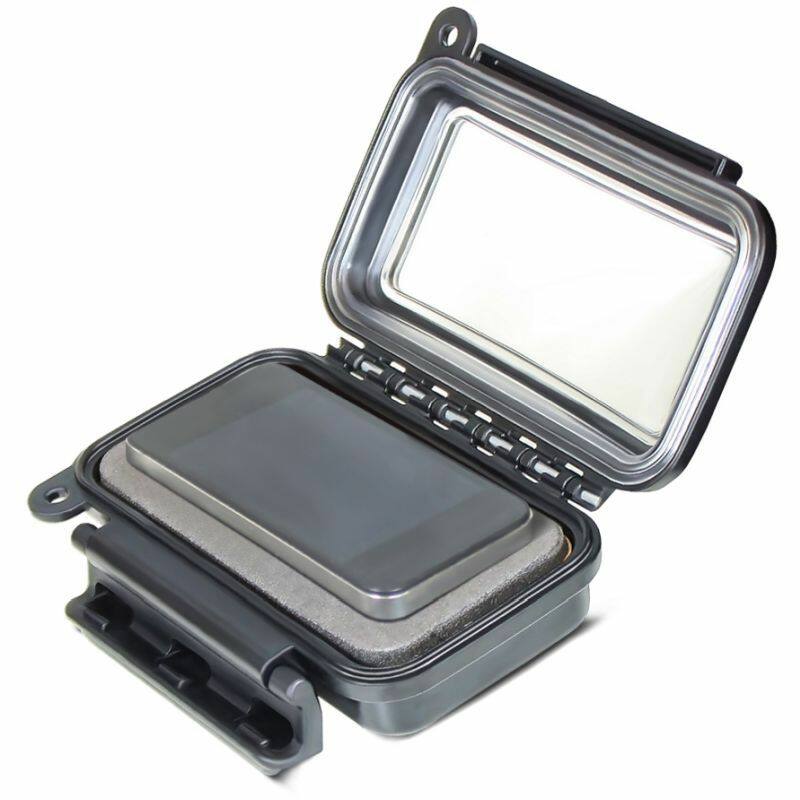

The RAM-HOL-AQ2U AQUA BOX® case provides sealed enclosure and protection for your handheld devices. The clear, touch through screen allows you to view your electronics as well as use their function keys while in place. There is even a place for a small lock to serve as a theft deterrent. Ideally suited to ATV’s, boats and other situation where you need to keep your portable devices safe, dry, and accessible.
Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.
AQUA BOX® Internal Dimensions:
w7.32cm x H14.61cm x D3.02cm (2.88" x 5.75" x 1.188")
AQUA BOX® External Dimensions:
W10.16cm x H16.51cm x D5.08cm (4" x 6.5" x 2")
Compatible Devices
Most Cell Phones and GPS units smaller than w7.32cm x H14.61cm x D3.02cm (most iPhones, Galaxy and other models)

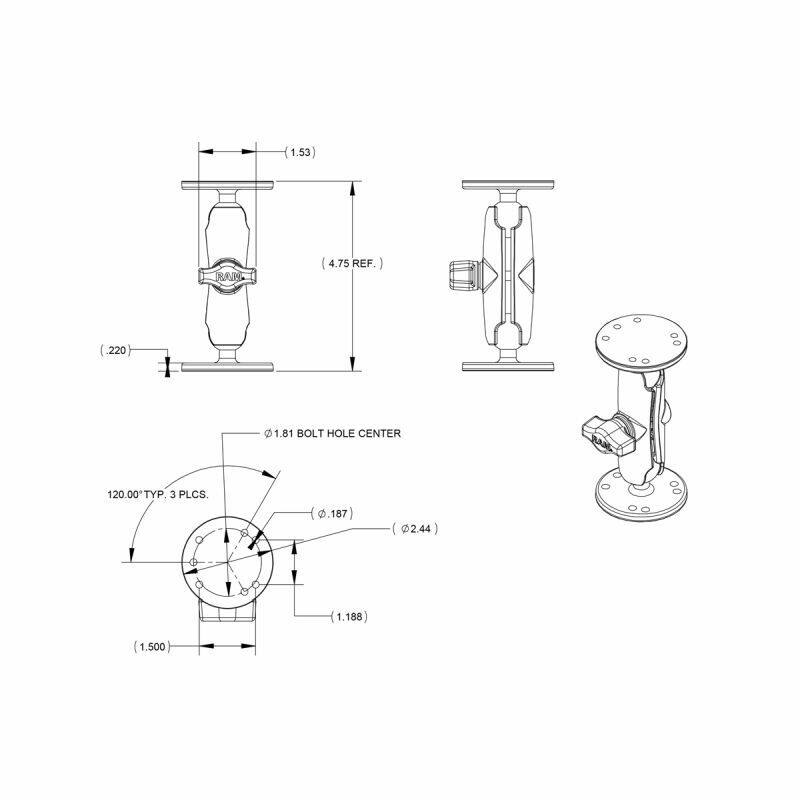

Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Round Plate Hole Patterns
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS
1.812” (46.0mm)
Material:
High Strength Composite
Powder Coated Marine Grade Aluminium
