RAM-B-177-237 – RAM® Glareshield / Edge Clamp Mount with 1/4"-20 Threaded Stud (Short Arm)

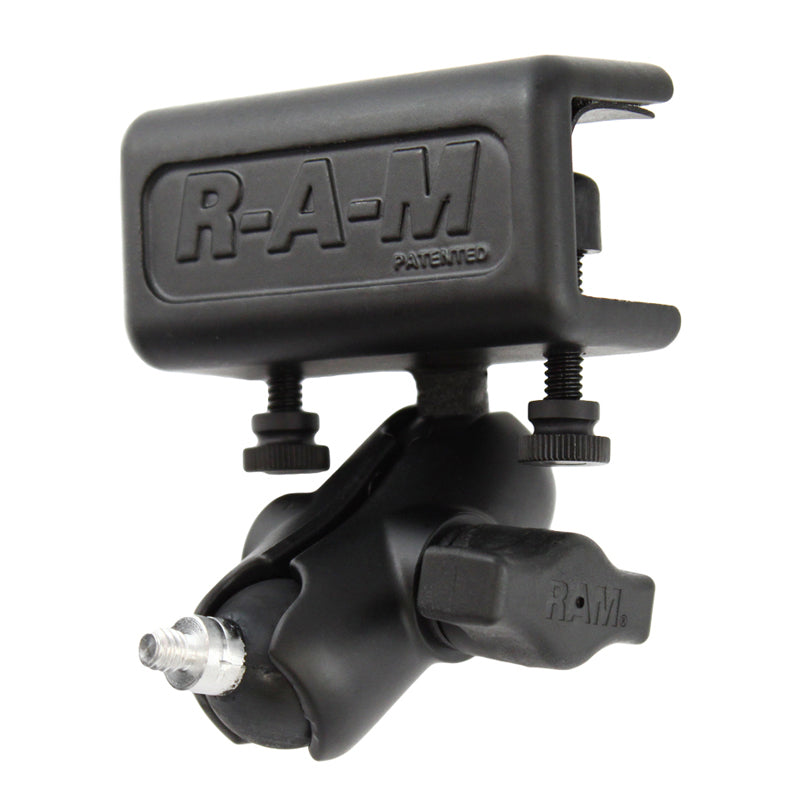

The RAM-B-177-237 pairs the RAM glareshield / edge clamp base with a short double socket arm and a 1/4"-20 threaded stud, opening any standard camera or camcorder tripod thread to the RAM mounting system. The clamp grips a flat edge up to 15.875mm (0.625") thick, such as an aircraft glareshield or vehicle window lip, with no drilling required.
Key Features
Flat-surface clamp grips an edge up to 15.875mm (0.625") thick, no drilling needed
Two composite thumb screws tighten the base onto the lip surface
Short double socket arm with 1" B-size ball and socket for near-infinite adjustment
1/4"-20 male threaded stud fits most standard camera and camcorder tripod mounts
Powder-coated marine-grade aluminium for corrosion resistance and long life

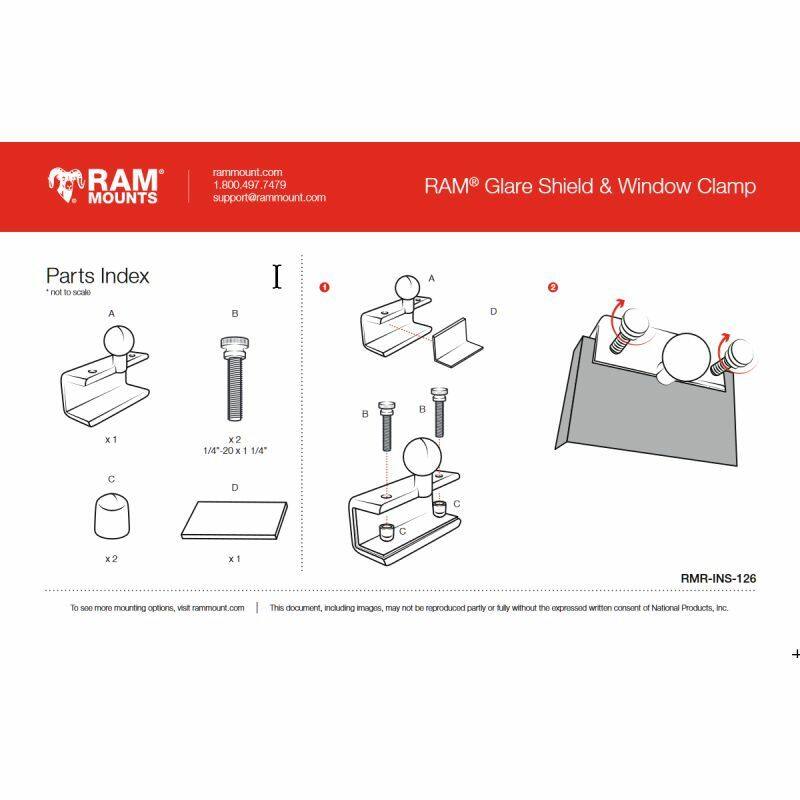

What's Included

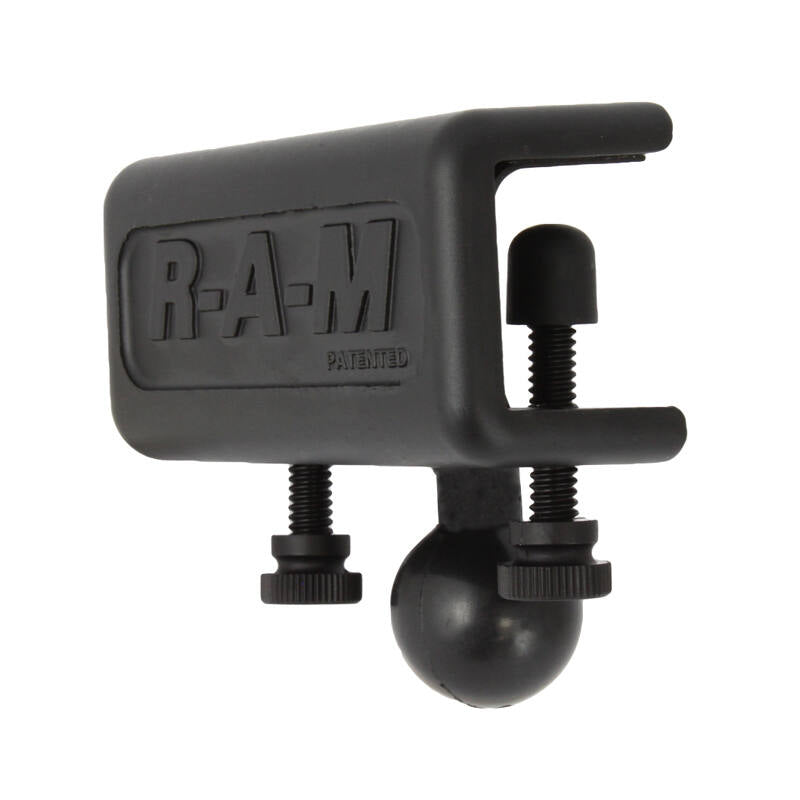

RAM-B-259U glareshield / edge clamp base with 1" B-size ball
RAM-B-201U-A short double socket arm
1" ball base with 1/4"-20 threaded stud
(2) 1/4"-20 x 1.25" composite thumb screws
(2) rubber caps
(1) 1.93" x 3.06" rubber adhesive pad
Dimensions & Specifications
Clamp range: 0 to 15.875mm (0 to 0.625")
Arm overall length: 60.5mm (2.38"); socket-to-socket 51mm (2")
Thread: 1/4"-20 male
Ball size: B size, 1" rubber ball
Load capacity: 907g (2 lb) standard use; 454g (1 lb) heavy-duty use
Weight: 277g (0.61 lb)
Material: marine-grade aluminium
Works With
Suits action cameras, compact cameras and camcorders with a standard 1/4"-20 tripod thread. Clamps to aircraft glareshields, boat windscreen frames and vehicle window edges.
