RAM Tab-Tite Dual Suction Mount for iPad Gen 1-4 - short arm

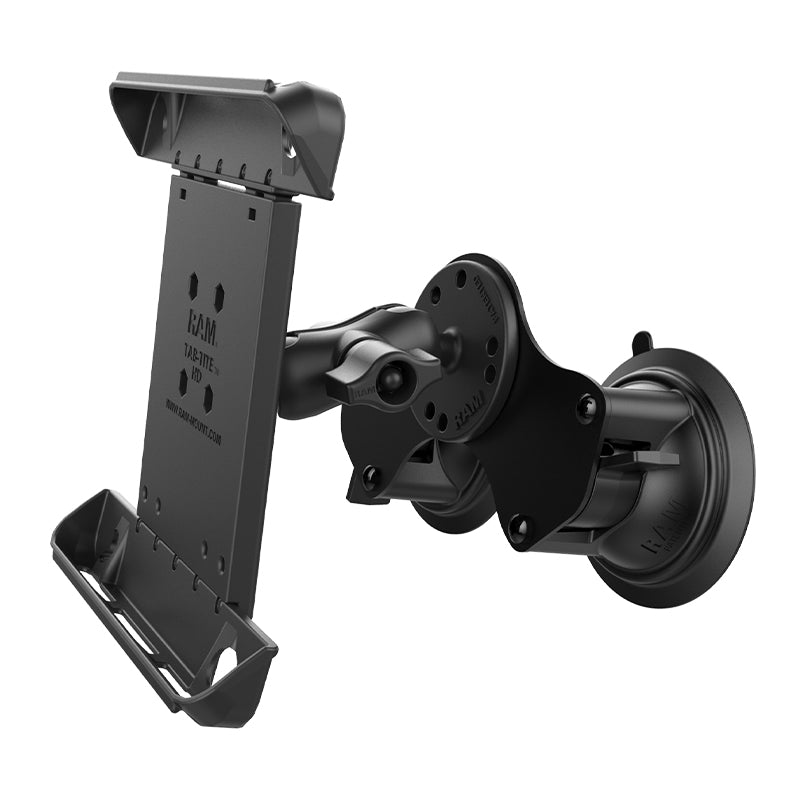

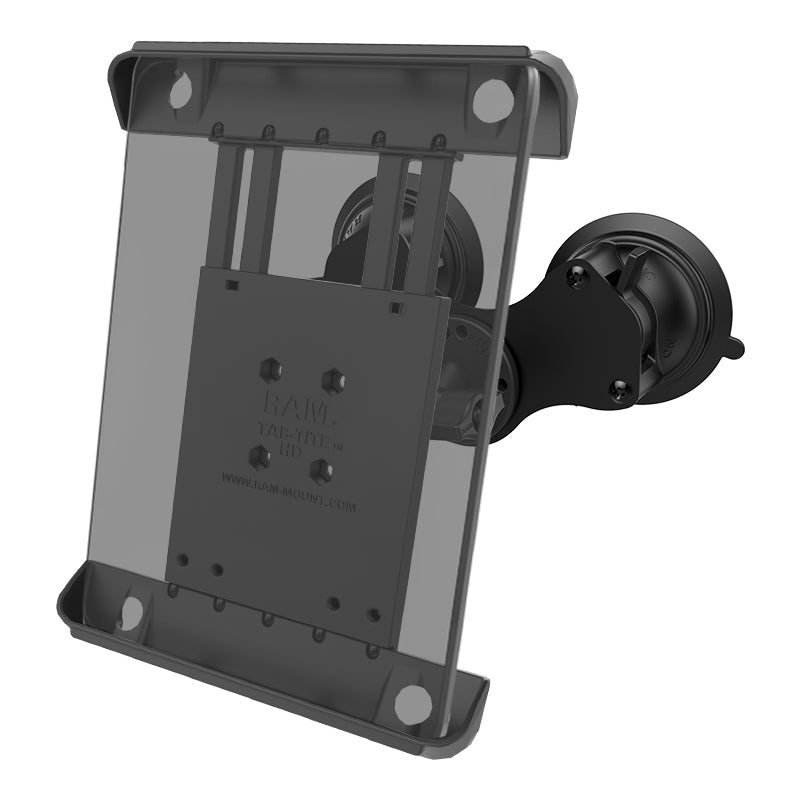

RAM-B-189-A-TAB3U-CRS1 RAM® Tab-Tite™ Dual Suction Mount for iPad Gen 1-4 (Short Arm)

The RAM-B-189-A-TAB3U-CRS1 is a complete RAM® dual suction mount for the Apple iPad Gen 1-4, built on a short arm for a low, compact profile that keeps the tablet close to the surface. Its twin Twist-Lock suction cups give a strong hold on flat glass, paired with the spring-loaded RAM® Tab-Tite™ cradle.

Key Features

• Short low-profile arm: a short double socket arm holds the tablet closer to the mounting surface than the standard arm, for a compact, tucked-in setup.
• Dual suction base: two 83.8mm (3.3") Twist-Lock cups for a strong hold on smooth, non-porous surfaces such as glass.
• Spring-loaded Tab-Tite cradle: holds the tablet top and bottom with interchangeable end cups for access to ports.
• Infinite adjustment: B-size 1" ball at each end of the arm for near-infinite viewing angles.
• Built to last: powder-coated marine-grade aluminium, stainless steel components and high-strength composite; lifetime warranty on the mount hardware, with the suction cups excluded as a wear item.

Works With

Built for the iPad Gen 1-4 and similar 9.7"–10" tablets without a heavy case, within the cradle dimensions below. The Tab-Tite™ cradle takes any tablet inside those ranges, so measure your device rather than going by model name. The dual base needs a flat or gently curved, smooth, non-porous surface such as glass.

Compatible Devices

Apple

• iPad (1st Generation)
• iPad (2nd Generation)
• iPad (3rd Generation)
• iPad (4th Generation)

ASUS

• MeMO Pad FHD 10
• Transformer Pad

Dell

• Venue 10 7000
• Venue 11 Pro 7000

HP

• ElitePad 900
• ElitePad 900 G1
• Pro 610

Lenovo

• S6000
• Tab A10
• ThinkPad 10
• Yoga Tablet 10
• Yoga Tablet 10 HD+
• Yoga Tablet 2 (10 inch)

Plus any tablet that fits within the cradle dimensions below.

Dimensions & Specifications

• Cradle height range: 216–283mm (8.5"–11.125")
• Cradle width range: 162–197mm (6.38"–7.75")
• Cradle depth range: 3.3–14.2mm (0.13"–0.56")
• Suction base: two 83.8mm (3.3") Twist-Lock cups; total width 202mm (7.95")
• Ball size: B Series 1"
• Arm: short double socket arm, 44.5mm (1.75") socket-to-socket (low profile)
• Load rating: 907g (2 lb) standard use, 454g (1 lb) heavy-duty use
• Material: powder-coated marine-grade aluminium, stainless steel and high-strength composite
• Weight: 843g (1.86 lb)

What's Included

• RAM® Tab-Tite™ spring-loaded cradle (back plate and end cups)
• RAM® dual Twist-Lock suction base with 1" ball
• RAM® short double socket arm
• Two round base adapters with 1" ball
• Assembly hardware (four nuts and bolts for the AMPS hole pattern)

Care & Warranty

• Smooth, non-porous surfaces only — anything rough or textured lets air past the seal and the cups will not hold.
• Clean the surface thoroughly before you apply the cups.
• If the vehicle is left sitting in extreme heat or cold, release the cups and stow the mount rather than leaving it loaded.
• RAM® classes suction cups as a general wear item, so the cups are excluded from warranty cover. The base, arm and cradle hardware are covered as normal.

Videos

Watch the RAM® Tab-Tite™ overview on YouTube

FAQs

How is this different from the retention-knob versions? This is the short-arm version: no retention knob, but a lower, more compact profile that keeps the tablet close to the glass.

Are the suction cups covered by the warranty? No. RAM® treat suction cups as a general wear item, so they sit outside the lifetime warranty. The rest of the mount hardware is covered as normal.
