RAM-B-342WU - Fork Stem Wedge Base Kit 12-32mm - B Series (1" Ball)

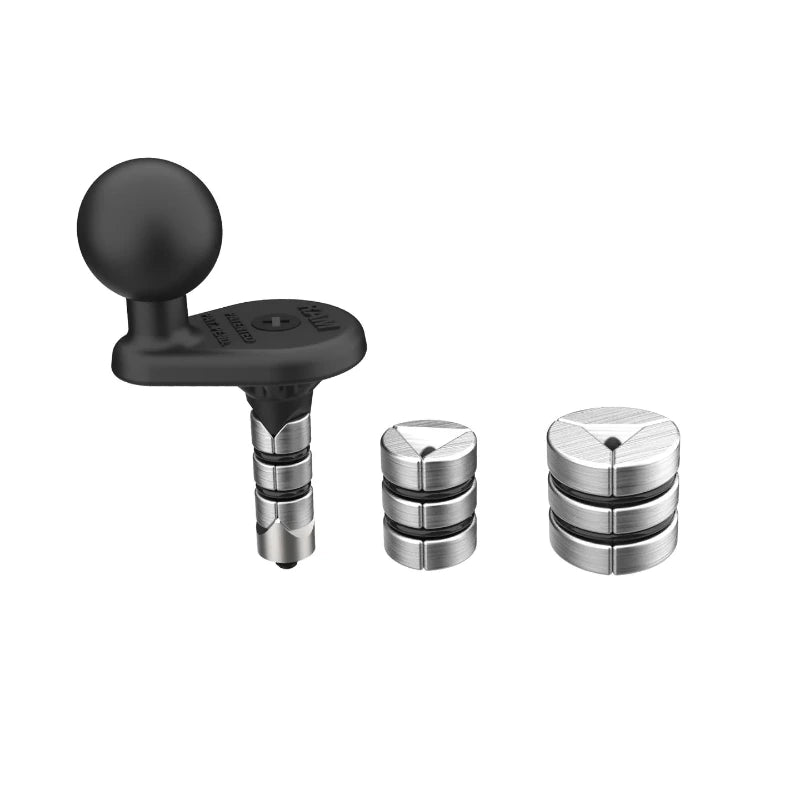

RAM-B-342WU Motorcycle Fork Stem Wedge Ball Base (12-32mm)

The RAM-B-342WU is a motorcycle fork stem base that uses a wedge to lock securely into the cylindrical bore of your fork stem, giving you a low-profile B Size (1") ball right in the centre of the bike for a phone, GPS or action camera. This is the full-range option, covering fork stem internal diameters from 12mm to 32mm.

Key Features

• Covers the full range of fork stem bores from 12mm to 32mm internal diameter
• Wedge locks securely into the fork stem bore for a tight, clean fit
• Low-profile: only the ball sits proud once installed
• B Size (1") rubber ball connects to any B Size RAM® double socket arm
• Powder-coated marine-grade aluminium construction
• Lifetime warranty

Works With

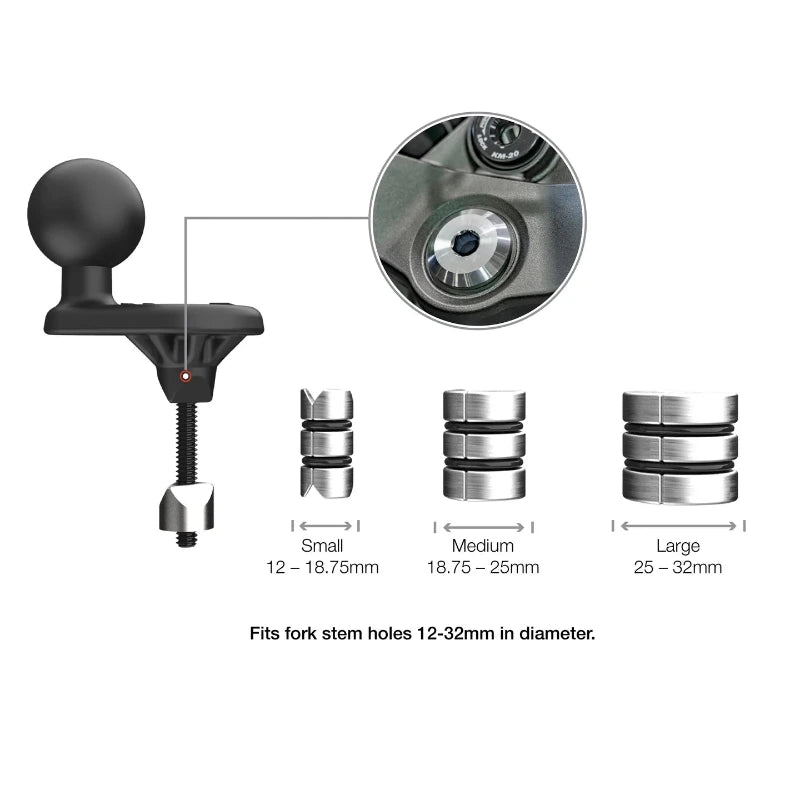

If you already know your stem diameter, the single-size versions may suit you better and cost less: the RAM-B-342W-1U (12-18.75mm), RAM-B-342W-2U (19-25mm) and RAM-B-342W-3U (25-32mm). Pair any of these with a B Size double socket arm and your choice of RAM device holder.

Dimensions & Specifications

• Compatible fork stem internal diameter: 12mm to 32mm
• Ball size: 1" rubber ball, B Size
• Material: powder-coated marine-grade aluminium
• Weight capacity: 907g (2 lb) standard use, 454g (1 lb) heavy-duty use

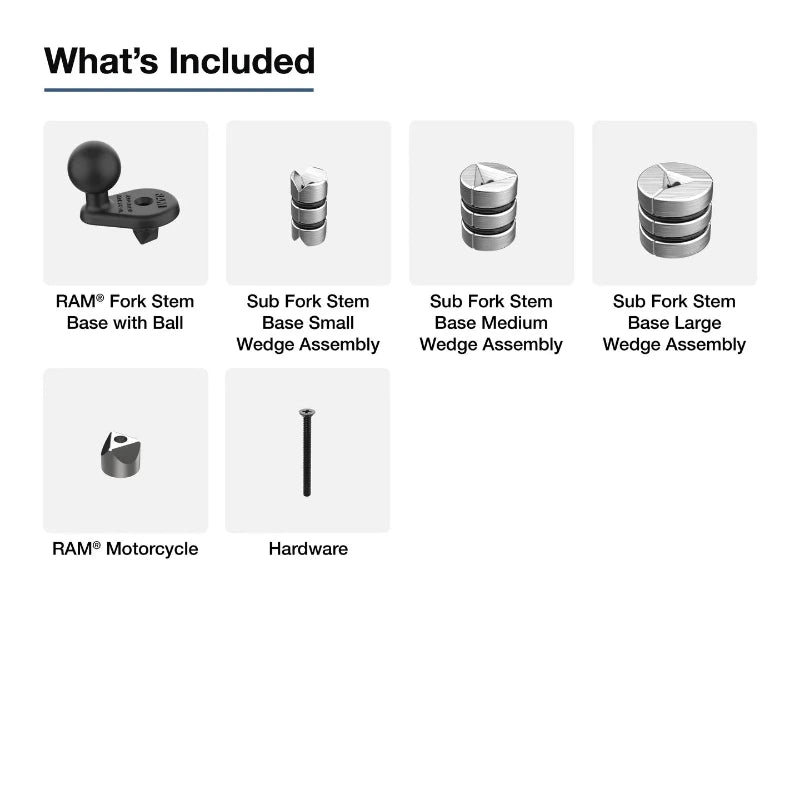

• Supplied with the expansion wedge and fixing hardware
• Fits cylindrical fork stem bores only

FAQs

How do I know if this fits my bike? Measure the internal diameter of your fork stem bore. If it's round and falls between 12mm and 32mm, this base will fit. If the opening isn't cylindrical (for example a hex or star shape), a fork stem base won't work.

Should I buy the kit or a single size? If you're not sure of your stem size, or you swap between bikes, the RAM-B-342WU covers the whole 12-32mm range. If you know your size, the matching single-size base is the cheaper option.

How fast does this ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.

Video

Watch the RAM® fork stem wedge base overview
