RAM Tough-Claw Small Clamp Mount with Diamond Plate - Short Arm

RAM-B-400-A-238U RAM® Tough-Claw™ Small Clamp Mount with Diamond Plate, Short Arm (1" Ball)

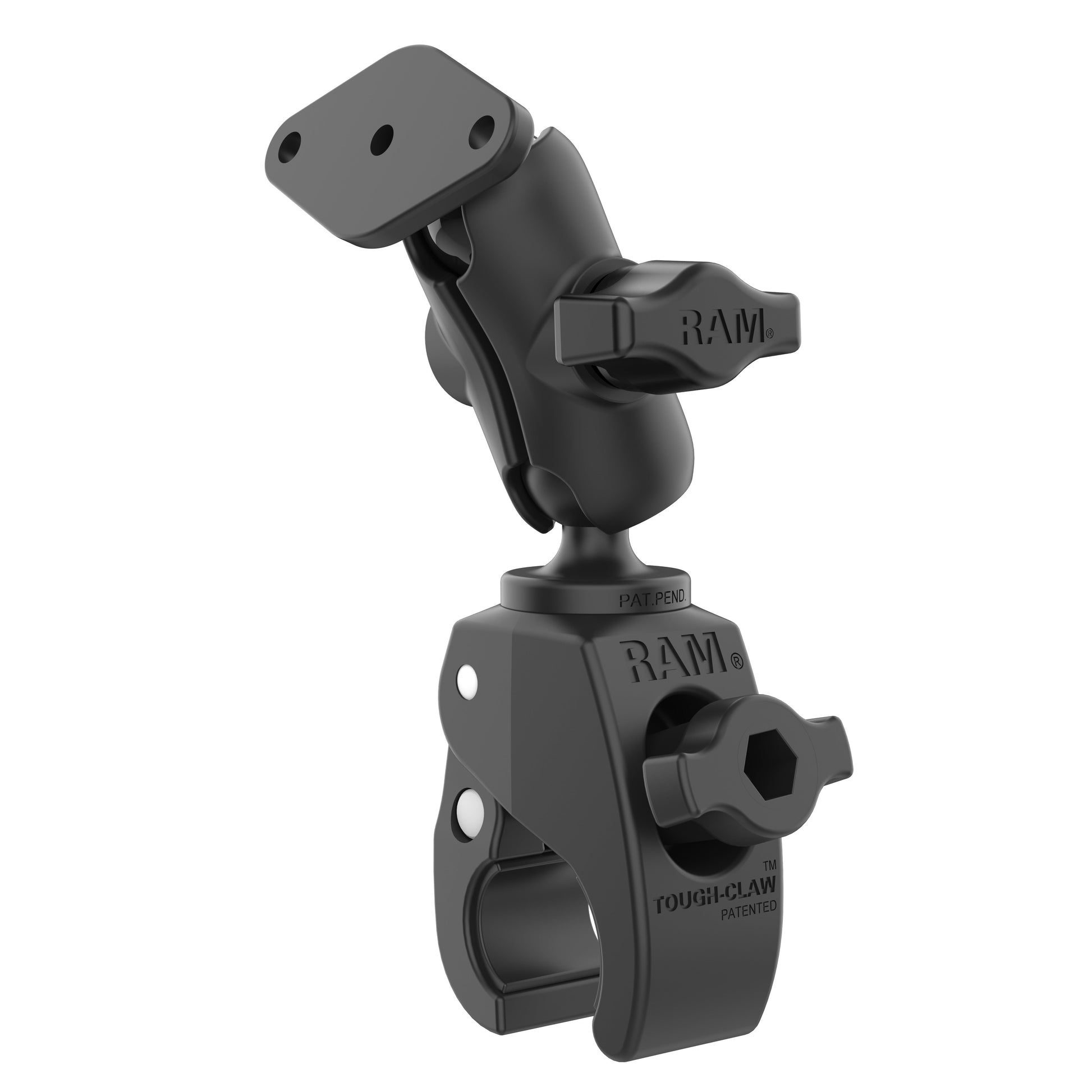

The RAM-B-400-A-238U is the small RAM® Tough-Claw™ with a 1" (B-size) ball, a short double socket arm and a diamond plate carrying the 2-hole AMPS pattern. The short arm keeps the device tight to the rail for a low, stable profile, and you can bolt an AMPS holder straight on or add any RAM® B-size cradle.

Key Features

• Small Tough-Claw™ clamps tubes and bars tool-free; rubber pads grip and protect the surface.
• Diamond plate with the 2-hole AMPS pattern connects to a wide range of RAM® and third-party B-size holders.
• Short double socket arm holds the device close to the rail for a low, vibration-resistant profile.
• High-strength composite with stainless steel hardware. Lifetime warranty.

What's in the Kit

• RAP-B-400U small RAM® Tough-Claw™ with 1" ball
• Short double socket arm (B-size)
• RAM-B-238U diamond plate base with 1" ball

Works With

Any RAM® B-size (1") cradle, or any 2-hole AMPS holder mounted directly to the diamond plate.

Dimensions & Specifications

• Clamping range, rails/tubes: 15.9mm to 38.1mm (0.625" to 1.5")
• Clamping range, flat surfaces: 0mm to 29mm (0" to 1.14")
• Arm length: socket-to-socket 44.45mm (1.75")
• Diamond plate: 61.7mm x 33.3mm (2.43" x 1.31")
• Hole pattern: 2-hole AMPS 1.912" (48.6mm) centre-to-centre
• Ball size: B Size (1")
• Weight capacity: standard use 907g (2 lb), heavy-duty 454g (1 lb)
• Materials: marine-grade aluminium, high-strength composite
• Weight: 267g (0.59 lb)

FAQs

What will it clamp to?
Round, square or odd-shaped rails up to 1.5" across, tool-free.

What mounts to the diamond plate?
Any 2-hole AMPS holder bolts straight on, or use a RAM® B-size cradle on the ball.
