RAM Quick-Grip XL Phablet Mount with Tough-Wedge Base

RAM-B-407-PD4U – RAM® Quick-Grip™ XL Phablet Mount with Tough-Wedge™ Base

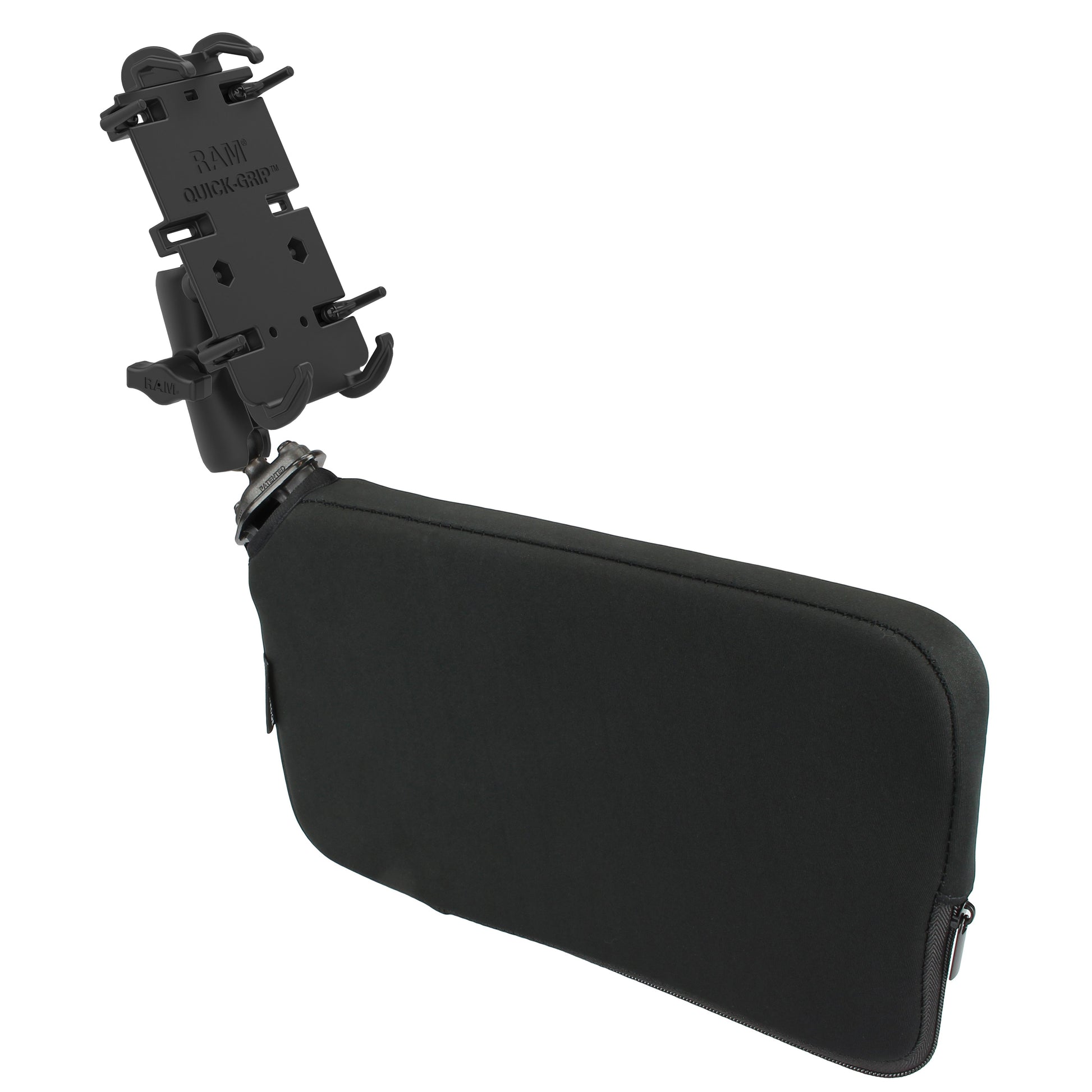

The RAM-B-407-PD4U pairs RAM® Mounts' XL Quick-Grip™ cradle with the RAM® Tough-Wedge™ base, a seat wedge mount that slides into the gap between your vehicle seat and centre console. No drilling or glue required, and it moves between vehicles in seconds.

Key Features

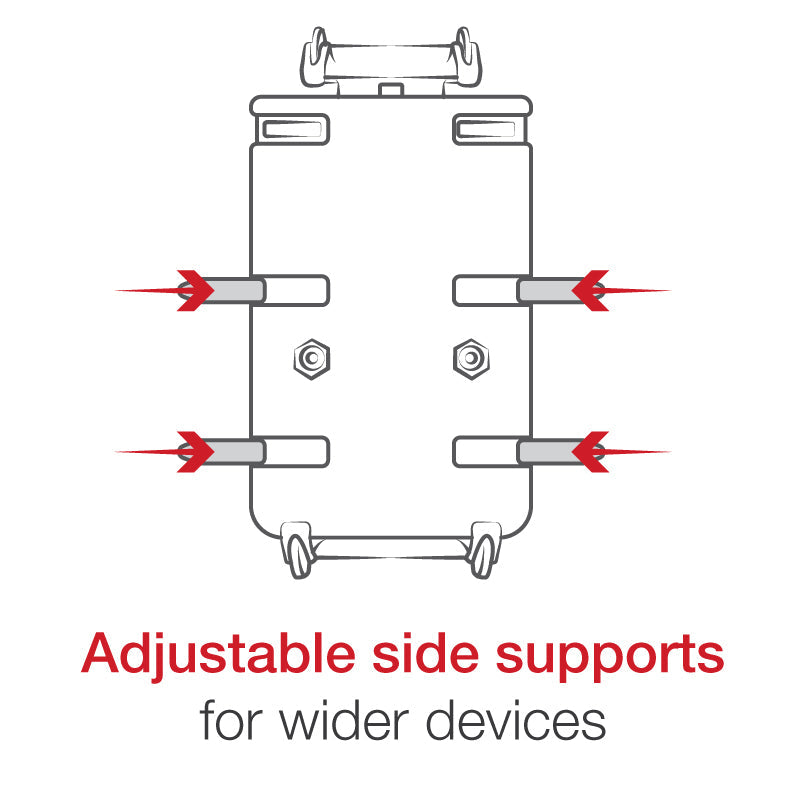

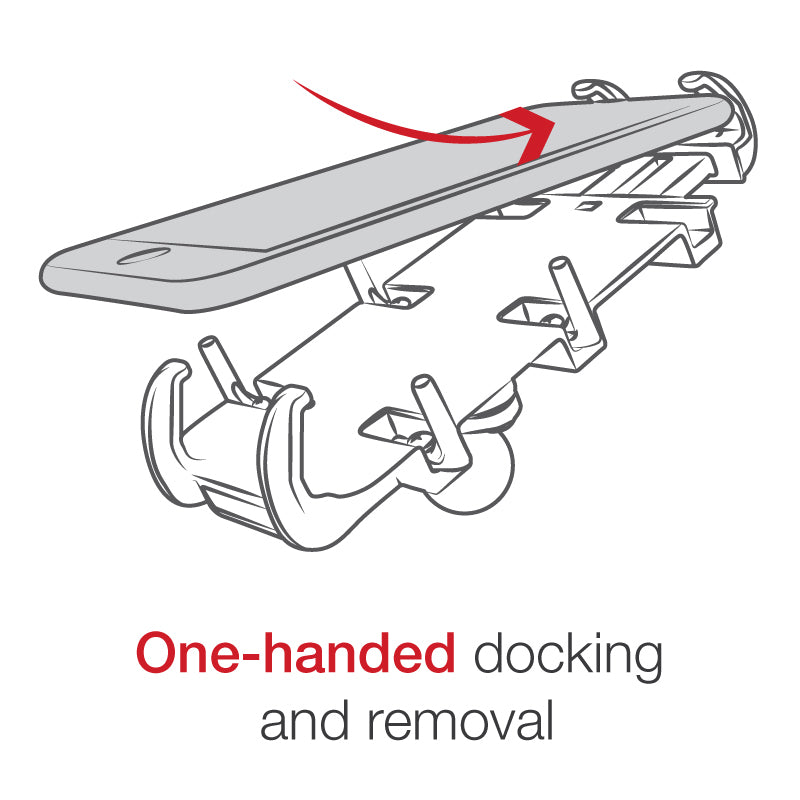

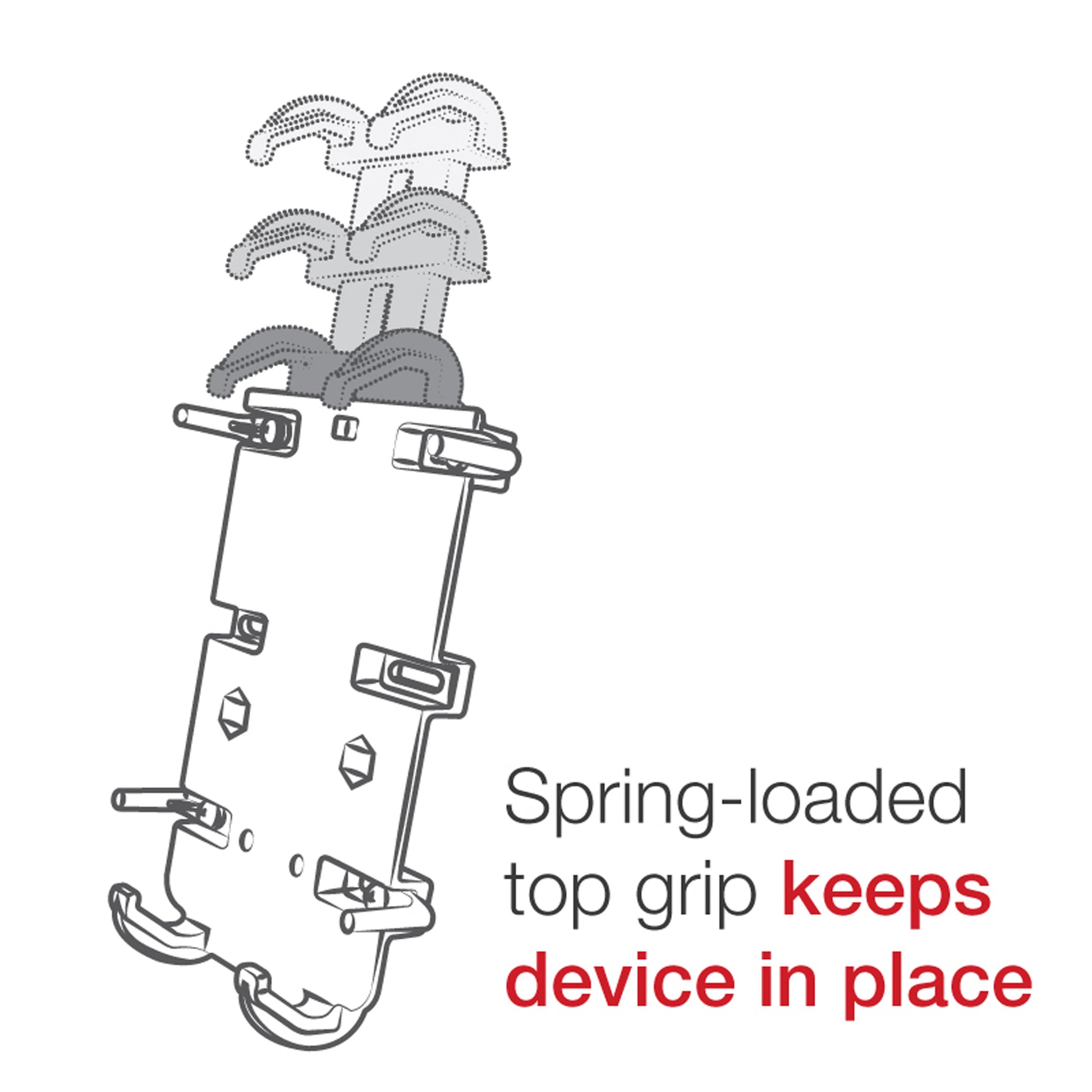

• Spring-loaded Quick-Grip™ cradle holds devices 66.7mm to 92.1mm wide, with one-handed insertion and release
• Tough-Wedge™ base slides between seat and centre console for tool-free installation; also fits the seat-back pocket for rear-seat use

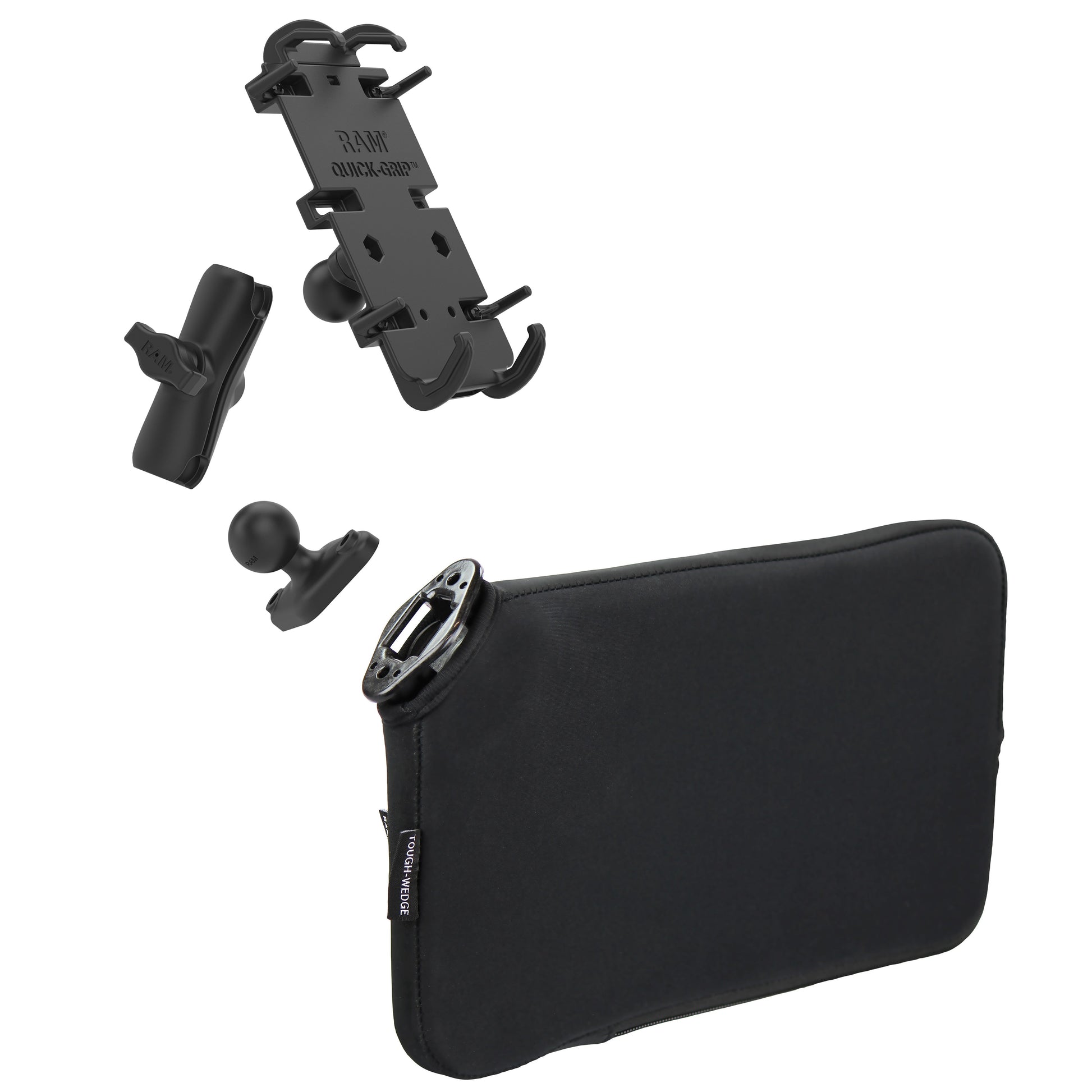

• Ball-and-socket arm gives near-infinite adjustment
• Built from powder-coated marine-grade aluminium, high-strength composite and neoprene
• Backed by a lifetime warranty

Mounting Base

The Tough-Wedge™ base wedges into the gap beside your vehicle seat, or into the seat-back pocket for back-seat use. No tools, drilling, or adhesive needed, and it transfers easily between vehicles.

Dimensions & Specifications

• Cradle width range: 66.7mm to 92.1mm (2.625" – 3.625")
• Cradle height range: 146.1mm to 184.1mm (5.75" – 7.25")
• Cradle max depth: 18.3mm (0.72")
• Wedge length: 336.6mm (13.25")
• Wedge height: 209.6mm (8.25")
• Wedge thickness: 25.4mm (1")
• Arm overall length: 94mm (3.69")
• Arm socket-to-socket length: 76mm (3")
• Recommended max load: 907g (2 lb) for standard use, 454g (1 lb) for heavy-duty conditions with more vibration
• Weight: 934 grams (2.06 lbs)
• Materials: high-strength composite, marine-grade aluminium alloy, neoprene

Compatible Devices

This kit uses the same RAM-HOL-PD4U cradle across the Quick-Grip™ XL range, so the compatible device list is identical. See the RAM-HOL-PD4U listing for the full brand-by-brand list. As always, check your device's dimensions with any case or sleeve fitted before ordering.
