RAM Ball Adapter for Garmin Striker, Echomap & Echo

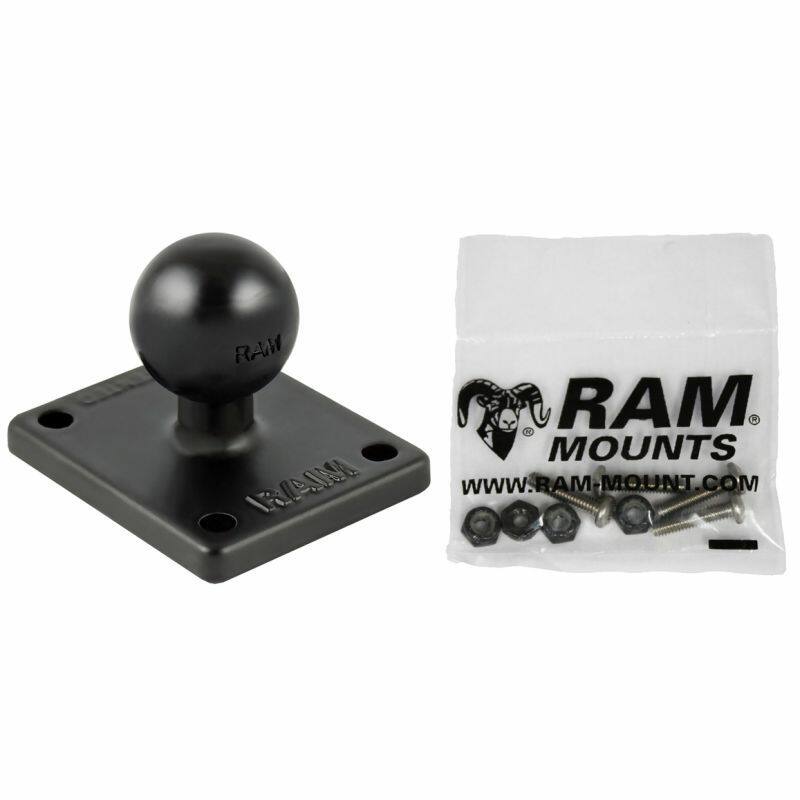

RAM-B-347-G4U – RAM® Ball Adapter with AMPS Plate for Garmin Striker, ECHOMAP & echo

The RAM-B-347-G4U is a rectangular AMPS plate with a B size 1" rubber ball and the hardware to mate many Garmin fishfinders, including the Striker, ECHOMAP and echo series, to the RAM® ball and socket system.

Key Features

• 50.8 x 43.2mm (2" x 1.7") plate with the industry-standard 4-hole AMPS pattern
• Hardware included to mate to many Garmin Striker, ECHOMAP and echo units
• B size 1" rubber ball connects to any B size RAM® double socket arm; near-infinite adjustability
• Powder-coated marine-grade aluminium for marine environments
• Backed by a lifetime warranty

Works With

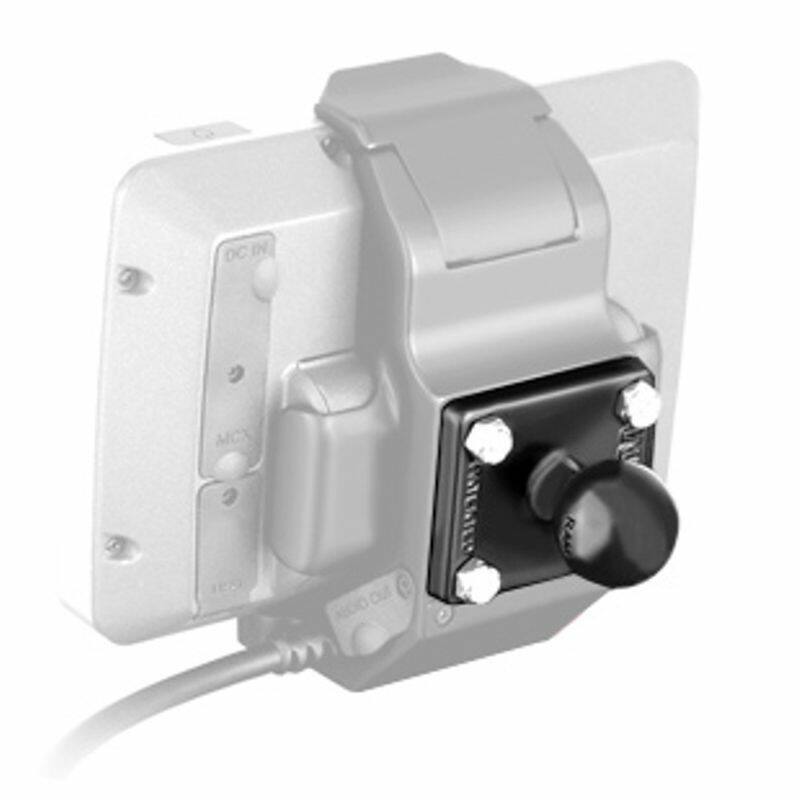

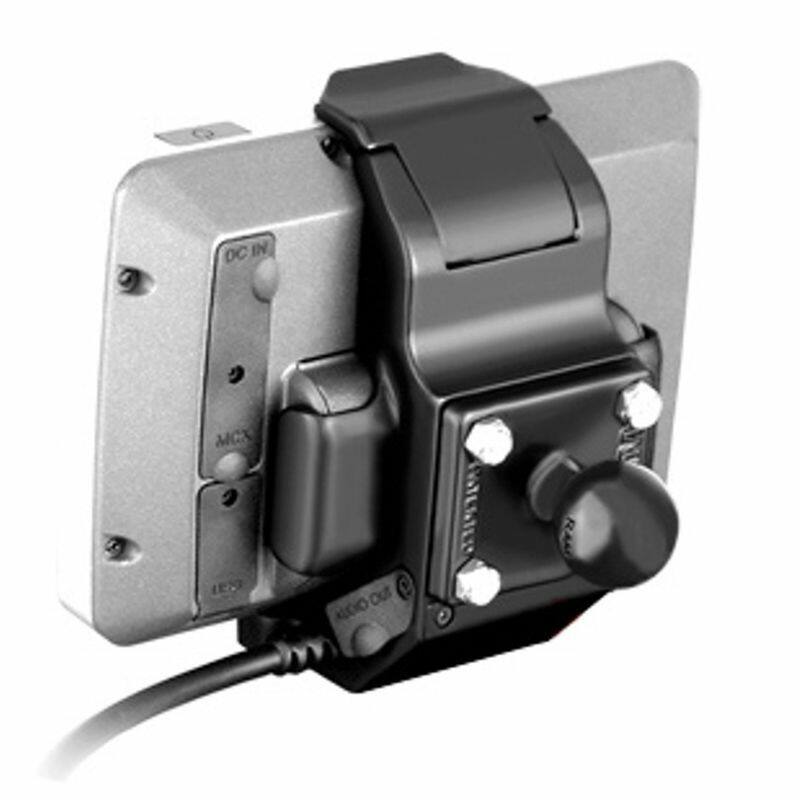

Garmin Striker 4, Striker 4dv, Striker Plus 4cv, Striker Vivid 4cv, echo 100, echo 150, echo 300c, ECHOMAP Plus 42cv, ECHOMAP Plus 43cv, ECHOMAP Plus 44cv, ECHOMAP Plus 45cv and ECHOMAP UHD2 6". Note this is the mounting adapter only; the Garmin unit is not included.

Dimensions & Specifications

• Plate size: 50.8 x 43.2mm (2" x 1.7")
• Hole pattern: 4-hole AMPS, 1.181" x 1.496" (30mm x 38mm)
• Ball size: B (1")
• Load capacity: 907g (2 lb) standard use; 454g (1 lb) heavy-duty use
• Weight: 68g (0.15 lb)
• Hardware included: (3) #8-32 x 5/8" machine screws, (3) #8-32 nylock nuts
• Material: powder-coated marine-grade aluminium
• Warranty: lifetime

FAQs

Does this include the Garmin bracket or unit?

No; this is the RAM® adapter plate and hardware only. It attaches to the Garmin unit's own mounting points or bracket.
