RAM Ball - B Series 1" - with female 1/4"- 20 thread - / Tripod Mount

RAM-B-337U RAM® Ball Adapter with 1/4"-20 Female Threaded Hole and Hex Post

The RAM-B-337U is a 1" B-size RAM® ball with a 1/4"-20 female threaded hex post, giving you two ways to add a ball mounting point: thread it onto any standard camera tripod bolt, or use it as an Add-A-Ball™ accessory to put a second ball on the side of an existing RAM® B-size arm.

Key Features

• 1/4"-20 x 5/8" female threaded hex post fits standard tripod bolts and threaded studs
• Doubles as a RAM® Add-A-Ball™: replace the tightening bolt on a B-size double socket arm to add a second mounting point
• Connects to any RAM® B-size double socket arm
• RAM® ball-and-socket design gives near-infinite adjustability
• Powder-coated marine-grade aluminium; backed by a lifetime warranty

Works With

Any standard 1/4"-20 tripod bolt or threaded stud, and any RAM® B-size (1") double socket arm.

Dimensions & Specifications

• Thread: 1/4"-20 x 5/8", female

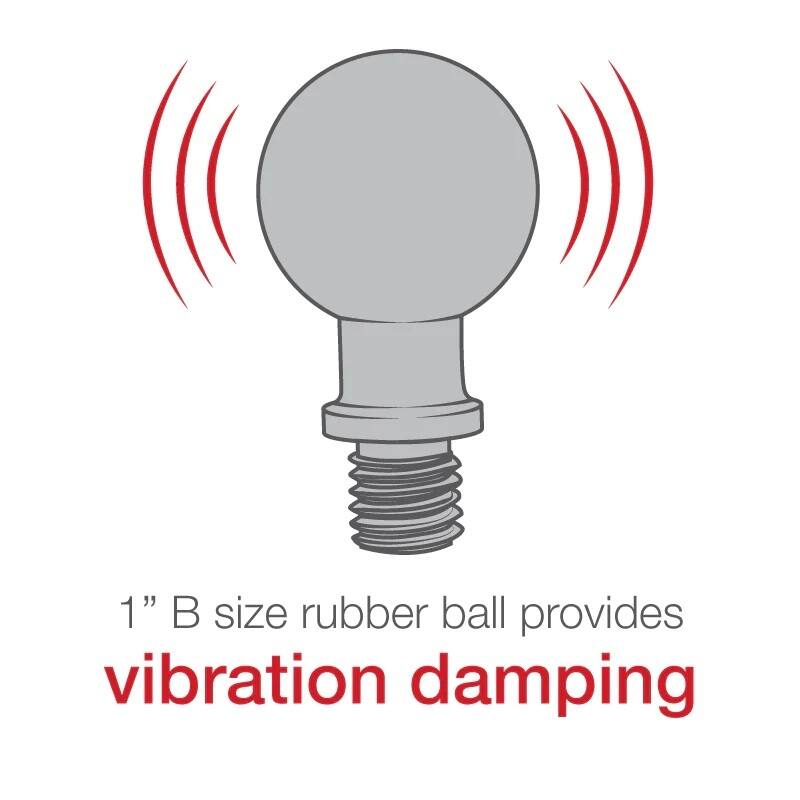

• Ball size: 1" rubber ball, B size
• Weight: 23g (0.05 lbs)
• Weight capacity: standard use 907g (2 lbs), heavy-duty use 454g (1 lb)
• Material: powder-coated marine-grade aluminium

FAQs

How is this different from other RAM ball adapters?
This one has a female 1/4"-20 thread and hex post, so it screws onto an existing bolt or stud rather than having its own male stud.

Can I use it to add a second ball to my arm?
Yes — replace the tightening bolt on a B-size RAM arm with a 40mm 1/4"-20 machine screw and this ball, and you have an Add-A-Ball™ mounting point on the side of the arm.

How fast does it ship?
If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
