RAM Ball - C Series 1.5" - extra Ball mount for any C Series arm

RAM-273U RAM® Ball "Add-a-ball" Adapter with 2.5" Long 1/4"-20 Threaded Stud - C Size

Features

* Replace the bolt in any C size double socket arm to add another 1.5" C size RAM® rubber ball to your mounting setup
* Included C size 1.5" RAM® rubber ball allows for connection to any C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

Looking for another 1.5" ball base for your set-up?  This part allows you replace the existing thread on your C series arm (short, medium or long) with another C series ball - so you can add another arm to the existing arm!  Don't worry - this replaces the bolt so the adjustment knob remains! Simply unscrew the existing bolt on your double socket arm and replace with this part - replace the adjustment knob and good to go ...

If you are looking to mount more than one device but cannot locate multiple mounting points on your motorcycle or vehicle, this base is the ideal accessory for connecting both devices to one 1.5" mounting base.

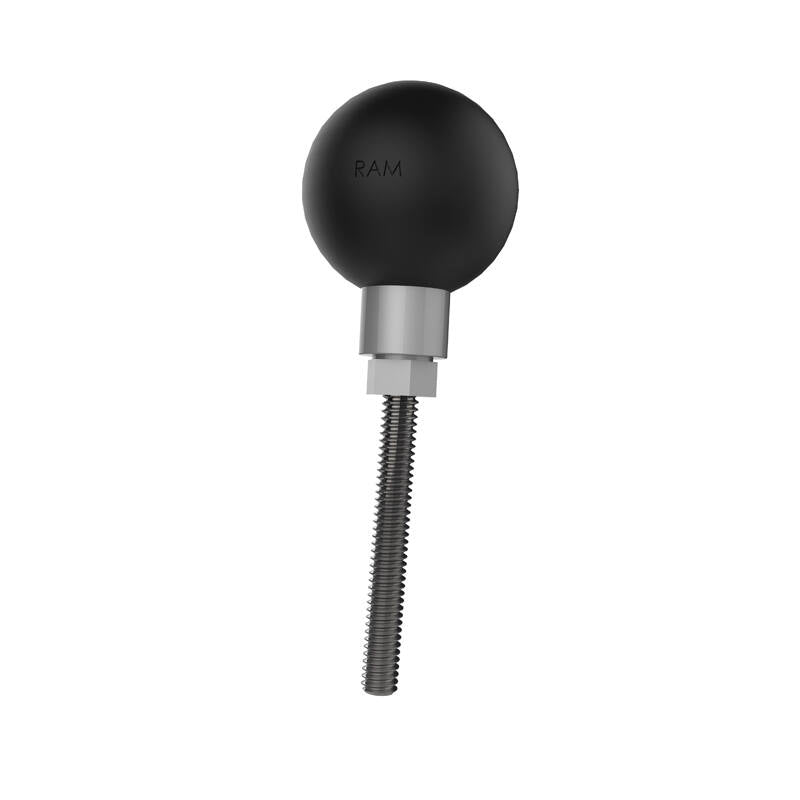

Connect another device to your existing RAM® Mount with the RAM-273U Ball Base Adaptor. The RAM-273U consists of a C size 1.5" rubber ball with a hex post and 1/4"-20 x 1.75" stainless steel threaded stud. This component can mount to any surface with a 1/4"-20 hole, and the ball is compatible with any C size socket arms.

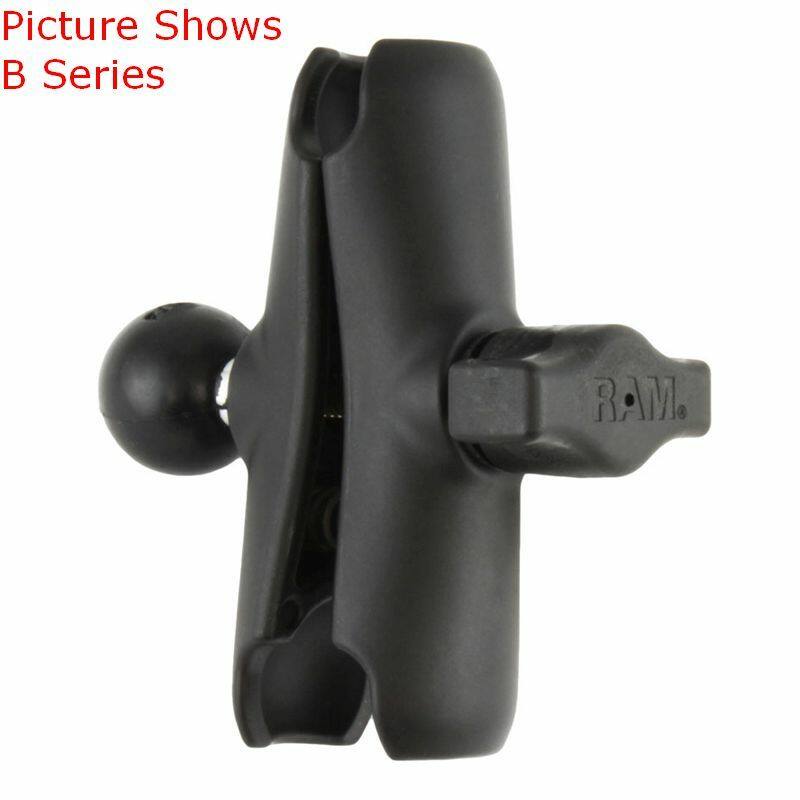

The threads on this ball replace the bolt in any C-size socket arm, and the ball connects to the middle of the socket arm on the opposite side of the tightening knob.

If you are looking to mount more than one device but cannot locate multiple mounting points on your motorcycle or vehicle, this base is the ideal accessory for connecting both devices off of one mounting base.


Specs & Features


Thread Pitch
1/4"-20 x 1.75"

Ball/Socket Size
C Size (1.5")

Weight:
73 grams (0.16) lbs.

Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)


Material:
Marine-grade aluminium
Stainless steel
