RAM-B-202AU RAM® Camera Base (1/4"-20 Male Thread), B Series

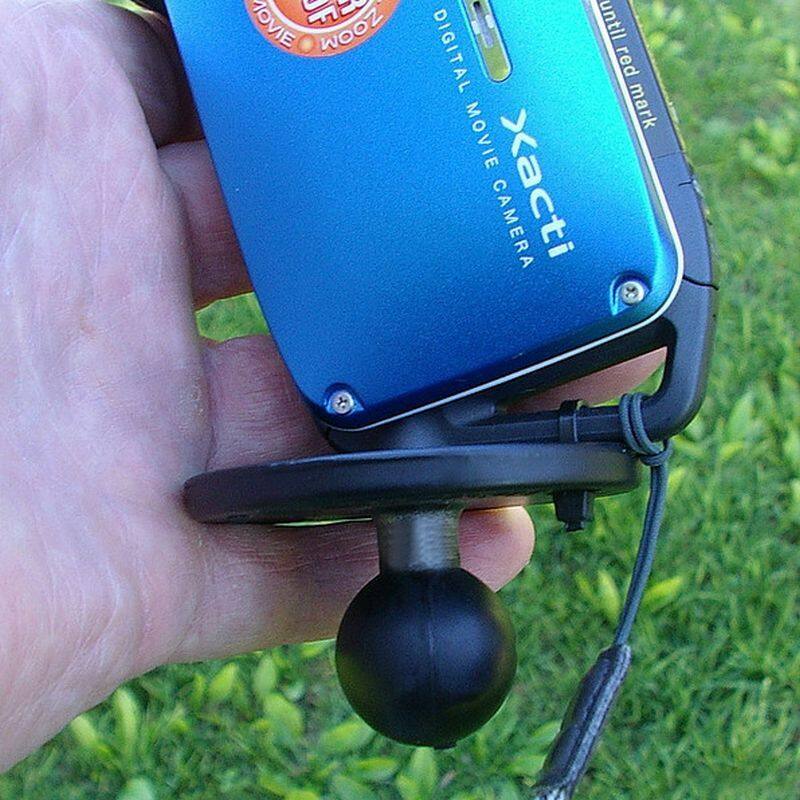

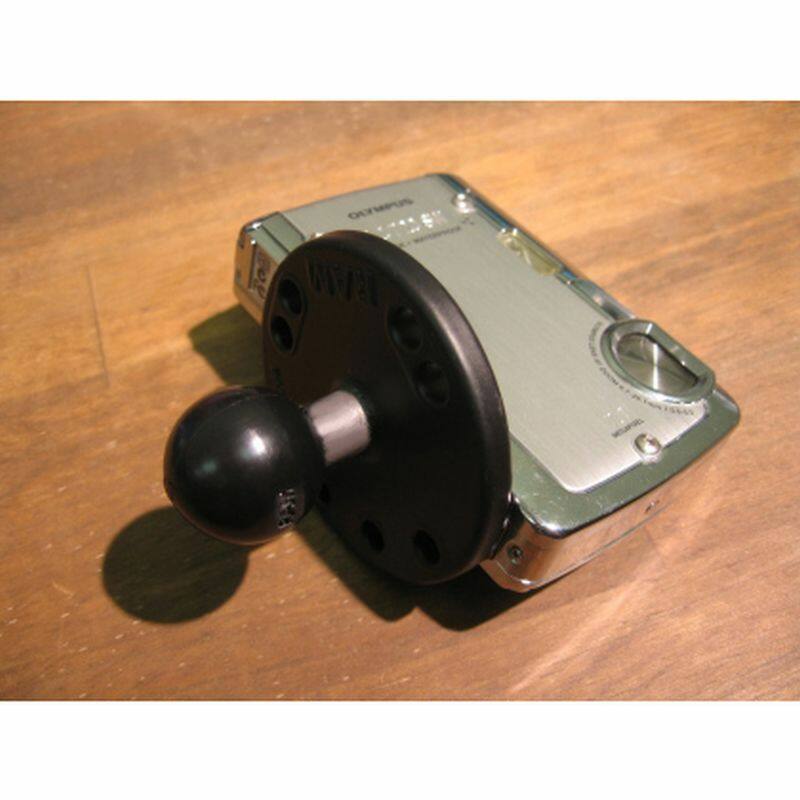

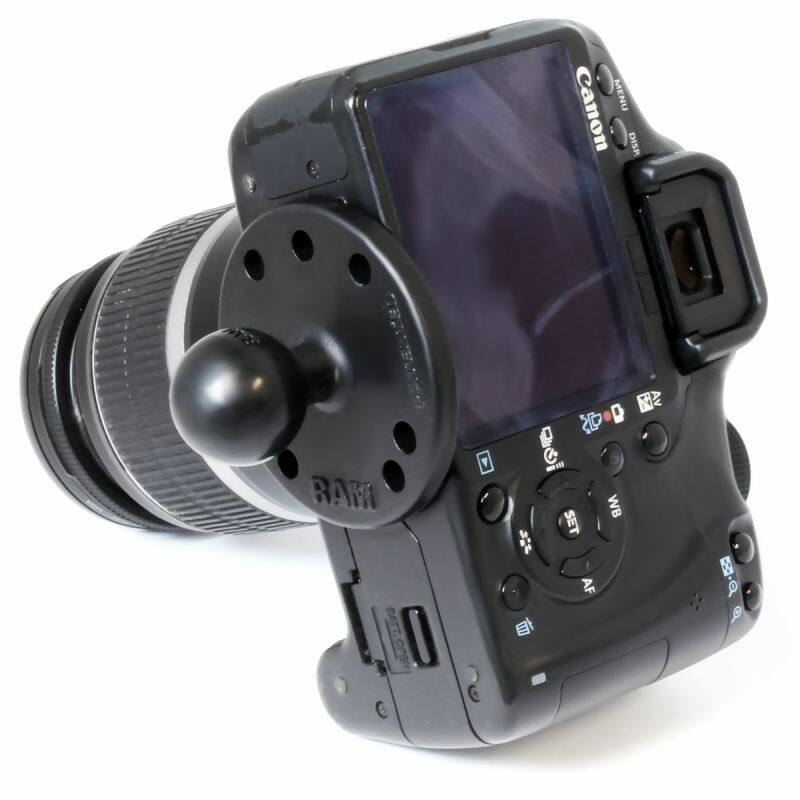

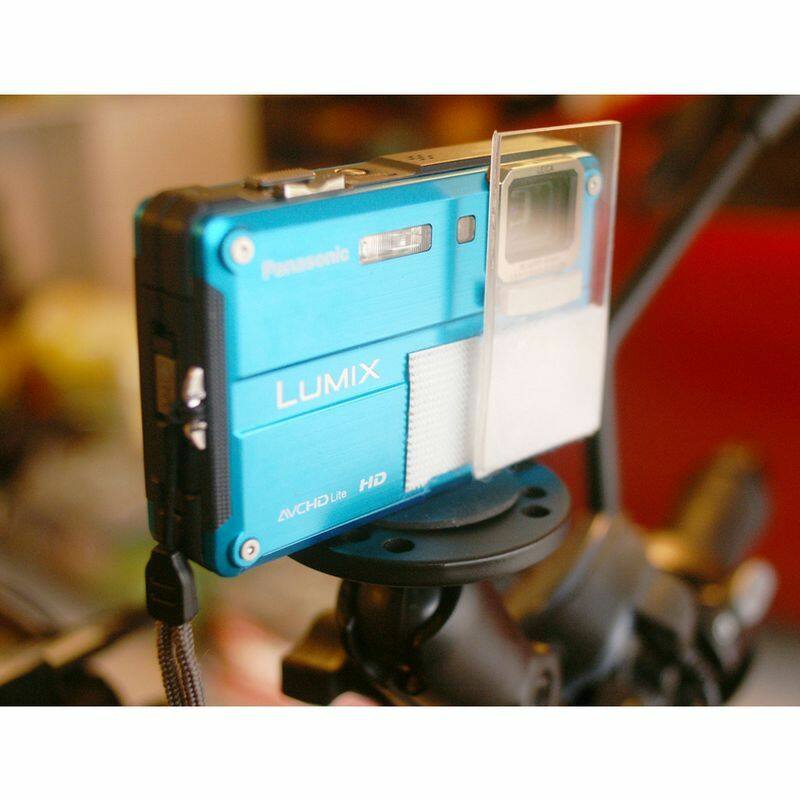

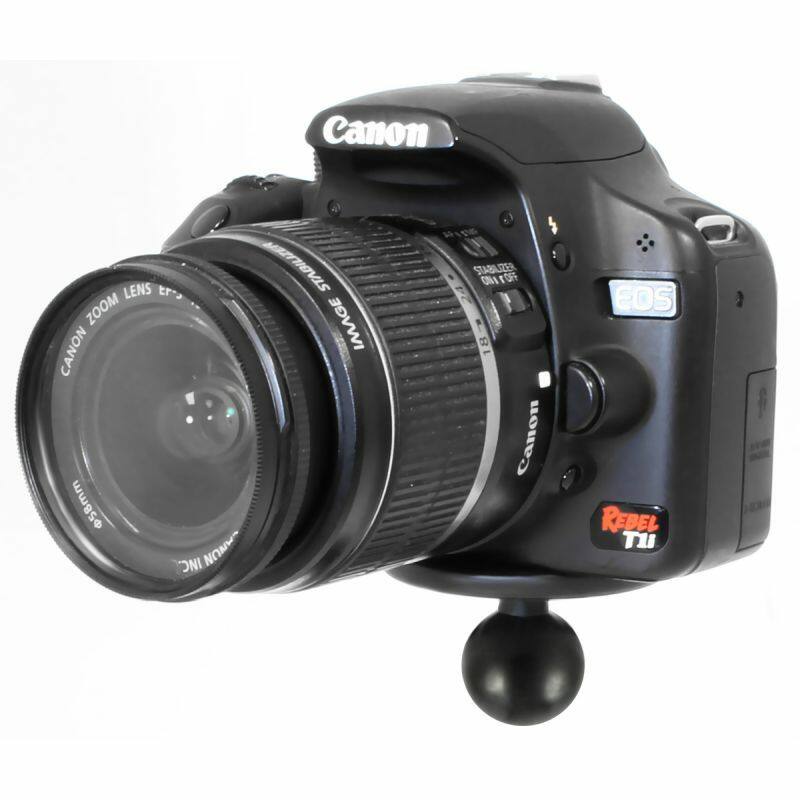

The RAM-B-202AU pairs a 63.5mm (2.5") round base with a 1/4"-20 male threaded stud and a B Size 1" rubber ball, letting you mount any camera or camcorder with a standard 1/4"-20 socket onto any RAM B-series arm.
Key Features
63.5mm (2.5") diameter round plate with 1/4"-20 camera thread for extra support and stability
Includes B Size 1" RAM ball that connects to any RAM B-series arm
Powder-coated, marine-grade aluminium construction for demanding environments
Backed by RAM's lifetime warranty
Works With
Compatible with any camera or camcorder that has a standard 1/4"-20 female threaded socket, paired with any RAM B-series (1" ball) arm and socket base.
Dimensions & Specifications
Thread pitch: 1/4"-20 x 0.25"
Hole pattern: 4-hole AMPS, 1.181" x 1.496", or 3-hole 120-degree, 1.812"
Ball size: 1" rubber ball, "B" Size
Round plate diameter: 63.5mm (2.5")
Weight: 73g (0.16 lbs)
Weight capacity: standard use 907g (2 lbs), heavy-duty use 454g (1 lb)
Material: powder-coated marine-grade aluminium
What's Included
1 x RAM-B-202AU aluminium camera base with 1/4"-20 stud and B Size 1" ball
FAQs
Will it fit my camera? If your camera or camcorder has the standard 1/4"-20 tripod thread on its base, yes. That covers the vast majority of cameras and camcorders.
Aluminium or composite, which should I pick? This RAM-B-202AU is marine-grade aluminium for maximum durability. If you want lighter and a little cheaper, the composite RAP-B-202AU shares the same fitment and ball size.
What else do I need? A RAM B-series double socket arm and a second B-series base to suit your surface or vehicle. The 1" B Size ball pairs with any B-series component.
In stock and dispatched from our Auckland warehouse, normally within one business day of your order.
