RAM Camera Base (1/4"-20 Male Thread) with Composite Arm & Round Base

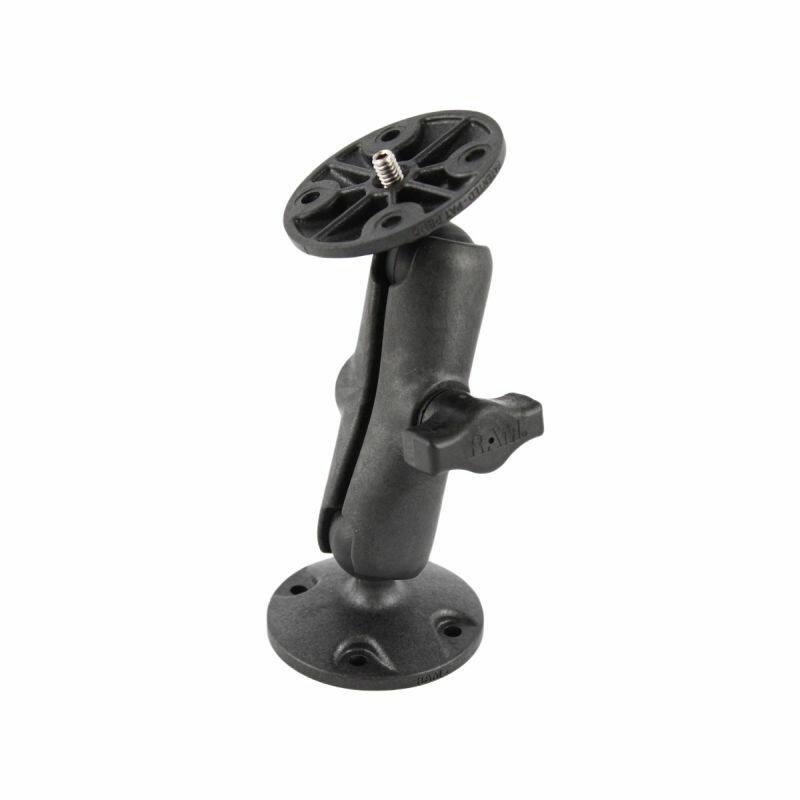

RAP-B-101AU RAM® Composite Camera Mount with 1/4"-20 Thread, AMPS Base & Medium Arm

The RAP-B-101AU mounts a camera or camcorder by its standard 1/4"-20 tripod thread, drilling down to a flat surface via an AMPS round base and linking the two with a medium composite double socket arm. The threaded plate supports the camera from underneath, and the ball-and-socket arm adjusts to almost any angle — all in lightweight, lower-cost composite.

Key Features

• Universal camera base: a 1/4"-20 threaded steel stud on a 63mm round plate that supports the camera resting on it; fits most standard camera and camcorder threads
• AMPS round base connects to RAM device holders with the universal AMPS hole pattern
• Medium composite double socket arm; ball-and-socket design adjusts to almost any angle
• High-strength composite; backed by a lifetime warranty

Works With

Any camera or camcorder with a standard 1/4"-20 female thread — including GoPro HD HERO 1–4 and most Sony, Canon, Nikon, Fuji, Garmin and Midland models. For a short-arm version, see the RAP-B-101AU-A.

Dimensions & Specifications

• Camera base: 63mm (2.5") round plate with 1/4"-20 threaded steel stud
• AMPS round base hole pattern: 4-hole, 30mm x 38mm (1.181" x 1.496")
• Arm overall length: 94mm (3.69"); socket-to-socket 76mm (3")
• Ball size: B size, 1" rubber ball
• Weight: 177g (0.39 lbs)
• Material: high-strength composite

Compatible Devices

• Any camera with a 1/4"-20 female threaded hole
• GoPro HD HERO 1–4
• Most Sony, Canon, Nikon, Fuji, Garmin and Midland cameras and video cameras

What's Included

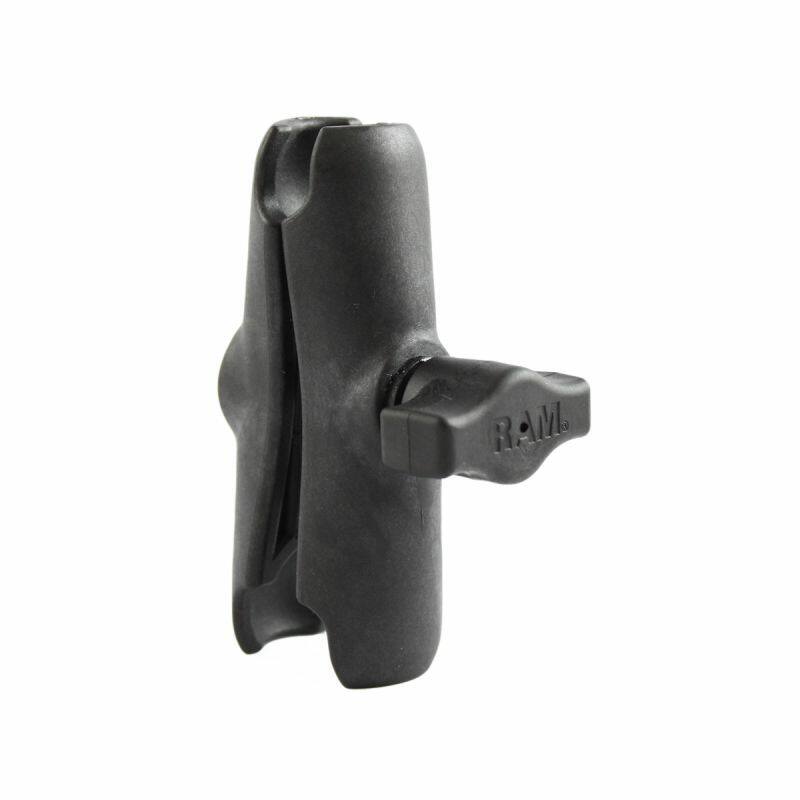

• RAP-B-201U composite double socket arm (1" ball, medium length)

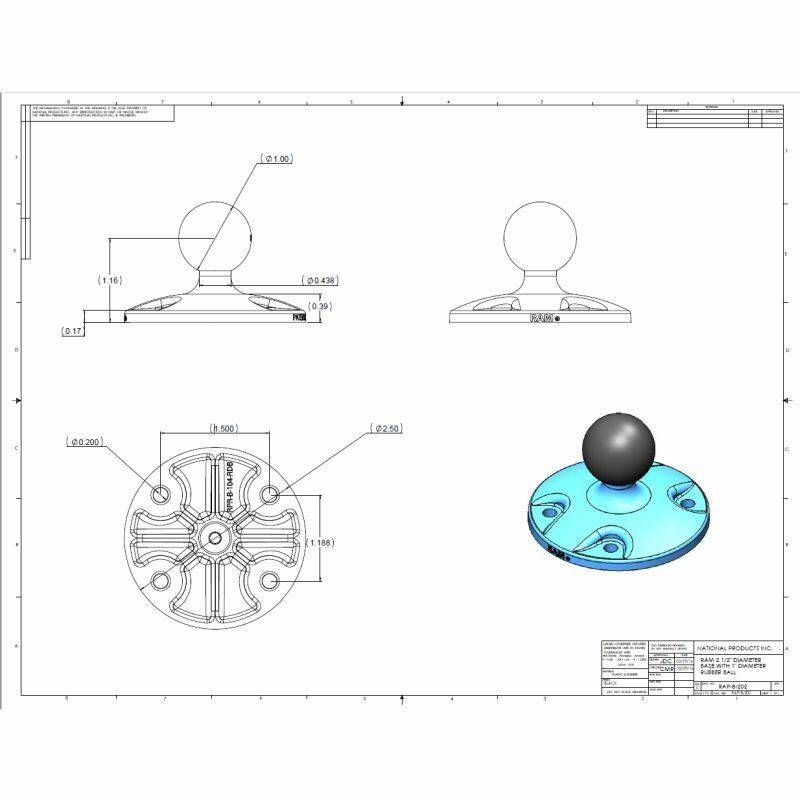

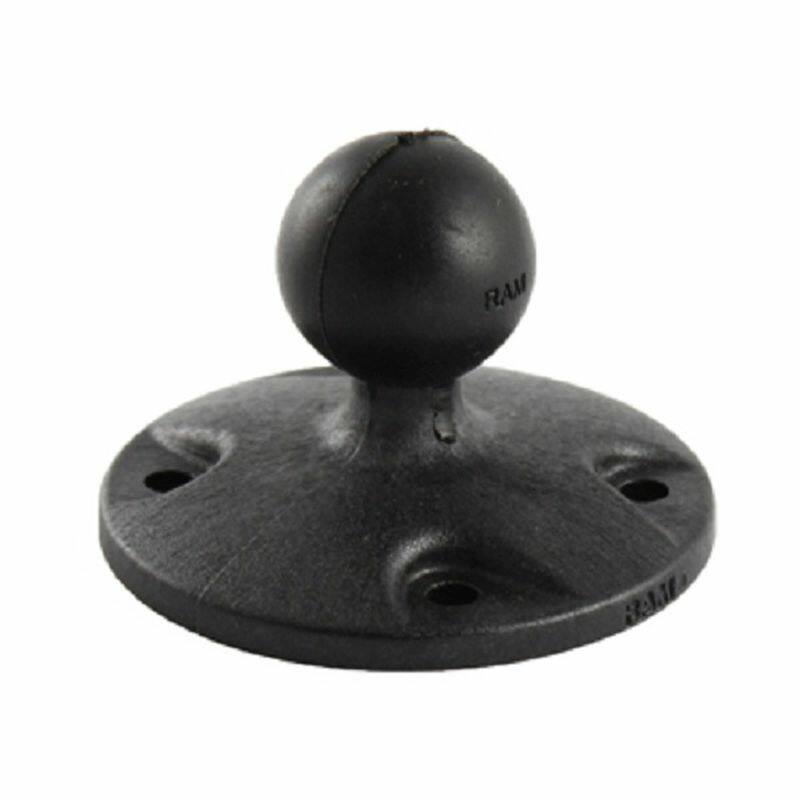

• RAP-B-202U 63mm round AMPS base with 1" ball

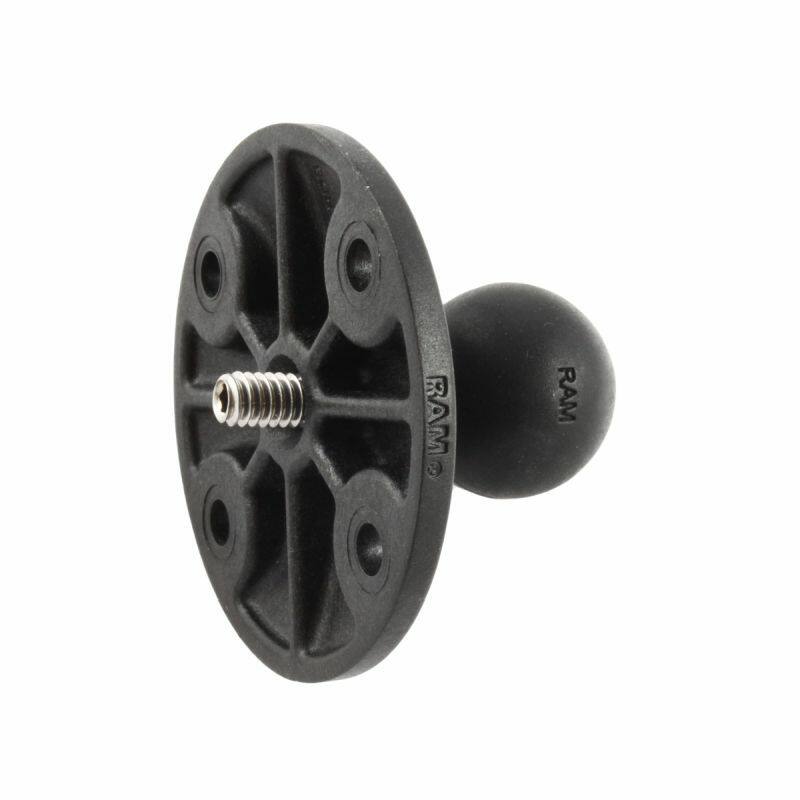

• RAP-B-202AU 63mm round base with 1/4"-20 camera thread

FAQs

Will it fit my camera? Yes, if your camera has the standard 1/4"-20 tripod thread on the base — that covers most cameras, camcorders and the GoPro HERO 1–4.

Medium arm or short arm? This is the medium-arm (94mm) version. For a more compact mount, see the short-arm RAP-B-101AU-A.

How fast does it ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
