RAM Camera Base (1/4"-20 Male Thread) - with Handlebar Rail Base

RAM-B-149Z-C1U RAM® Handlebar U-Bolt Double Ball Mount with 1/4"-20 Camera Base

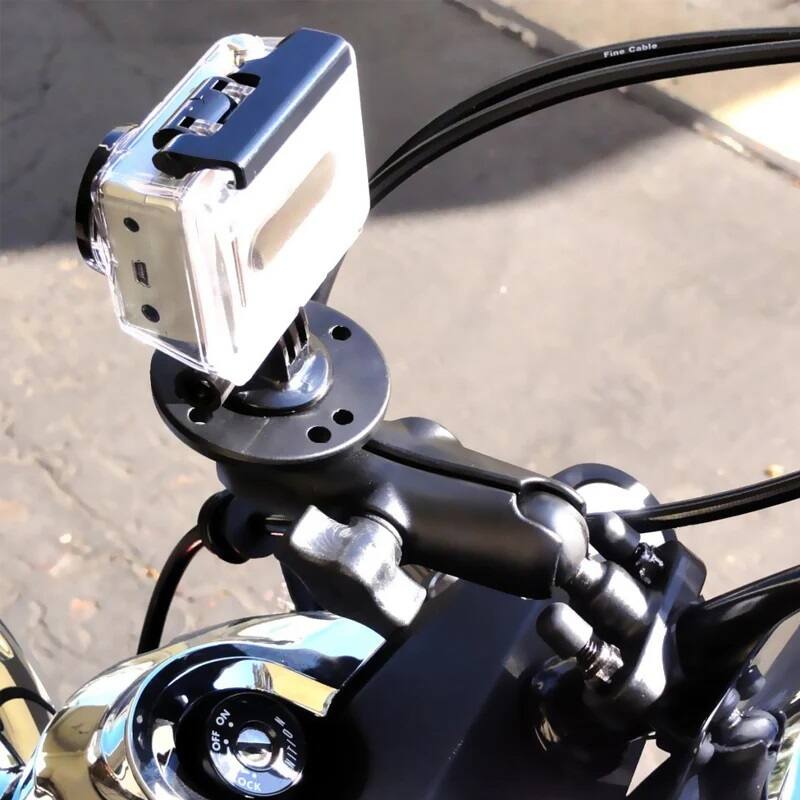

The RAM-B-149Z-C1U clamps a zinc-plated U-bolt base to a handlebar or rail, then uses a medium double socket arm and a 63.5mm (2.5") round camera base with a 1/4"-20 male threaded stud to carry any camera or camcorder with a standard tripod thread. It's built for rails and bars from 13mm to 32mm (0.5" to 1.25") in diameter.

Key Features

• Zinc-plated U-bolt base fits rails and bars from 13mm to 32mm (0.5" to 1.25") diameter, with cover caps over the exposed U-bolt ends
• 63.5mm (2.5") round base with 1/4"-20 male threaded stud fits any camera with a standard tripod thread
• Medium double socket arm with two RAM® 1" ball-and-socket joints for near-infinite adjustment
• Included composite rail adapter narrows the clamping width down to 12.7mm (0.5") minimum
• Powder-coated marine-grade aluminium and high-strength composite construction
• Backed by RAM's lifetime warranty

Works With

Any camera or camcorder with a standard 1/4"-20 female threaded socket. The U-bolt base clamps to handlebars, roll bars and rails from 13mm to 32mm (0.5" to 1.25") diameter.

Dimensions & Specifications

• U-bolt clamping range: 13mm to 32mm (0.5" to 1.25") diameter

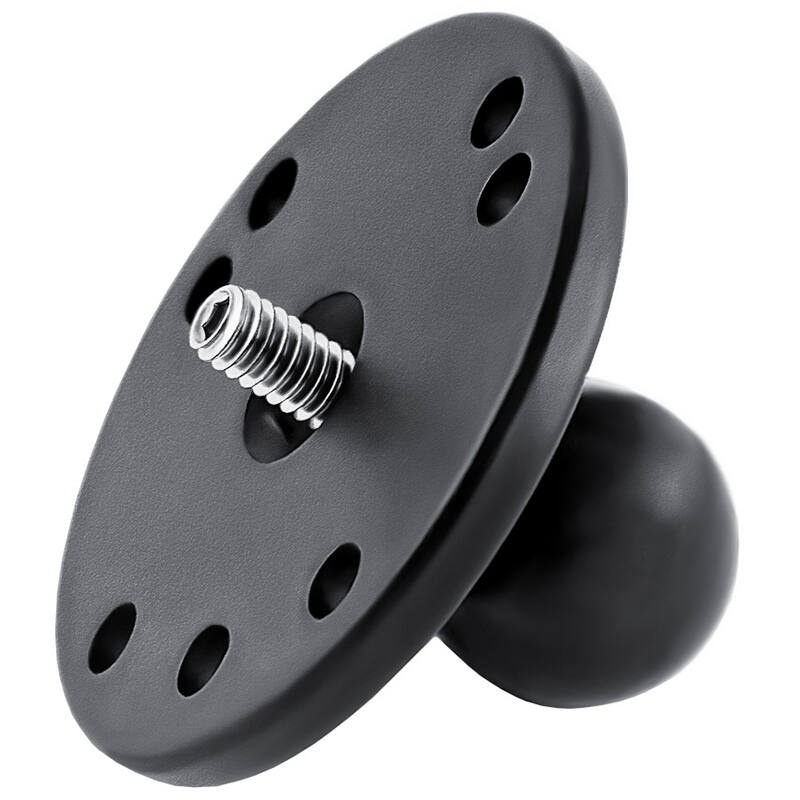

• Camera base: 63.5mm (2.5") round plate, 1/4"-20 x 0.25" male threaded stud
• Hole pattern: 4-hole AMPS, 30mm x 38mm (1.181" x 1.496"), or 3-hole 120-degree, 46.0mm (1.812")
• Arm overall length: 94mm (3.69")
• Arm socket-to-socket length: 76mm (3")
• Ball size: 1" B-size RAM ball (both ends)
• Weight: 313g (0.69 lbs)
• Weight capacity: standard use 907g (2 lbs), heavy-duty use 454g (1 lb)
• Material: powder-coated marine-grade aluminium and high-strength composite

What's Included

• 1 x RAM-B-231ZU zinc-plated U-bolt base (13-32mm bars)
• 1 x RAM-B-201U double socket arm (B-size, medium length)

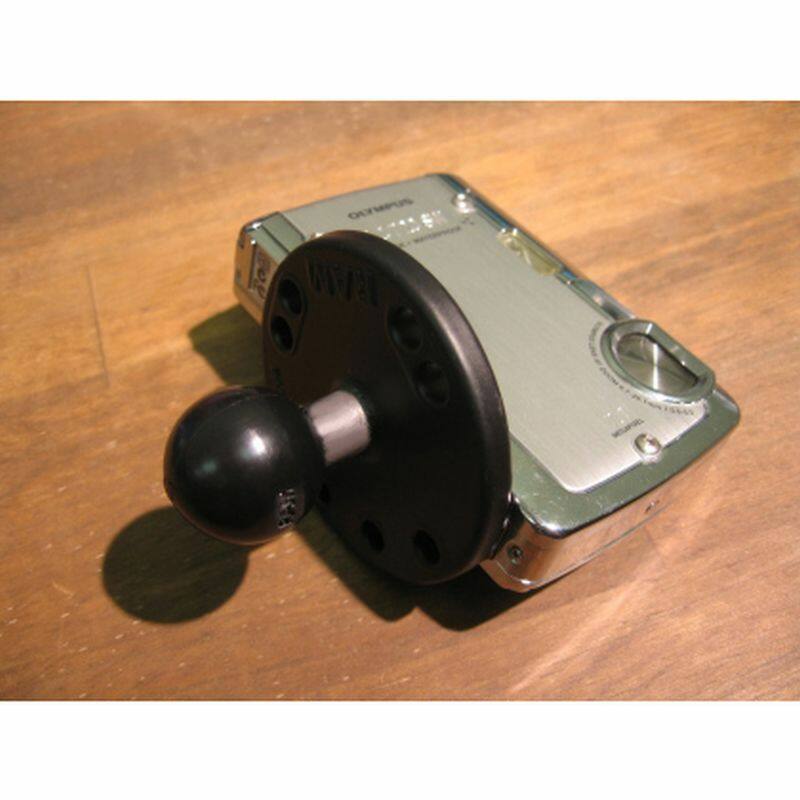

• 1 x RAM-B-202AU 63mm round base with 1/4"-20 camera thread

FAQs

Will this fit my camera?
If your camera or camcorder has the standard 1/4"-20 tripod thread on its base, yes.

What size bars does the U-bolt fit?
13mm to 32mm (0.5" to 1.25") in diameter. A composite rail adapter is included to narrow the clamping width further if needed.

How fast does it ship?
If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
