RAM Mounts

RAM Camera Base with Drill Down mount - B Series - Long

RAM Camera Base with Drill Down mount - B Series - Long

SKU:RAM-B-101U-C-A-v

Regular price $106.08 NZD
Regular price Sale price $106.08 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-B-101U-C-A RAM® Double Ball Mount with 1/4"-20 Male Thread


Features

* RAM universal camera and camcorder base is a 2.5" diameter round plate with 1/4"-20 camera thread
* Drill-down mounting solution - the round plate features the AMPS hole pattern
* Includes B size long length double socket arm
* RAM ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

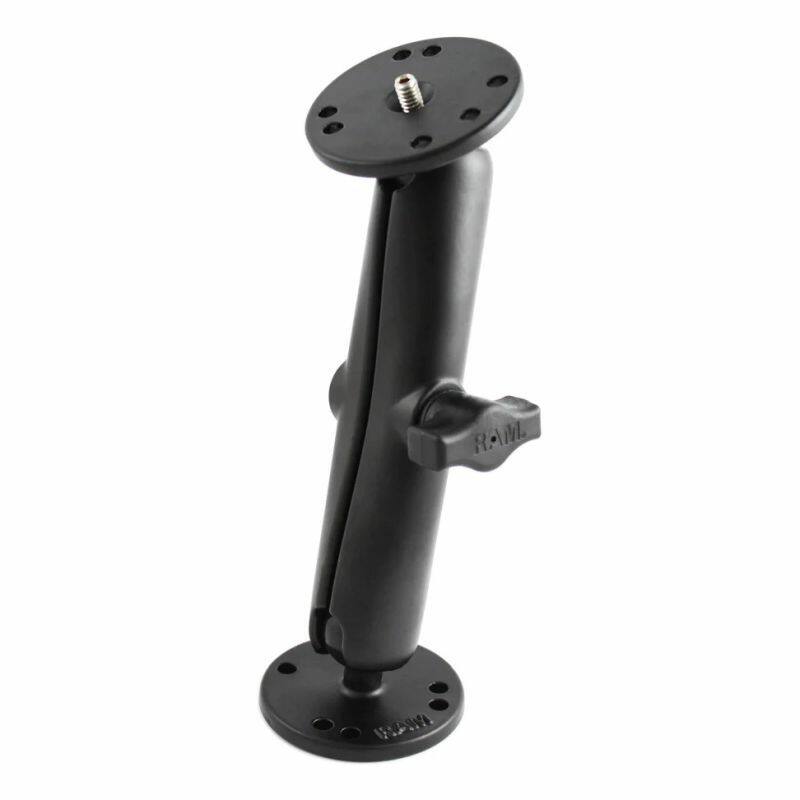

The RAM-B-101U-C-A consists of a long length B-size arm with a 2.5" diameter round plate with universal AMPS hole pattern as well as a 2.5" diameter round plate with universal AMPS hole pattern and a removable 1/4"-20 threaded post.

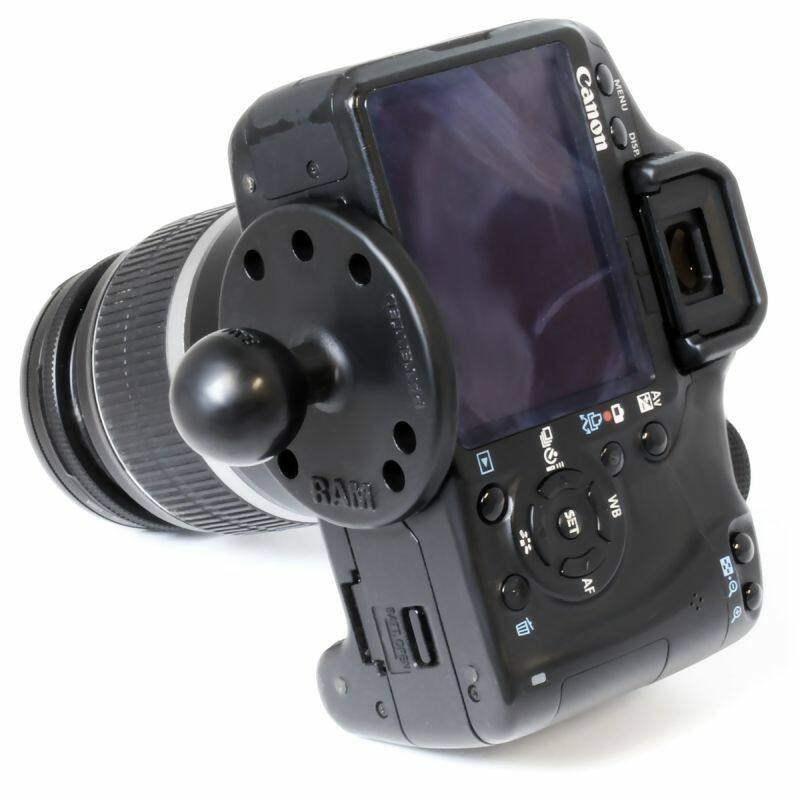

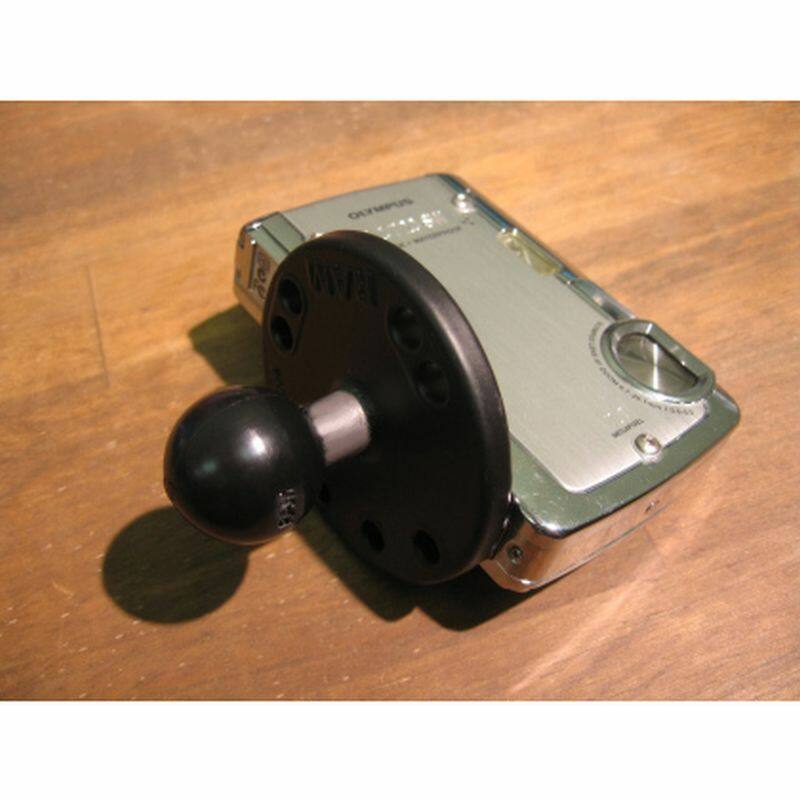

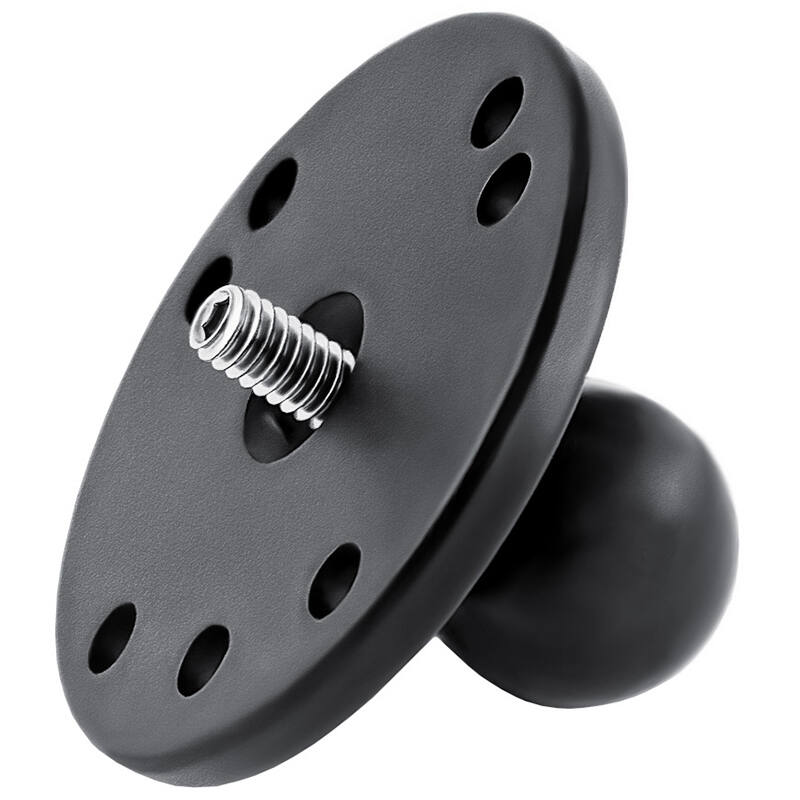

The universal camera and camcorder base, consists of a 1" diameter rubber ball, connected to a 2.5" diameter round plate with 1/4"-20 camera thread. The round plate provides extra support and stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras.

The flat 63mm (2.5") diameter base with a 1" diameter rubber ball with pre-drilled holes, including the universal AMPs hole pattern and is perfect for permanent mounting.

The long double socket arm has an overall length of 152 mm and a socket-to-socket length of 134 mm

Compatible Devices
Cameras that contain 1/4"-20 Female Threaded Hole

Thread Pitch
1/4"-20 x .25"

Overall Height:
18.57cm (7.3125")

Arm Dimensions:
Overall Length:
152 mm (6”)
Socket-To-Socket Length:
134 mm (5.25”)


Material:
Powder Coated Marine Grade Aluminium

Ball Size
1" Rubber "B" Ball Size

Round Plate Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)


Weight:
340 grams (0.75 lbs.)

Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)


Components:
RAM-B-201U-C - long double socket arm
RAM-B-202U - round base with 1" ball
RAM-B-202AU RAM 63mm ROUND BASE W/STD 1/4 CAMERA THREAD
