RAM-B-309-7-C2 RAM® Motorcycle Brake/Clutch Reservoir Adjustable Camera Mount
The RAM-B-309-7-C2 is a combination base for motorcycle brake or clutch reservoirs and handlebars, including both metric and standard mounting bolts plus two U-bolt sizes for rails 12.7mm to 31.75mm (0.5" to 1.25"). It comes with both a medium and a short double socket arm, so you can build the reach you need, finishing on a round base with a 1/4"-20 male threaded stud for any camera or camcorder with a standard tripod thread.
Key Features

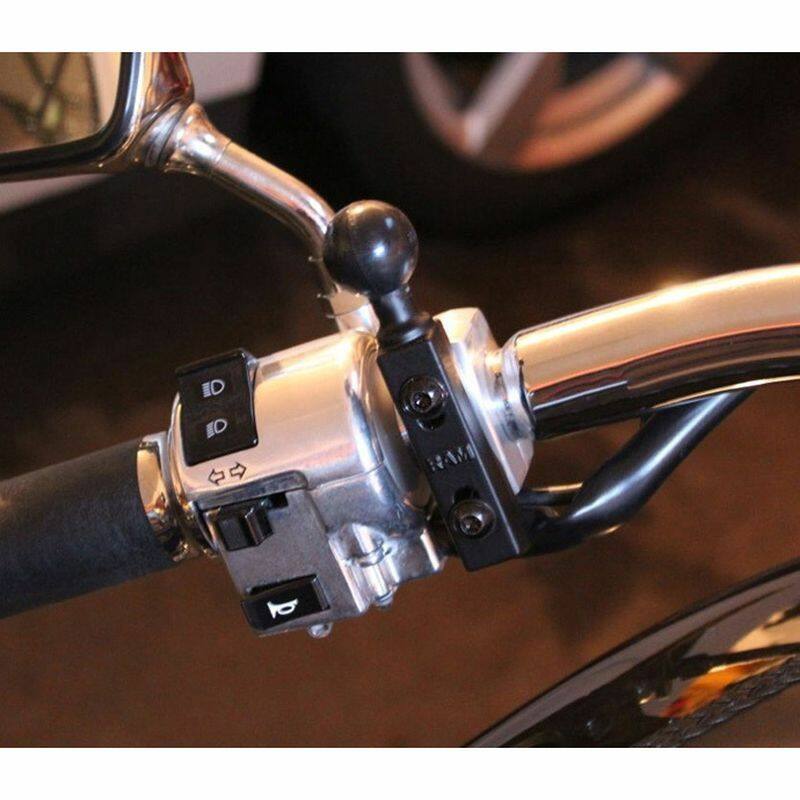

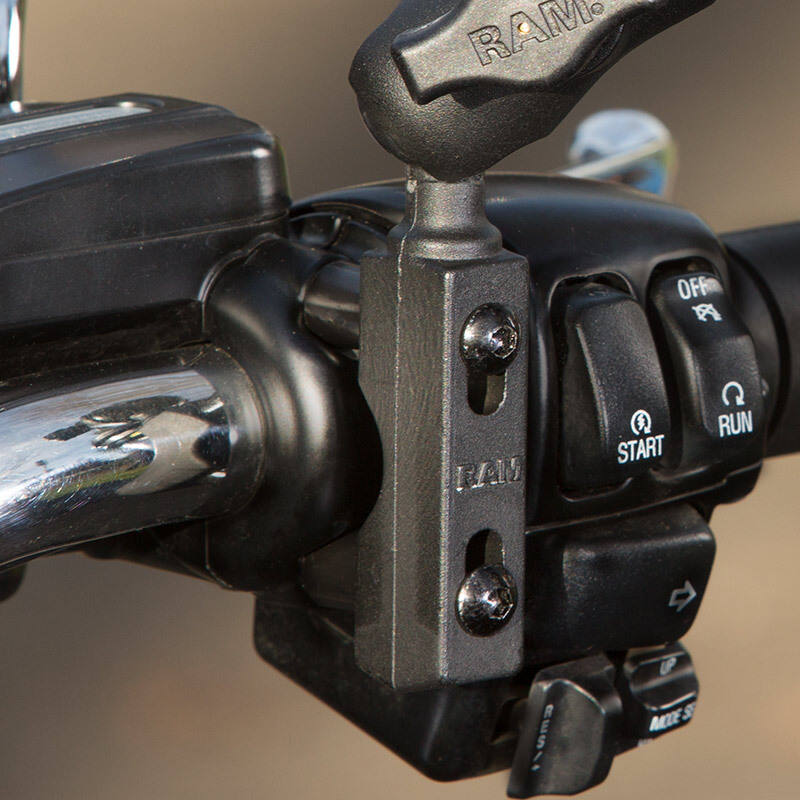

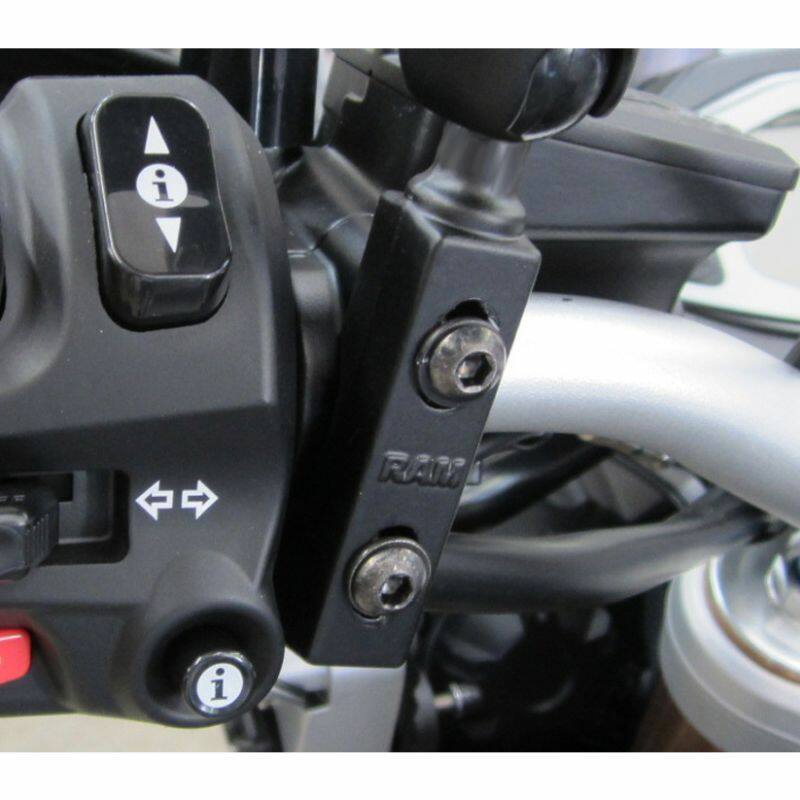

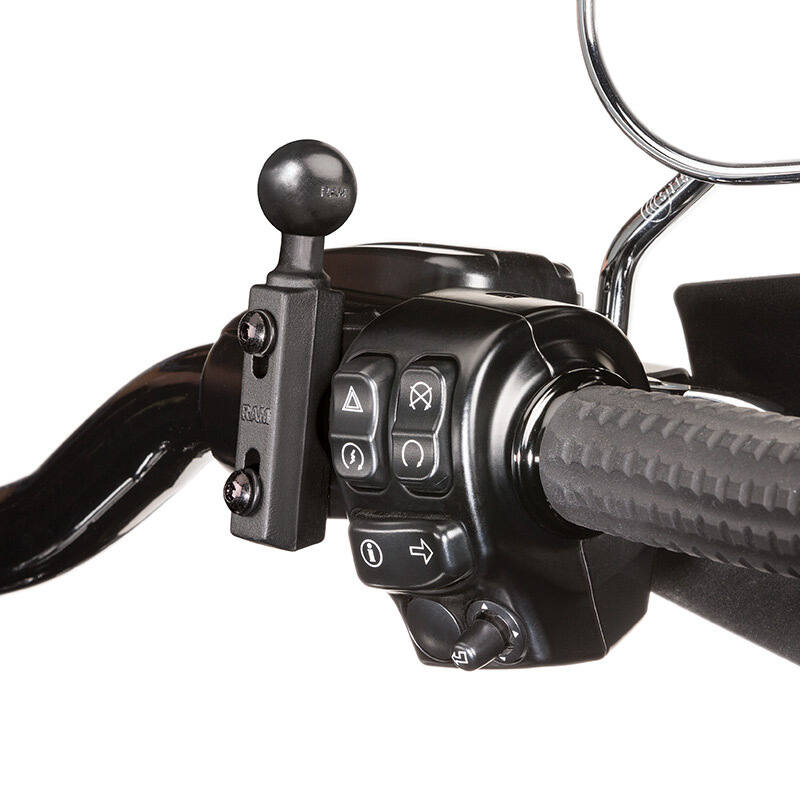

Combination base bolts to a brake/clutch reservoir (23.9mm to 40.1mm bolt-hole centres) or clamps to a handlebar via U-bolt
Includes both a medium (RAM-B-201U) and a short (RAM-B-201U-A) RAM® double socket arm
1/4"-20 male threaded stud on a round plate fits any camera or camcorder with a standard tripod thread
RAM® ball-and-socket design gives near-infinite adjustability at multiple points
Powder-coated marine-grade aluminium; backed by a lifetime warranty
Works With
Any camera or camcorder with a standard 1/4"-20 female threaded socket.
Dimensions & Specifications
U-bolt/rail clamping range: 12.7mm to 31.75mm (0.5" to 1.25")

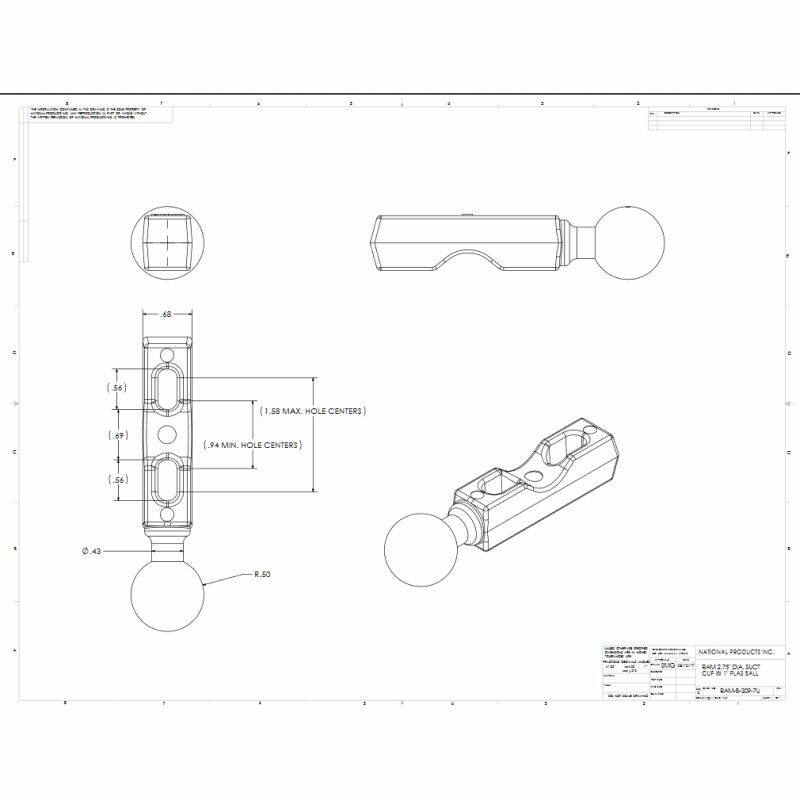

Reservoir bolt-hole centres: 23.8mm to 40.1mm (0.94" to 1.58")
Medium arm (RAM-B-201U): overall 94mm (3.69"), socket-to-socket 76mm (3")
Short arm (RAM-B-201U-A): overall 60.5mm (2.38"), socket-to-socket 51mm (2")
Hole pattern: 4-hole AMPS, 30mm x 38mm (1.181" x 1.496"), or 3-hole 120-degree, 46.0mm (1.812")
Ball size: 1" rubber ball, B size
Weight capacity: 907g (2 lbs)
Weight: 399g (0.88 lbs)
Material: powder-coated marine-grade aluminium

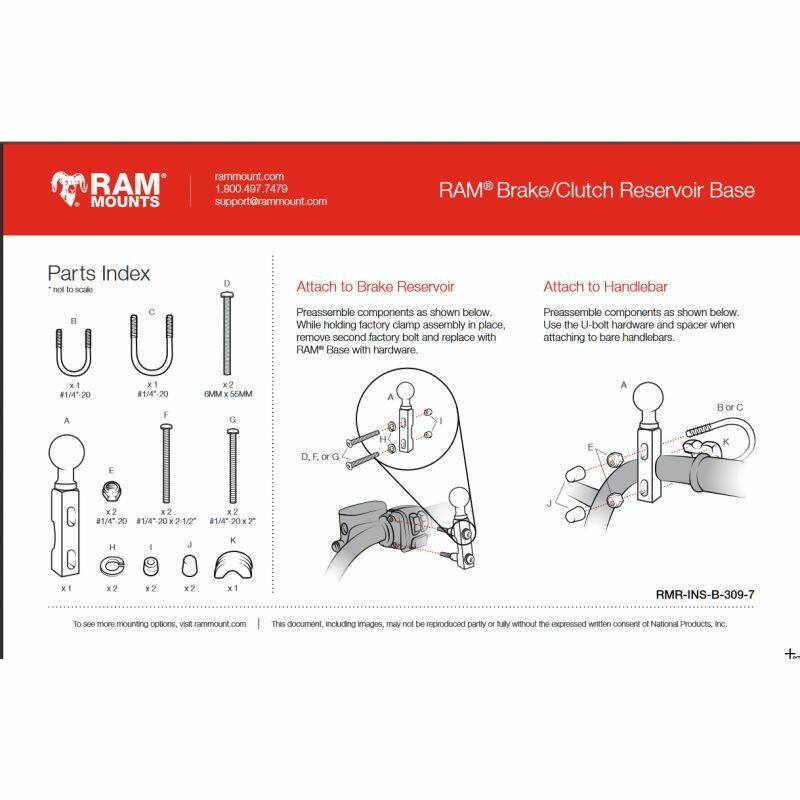

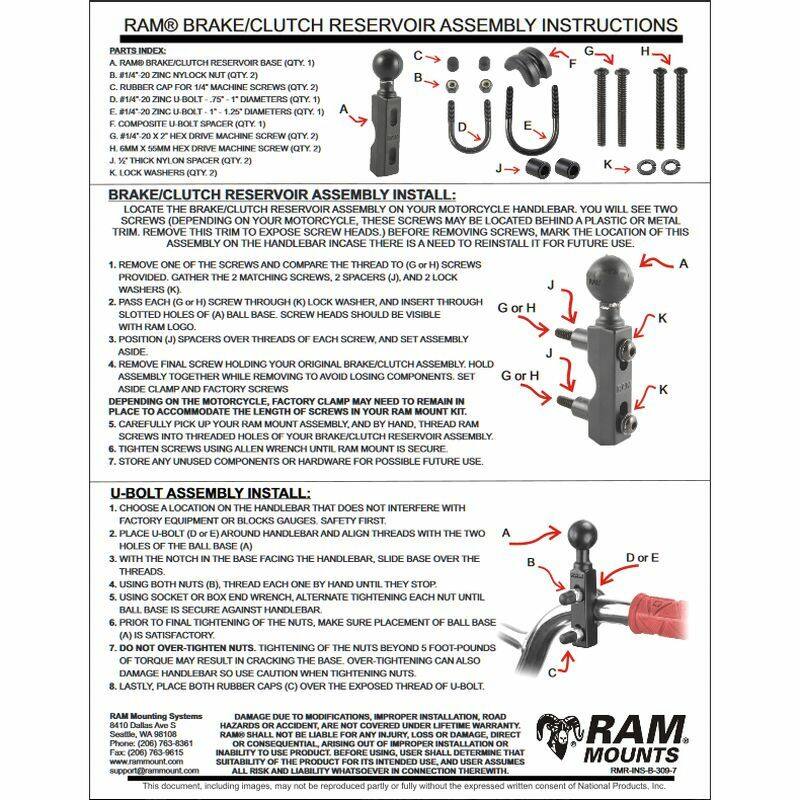

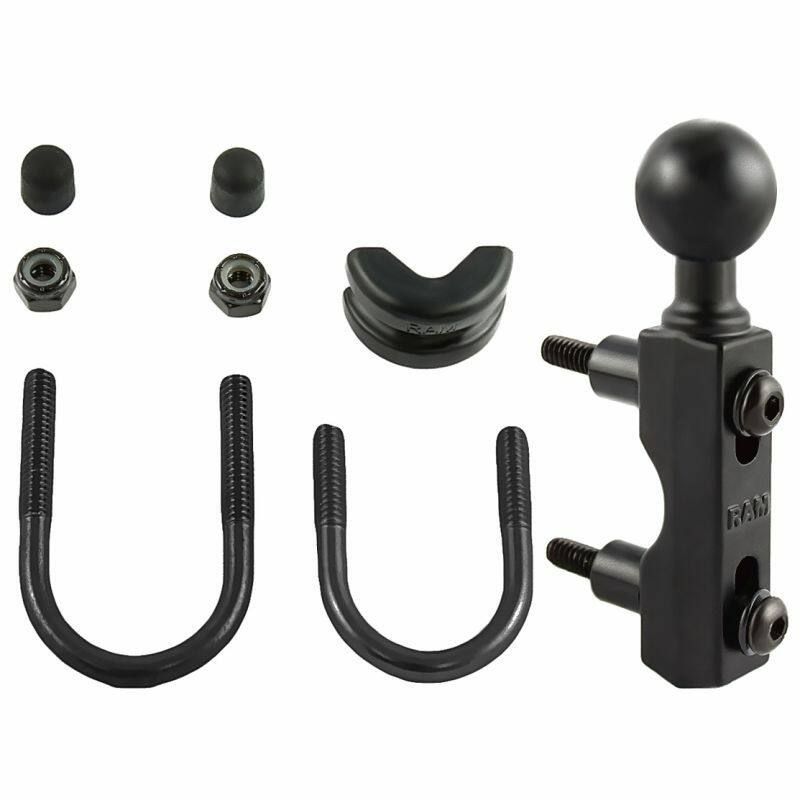

Hardware Included
2 x M6 x 55mm hex bolts
2 x 1/4"-20 x 2" hex bolts
2 x 1/4"-20 x 2.5" hex bolts
2 x 1/2" spacers
2 x 1/4" split lock washers
1 x 1/4"-20 U-bolt for 0.5"-1" rails
1 x 1/4"-20 U-bolt for 1"-1.25" rails
2 x 1/4"-20 nylock nuts
2 x rubber caps
1 x U-bolt spacer

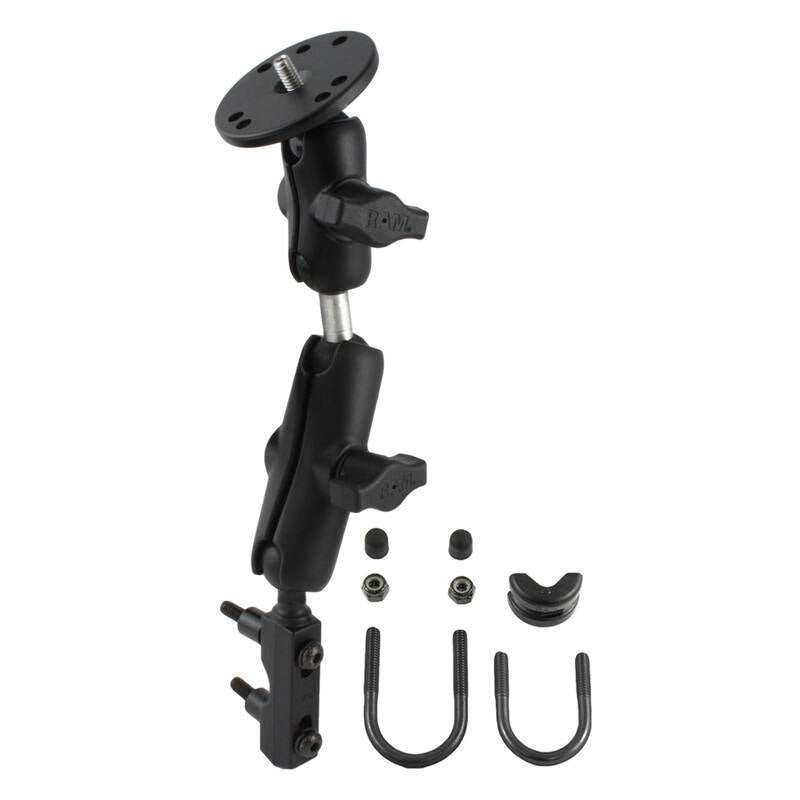

What's Included

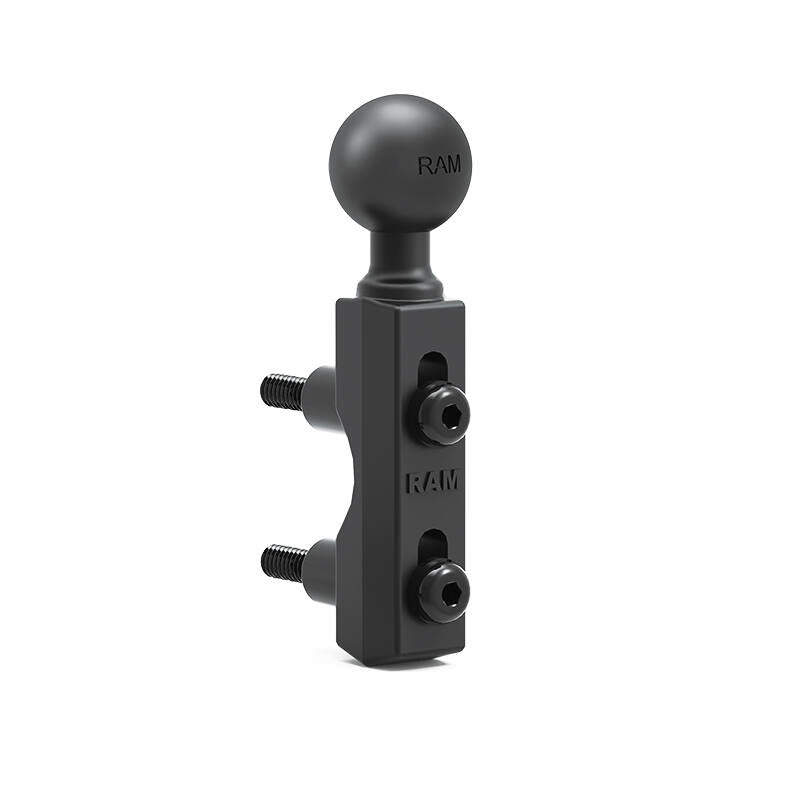

1 x RAM-B-309-7U brake/clutch reservoir & U-bolt mount combo base

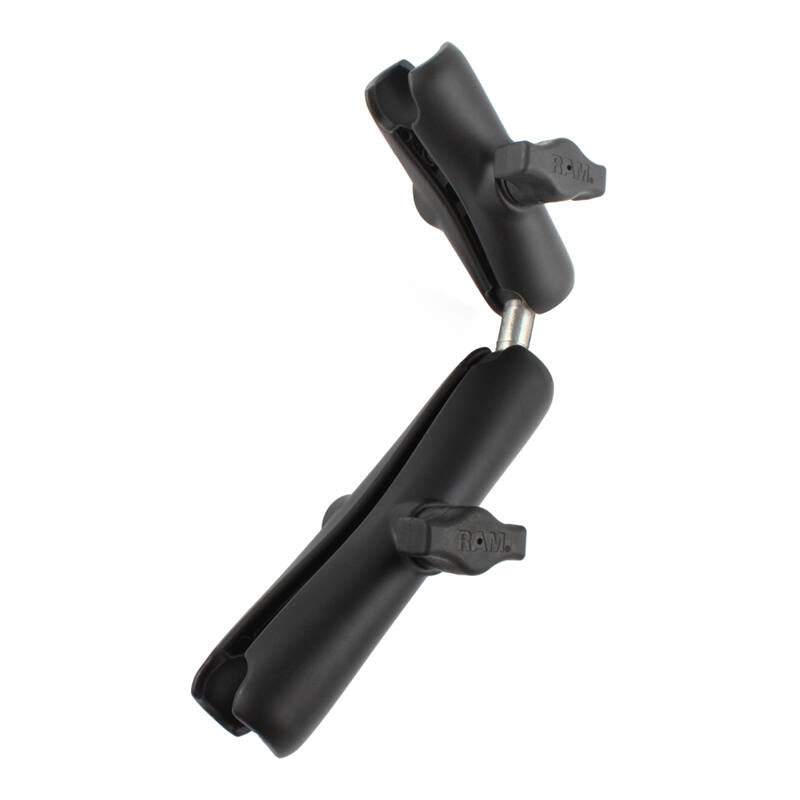

1 x RAM-B-201U double socket arm (medium)
1 x RAM-B-201U-A short double socket arm

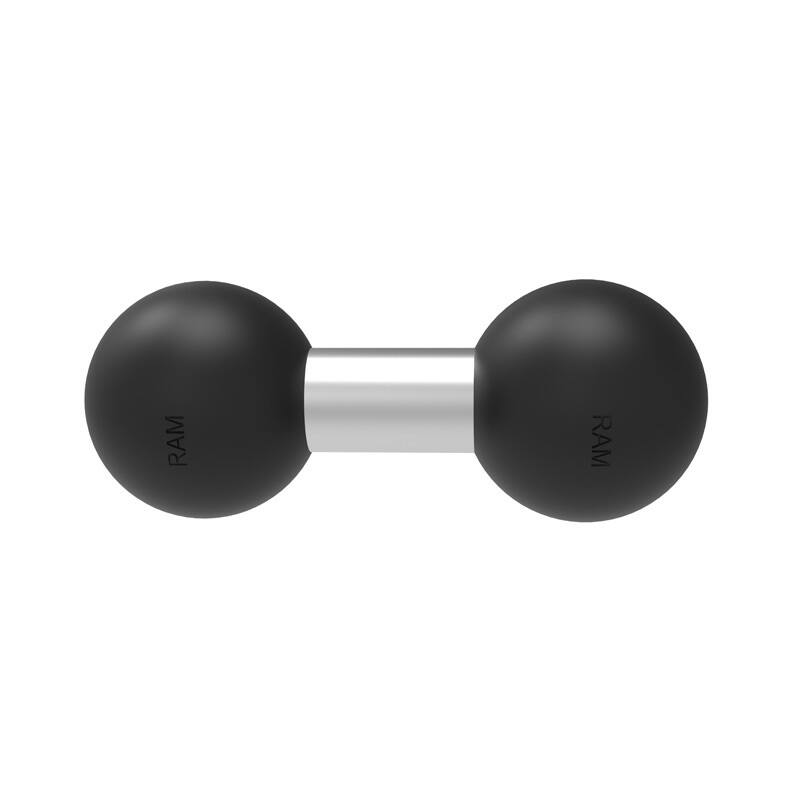

1 x RAM-B-230U double 1" ball adapter

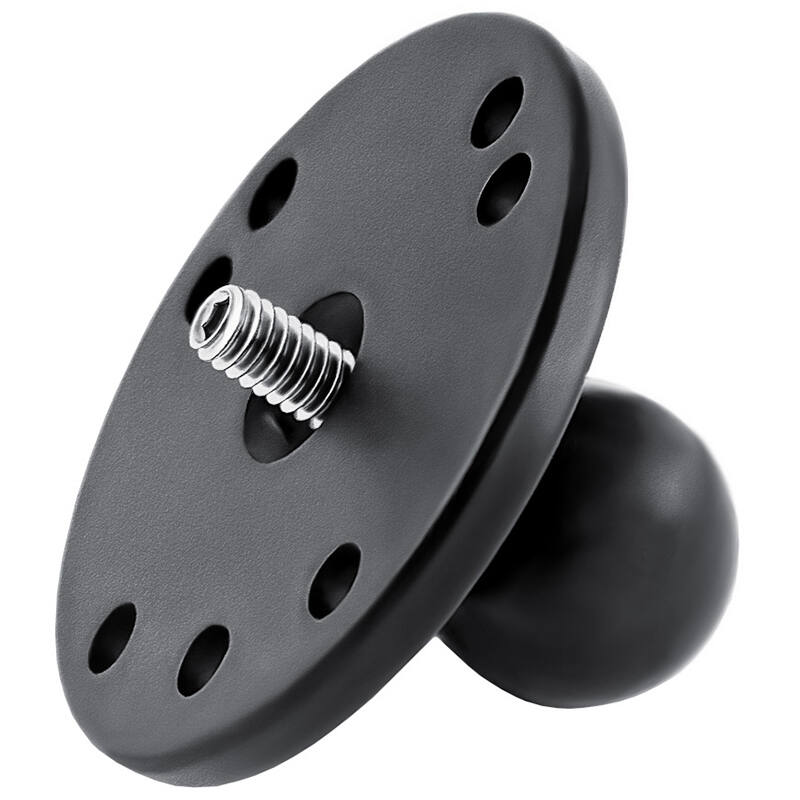

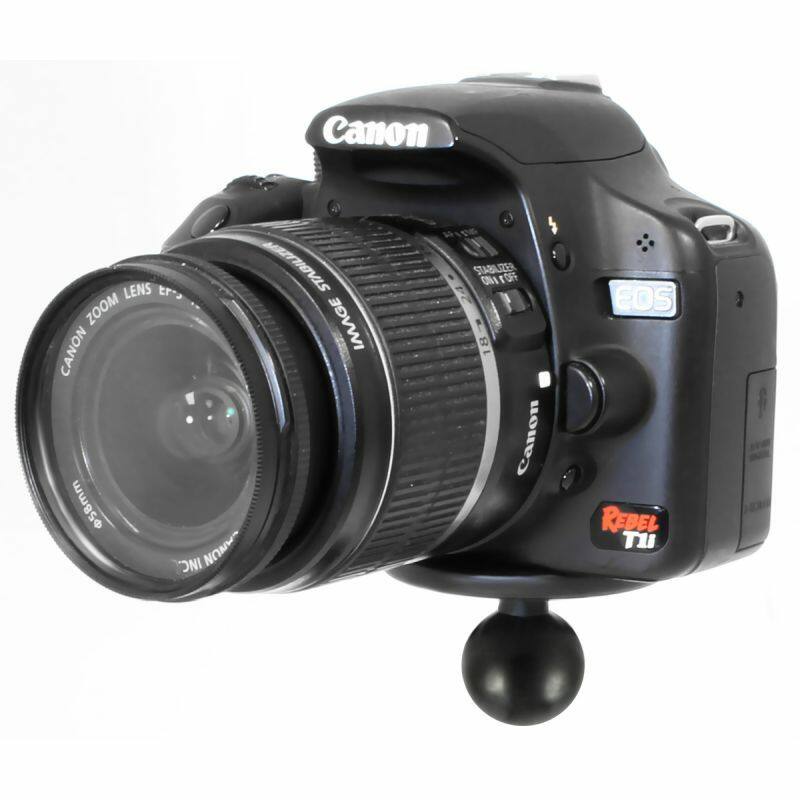

1 x RAM-B-202AU 63mm round base with 1/4"-20 camera thread
FAQs
Will this fit my reservoir? Check your brake or clutch reservoir bolt-hole spacing; the base suits centres from 23.8mm to 40.1mm (0.94" to 1.58"). If it doesn't match, use the included U-bolt on the bar instead.
Why two arms? The kit includes both a medium and a short arm so you can combine them to get the reach and angle that suits your setup.
