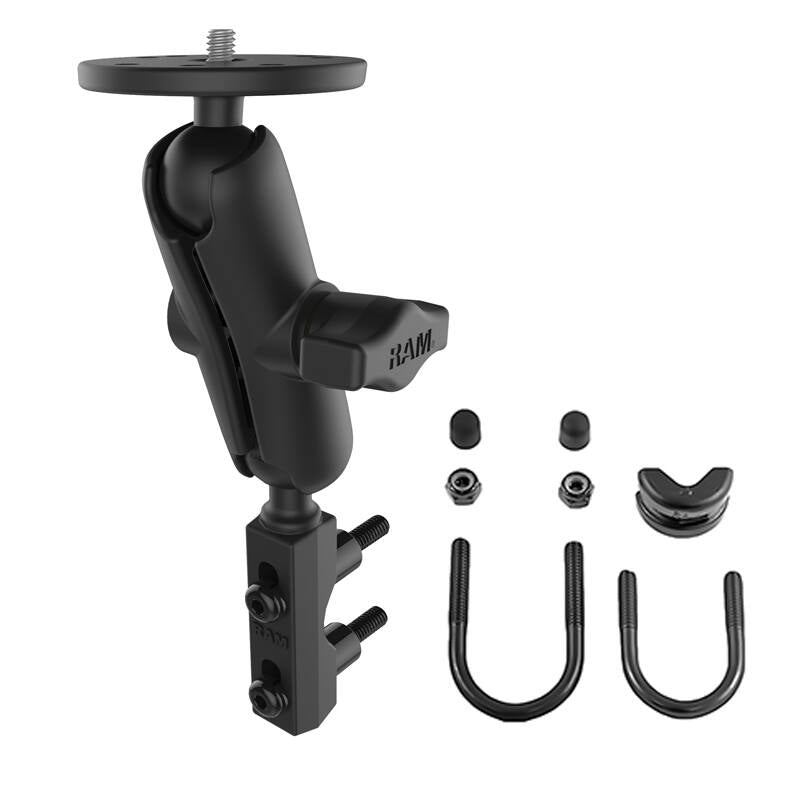

RAM-B-174-202AU Camera Mount (1/4"-20 Threaded Stud) with Combination Brake/Clutch Clamp / U-Bolt Mount
Features
* Camera mount includes 1/4"-20 threaded steel stud with round base provides support and stability
* Combination handlebar and brake/clutch reservoir base for motorcycles; includes U-bolt hardware
* Included medium RAM® double socket arm with ball and socket technology which allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

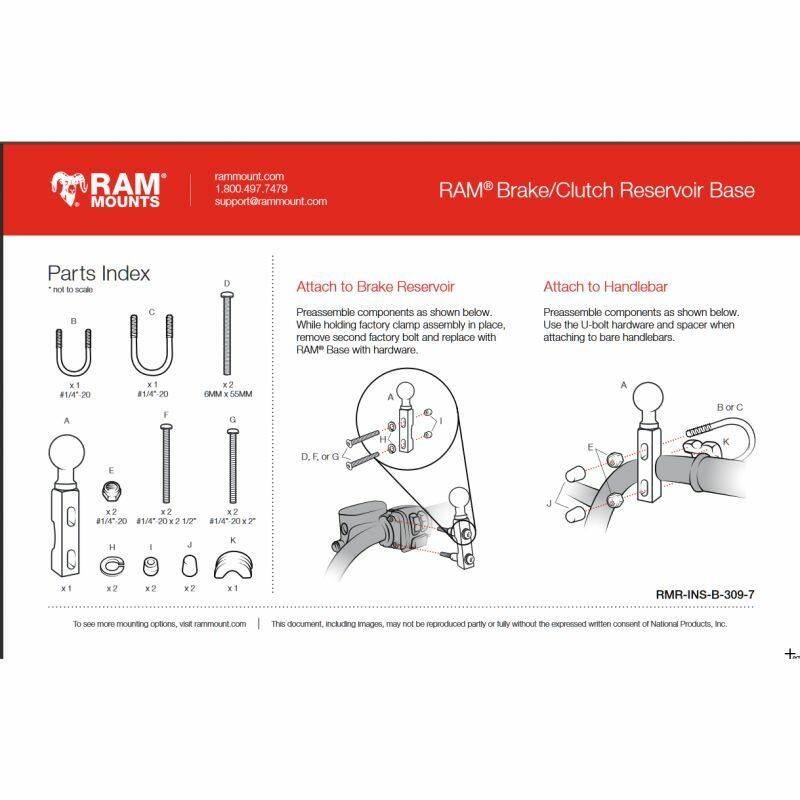

The RAM-B-174-202AU consists of a hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, double socket arm and 2.5" diameter round base adapter that contains a 1/4"-20 male camera thread. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts.

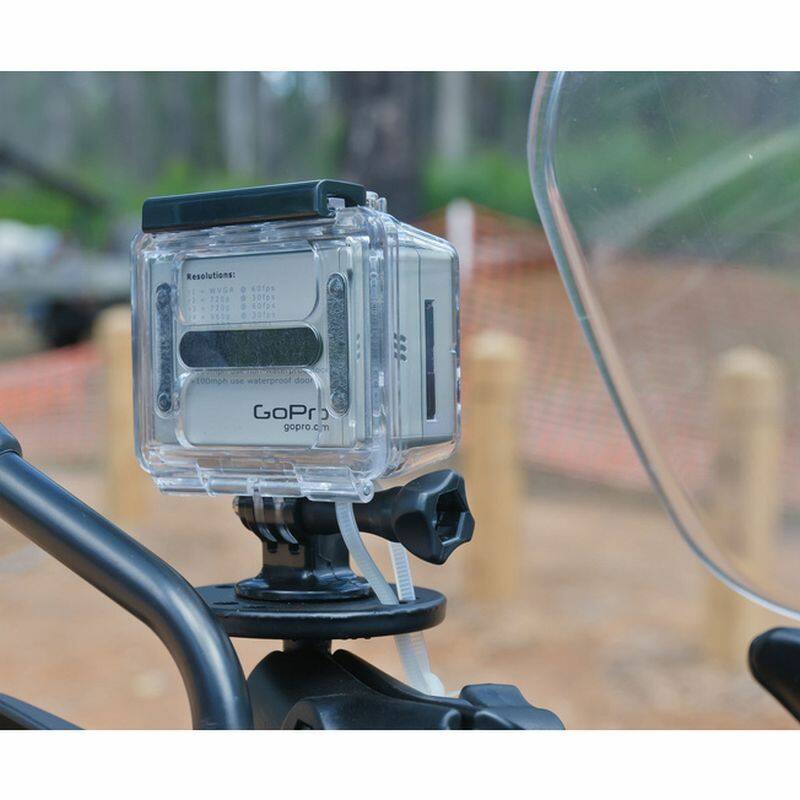

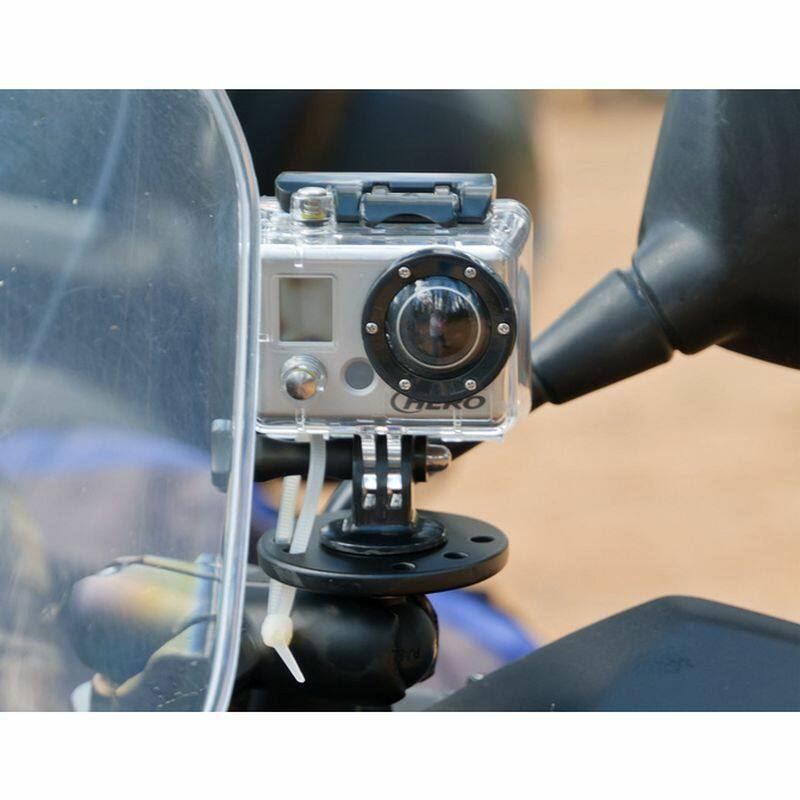

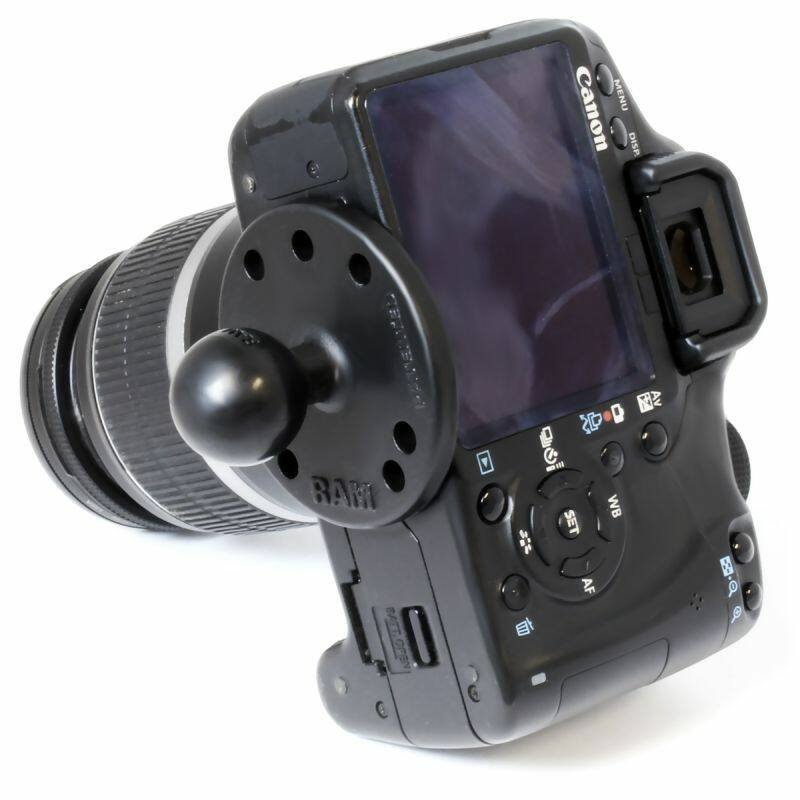

The included 1/4"-20 threaded steel stud, centered, with round base provides support and stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
Compatible Devices
Cameras that contain 1/4"-20 Female Threaded Hole
Thread Pitch
1/4"-20 x .25"
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
1" Rubber Ball "B" Size
Weight:
231 grams / 0.51 lbs.
Components:

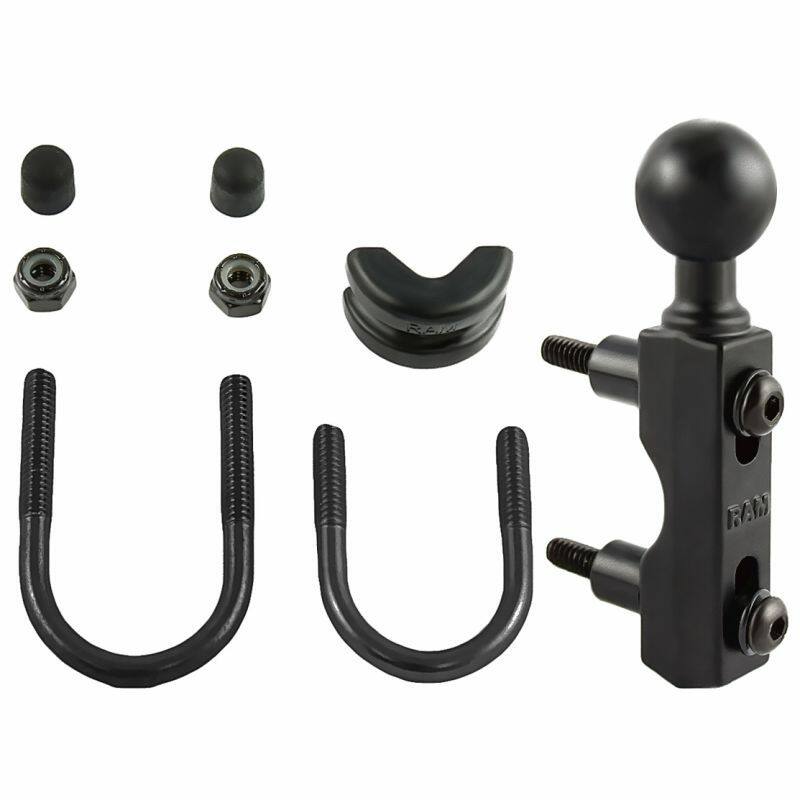

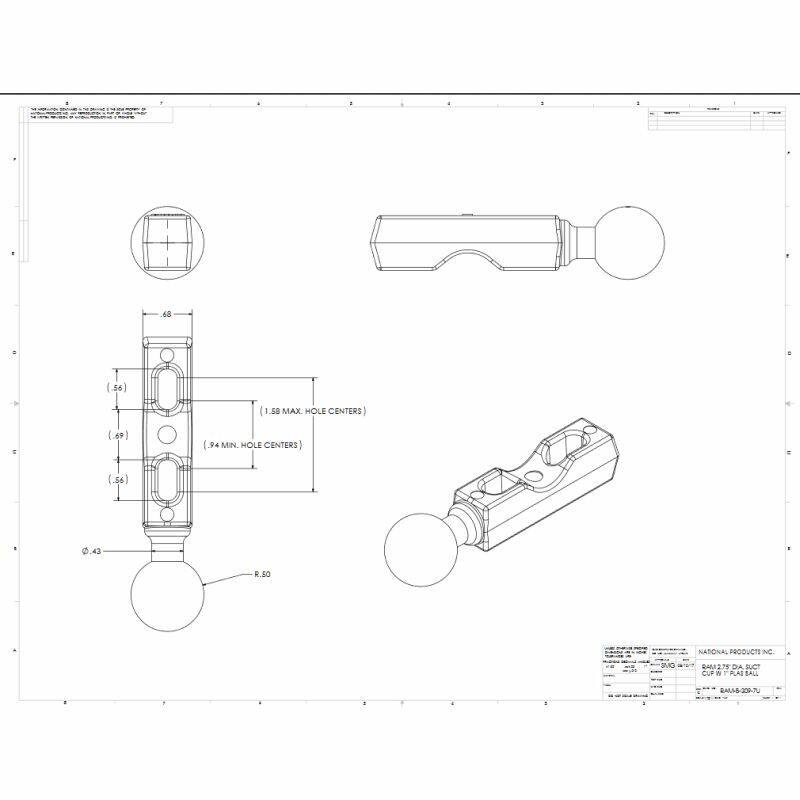

RAM-B-309-7U - RAM Motorcycle Combination Base for Handlebar or Brake/Clutch Reservoir

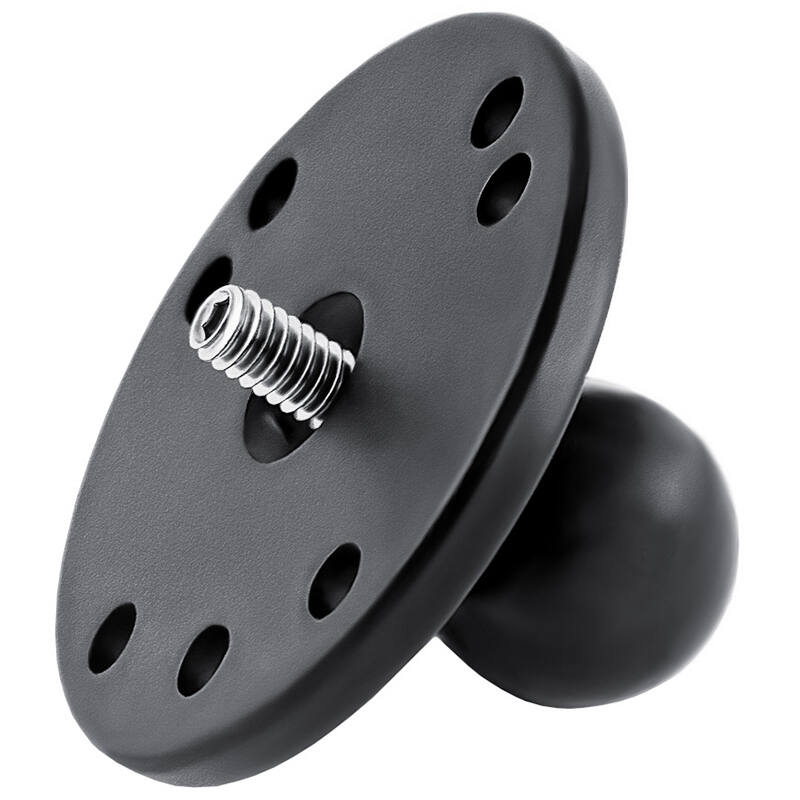

RAM-B-202AU - Ball Adapter with Round Plate and 1/4"-20 Threaded Stud
RAM-B-201U - 96mm double socket arm
