RAM-B-101U-BR1 RAM® Twist-Lock™ Dual Suction Mount with 1/4"-20 Male Threaded Adapter
Features
* RAM universal camera and camcorder base is a 2.5" diameter round plate with 1/4"-20 camera thread
* Dual suction cup base has a strong hold on glass and non-porous plastic surfaces
* Includes B size medium double socket arm
* RAM ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

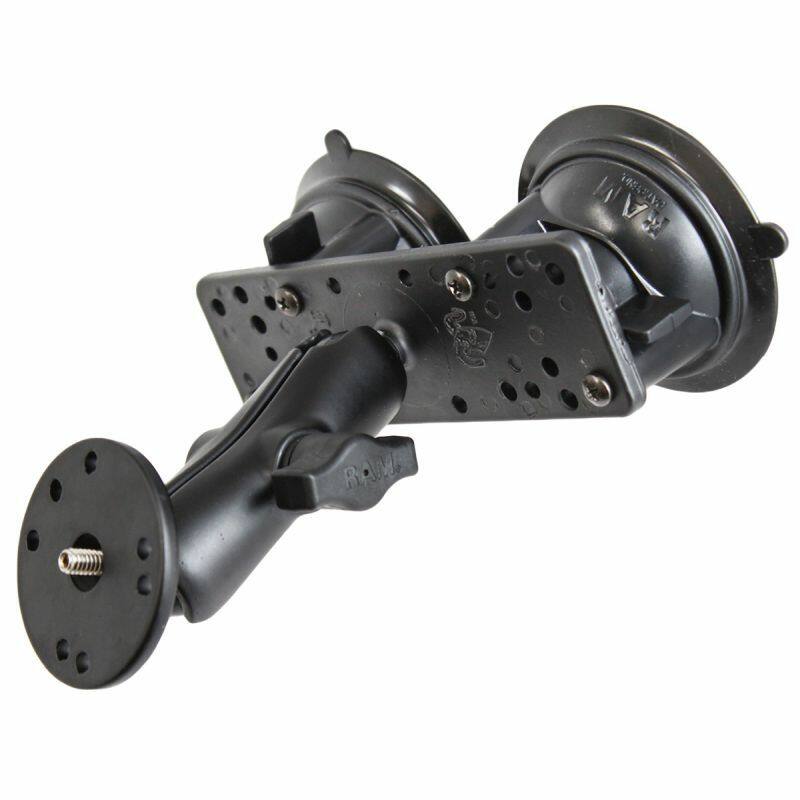

This mounting solution consists of two 3.3" diameter suction cup twist lock bases, rectangular plate with 1" ball, double socket arm and round base adaptor that contains a 1/4"-20 male camera thread.
The dual suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

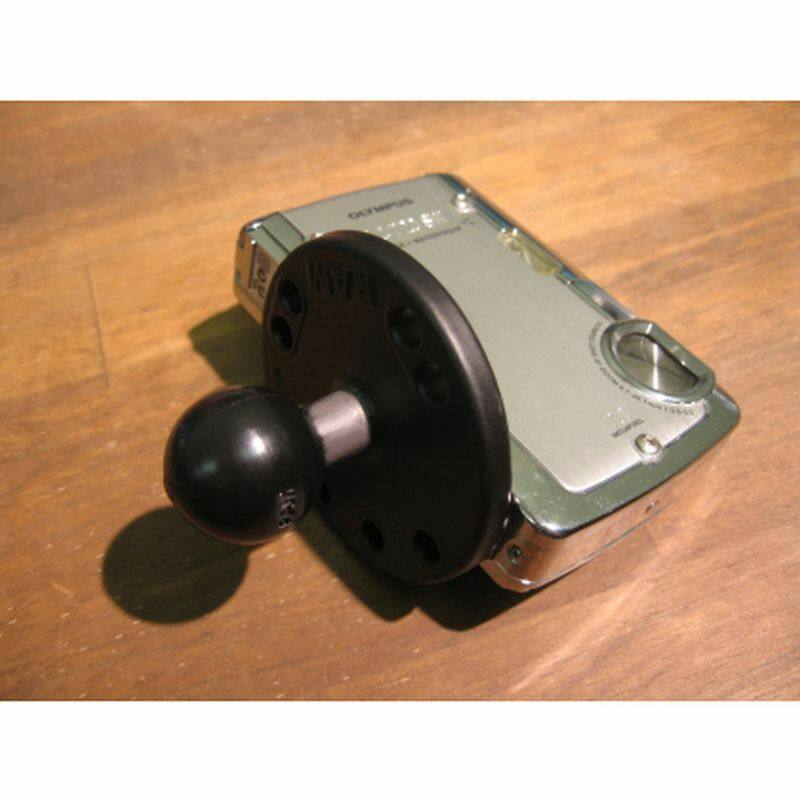

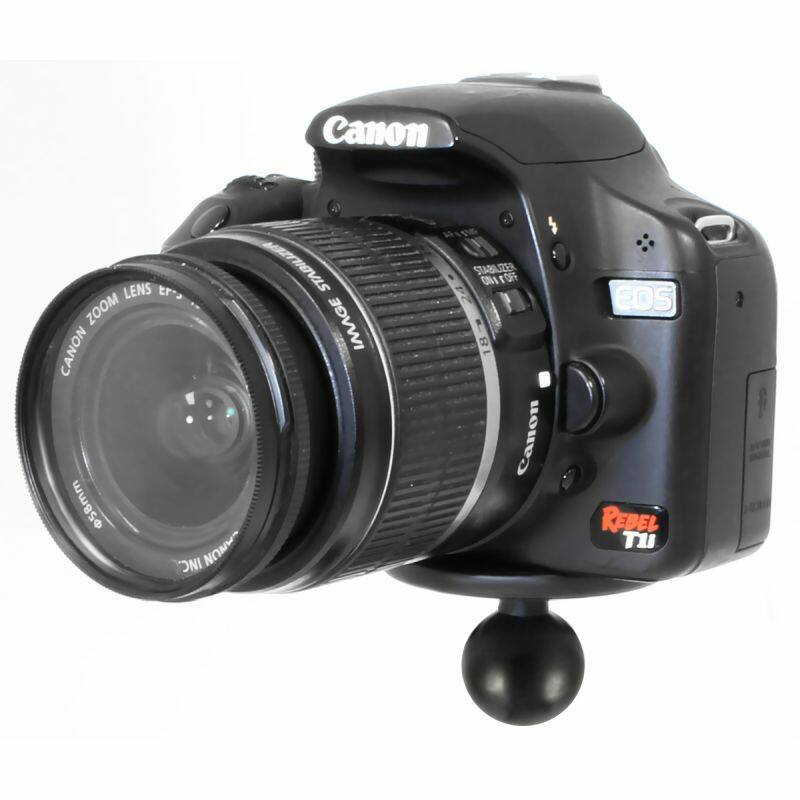

The camera base is a 1" rubber ball connected to a 2.5" diameter round base with a 1/4"-20 threaded steel stud. The round base provides support and stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras
Compatible Devices
Cameras that contain 1/4"-20 Female Threaded Hole
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Suction Size
(2) 3.3" Diameter Bases
Total Width 7.95"
Round Plate Hole Pattern
4 Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole 120-Degree:
1.812" Diameter (46mm)
Ball Size
B Size (1")
Materials
Marine-grade aluminium
High strength composite
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Components:
RAM-B-201U RAM DOUBLE SOCKET ARM FOR 1" BALL

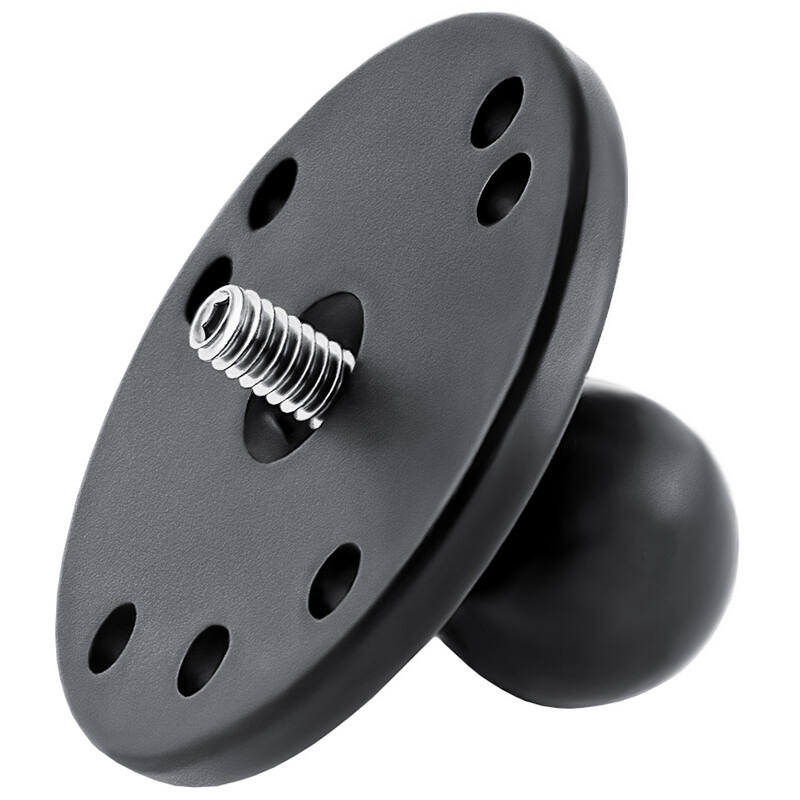

RAM-B-202AU RAM 63mm ROUND BASE W/STD 1/4 CAMERA THREAD

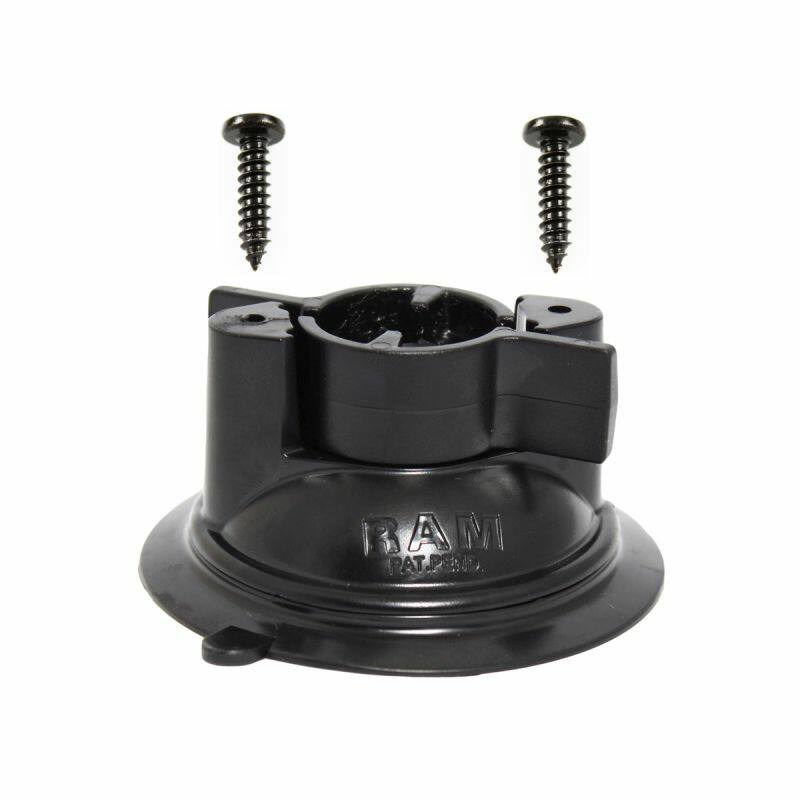

RAP-224-1U RAM UNPKD 3.76mm DIA. SUCT CUP W/TWIST LCK (x2)
RAM-B-111BU RAM RECTANGULAR PLATE B SERIES
