RAM Mounts

RAM Camera Mount (1/4"-20 Male Thread) - Short Arm & Round Base

RAM Camera Mount (1/4"-20 Male Thread) - Short Arm & Round Base

SKU:RAM-B-101AU-A-v

Regular price $80.28 NZD
Regular price Sale price $80.28 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-B-101AU-A RAM SHORT Double Ball Mount with 1/4"-20 Male Thread

Features

* Round camera base features with 1/4"-20 camera thread - round plate provides extra support and stability for cameras that rest on top of it
* Drill-down mounting solution - round plate featuring the AMPS hole pattern
* Includes two round ball bases and B size short length double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty


The RAM-B-101AU-A consists of a short double socket arm, one 2.5" diameter round base with the universal AMPS hole pattern and universal camera/camcorder base. The universal camera/camcorder base consists of a 1" diameter rubber ball connected to a 2.5" diameter round base with 1/4-20 camera thread. The male thread matches most standard camera and camcorder female threads found on the bottom of the camera.

Rubber ball, socket technology dampens shock and vibration, as well as allows for almost infinite adjustment, perfect viewing angles.

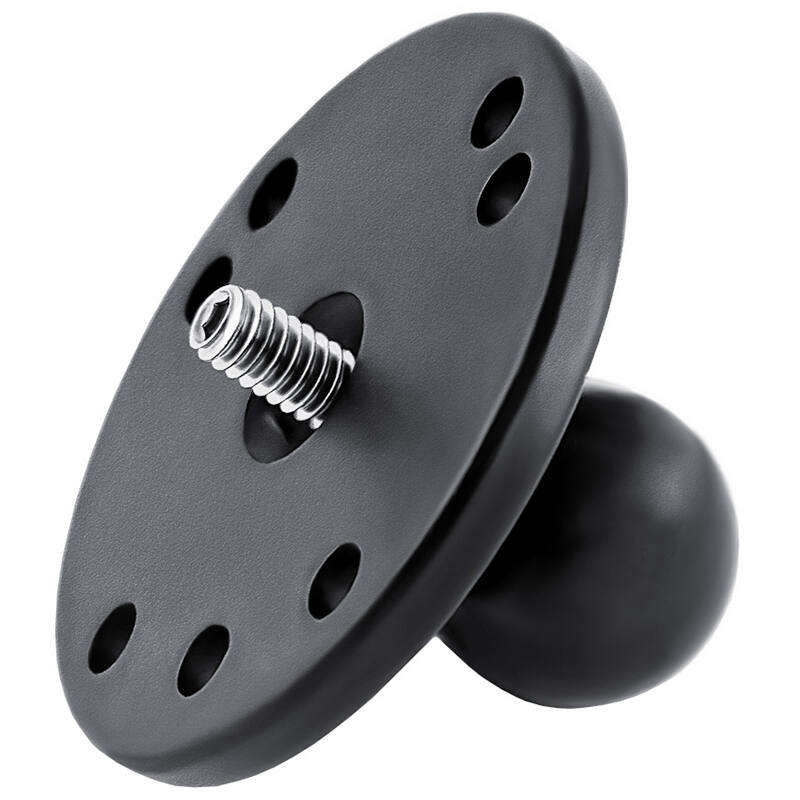

The universal camera and camcorder base, consists of a 1" diameter rubber ball, connected to a 2.5" diameter round plate with 1/4"-20 camera thread. The round plate provides extra support and stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras.

RAM-B-201U-A 60 mm short double socket arm

Note: Main photo with configuration shows 96mm length arm

Arm Dimensions:
Overall Length:
60.5mm (2.38")
Socket-To-Socket Length:
51mm (2")


Components:
RAM-B-201U-A SHORT DOUBLE SOCKET ARM FOR 1" BALL
RAM-B-202U 62mm DIA.BASE WITH 1" BALL
RAM-B-202AU 63mm ROUND BASE W/STD 1/4 CAMERA THREAD
