RAM-B-166-202AU RAM® Twist-Lock™ Suction Cup Mount with Round Plate & 1/4"-20 Stud
Features
* Camera base contains a 1" rubber ball that is connected to a 2.5" diameter round base with a 1/4"-20 threaded steel stud
* Round base provides support and stability for cameras that rest on top of it
* Includes B size medium length socket arm and RAM® Twist-Lock™ suction cup base
* Suction cup is ideal for vehicle windshields, paddleboards, glass and other nonporous surfaces
* Made of marine-grade aluminium and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

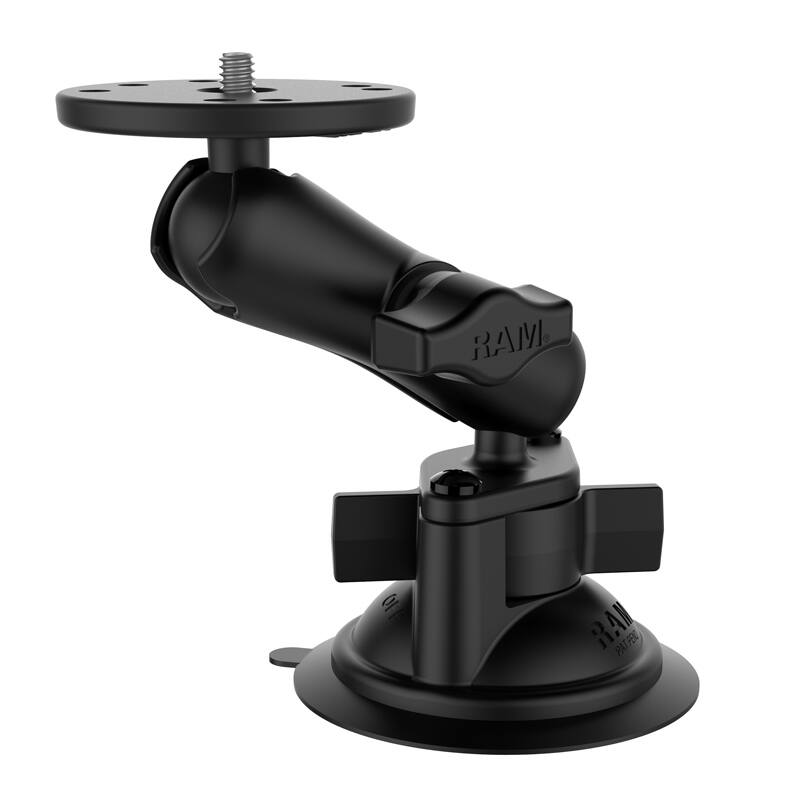

This mounting solution consists of a 3.3" diameter suction cup twist lock base, double socket arm and round base adapter that contains a 1/4"-20 male camera thread.
The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

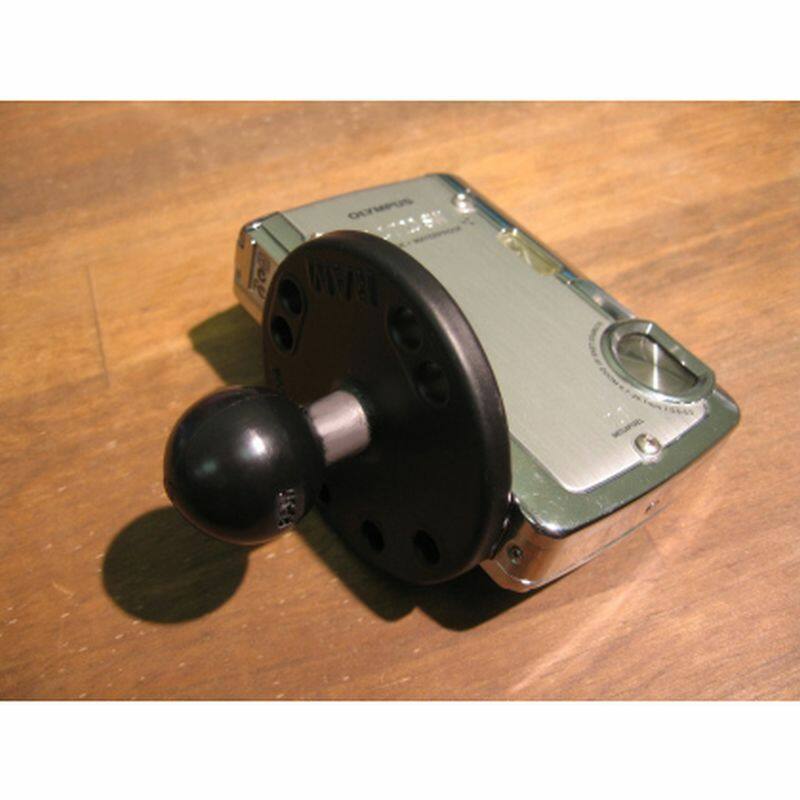

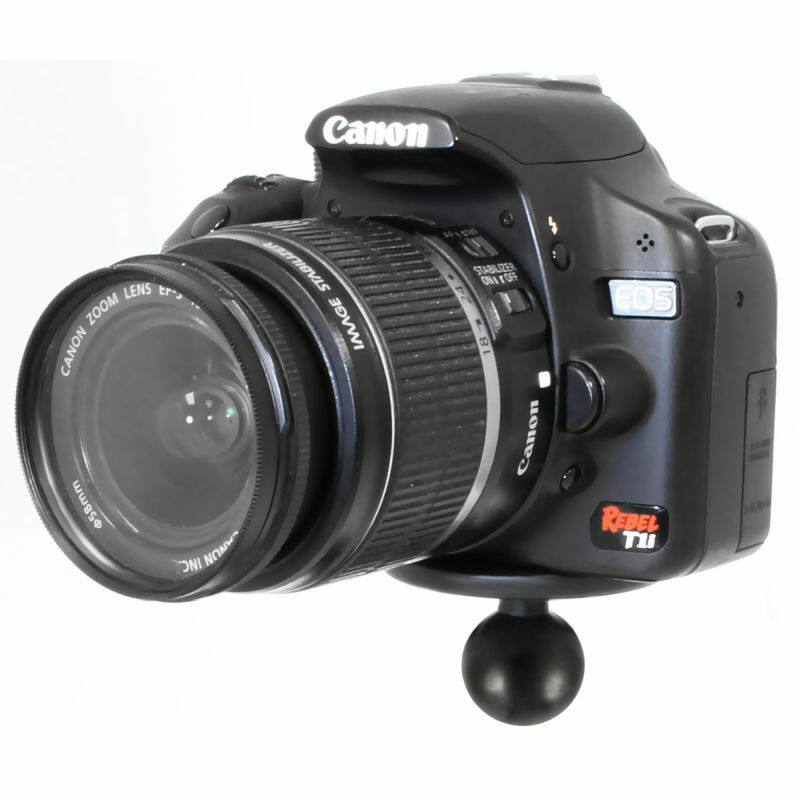

The camera base contains a 1" rubber ball that is connected to a 2.5" diameter round base with a 1/4"-20 threaded steel stud, centred, the round base provides support and stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras
Compatible Devices
Cameras that contain 1/4"-20 Female Threaded Hole
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Material:
Marine-grade aluminum
High strength composite
Ball Size:
1" Rubber Ball "B" Size
Weight:
295 grams (0.65 lbs.)
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Components:

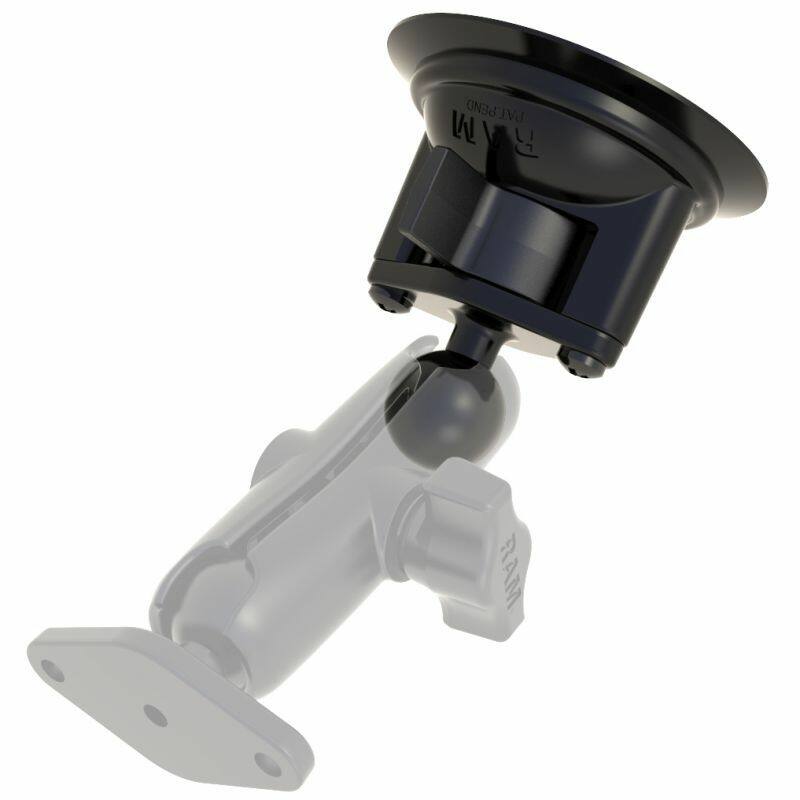

RAM-B-224-1U 83mm DIA. SUCTION CUP BASE with 1" BALL
RAM-B-201U DOUBLE SOCKET ARM FOR 1" BALL

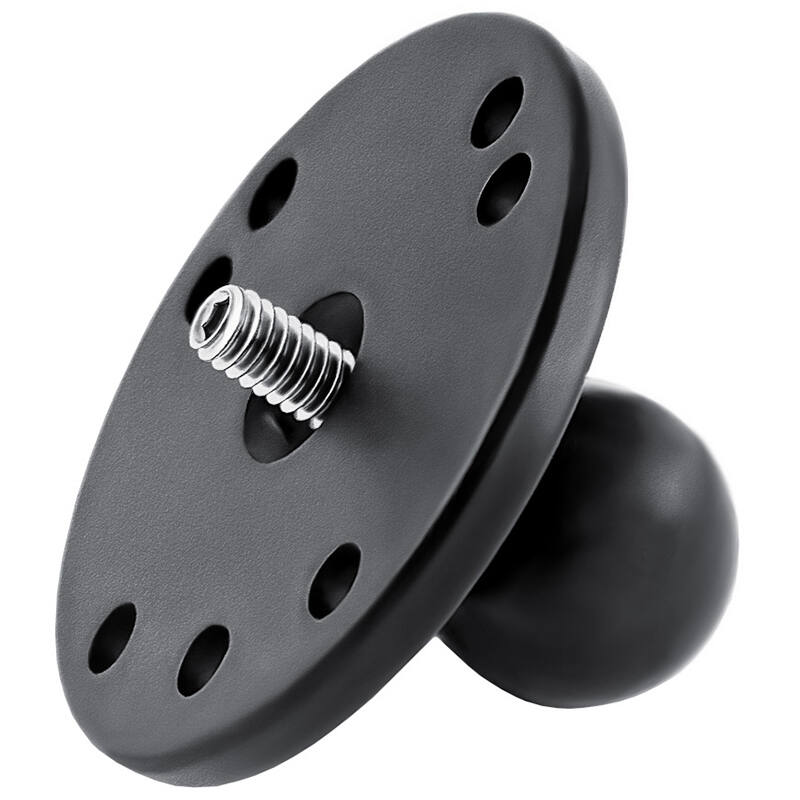

RAM-B-202AU 63mm ROUND BASE W/STD 1/4 CAMERA THREAD
YouTube:
https://www.youtube.com/watch?v=L8bbzMCMaUg
