RAM Camera Mount (1/4"-20 Male Thread) - Track Ball Base and Composite Arm

RAP-B-366-153-354-TRA1U RAM® Track Ball™ Mount with 1/4"-20 Camera Adapter

The RAP-B-366-153-354-TRA1U mounts a camera or camcorder with a standard 1/4"-20 tripod thread to a track system. A RAM® Track Ball™ with a T-bolt slides and locks into the track, then a composite double socket arm and a round plate with a 1/4"-20 male threaded stud carry the camera. It suits virtually any track, including the RAM® Tough-Track™.

Key Features

• RAM® Track Ball™ base with stainless steel T-bolt fits virtually any track system, including the RAM® Tough-Track™
• Rubber friction washer and T-bolt: insert into the track and twist clockwise to tighten
• 1/4"-20 male threaded stud on a round plate fits any camera or camcorder with a standard tripod thread
• Double socket arm with adjustment at both ball ends for near-infinite viewing angles
• High-strength composite, backed by a lifetime warranty

Works With

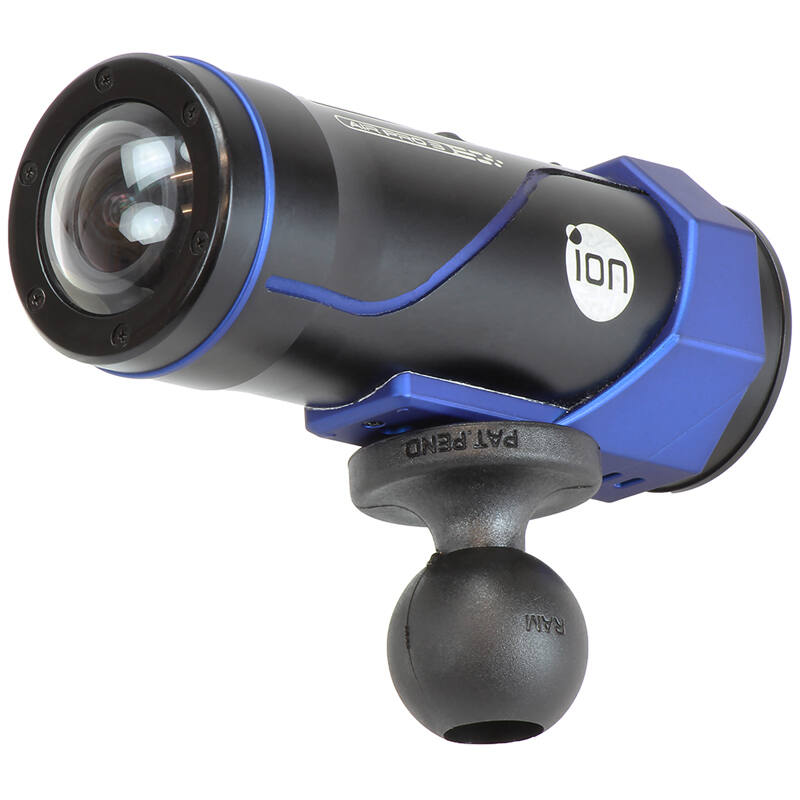

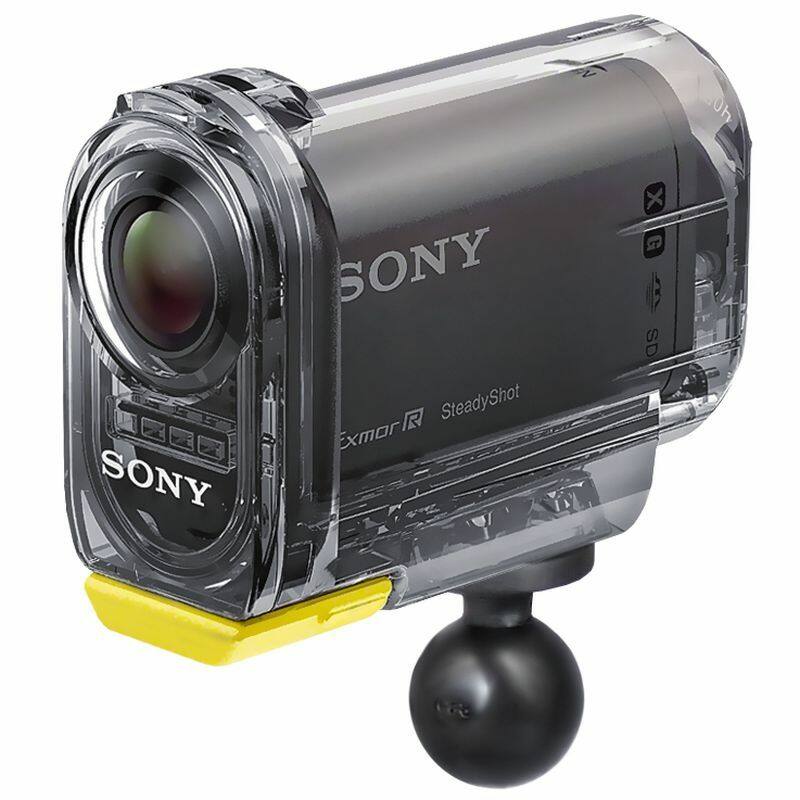

Most track systems, including the RAM® Tough-Track™, popular on kayaks and boats. Fits any camera or camcorder with a standard 1/4"-20 female threaded socket, including GoPro® HD HERO 1-4 and models from Sony, Midland, Garmin, Canon, Fujifilm and Nikon.

Dimensions & Specifications

• Arm overall length: 94mm (3.69")
• Arm socket-to-socket: 76mm (3")
• Ball size: 1" rubber ball, B size
• Weight: 154g (0.34 lbs)
• Material: high-strength composite

What's Included

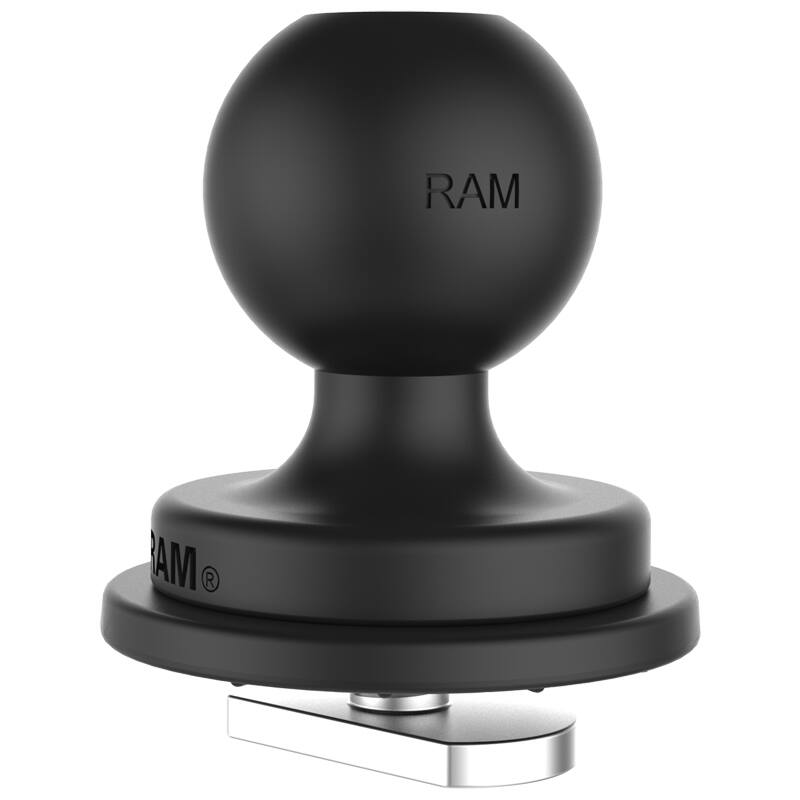

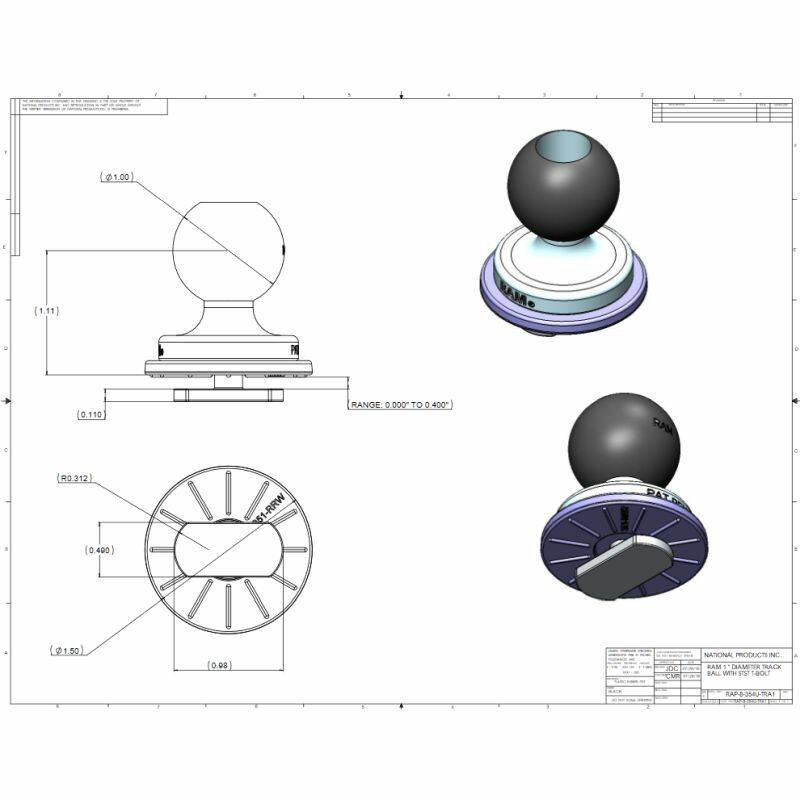

• 1 x RAP-B-354U-TRA1 Track Ball™ with T-bolt attachment
• 1 x RAP-B-201U double socket arm (1" ball)

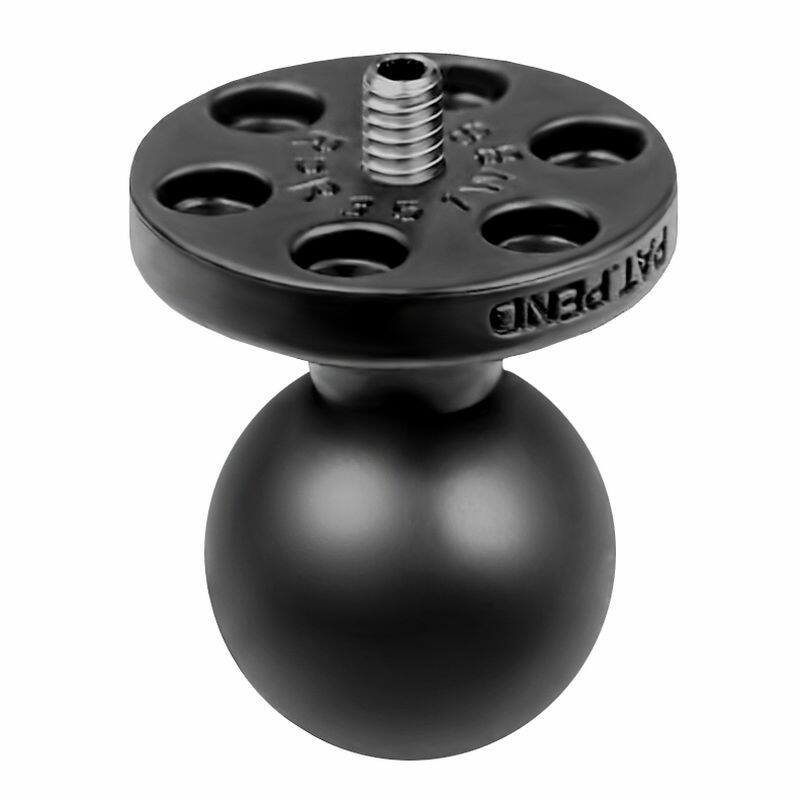

• 1 x RAP-B-366U small round base with 1/4"-20 thread

FAQs

Which tracks does it fit?
Virtually any track system, including the RAM® Tough-Track™. The Track Ball™ uses a T-bolt that slides into the track and locks down.

Will this fit my camera?
If your camera or camcorder has the standard 1/4"-20 tripod thread on its base, yes.

How fast does it ship?
If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
