RAM Mounts

RAM Camera Mount (1/4"-20 Male Thread) - Triple Suction Cup Base (B Series)

RAM Camera Mount (1/4"-20 Male Thread) - Triple Suction Cup Base (B Series)

SKU:RAP-B-365-224-202AU-v

Regular price $184.55 NZD
Regular price Sale price $184.55 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAP-B-365-224-202AU RAM® Twist-Lock™ Triple Suction Mount with Round Plate and 1/4"-20 Stud


Features:

* Triple suction cup base has exceptional holding power on smooth non porous surfaces
* Round camera base with male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras
* Round camera base provides extra support for the camera compared to simple stud bases
* Ideal for mounting cameras in high vibration environments such as aircraft / helicopters / race cars

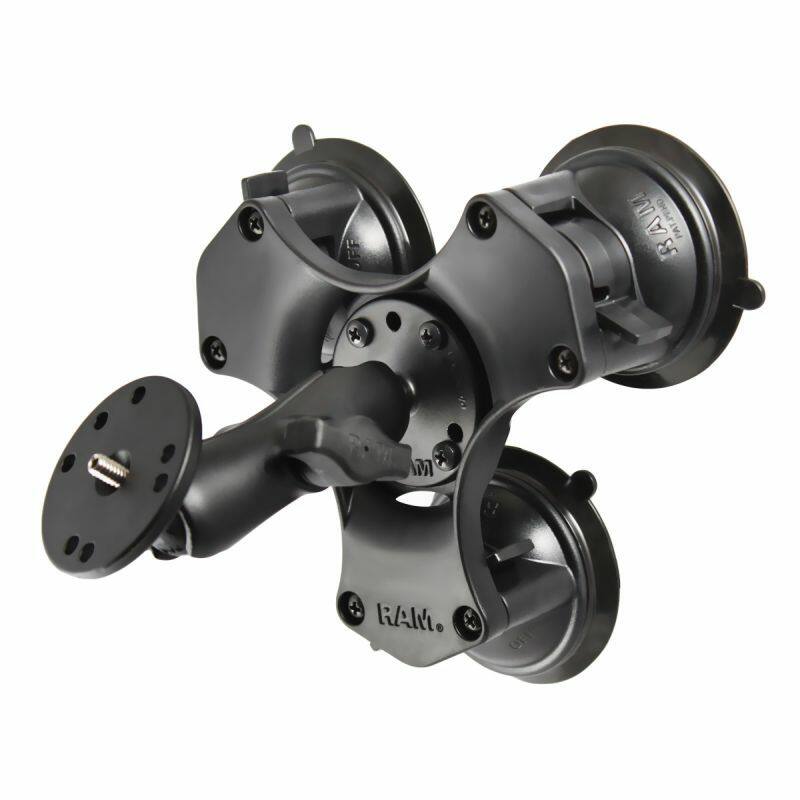

The RAP-B-365-224-202AU consists of a triple 3.3" diameter suction cup twist lock base, double socket arm and round base adapter that contains a 1/4"-20 male camera thread.


Suction cups are one of the most convenient ways to mount portable electronics. This exceptional product allows the freedom to use and move your electronics like never before. Ideally suited to a wide range of agricultural, commercial, and industrial uses, RAM's triple suction cup base makes it possible to mount your electronics for optimum access, viewing, and safety. You just found your single source provider of the most innovative line of suction cup products anywhere.

This base has a powerful suction grip, allowing for the connection to any non-porous surface, like a windshield, with confidence.

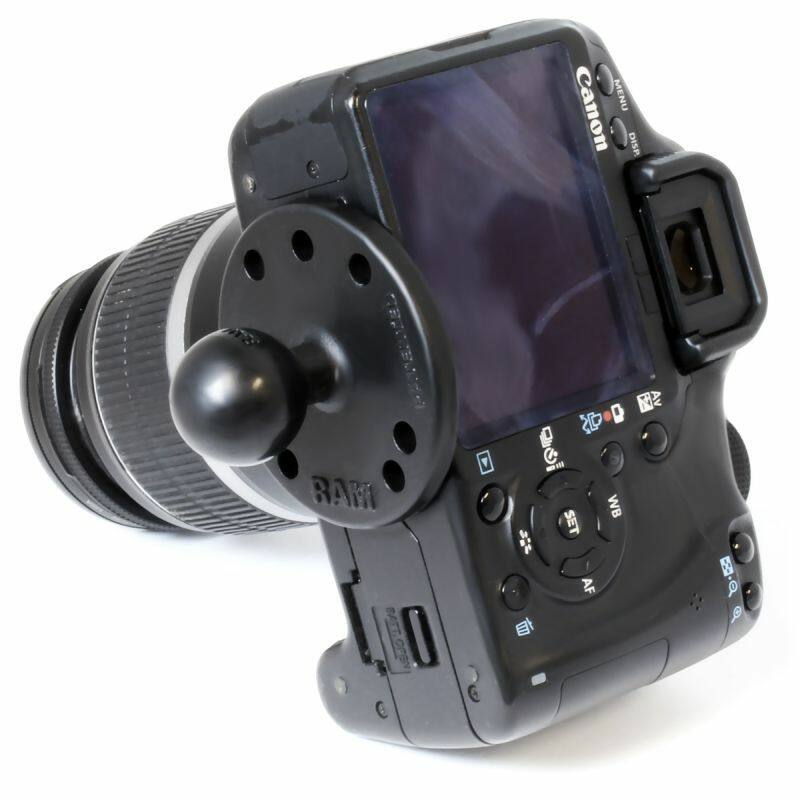

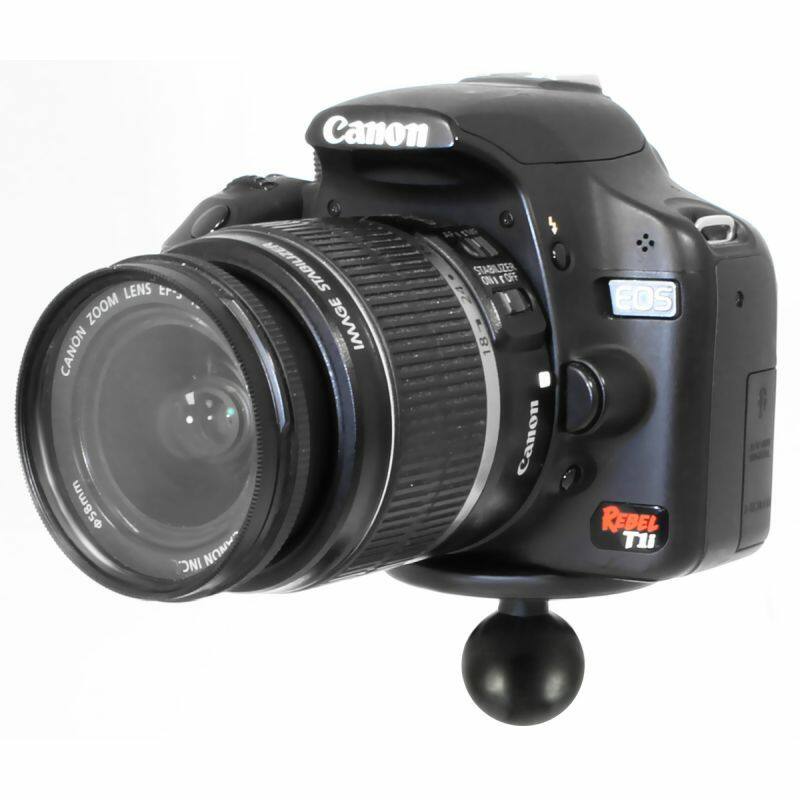

The universal camera and camcorder base is a 1" diameter rubber ball, connected to a 2.5" diameter round plate with 1/4"-20 camera thread. The round plate provides extra support and stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras.


Specs & Features


Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)


Thread Pitch
1/4"-20 x .25"

Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")



Suction Size
(3) x 84mm / 3.3" Diameter Bases, Total Width 201.9mm / 7.95"


Ball/Socket Size
B Size (1")


Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)



Materials
Marine-grade aluminium
High strength composite


Weight
571 grams (1.26 lbs.)


Components:

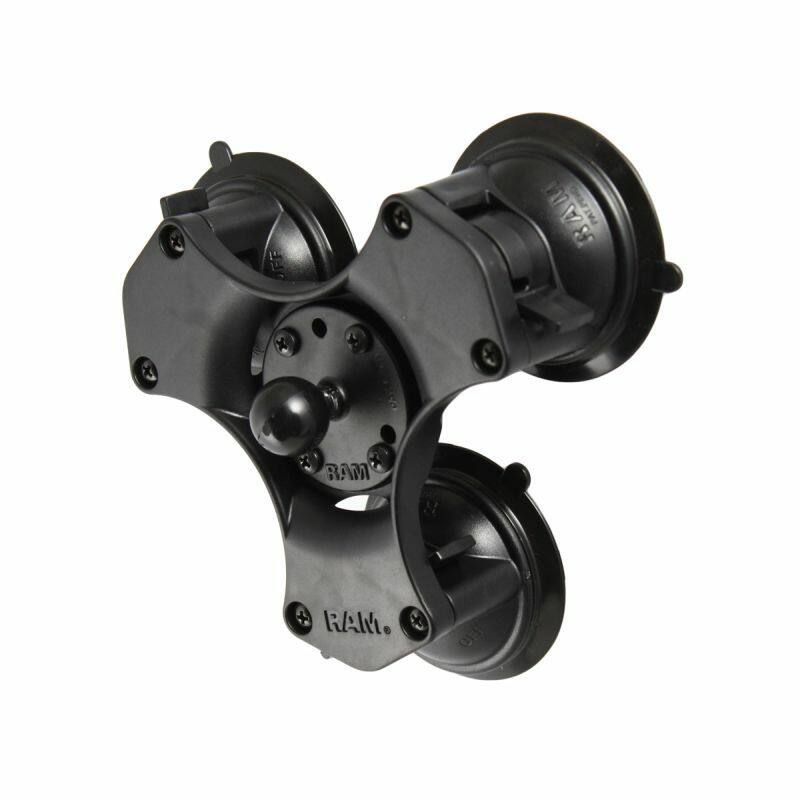

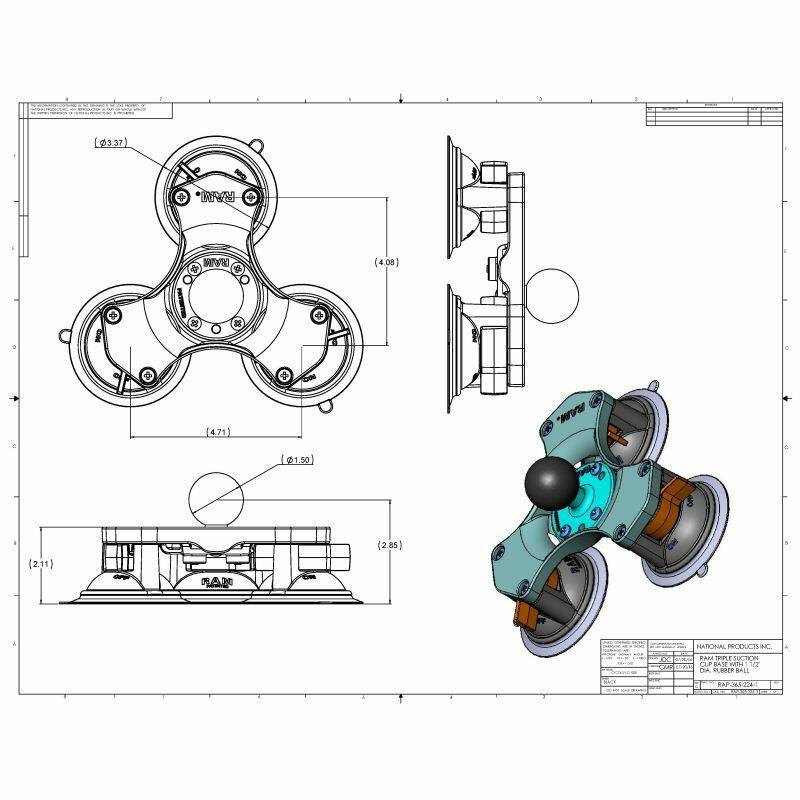

RAP-365-224-1BU Triple Suction Cup Base with AMPs Hole Pattern
RAM-B-202U 2.5" / 63mm DIA. BASE 1" Ball
RAM-B-201U Standard Double Socket Arm for 1" Balls

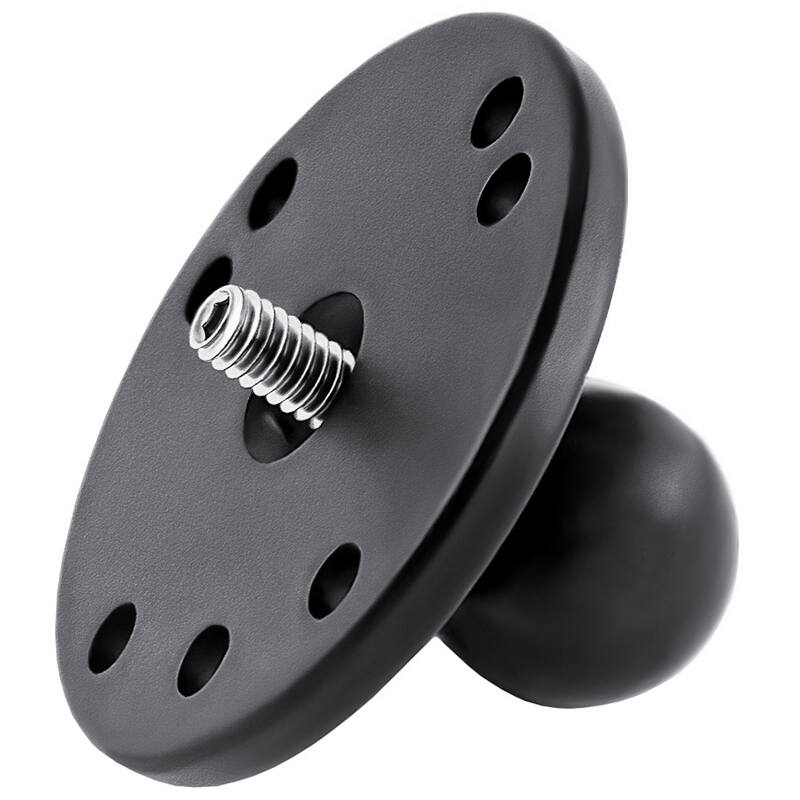

RAM-B-202AU 63mm ROUND BASE W/STD 1/4 CAMERA THREAD
