RAM Camera Mount (1/4"-20 Male Thread) - Twist-Lock Low Profile Suction Base

RAP-B-224-2-A-379-252025U – RAM® Twist-Lock™ Low-Profile Suction Mount with 1/4"-20 Camera Adapter

The RAP-B-224-2-A-379-252025U pairs a low-profile 70mm (2.75") RAM® Twist-Lock™ suction cup base with a RAM® Tough-Ball™ that carries a 1/4"-20 male threaded stud, joined by a short composite double socket arm. The 1/4"-20 thread matches the standard tripod socket found on most cameras, camcorders, and action cameras, so it mounts directly to glass and smooth, non-porous surfaces.

Key Features

• Low-profile 70mm (2.75") Twist-Lock™ suction cup base for a strong hold on glass and smooth, non-porous surfaces, including RAM adhesive disks
• RAM® Tough-Ball™ with a 1/4"-20 x .25" male threaded post that fits the standard female thread on most cameras and camcorders
• Short composite double socket arm; ball-and-socket design allows near-infinite positioning and damps shock and vibration
• High-strength composite with a stainless steel threaded post; backed by a lifetime warranty

Works With

Any camera, camcorder, or action camera with a standard 1/4"-20 female tripod thread. For best results, mount the suction cup on clean glass or a smooth, non-porous plastic surface.

Dimensions & Specifications

• Suction cup diameter: 69.9mm (2.75")
• Thread: 1/4"-20 x .25" male stud
• Ball size: B size, 1" rubber ball
• Arm overall length: 61.5mm (2.42"); socket-to-socket 44.5mm (1.75")
• Weight: 173g (0.38 lb)
• Materials: high-strength composite, stainless steel

What's Included

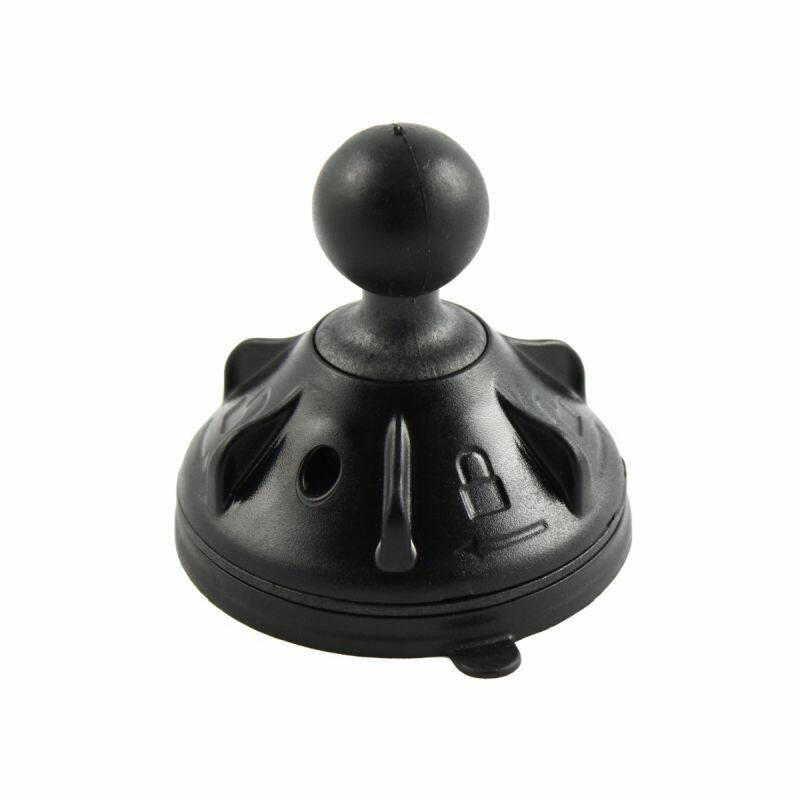

• RAP-B-224-2U low-profile Twist-Lock™ suction cup base, 69.9mm (2.75") diameter, with 1" B-size ball

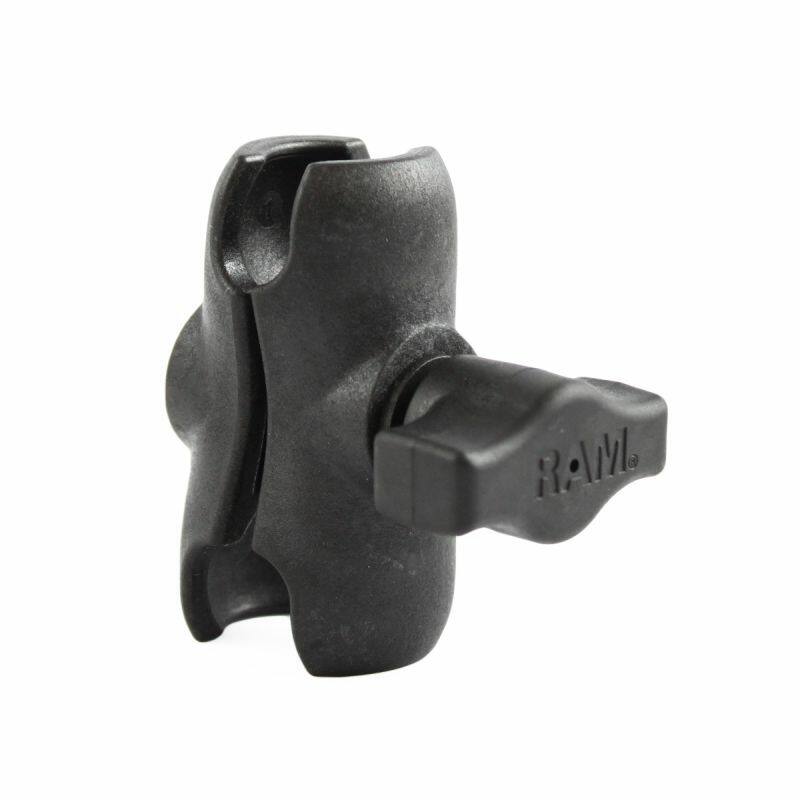

• RAP-B-201U-A short composite double socket arm

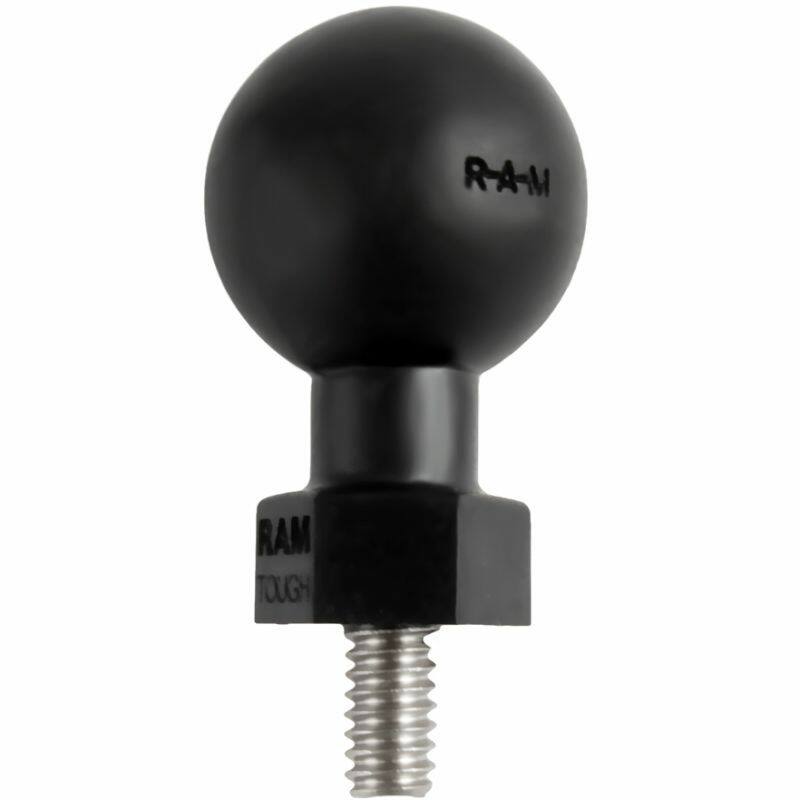

• RAP-B-379U-252025 Tough-Ball™ with 1/4"-20 x .25" male threaded post
