RAM-B-231Z-A-366U RAM® Handlebar U-Bolt Mount with 1/4"-20 Threaded Stud - Short
Features
* The camera adaptor has the universal 1/4"-20 thread and the round plate provides extra support for your camera
* Zinc-coated metal U-bolt base with 1" rubber ball is designed for bars from 12.7mm to 32mm diameter
* U-Bolt to sit at right angles to mounting rail and includes black cover caps for exposed ends of the U-bolt
* Short B size RAM® arm with ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

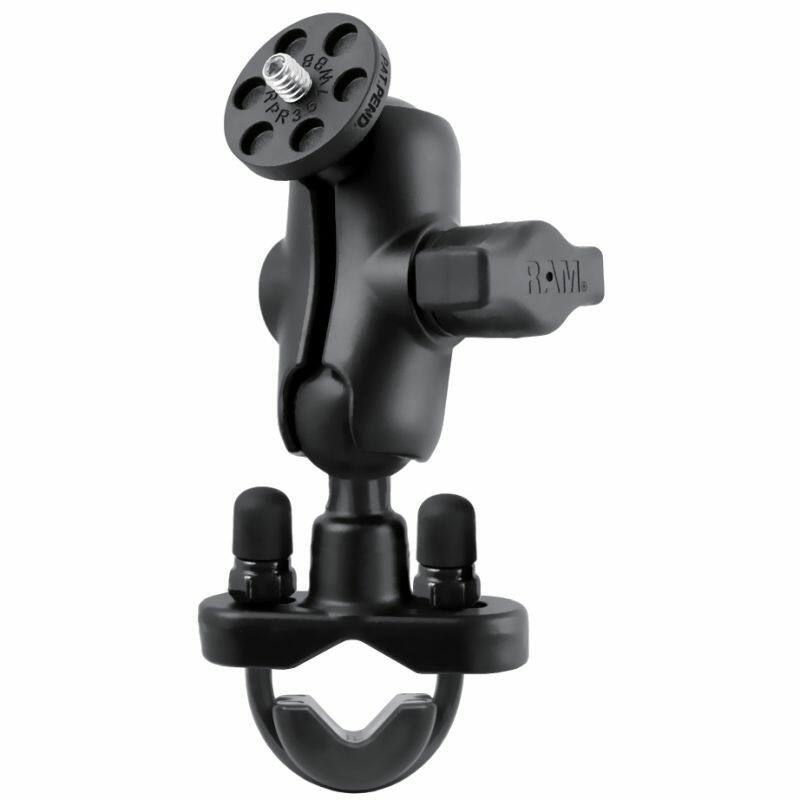

The RAM-B-231Z-A-366U consists of a zinc coated u-bolt base, SHORT double socket arm and 1" ball, connected to a round plate with 1/4"-20 camera thread.
The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders, digital cameras and POV cameras. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

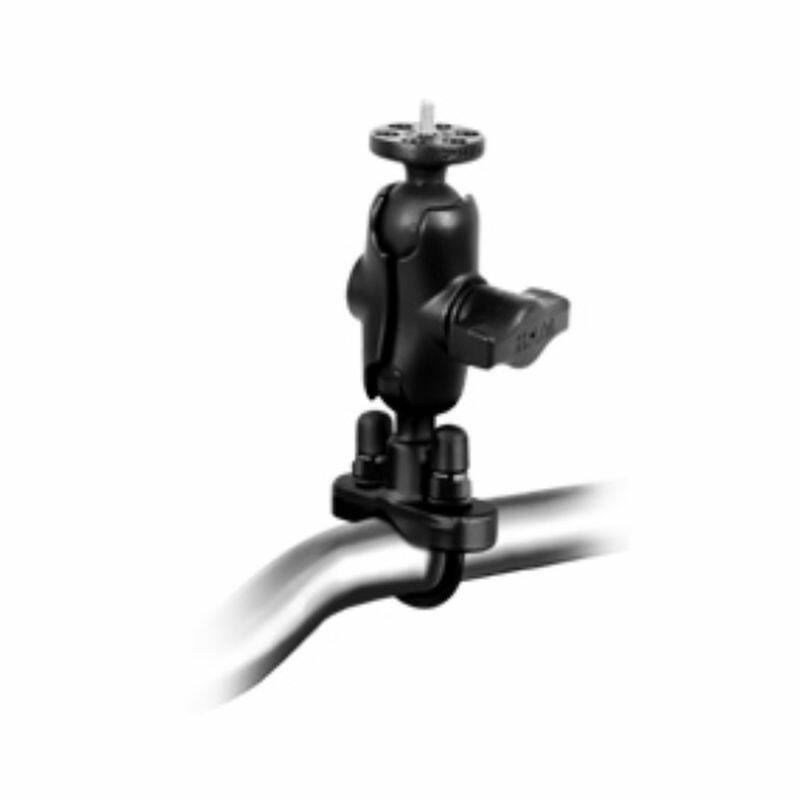

The zinc coated metal U-bolt handlebar / rail base consists of a 1" rubber ball designed to sit at right angles to the mounting rail and a U-bolt mounting and fits rails from 12.7 to 32mm diameter. This will fit all common motorcycle and bicycle handlebars. Includes black cover caps to cover the exposed ends of the U-bolt and a composite adaptor that can narrow the rail to a minimum width of 12.7mm (1/2").
Compatible Devices
Cameras that contain 1/4"-20 Female Threaded Hole
U-Bolt Dimensions:
Accommodates rails from 12.7-32mm (0.5 to 1.25") in diameter.
Construction:
Marine-grade aluminum
High strength composite
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Weight
127 grams (0.28 lbs)
Arm dimensions
Overall:
60.5mm (2.38")
Socket-To-Socket:
51mm (2")
Components

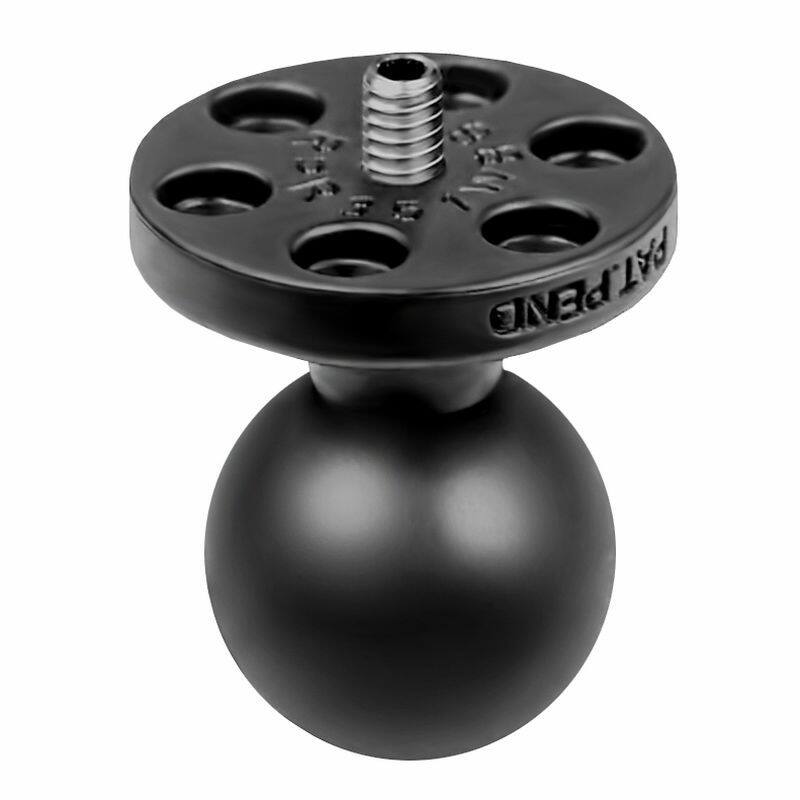

RAP-B-366U RAM SMALL ROUND BASE 1/4"-20 THREAD
RAM-B-201U-A RAM SHORT DOUBLE SOCKET ARM FOR 1" BALL

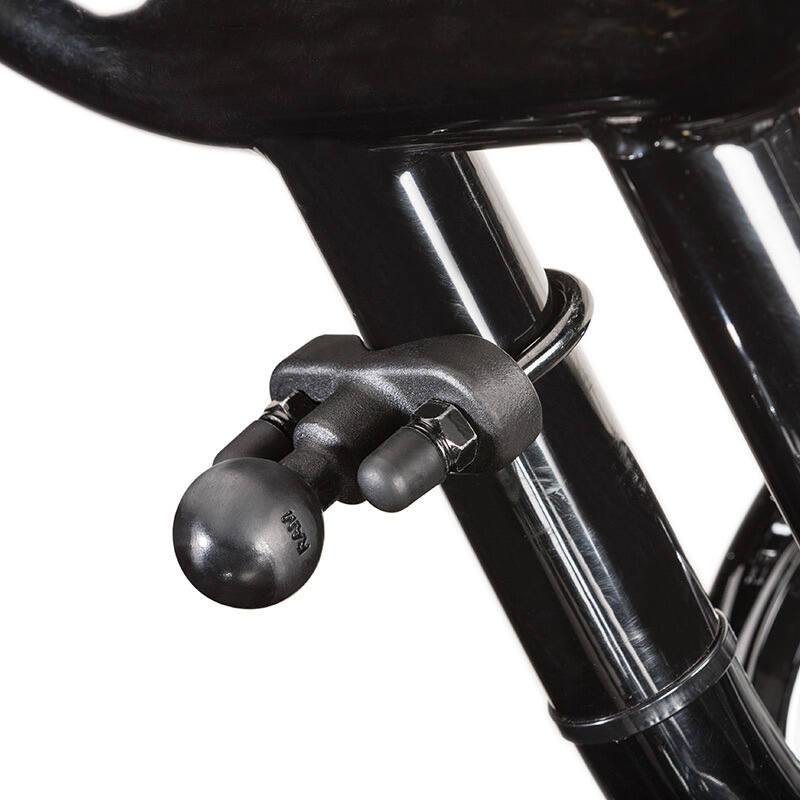

RAM-B-231ZU RAM RAIL BASE W/ U-BOLT FOR 13 - 32MM BARS
