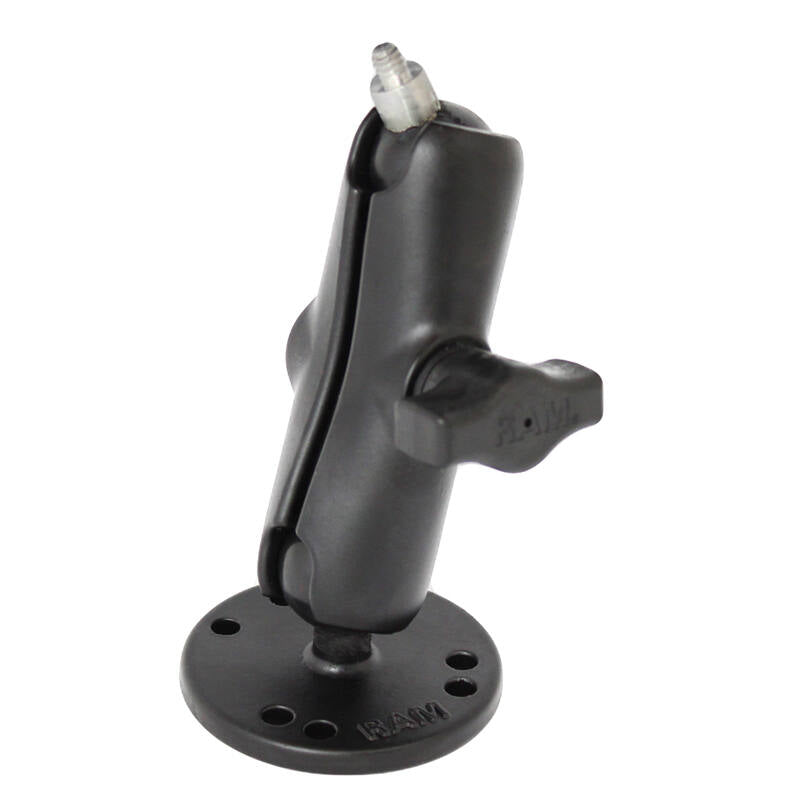

RAM-B-101-237U RAM® Drill-Down Double Ball Mount with 1/4"-20 Stud - B Size
Features
* RAM® drill down base is ideal when a permanent, stable and secure base is required
* 63mm round plate uses the universal AMPS hole pattern
* The Universal camera and camcorder ball base has a male 1/4"-20 threaded steel stud will connect to any standard camera female thread

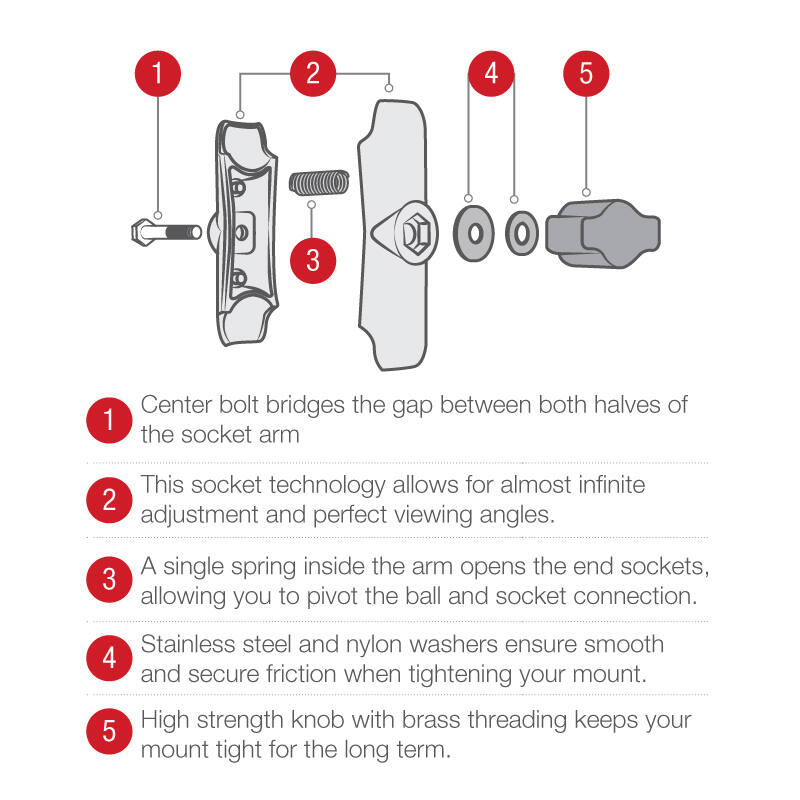

* Includes B size medium length RAM® double socket arm with ball and socket technology which allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
This camera mount comprises of a double socket arm, 63mm diameter round base and a 1" diameter rubber ball connected to a 1/4"-20 camera thread.

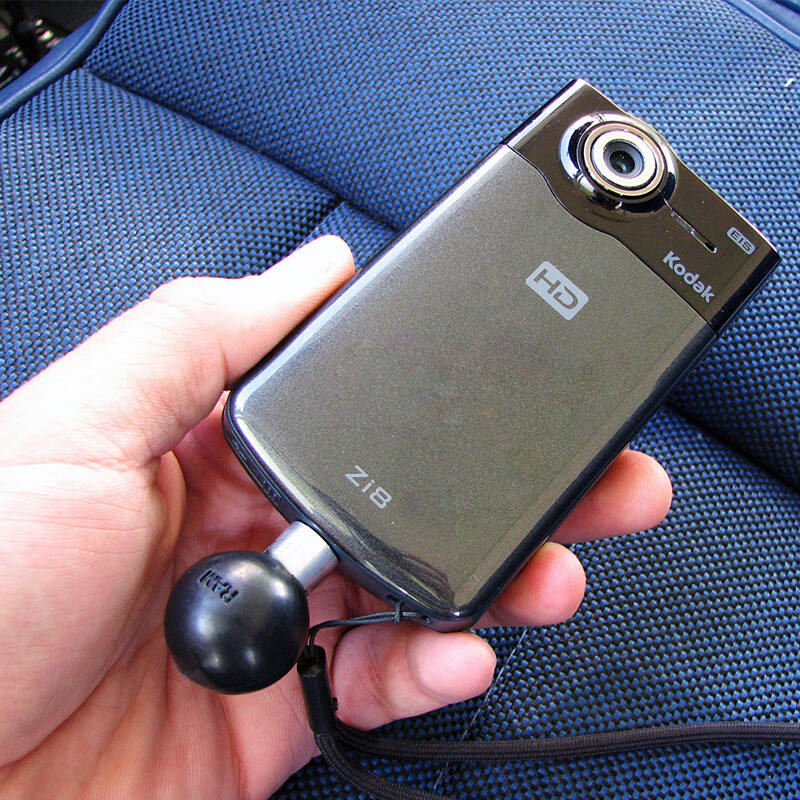

The male thread matches most standard camera and camcorder female threads found on the bottom of cameras.
The round base contains pre-drilled holes, including the universal AMPs hole pattern. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this allows for infinite orientation adjustment and optimum viewing angles.
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
BALL/SOCKET SIZE
B Size (1")
ROUND Base Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS
1.812” (46.0mm)
WEIGHT CAPACITY
Standard Use:
900g
Heavy-Duty Use:
450g
MATERIALS
Marine-grade aluminium
COMPONENTS

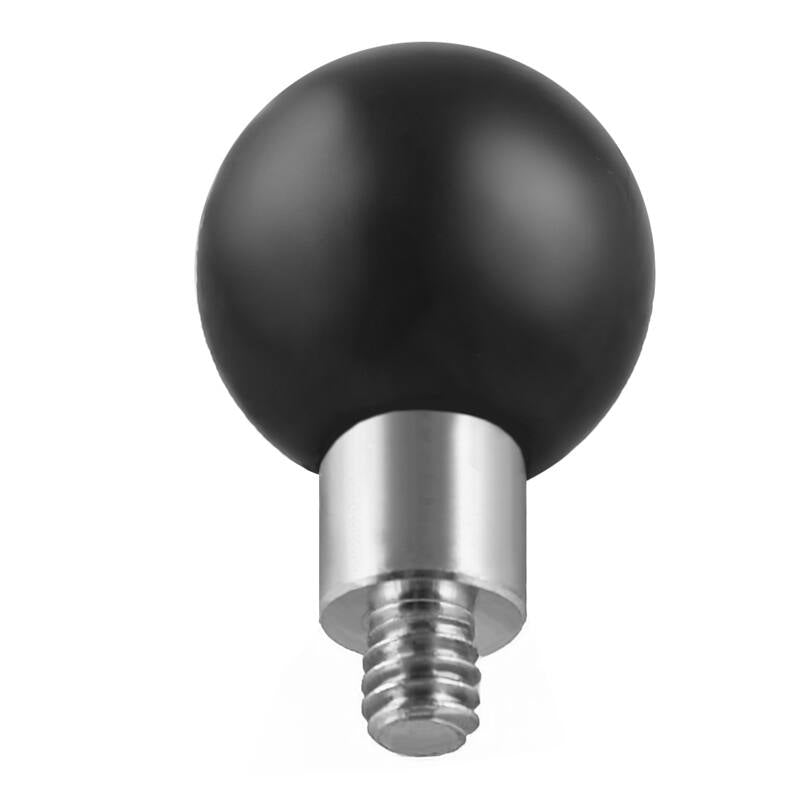

RAM-B-237U RAM 1 BALL WITH STANDARD 1/4 CAMERA MOUNT THREAD
RAM-B-201U RAM DOUBLE SOCKET ARM FOR 1" BALL
RAM-B-202U RAM 62mm DIA.BASE WITH 1" BALL
