RAM-B-101-A-237U RAM® Drill-Down Double Ball Mount with 1/4"-20 Stud - B Size Short
Features
* 63mm round plate connects to RAM® device holders containing the universal AMPS hole pattern
* Universal camera and camcorder ball base opens your device to the RAM® mounting system
* Short B size RAM® double socket arm with ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

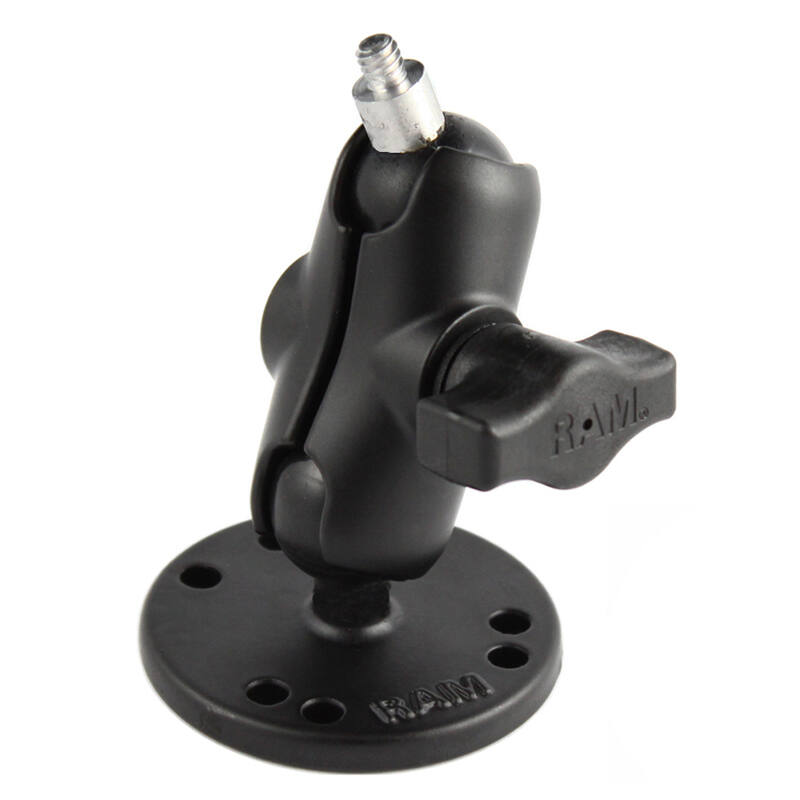

The RAM-B-101-A-237U consists of a short double socket arm, 2.5" diameter round base and 1" diameter rubber ball, connected to a 1/4"-20 camera thread.

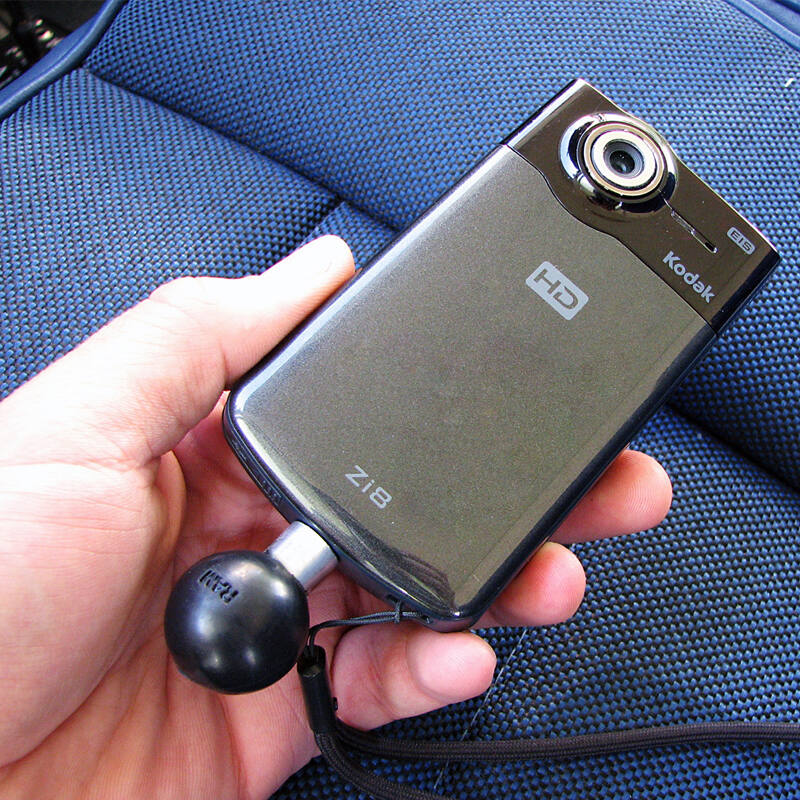

The male thread matches most standard camera and camcorder female threads found on the bottom of the camera.
The round base contains pre-drilled holes, including the universal AMPs hole pattern.

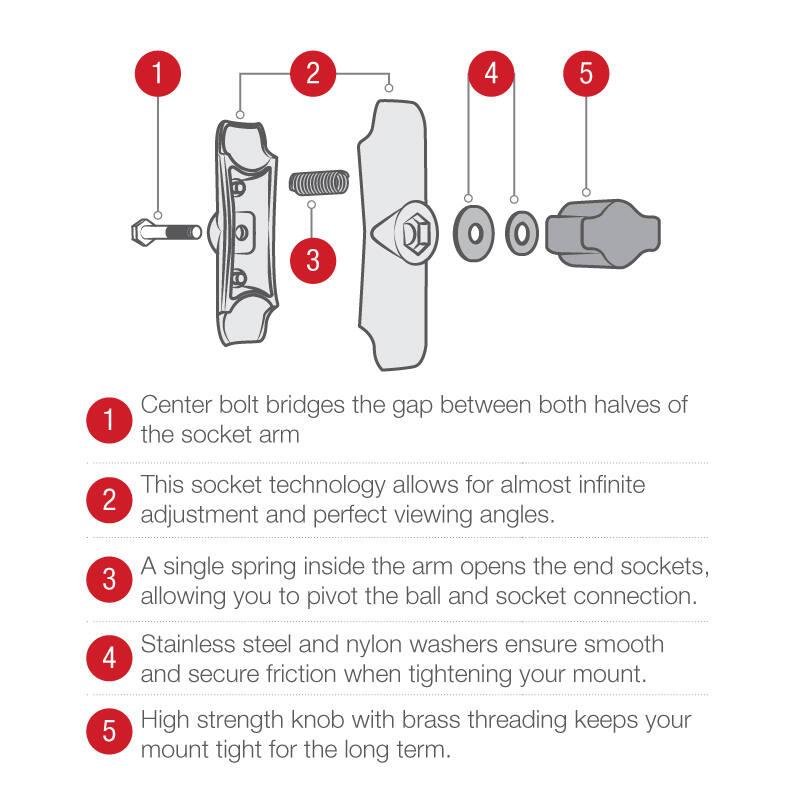

Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob, allows for infinite articulation and optimum viewing angles.
Compatible Devices
Cameras that contain 1/4"-20 Female Threaded Hole
Thread Pitch
1/4"-20 x .25"
Arm Dimensions:
Overall Length:
60.5mm (2.38")
Socket-To-Socket Length:
51mm (2")
Hole Patterns
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
MATERIALS
Marine-grade aluminium
COMPONENTS

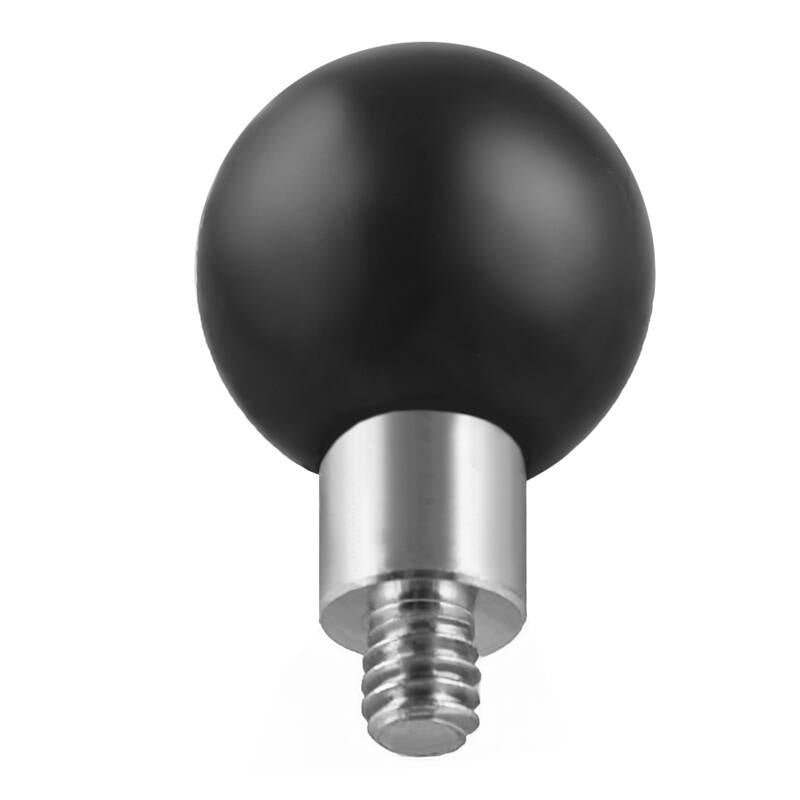

RAM-B-237U
RAM-B-201U-A
RAM-B-202U
