RAM-B-102-237U RAM® Double Ball Mount with Diamond Plate and 1/4"-20 Threaded Stud
Features
* RAM universal drill down mount with diamond plate and camera adaptor
* Drill-down mounting solution: diamond plate features the AMPS 2-hole pattern
* Universal camera and camcorder ball base has industry standard male 1/4"-20 threaded steel stud
* Includes B size long length double socket arm
* RAM ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

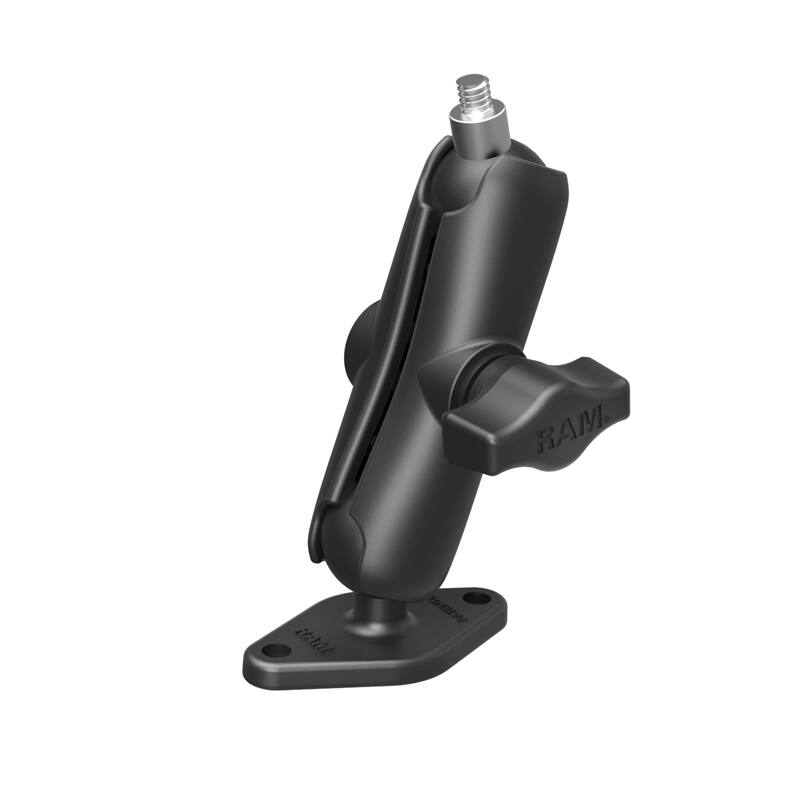

The RAM-B-102-237U consists of a double socket arm, diamond base and 1" diameter rubber ball, connected to a 1/4"-20 camera thread.
The diamond base measures 61.7mm x 33.3mm and contains two holes with the industry standard AMPS 2-hole pattern. Holes are positioned at both ends of the diamond base.
Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm.

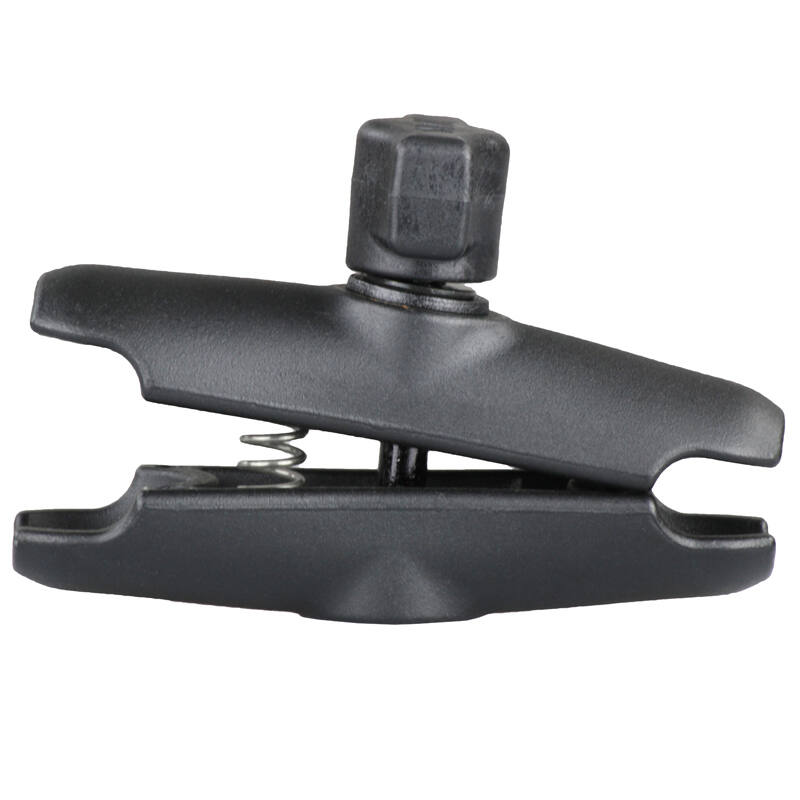

The double socket arm has a socket at both ends and is 94mm long overall. A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection for almost infinite adjustment and perfect viewing angles.

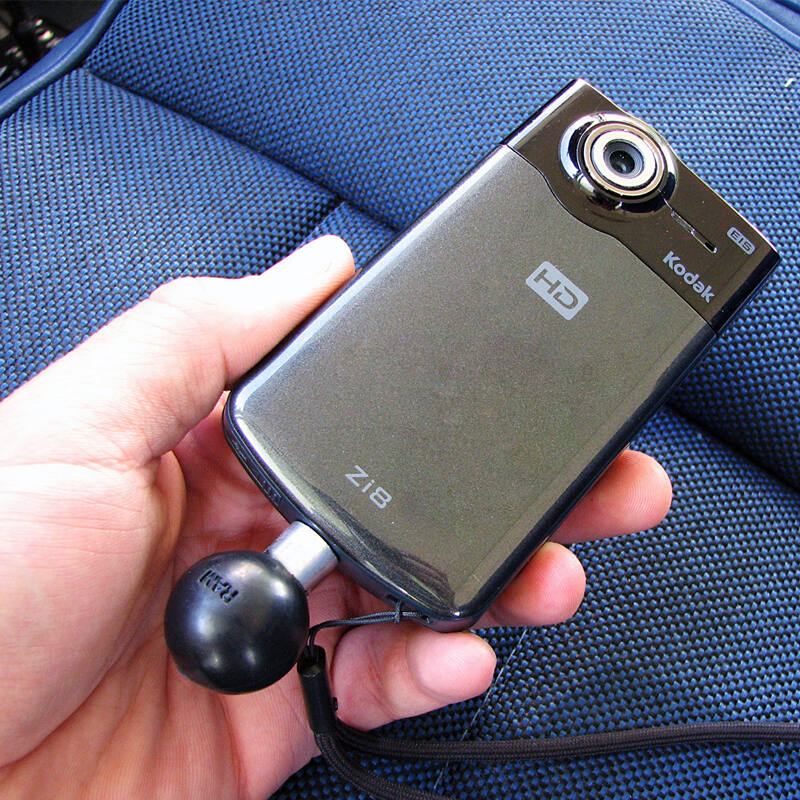

The universal camera and camcorder ball base opens your device to the RAM® mounting system. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on digital cameras, camcorders, and other devices
Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
Compatible Devices
Cameras that contain 1/4"-20 Female Threaded Hole
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Diamond Base Hole Pattern
2-Hole AMPS:
48.6mm (1.912")
Diamond Base Dimensions
61.7 x 33.3mm (2.43 x 1.31")
Ball/Socket Size
B Size (1")
Weight Capacity
907 grams (2 lbs)
Materials
Marine-grade aluminium
Weight
186 grams (0.41 lbs.)
Components:
RAM-B-201U DOUBLE SOCKET ARM FOR 1" BALL
RAM-B-237U RAM 1" BALL WITH STANDARD 1/4 CAMERA MOUNT THREAD
RAM-B-238U 62 X 33mm DIAMOND BASE W/ 1 BALL
