RAM Camera Mount (1/4"-20 Male Thread) with Rollbar Base

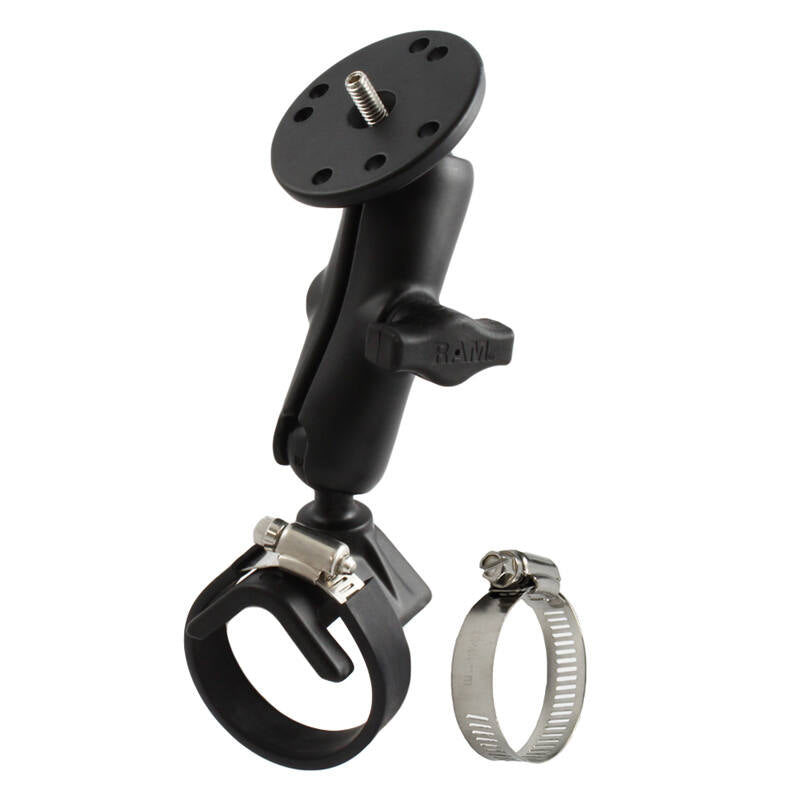

RAM-B-108U-BIT1 – RAM® Roll-Bar Camera Mount with 63mm Alloy Support Plate

The RAM-B-108U-BIT1 mounts a camera to a roll-bar or rail with a generous 63mm alloy plate under the 1/4"-20 stud for maximum support. A saddle V-base straps to bars from 25.4mm to 53.3mm (1" to 2.1") and a medium B-size arm sets the angle. The alloy plate replaces a camera's factory mounting bracket.

Key Features

• 1/4"-20 stud on a 63mm alloy support plate for the steadiest camera mounting
• Saddle V-base straps to rails 25.4mm to 53.3mm (1" to 2.1")
• Won't spin on the bar, unlike a U-bolt base
• Medium B-size double socket arm
• Powder-coated marine-grade aluminium and high-strength composite, RAM lifetime warranty

Works With

Any camera with a standard 1/4"-20 female tripod thread. The flat alloy plate is well suited to heavier cameras that need full support underneath.

Dimensions & Specifications

• Camera thread: 1/4"-20 male stud on a 63mm alloy plate
• Clamp range: 25.4mm to 53.3mm (1" to 2.1")
• Arm overall length: 94mm (3.69")
• Arm socket-to-socket: 76mm (3")
• Ball size: 1" rubber ball, RAM B-size
• Material: powder-coated marine-grade aluminium and high-strength composite
• Weight: 308g (0.68 lb)
• Load rating: up to 907g (2 lb) standard use; 454g (1 lb) for heavy-duty or high-vibration use

What's Included

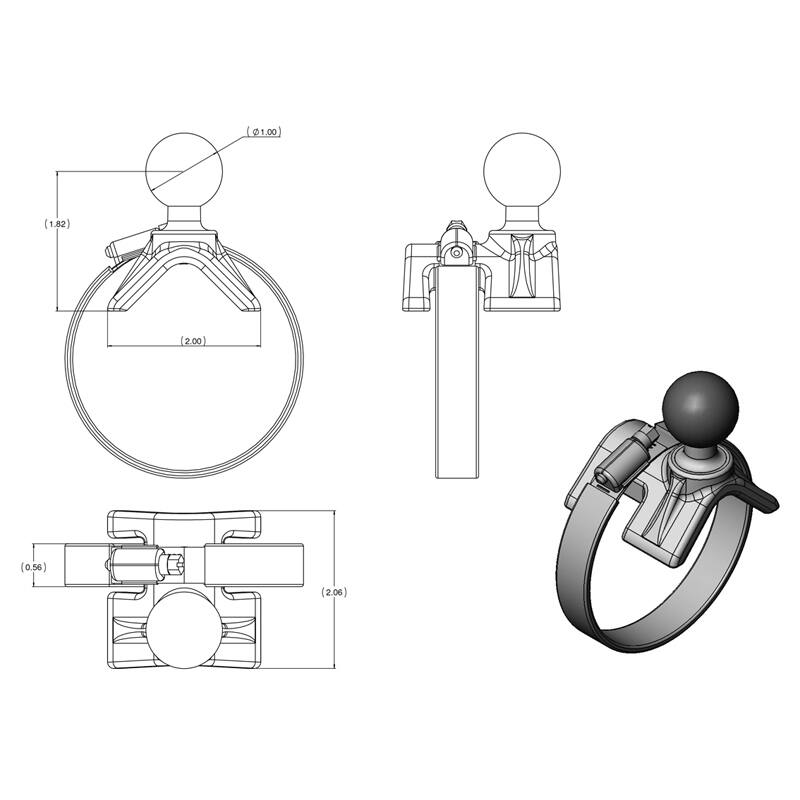

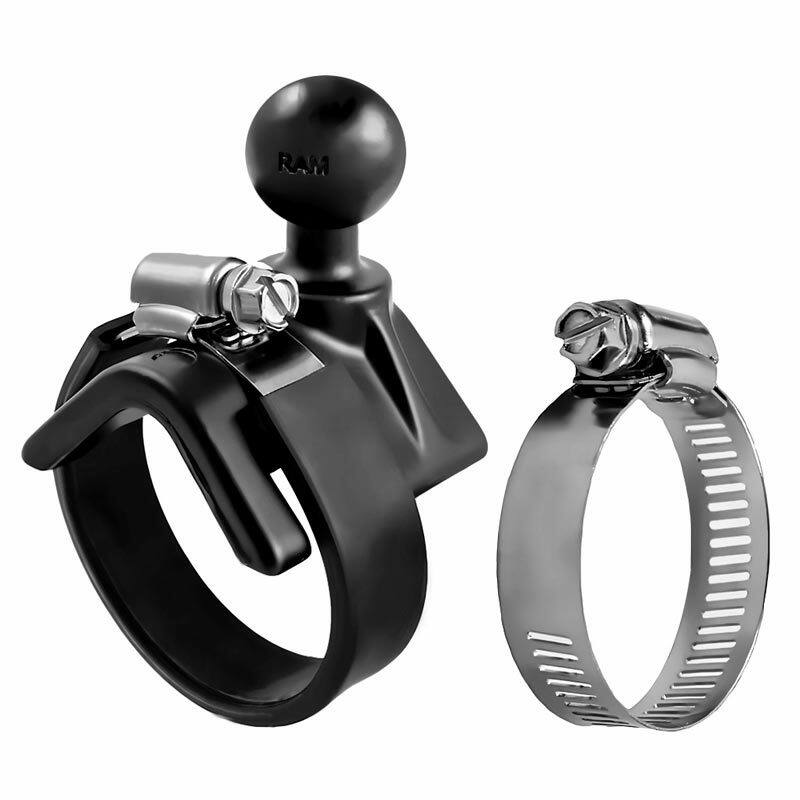

• RAM-B-108BU saddle V-base with 1" ball
• RAM-B-201U medium double socket arm

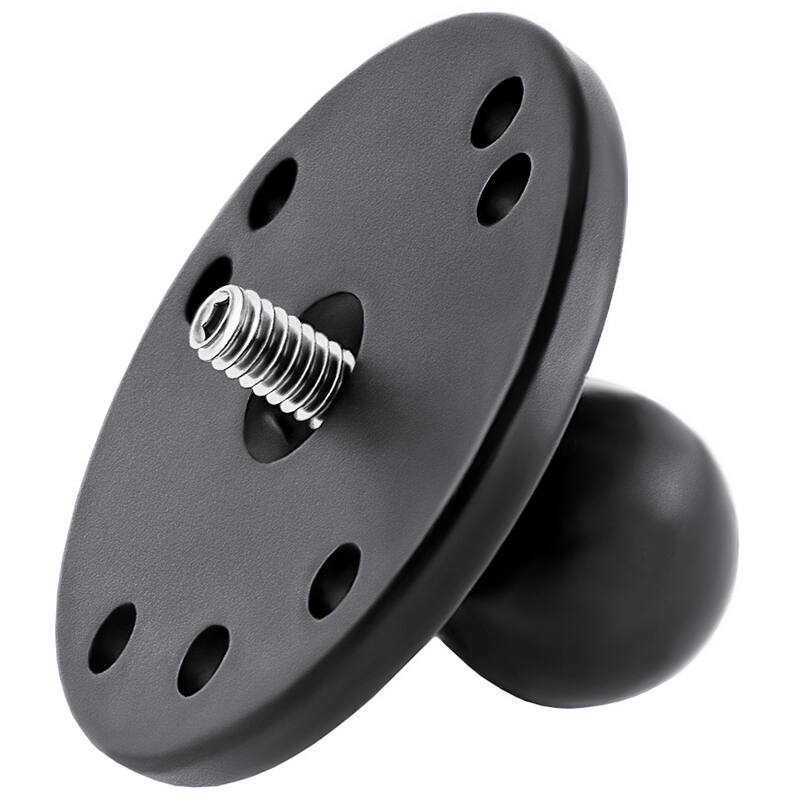

• RAP-B-202AU 63mm alloy camera plate with 1/4"-20 stud
• Strap clamp and rubber protector strip

FAQs

How is this different from the 366U camera mount?
The plate is larger (63mm alloy versus a small round plate), giving more support for heavier cameras. Otherwise it strap-clamps the same way.

How fast does it ship?
If it's shown in stock here, it ships from our Auckland warehouse, normally within one business day. If it's shown as out of stock, get in touch and we may be able to get it in for you.
