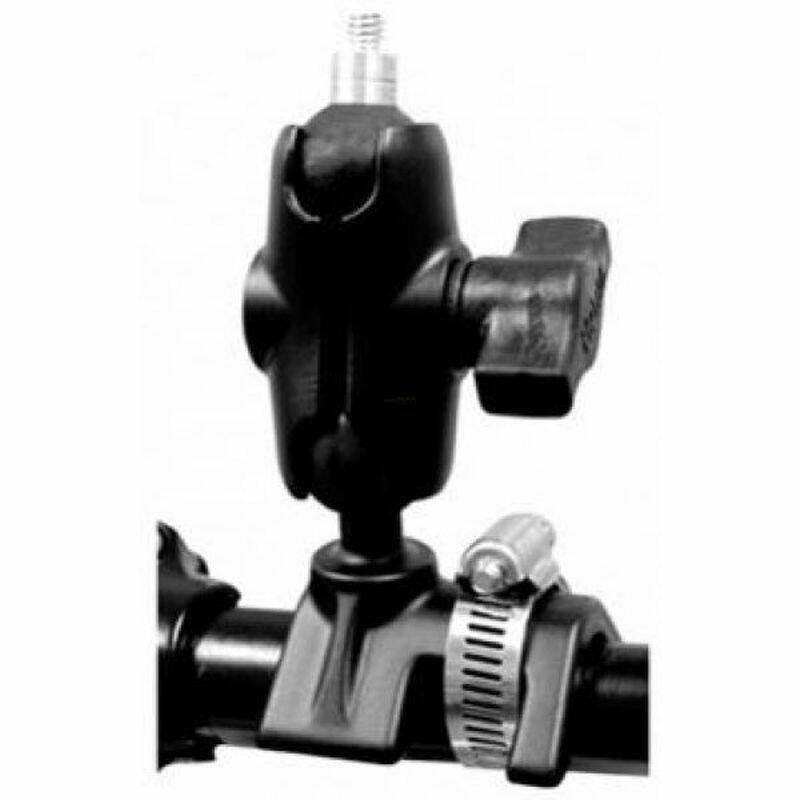

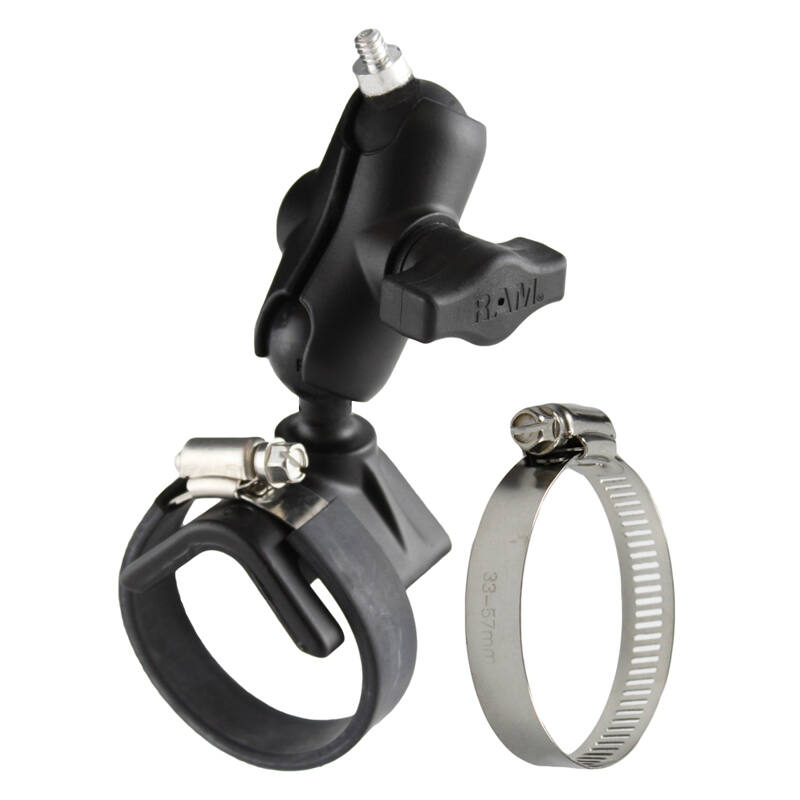

RAM-B-108B-A-237U RAM® Strap Hose Clamp Mount with 1/4"-20 Stud.
(Note alternative product code is Midland C1052)
Features
* Saddle-shaped clamp mount ideal for rails ranging from 1" to 2.1" in diameter
* RAM Ball with standard 1/4"-20 camera threads matches the standard female thread on most cameras.
* RAM® B size double socket arm and ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
Use this V-Shaped strap base when the bar is square or rectangular as opposed to a "U-Bolt" base.

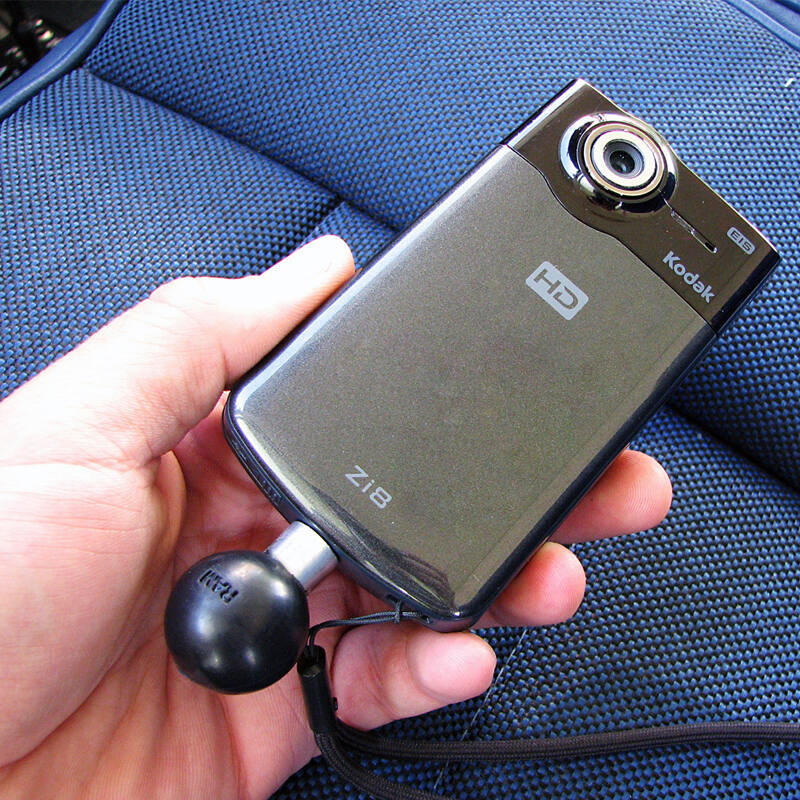

The ball base with standard 1/4"-20 camera threads matches the standard female thread on most cameras.
The rail base has a 1" diameter rubber ball connected at a right angle to a v-shaped base. The base fits rails and roll bars from 5.4mm (1.0") to 53.4mm (2.1") in diameter.
To mount the RAM-B-108BU base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screw driver until the strap has a firm hold on the rail.
Specs & Features

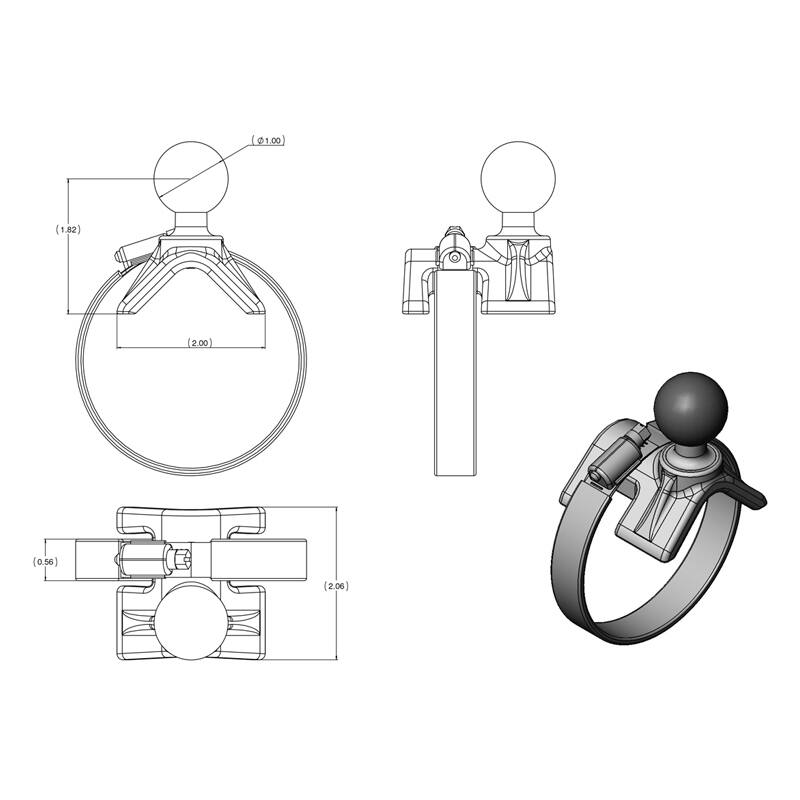

Clamp Dimensions:
25.4mm to 53.3mm (1" to 2.1")
Arm Dimensions:
Overall Length:
60.5mm (2.38")
Socket-To-Socket Length:
51mm (2")
Compatible Devices:
Cameras that contain 1/4"-20 Female Threaded Hole
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
1" Rubber "B" Ball Size
YouTube:
https://www.youtube.com/watch?v=iO9NEqm9MJk&t=2s

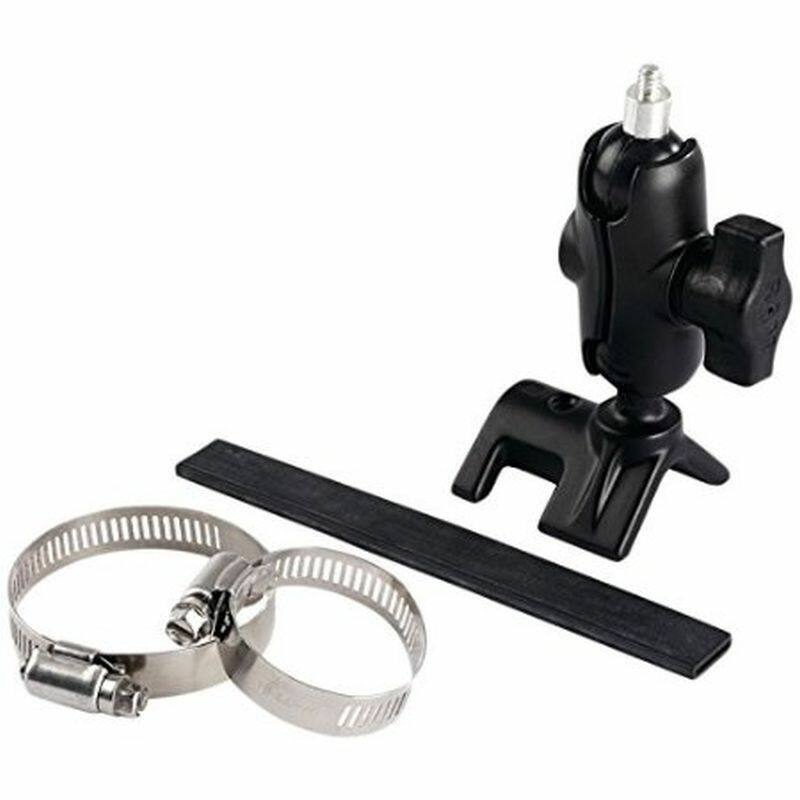

Components:
RAM-B-201U-A RAM SHORT DOUBLE SOCKET ARM FOR 1" BALL

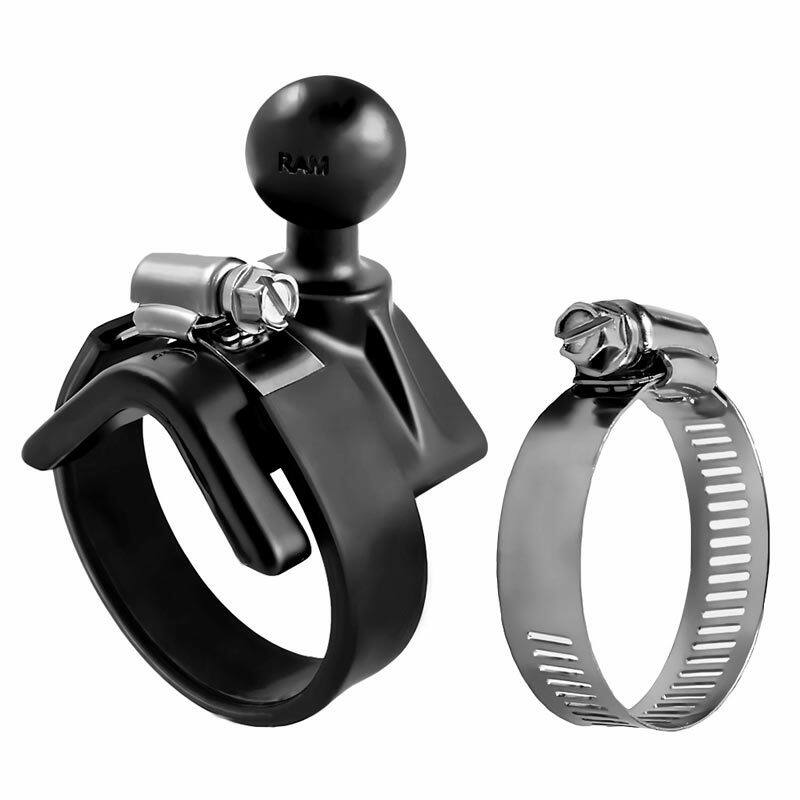

RAM-B-108BU RAM V BASE BALL AND STRAPS 25-54mm

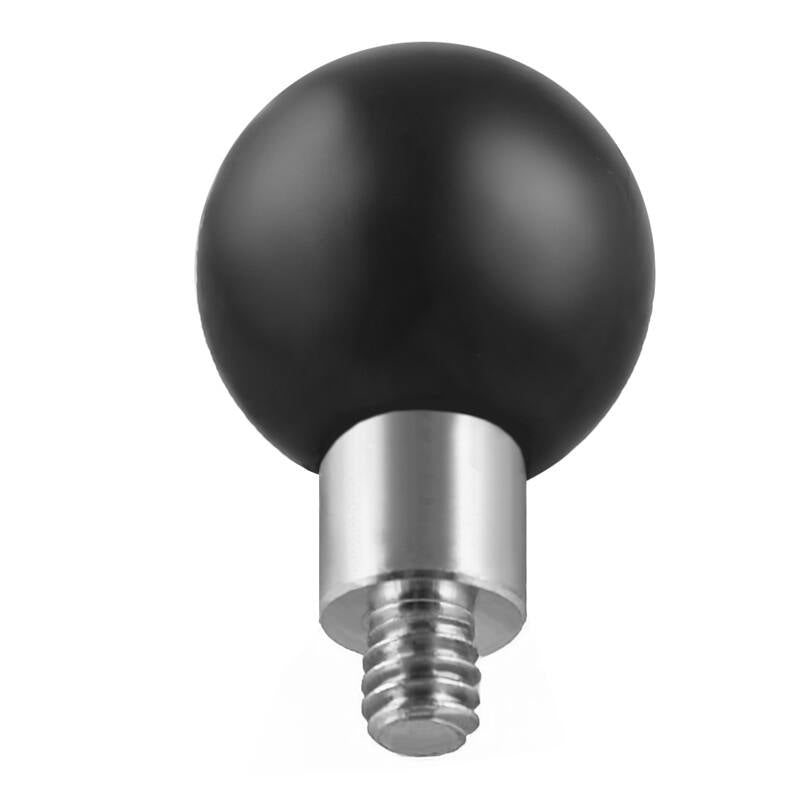

RAM-B-237U RAM 1 BALL WITH STANDARD 1/4 CAMERA MOUNT THREAD
