RAM-B-166-A-237U RAM® Twist-Lock™ Suction Mount with 1/4"-20 Stud - Short Arm
Features
* RAM® Twist-Lock™ suction cup base is ideal for vehicle windshields and other nonporous surfaces
* The Universal camera and camcorder ball base has a male 1/4"-20 threaded steel stud will connect to any standard camera female thread
* Includes B size SHORT length RAM® double socket arm and diamond bases with B size 1" rubber balls; ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

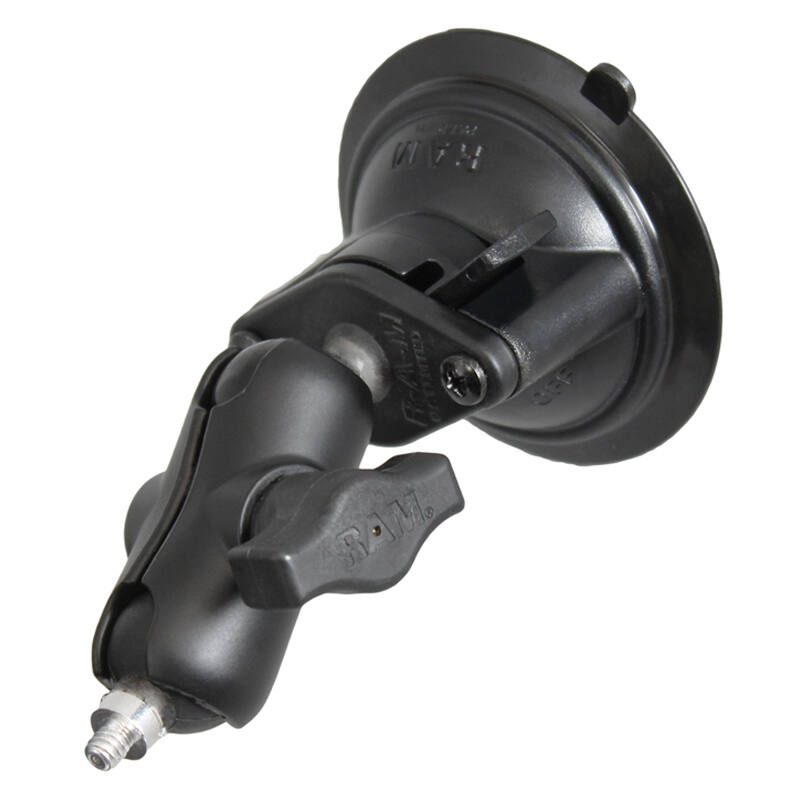

The RAM-B-166-A-237U consists of a 3.3" suction cup twist lock base, SHORT length double socket and 1" ball that contains a 1/4"-20 male camera thread. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

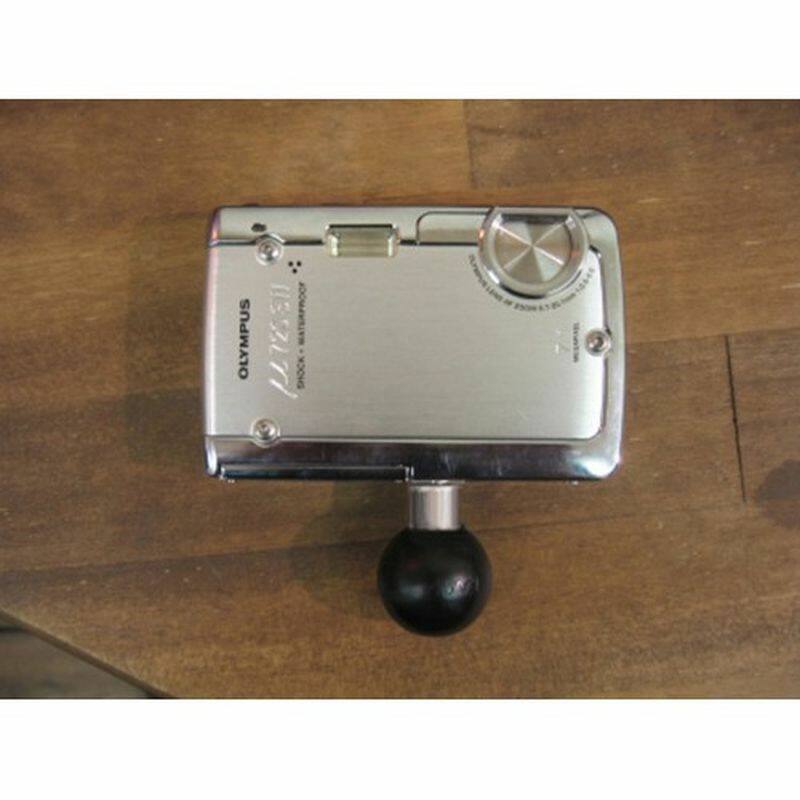

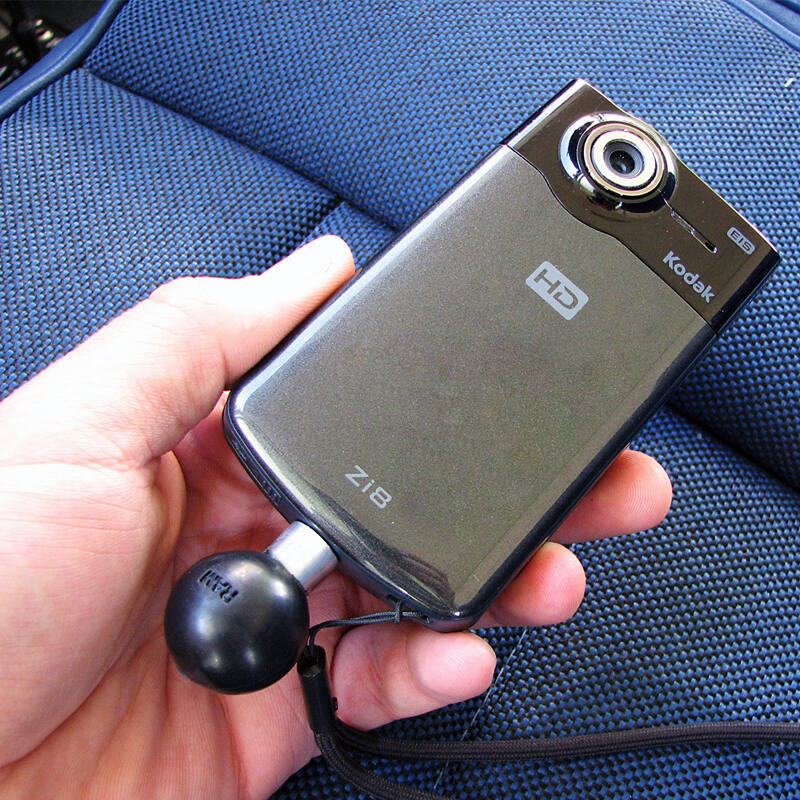

The male thread matches most standard camera and camcorder female threads found on the bottom of the camera.
Compatible Devices
Cameras that contain 1/4"-20 Female Threaded Hole
Hardware Included
Assembly Hardware
Suction Size
3.3" Diameter
Arm Dimensions:
Overall Length:
60.5mm (2.38")
Socket-To-Socket Length:
51mm (2")
Ball/Socket Size
B Size (1")
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Materials
Marine-grade aluminium
High strength composite
Weight
227 grams (0.5 lbs.)
Components:
RAM-B-224-1U 83mm DIA. SUCTION CUP BASE with 1" BALL
RAM-B-201U-A SHORT DOUBLE SOCKET ARM FOR 1" BALL

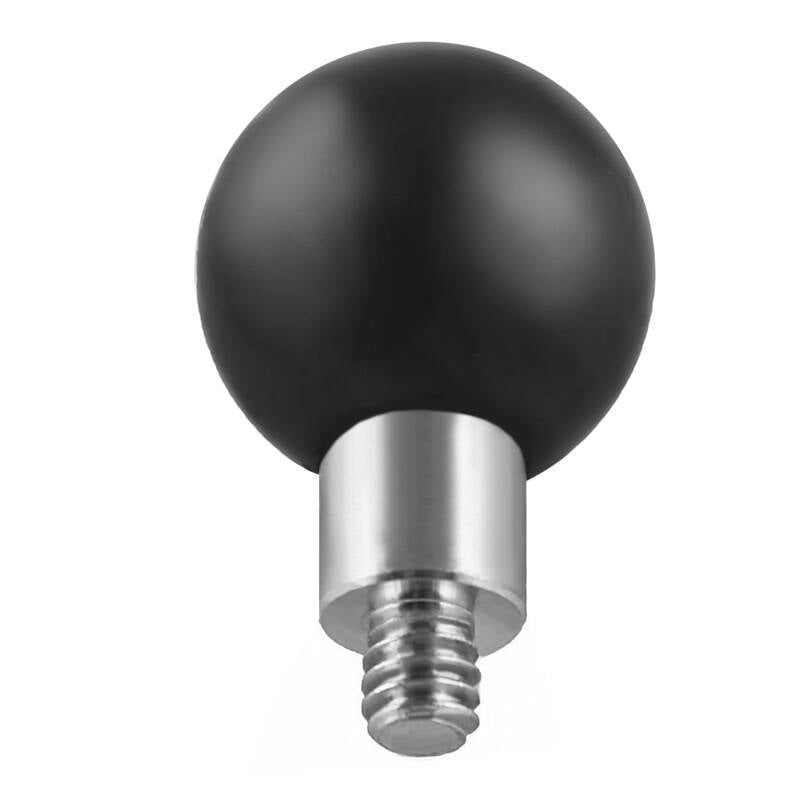

RAM-B-237U BALL WITH STANDARD 1/4 CAMERA MOUNT THREAD
YouTube:
https://www.youtube.com/watch?v=L8bbzMCMaUg
