RAP-B-365-224-237U RAM® Twist-Lock™ Triple Suction Mount with 1/4"-20 Stud
Features
* RAM® Triple Twist-Lock™ suction cup base is ideal for high vibration environments
* Camera base has the standard 1/4"-20 x .25" camera thread
* Includes B size RAM® double socket arm
* RAM ball and socket technology allows for near-infinite adjustability
* Made of high-strength composite and powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

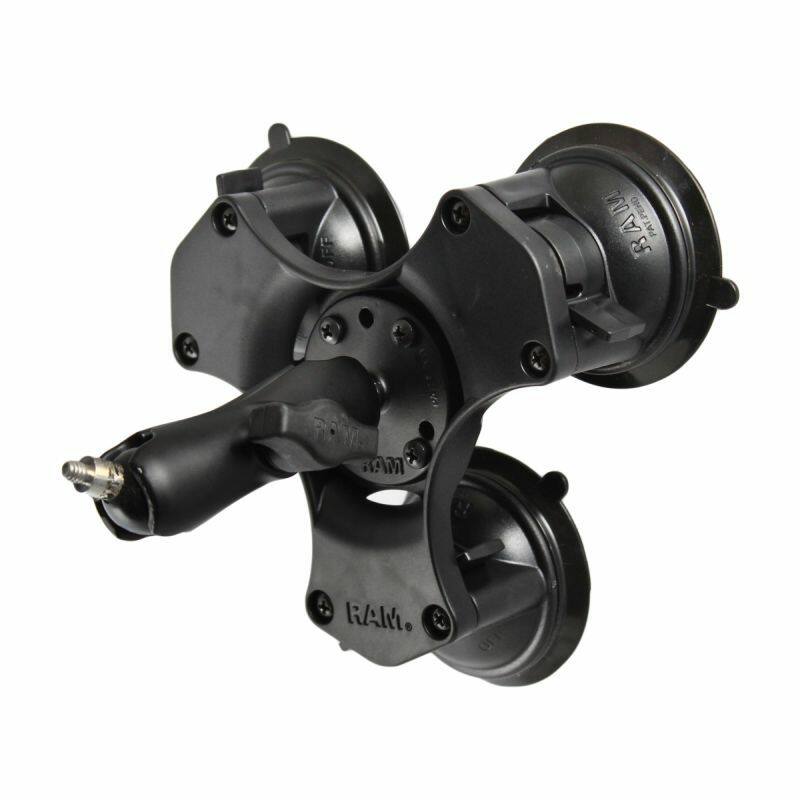

This mounting solution provides a super stable suction cup base for larger cameras and action cameras with a standard camera thread and consists of a triple suction cup base, double socket arm and 1" Ball with 1/4"-20 male threaded post.
The triple suction cup base is designed to have an extra strong hold on any smooth, non-porous surface. For best results mount the suction cup on glass or non-porous plastic surface. Onto that we add a B Size 1" diameter rubber ball connected to a flat 2.5" diameter plate.

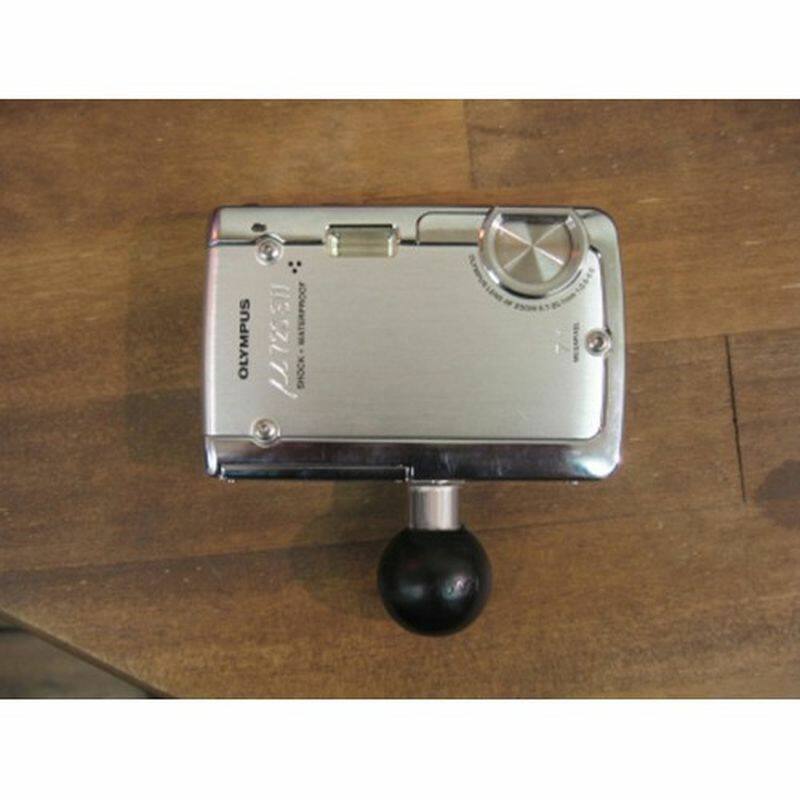

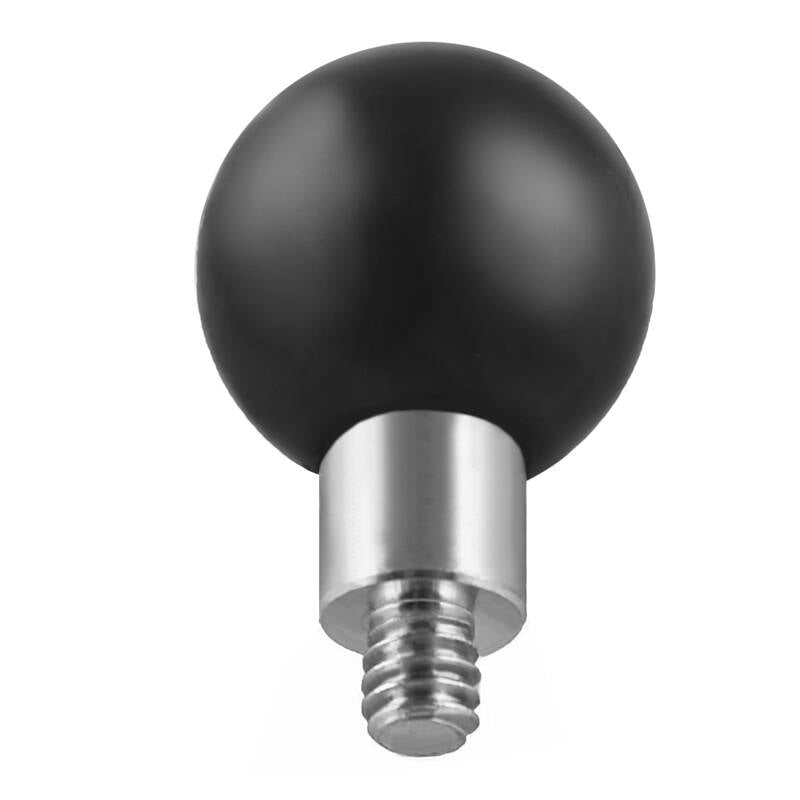

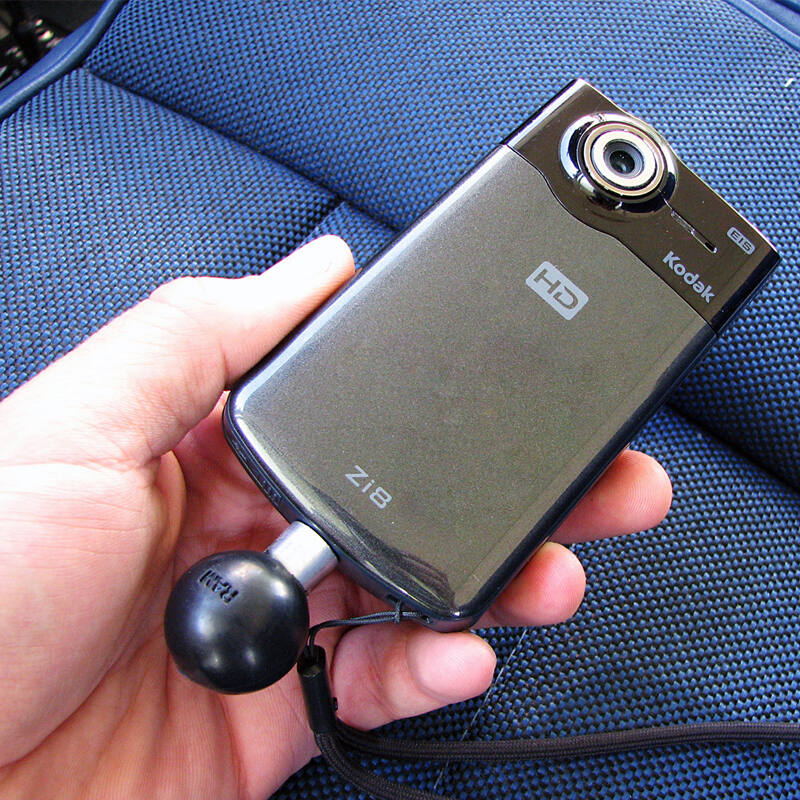

The camera base is a RAM-B-237U Universal camera and camcorder ball base. Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments with 1" ball fitting to mount lightweight cameras to RAM B-series arms. Has the standard 1/4"-20 x .25" camera thread that it common to most cameras on the market. Perfect for Midland, GoPro, Sony and Contour action cams.
Compatible Devices
Cameras that contain 1/4"-20 Female Threaded Hole
Thread Pitch
1/4"-20 x .25"
Suction Size -
Three x 84mm (3.3") Diameter Bases
Total Width 201.9mm (7.95")
Arm dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Suction Size
(3) 84mm (3.3") Diameter Bases
Total Width 202mm (7.95")
Socket-to-Socket Length
76.2mm (3")
Ball/Socket Size
B Size (1")
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Components:

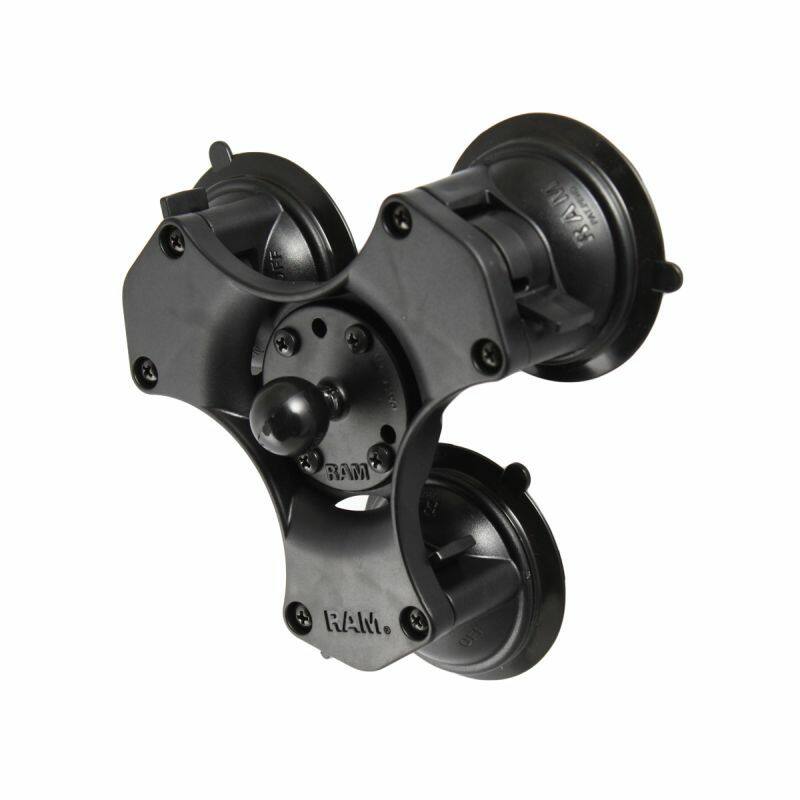

RAP-365-224-1BU Triple Suction Cup Base

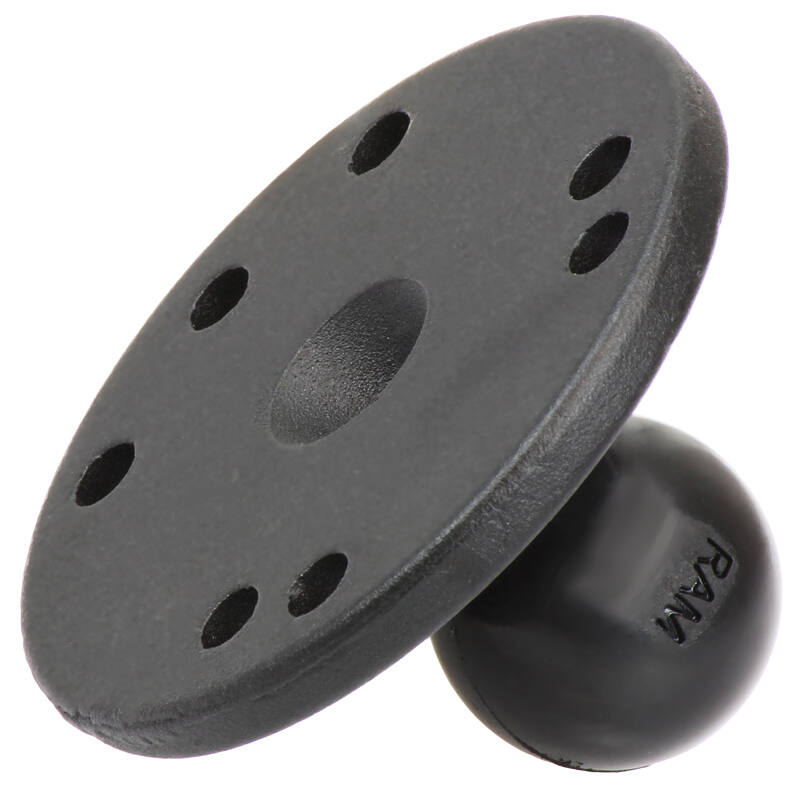

RAM-B-202U 62mm DIA.BASE WITH 1" BALL
RAM-B-201U DOUBLE SOCKET ARM FOR 1" BALL
RAM-B-237U BALL WITH STANDARD 1/4 CAMERA MOUNT THREAD
