RAM Camera Mount (1/4"-20 male thread) with U-Bolt / Strap Rail/Handlebar Base

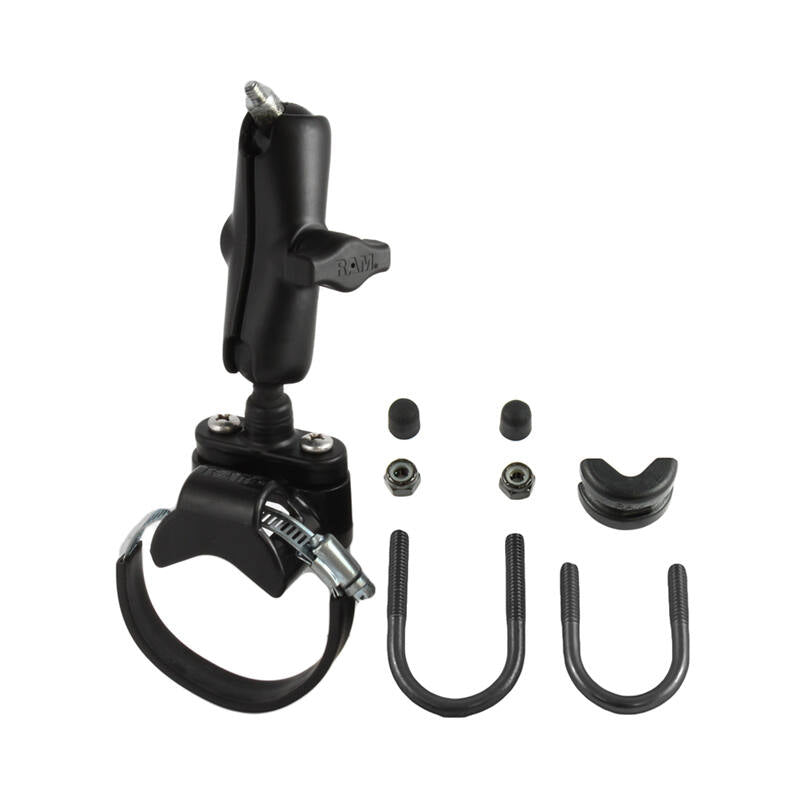

RAM-B-149Z-2-237U RAM® ATV/UTV Handlebar U-Bolt Mount with 1/4"-20 Camera Adapter

The RAM-B-149Z-2-237U is a two-in-one base for off-road use: a steel strap base that wraps most common roll bars (40mm to 80mm), plus a U-bolt option for smaller ATV handlebars (12.7mm to 32.75mm). Paired with a medium double socket arm and a ball carrying a 1/4"-20 male threaded stud, it mounts any camera or camcorder with a standard tripod thread.

Key Features

• Steel strap base suits most common roll bars, 40mm to 80mm (1.57" to 3.15")
• U-bolt option fits smaller ATV handlebars, 12.7mm to 32.75mm (0.5" to 1.25")
• 1/4"-20 male threaded stud fits any camera or camcorder with a standard tripod thread
• Medium double socket arm for near-infinite adjustment
• Powder-coated marine-grade aluminium and high-strength composite; backed by a lifetime warranty

Works With

Any camera or camcorder with a standard 1/4"-20 female threaded socket.

Dimensions & Specifications

• Strap range: 40mm to 80mm (1.57" to 3.15")
• U-bolt range: 12.7mm to 32.75mm (0.5" to 1.25")
• Arm overall length: 94mm (3.69")
• Arm socket-to-socket: 76mm (3")
• Ball size: 1" rubber ball, B size
• Materials: powder-coated marine-grade aluminium, high-strength composite

What's Included

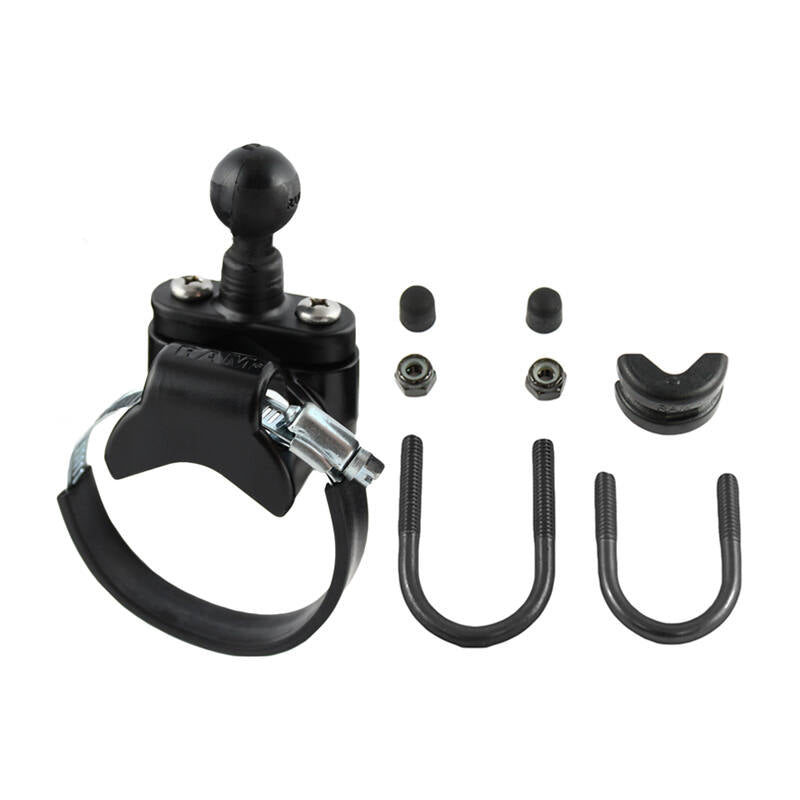

• 1 x RAM-B-231Z-2U base with U-bolt and UTV strap base
• 1 x RAM-B-201U double socket arm (1" ball, medium length)

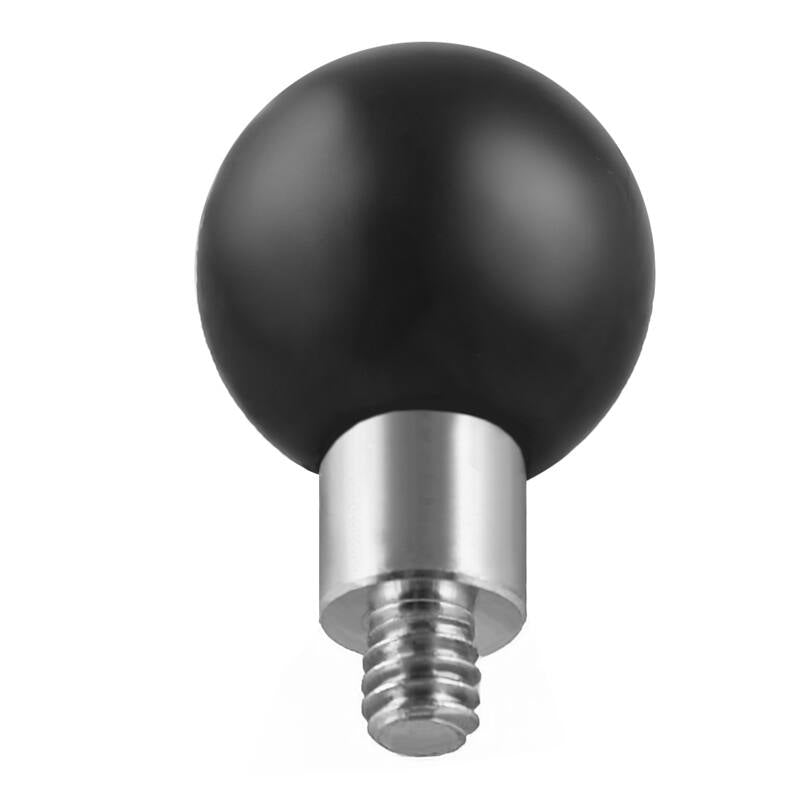

• 1 x RAM-B-237U 1/4"-20 alloy camera base

FAQs

Roll bar or handlebar?
Both. Use the steel strap base for roll bars, or the U-bolt for smaller ATV handlebars.

Will this fit my camera?
If your camera or camcorder has the standard 1/4"-20 tripod thread on its base, yes.

How fast does it ship?
If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
