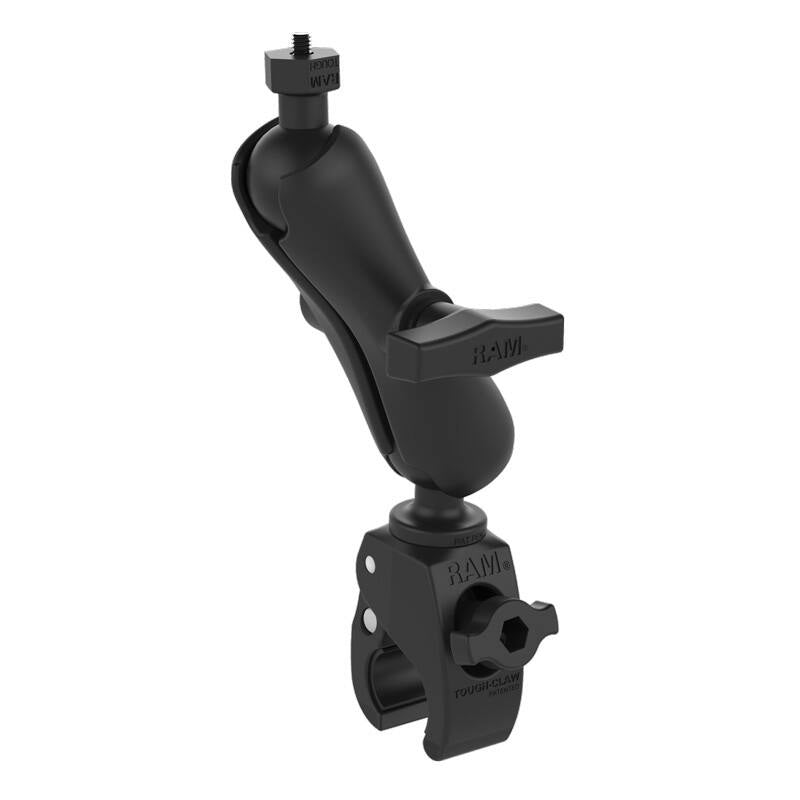

RAM-400-379-252025U RAM® Tough-Ball™ Camera Mount with RAM® Tough-Claw™ Small Clamp Base
Features:
* Small version of the RAM® Tough-Claw™ base is designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 16-28mm in outer diameter; rubber pads provide stable gripping and protection of mounting surface.
* Medium length double socket arm has an overall length of 143mm
* RAM® Tough-Ball™ features a 1/4"-20 x .25" male threaded post for connection to a variety of devices
* Included C size 1.5" RAM® rubber balls allows for connection to any C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

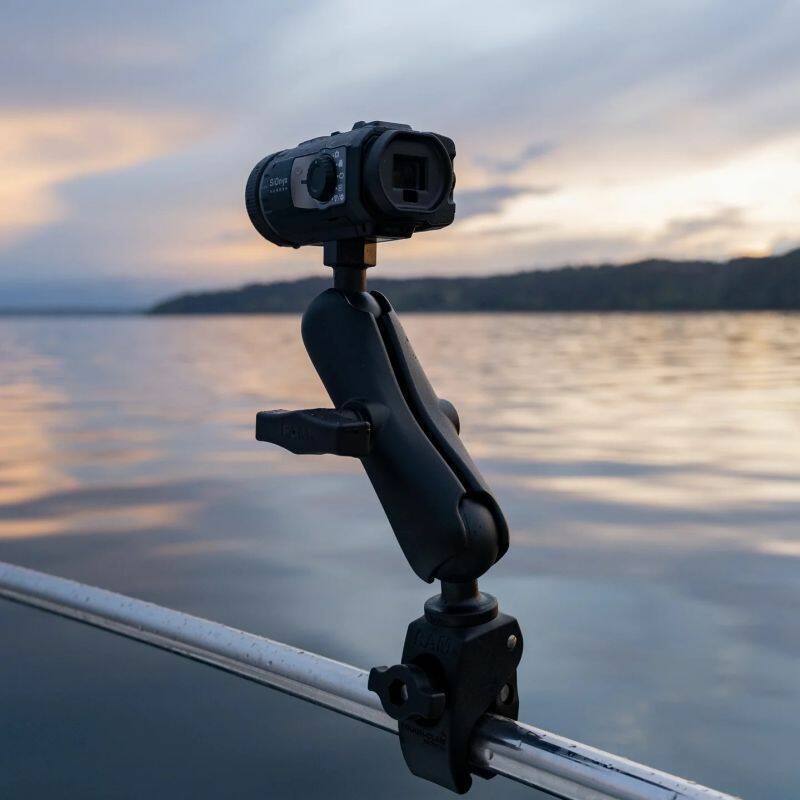

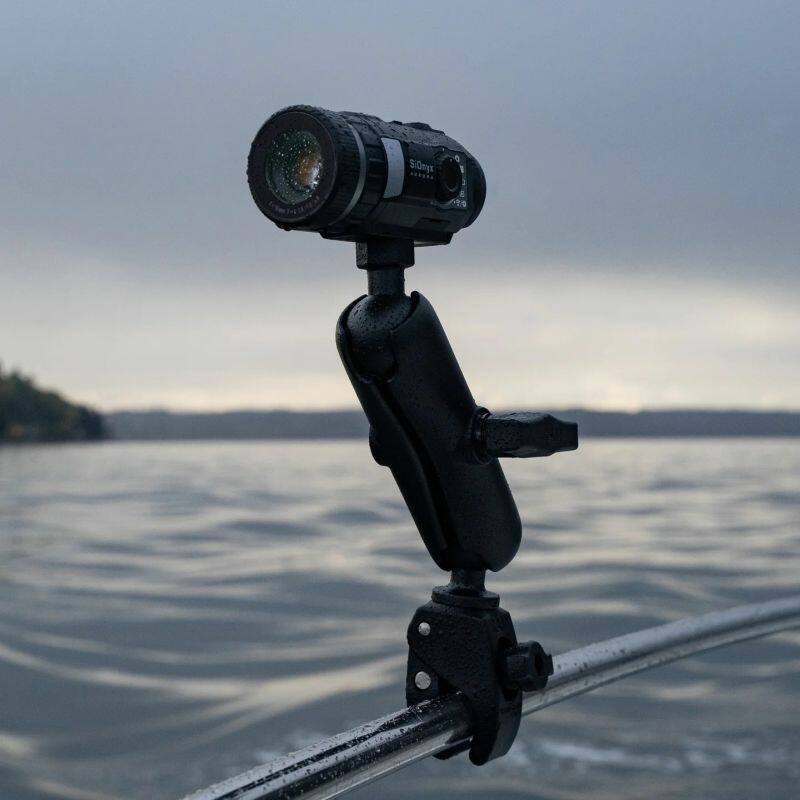

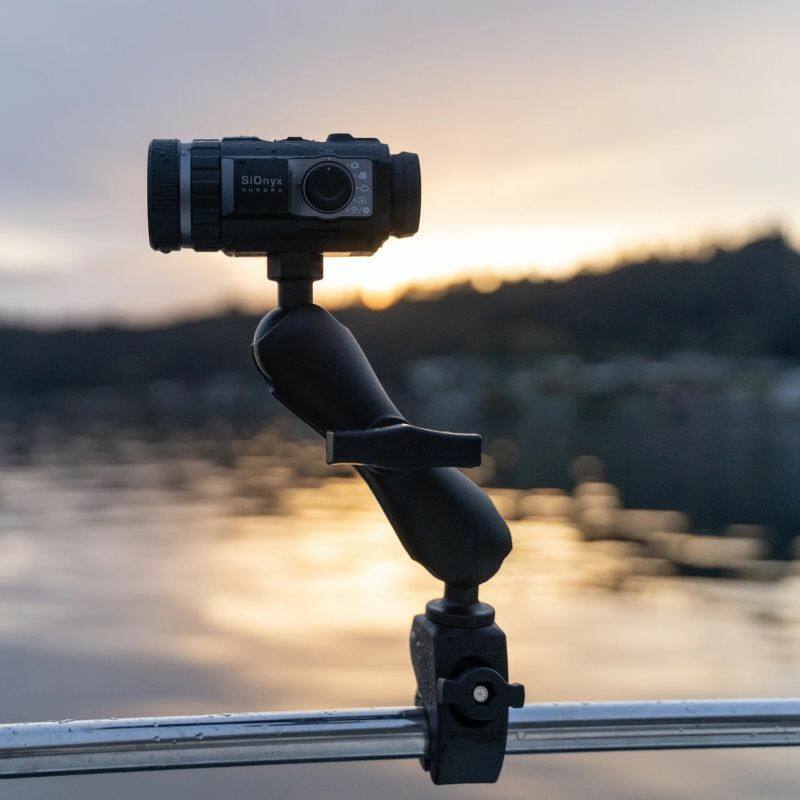

The RAM® Tough-Claw™ and Tough-Ball™ are the perfect mounting base for toolless installation and removal on round, square, and odd-shaped rails and bars. The small version of the RAM® Tough-Claw™ can quickly be clamped on rails ranging from 16-28mm in outer diameter and is ideal for mounting heavy duty cameras including SIONYX night vision cameras. Perfectly suited for mounting on handlebars, rails or any flat edge. The seamless transition between RAM® versatility and steel durability allows for a multitude of real world, and out of this world, applications.
With so many of the things we use incorporating threads and fasteners, there really is no limit to the number of uses you'll find for the RAM® Tough-Ball™. Consists of a 1.5" diameter rubber ball, connected to a 1/4"-20 x .25" male threaded post.
The male thread matches most standard camera and camcorder female threads found on the bottom of the camera.
Clamping Range
Rail/Tube Surfaces:
16 to 88mm (0.625 to 1.14")
Flat Surfaces:
0 to 28mm (0 to 1.14")
Arm Dimensions:
Overall Length:
143mm (5.625")
Socket-To-Socket Length:
114mm (4.5")
Thread Pitch
1/4"-20 x .25"
Ball/Socket Size
C Size (1.5")
Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)
Materials
Marine-grade aluminium
High strength composite
Weight
549 grams (1.21 lbs.)
YouTube:
https://www.youtube.com/watch?v=7iZ4w7pV_Io
https://www.youtube.com/watch?v=rX36fAdknUY
Components:

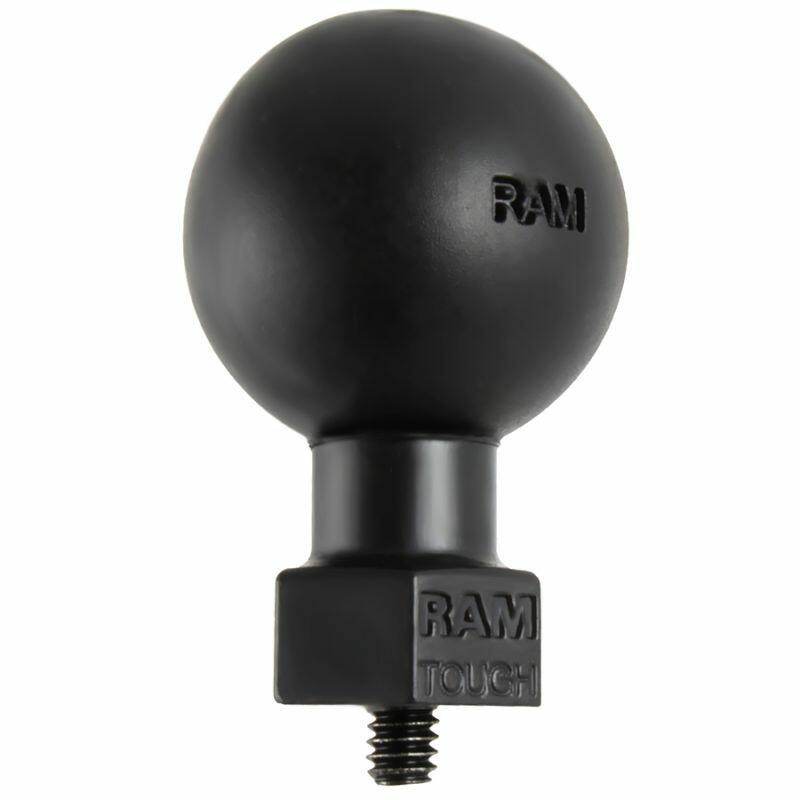

RAP-379U-252050 Tough-Ball with 1/4"-20 x .50" Threaded Stud

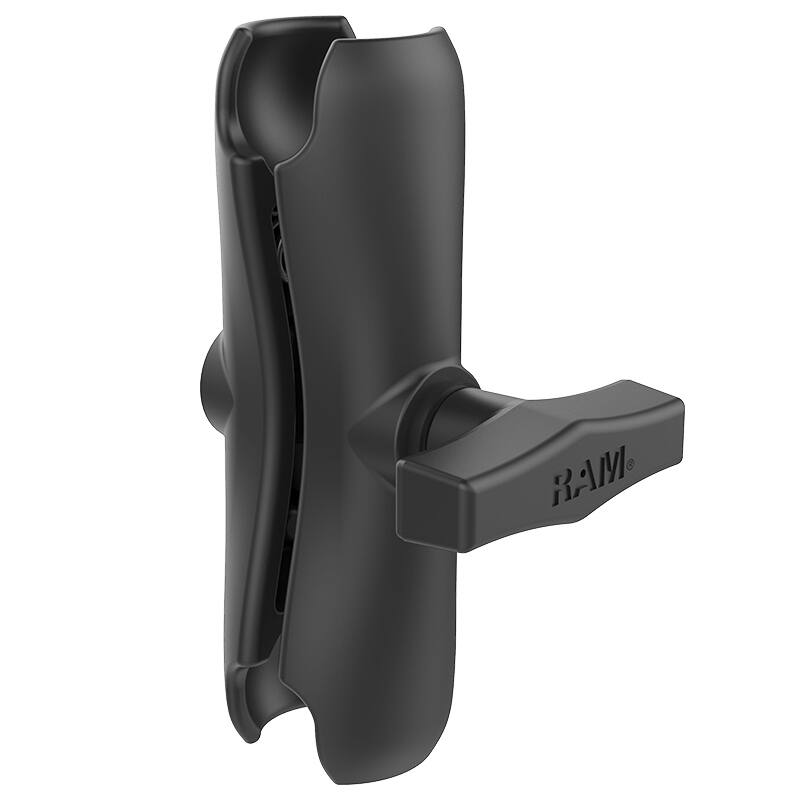

RAM-201U Standard Double Socket Arm for 1.5" Balls

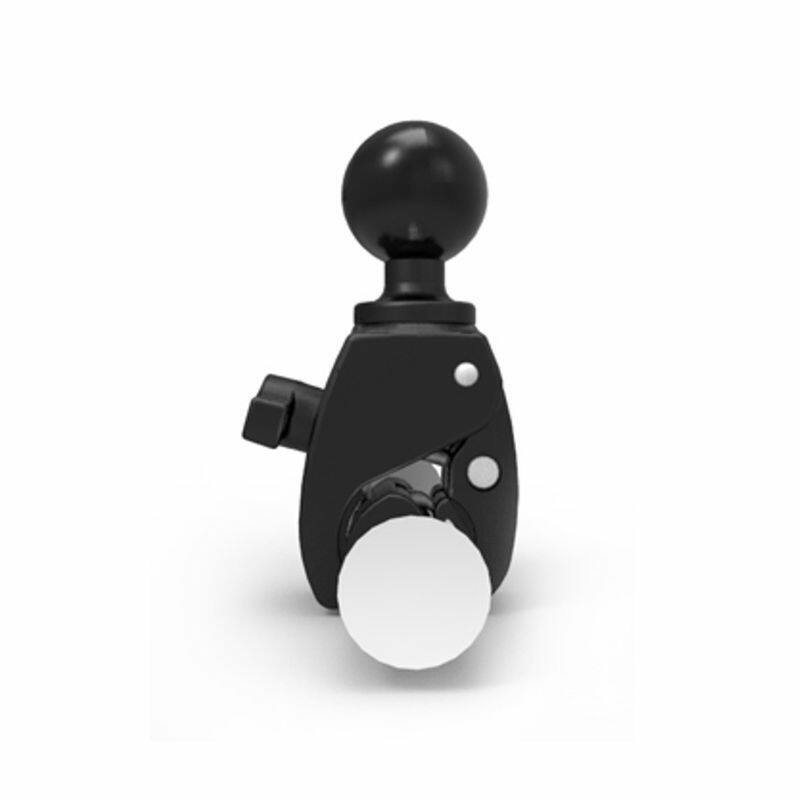

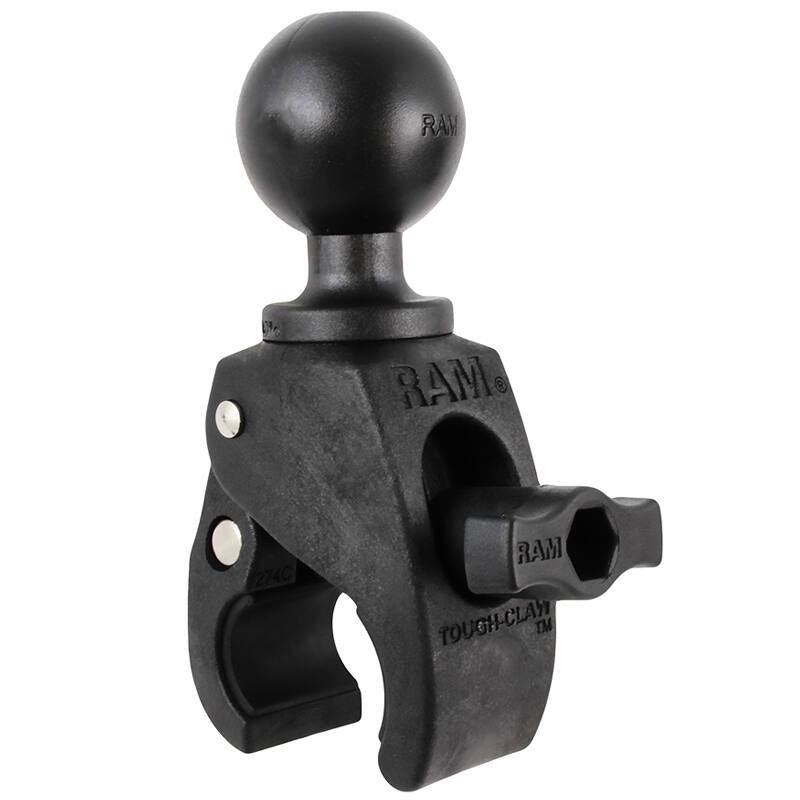

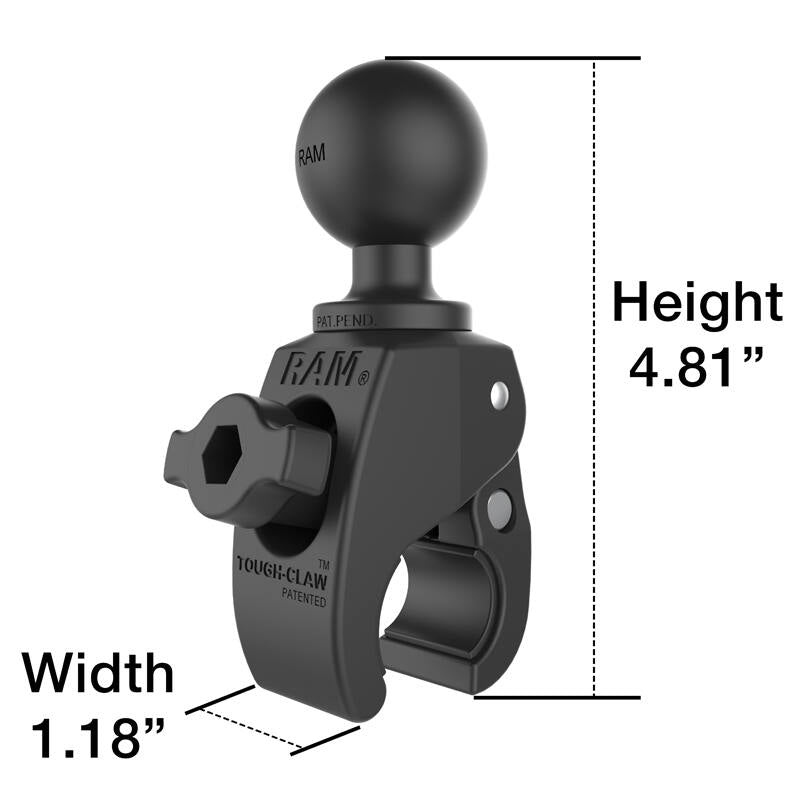

RAP-400U TOUGH-CLAW WITH 1.5" DIA BALL
