RAM Clamp Base - Square 51mm Post Clamp Base with 1.5 inch (C Series) Ball

RAM-247U-2 Square Post Clamp Base (51mm, C Size Ball)

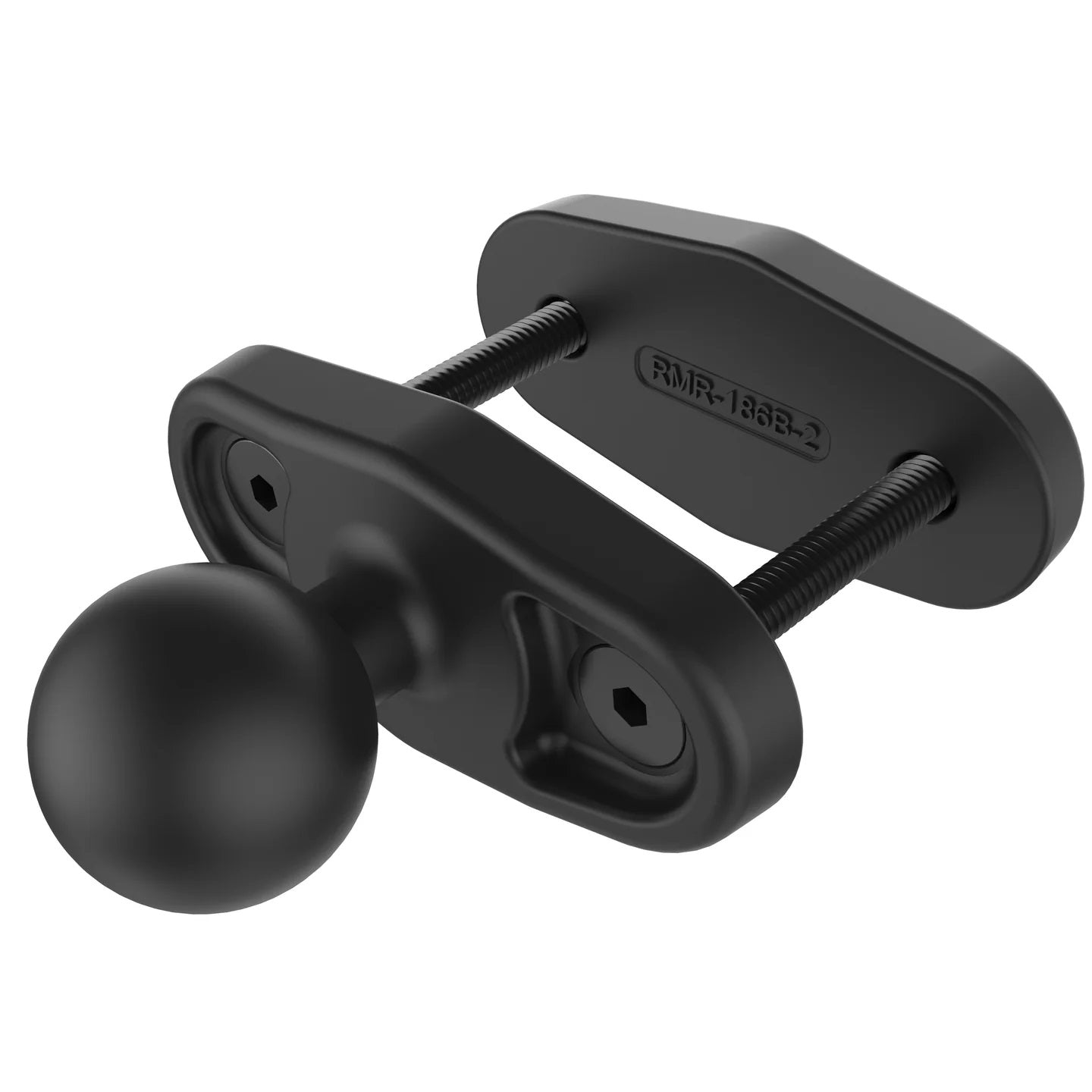

The RAM-247U-2 is a RAM Mounts square post clamp base for posts and rails up to 51mm (2") wide, fitted with a C size 1.5" rubber ball. It clamps to rails, tubes and frames and pairs with any C size double socket arm.

Key Features

• Clamps onto square posts and rails up to 51mm (2") wide; adjustable and easily removed or repositioned
• Includes a C size 1.5" RAM rubber ball that connects to any C size RAM double socket arm
• RAM rubber ball-and-socket design gives near-infinite angle adjustment
• Powder-coated marine-grade aluminium, built for vibration and weather
• Backed by RAM's lifetime warranty

Works With

Any C size (1.5" ball) RAM component: connect a C size double socket arm, then add a C size ball adapter or device holder to suit your gear. The base is removable and can be repositioned along the post at any time.

Dimensions & Specifications

• Maximum post width: 51mm (2")
• Ball size: 1.5" (C size)
• Weight capacity, standard use: 1.81kg (4 lbs)
• Weight capacity, heavy-duty use: 1.36kg (3 lbs)
• Product weight: 322g (0.71 lb)
• Material: powder-coated marine-grade aluminium

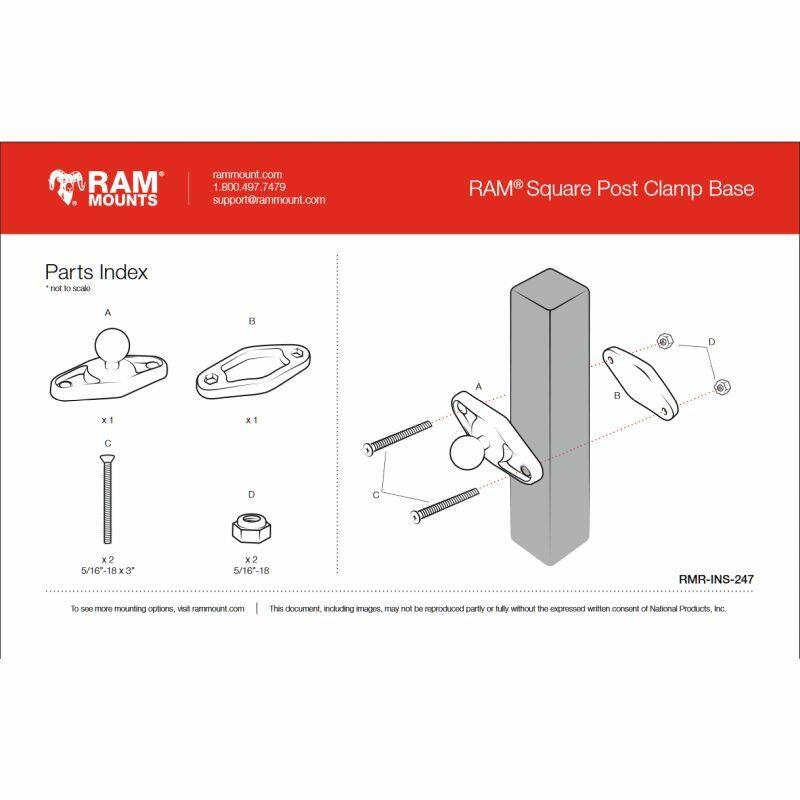

• Hardware included: (2) 5/16"-18 x 3" machine screws, (2) 5/16"-18 Nylock nuts

FAQs

What size post does it fit? Square posts and rails up to 51mm (2") wide.

What does it connect to? Any C size RAM arm and holder via the included 1.5" ball.

Is the mounting hardware included? Yes, two 5/16"-18 x 3" machine screws and two Nylock nuts.

How is it dispatched? In stock items ship from our Auckland warehouse, normally within one business day of your order.
