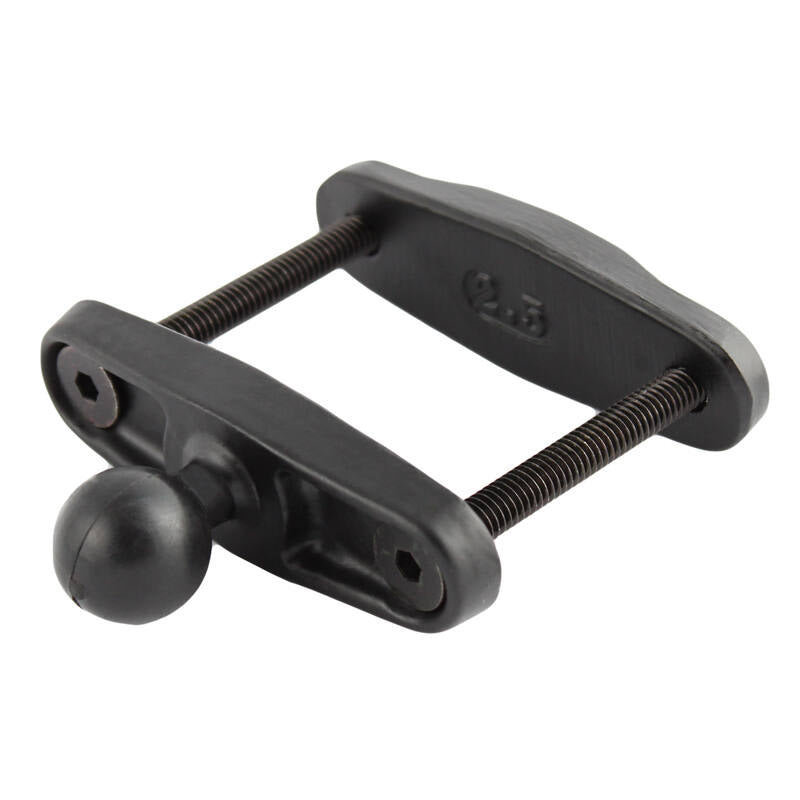

RAM-B-247U-25 RAM® Square Post Clamp Base for Posts up to 2.5" Wide
Features
* Clamping base ideal for square posts up to 63mm (2.5") in width
* Included B size 1" RAM® rubber ball allows for connection to any B size RAM® double socket arm
* RAM ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
This fits square section posts and roll bar frames up to 63mm x 70mm
HARDWARE INCLUDED
(2) 5/16"-18 x 3" Machine Screws
(2) 5/16"-18 Nylock Nuts

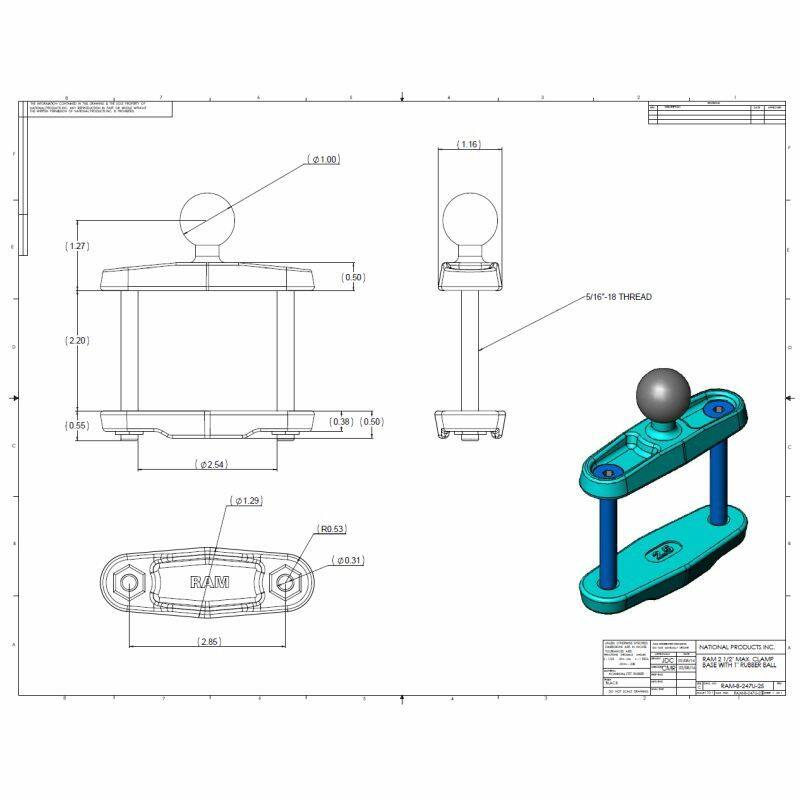

CLAMP RANGE
63.5mm (2.5") max width
Clamp Depth with Included Screws
55.9mm (2.2")
BALL SIZE
B Size (1")
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
MATERIALS
Marine-grade aluminium
