RAP-B-299-4-238U RAM® Stubby™ Cup Holder Mount with Diamond Plate
Features
* Portable and low-profile cup holder mounting base features flexible support fins that can be trimmed to size
* Included B size 1" RAM® double socket arm with ball and socket technology allows for near-infinite adjustability
* Diamond plate incorporates the 2-Hole AMPS pattern and will connect to many lighter RAM cradles
* Made of high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

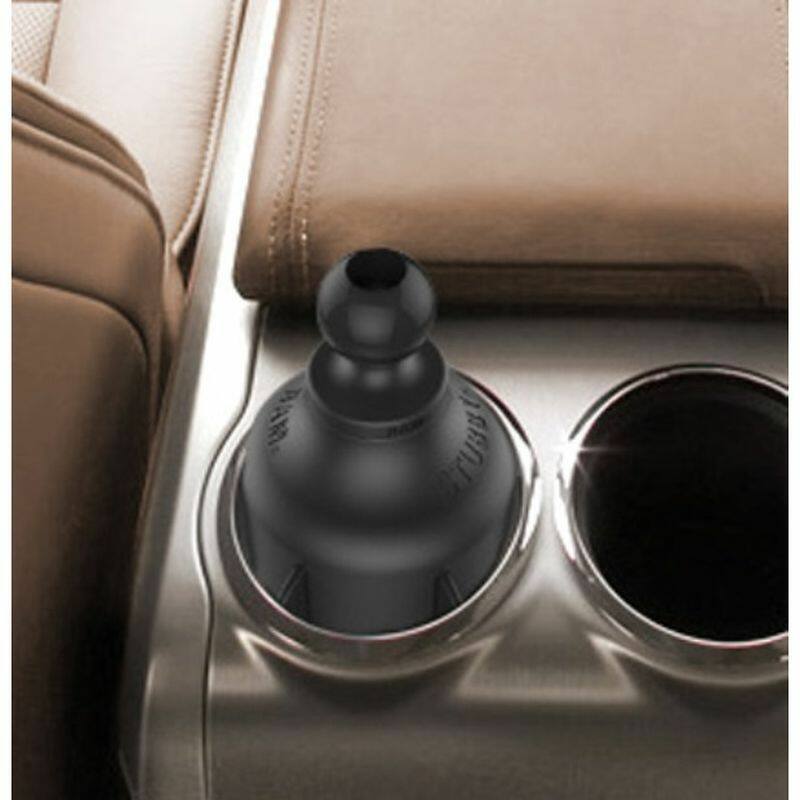

The RAM Stubby cup holder base is a low-profile option of our cup holder mounting base. The durable composite shell construction and flexible support fins can be trimmed to size make this cup holder base a portable and versatile solution.

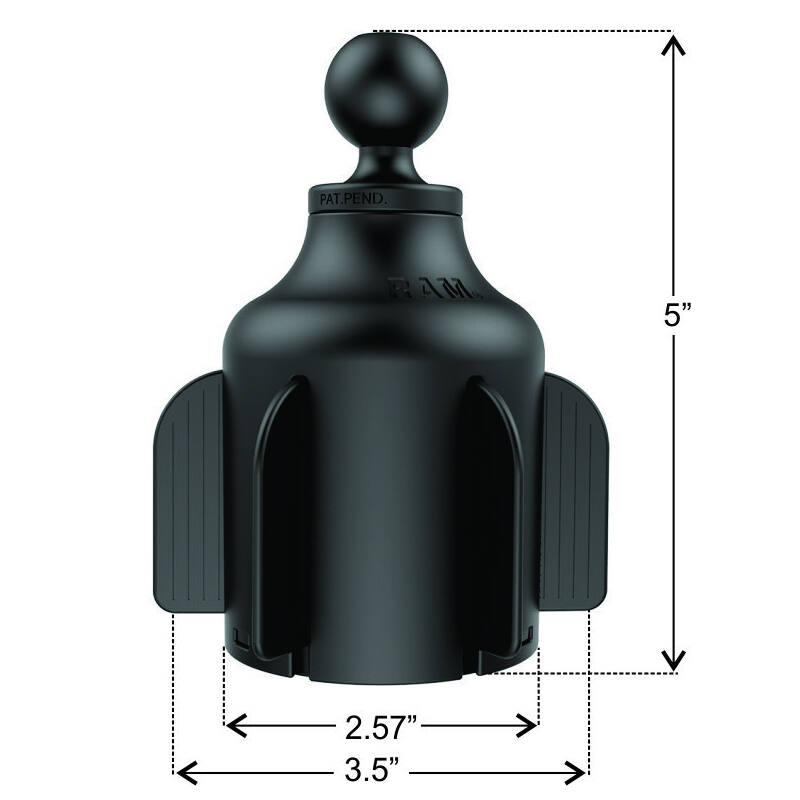

Compatible with any vehicle cup holder with an inside diameter range of 65mm to 89mm (2.57" to 3.5")
PLEASE NOTE - FOR THIS TO PROVIDE A STURDY BASE THE CUP-HOLDER MUST BE CIRCULAR - SO NOT A TWIN CUP-HOLDER WITH A CUT-OUT SECTION BETWEEN THE 2 SECTIONS

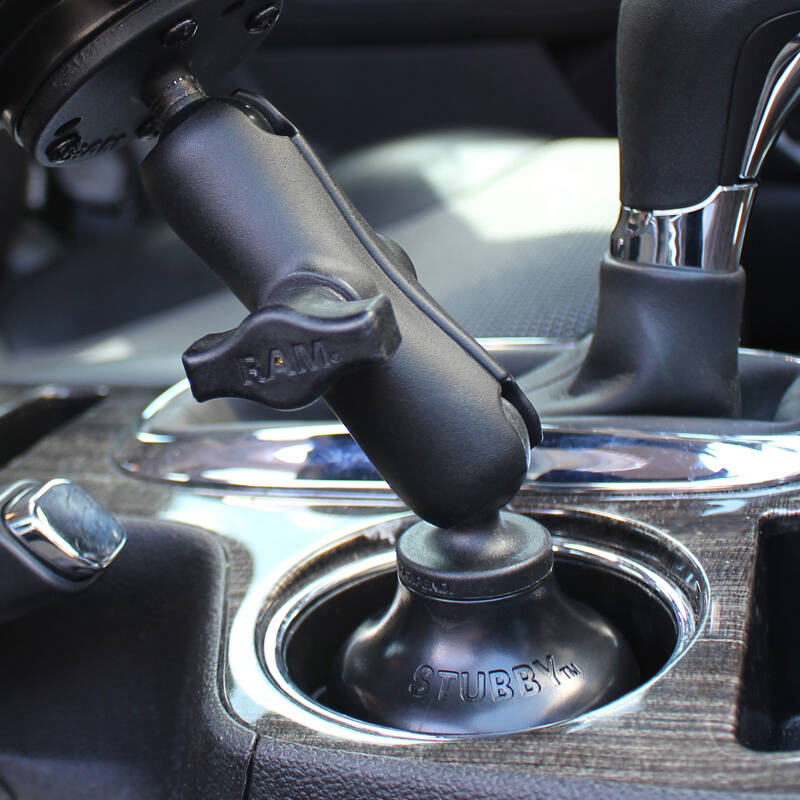

The mount is designed with a patented RAM 1" diameter rubber ball and this kit includes a standard-length arm as well as a diamond base for supporting many of our device cradles.
The RAM ball and socket system allows for articulation at both ends of the double socket arm creating almost infinite adjustment and perfect viewing angles.
The RAP-B-238U diamond base consists of a 1" diameter rubber ball connected at right angles to a 62 to 33mm (2.43" x 1.31") diamond base. It has two holes 48.5mm (1.912") from centre to centre, to match the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles.
Specs & Features
Material:
High Strength Composite
Ball Size:
1" Rubber Ball "B" Size
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Components:
RAP-B-238U 63 X 33mm BASE W/ BALL
RAP-B-201U DOUBLE SOCKET ARM FOR 1" BALL
RAP-B-299-4U STUBBY DRINK CUP BASE W/ 1" BALL
YouTube:
https://www.youtube.com/watch?v=j7mtswe5pts
