RAM Double Ball Mount w/ Round Base Plate and Backing Plate - C Series - Short

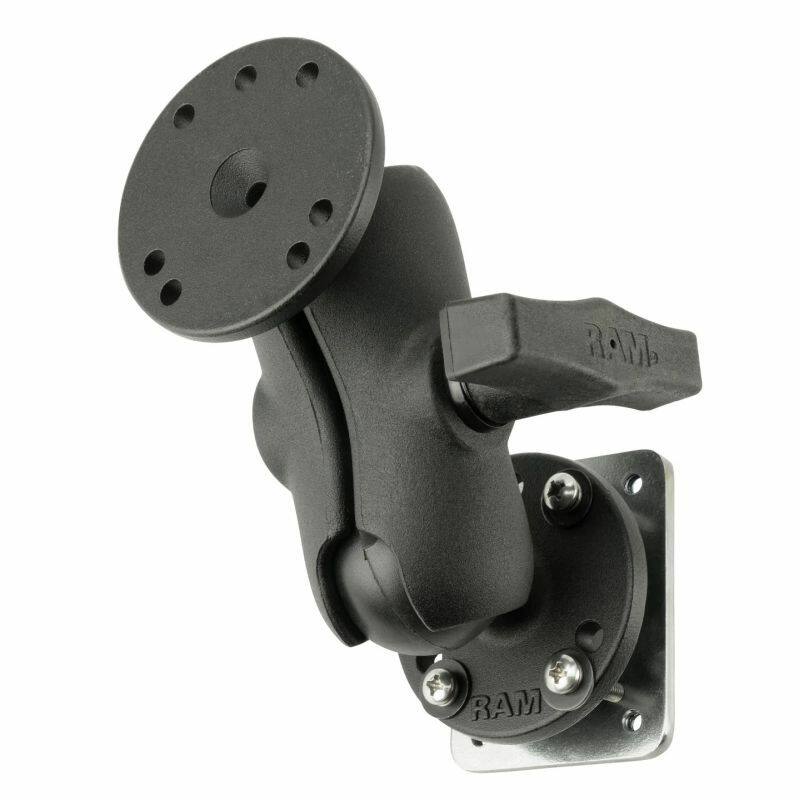

RAM-101-B-225B2U RAM® Drill-Down Dashboard Mount with Backing Plate – C Size Short

The RAM-101-B-225B2U is a drill-down double ball mount pairing a short C-size double socket arm with two 63.5mm (2.5") round AMPS bases and a steel backing plate, ready to connect any holder or dock with the universal AMPS hole pattern to a dashboard or console.

Key Features

• Drill-down double ball mount with a 53 x 66mm (2.10" x 2.60") steel backing plate
• Short C-size (1.5") double socket arm; ball-and-socket technology dampens shock and vibration with near-infinite adjustability
• Connects to RAM® components and holders with the universal AMPS hole pattern
• Powder-coated marine-grade aluminium and steel construction
• Backed by a lifetime warranty

Works With

Any device holder or cradle with the 4-hole or 3-hole AMPS round base pattern.

Dimensions & Specifications

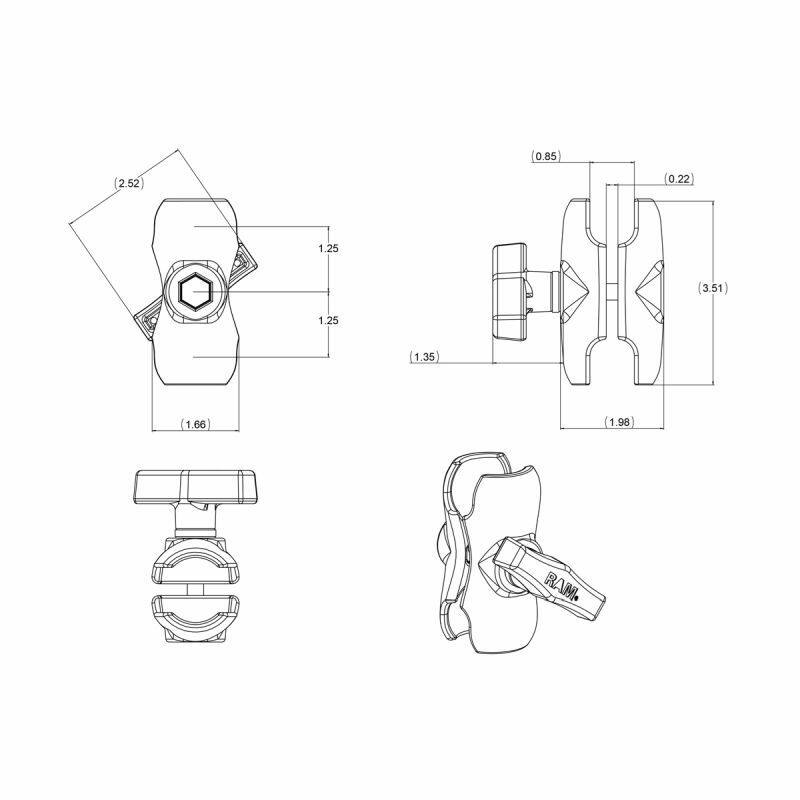

• Arm length: 90mm (3.56") overall, 63.5mm (2.5") socket-to-socket
• Hole pattern: 4-hole AMPS 30mm x 38mm (1.181" x 1.496"); 3-hole 120° AMPS 46.0mm (1.812")

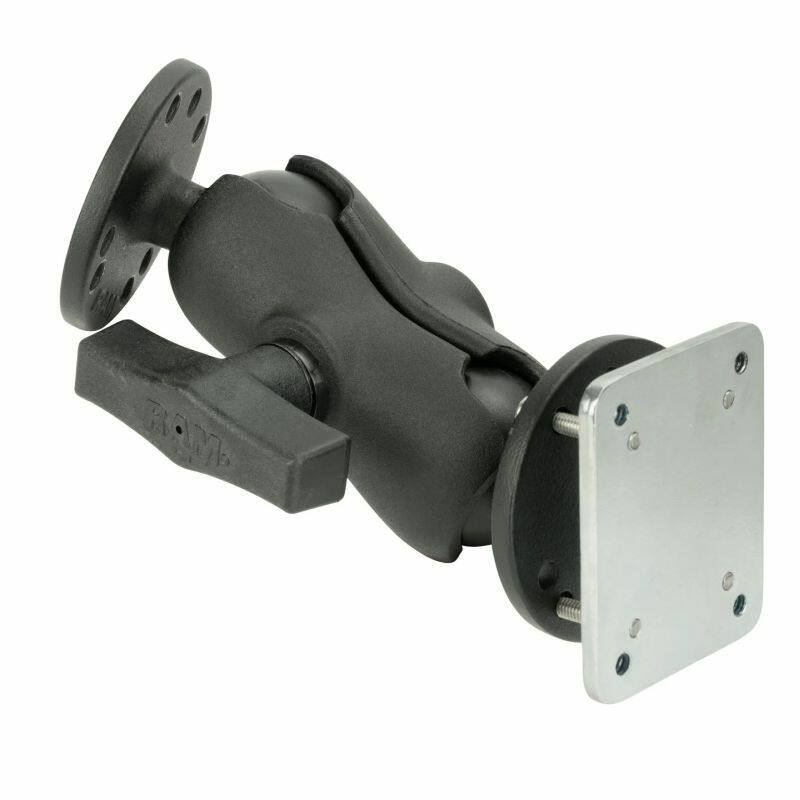

• Rectangular backing plate: 53 x 66mm (2.10" x 2.60")
• Ball/socket size: C size (1.5")
• Weight capacity: 1.81kg (4 lbs) standard use, 1.36kg (3 lbs) heavy-duty use
• Material: marine-grade aluminium, steel
• Weight: 526g (1.16 lbs)

Hardware Included

• (1) 53 x 66mm (2.10" x 2.60") steel backing plate
• (4) #8-32 x 1" machine screws
• (4) #8 split lock washers
• (4) #8 flat washers

What's Included

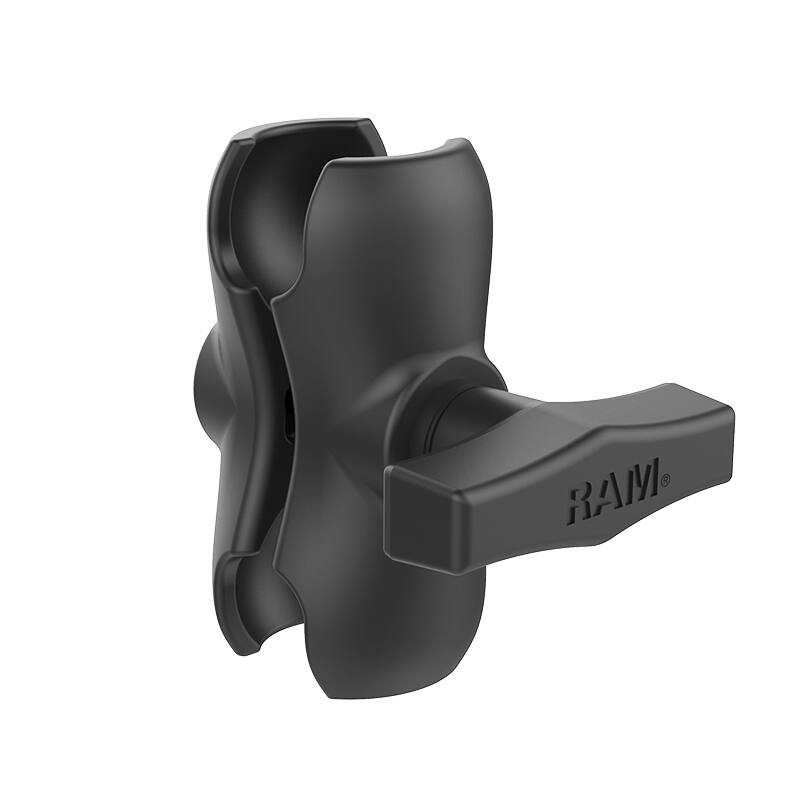

• RAM-201U-B short C-size alloy arm

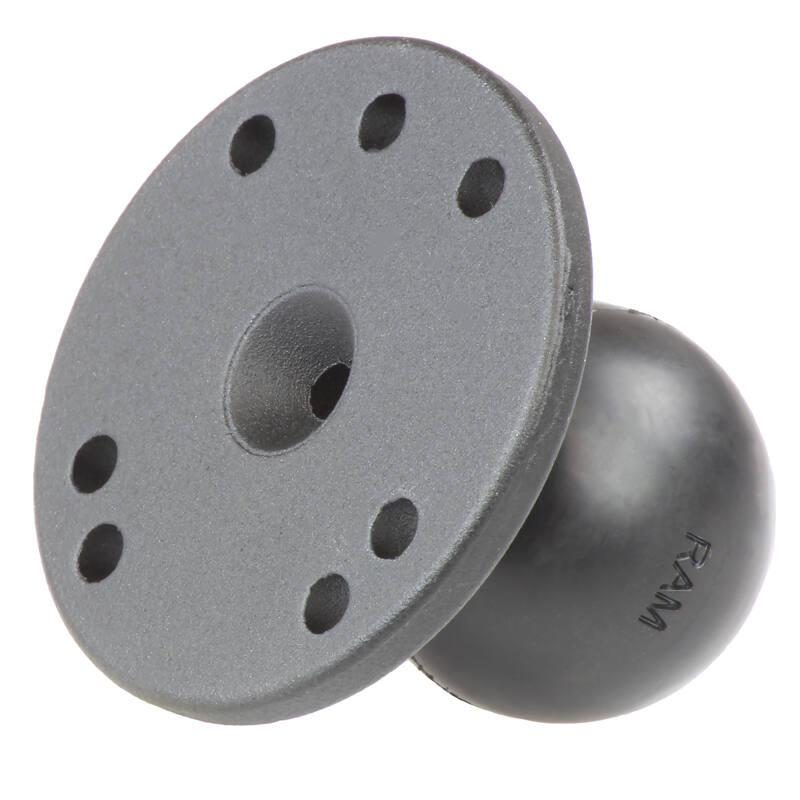

• RAM-202U 63.5mm (2.5") round base with 1.5" ball
• RAM-202-225-2U 63.5mm (2.5") round base with 1.5" ball and backing plate
