RAM-102U-D-2461 RAM® Double 75x75mm VESA Mount
FEATURES
* Square plates feature the 75mm VESA hole pattern for connection to a wide variety of devices
* RAM® C size double socket arm and ball and socket technology allow for near-infinite adjustability
* Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
* Backed by a lifetime warranty

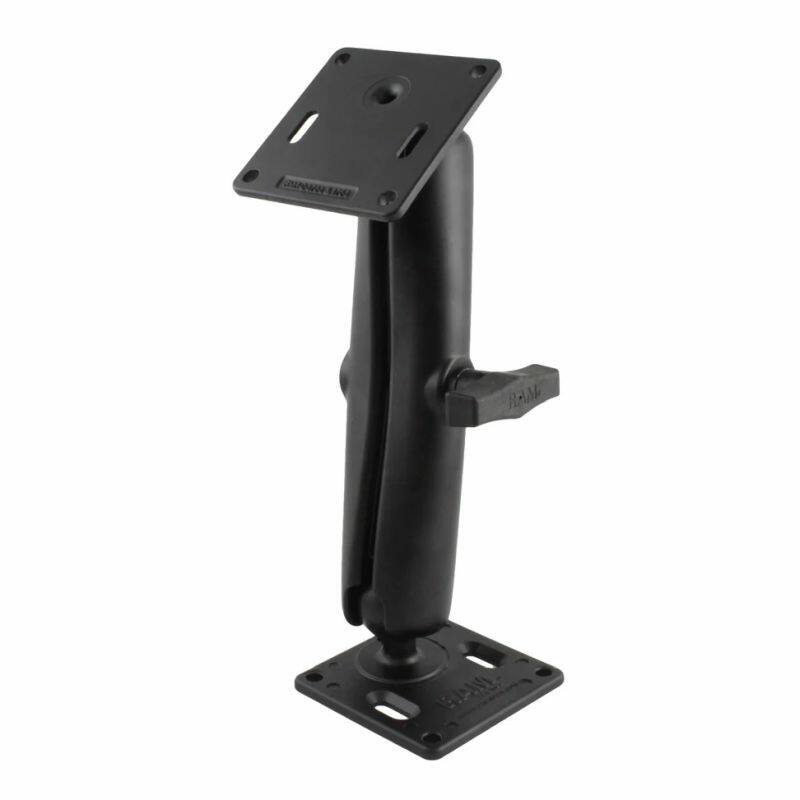

The RAM-102U-D-2461 consists of a long double socket arm and two 75mm x 75mm VESA plates..

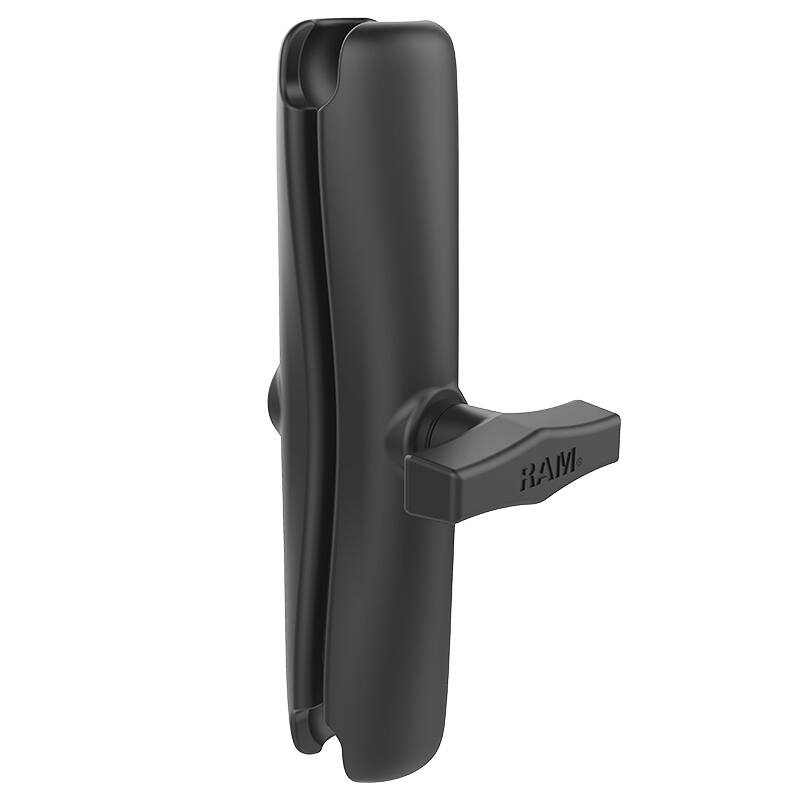

The long double socket arm has a socket at both ends that accommodates 1.5" ball bases. A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection. This socket technology allows for almost infinite adjustment and perfect viewing angles.

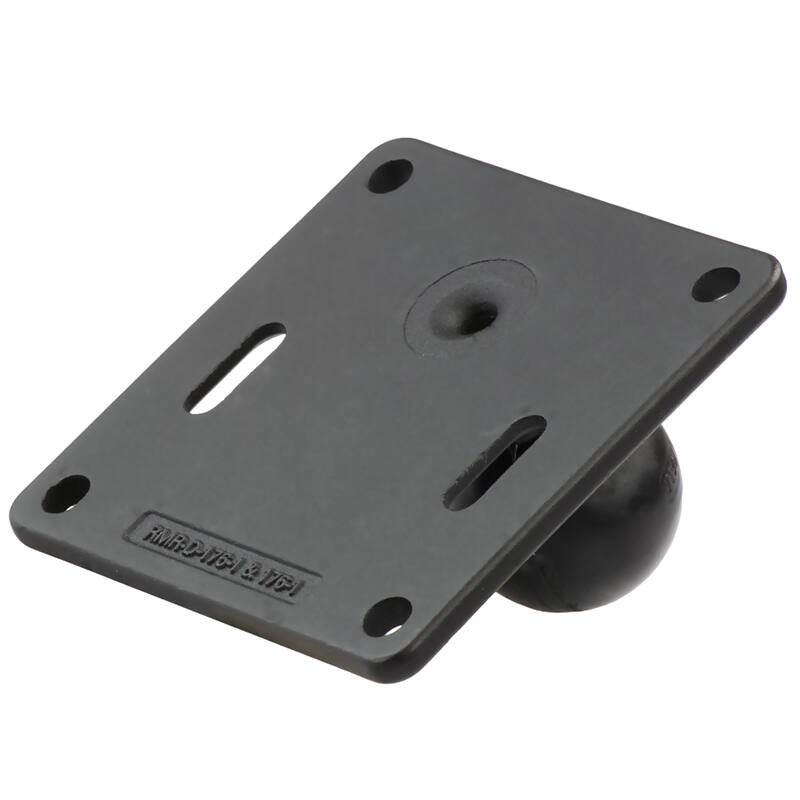

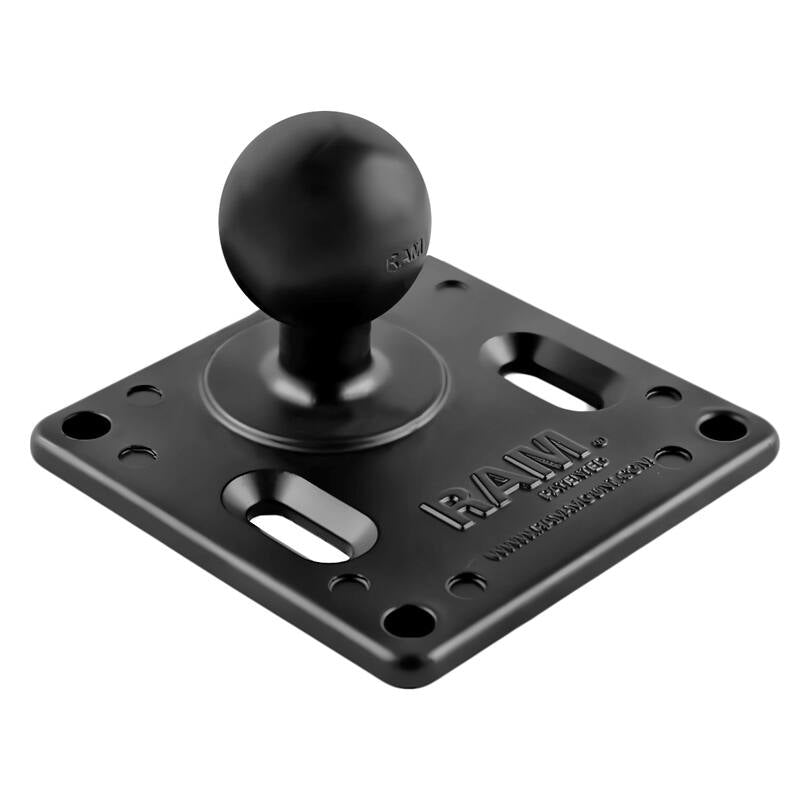

The VESA plates consist of a 1.5" rubber ball, connected to a 92mm square plate with a 75mm X 75mm VESA hole pattern. The rubber ball is positioned 0.88" from the centre of one edge.
Hole Pattern

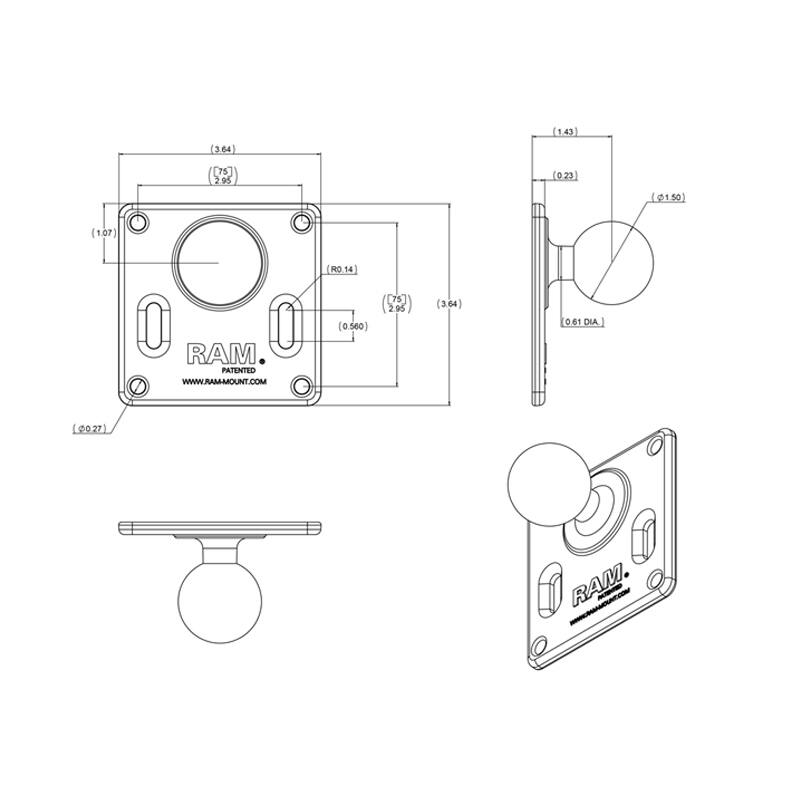

See Drawing
Includes 75mm X 75mm VESA hole pattern
Plate Dimensions
92.1 x 92.1mm (3.625 x 3.625")

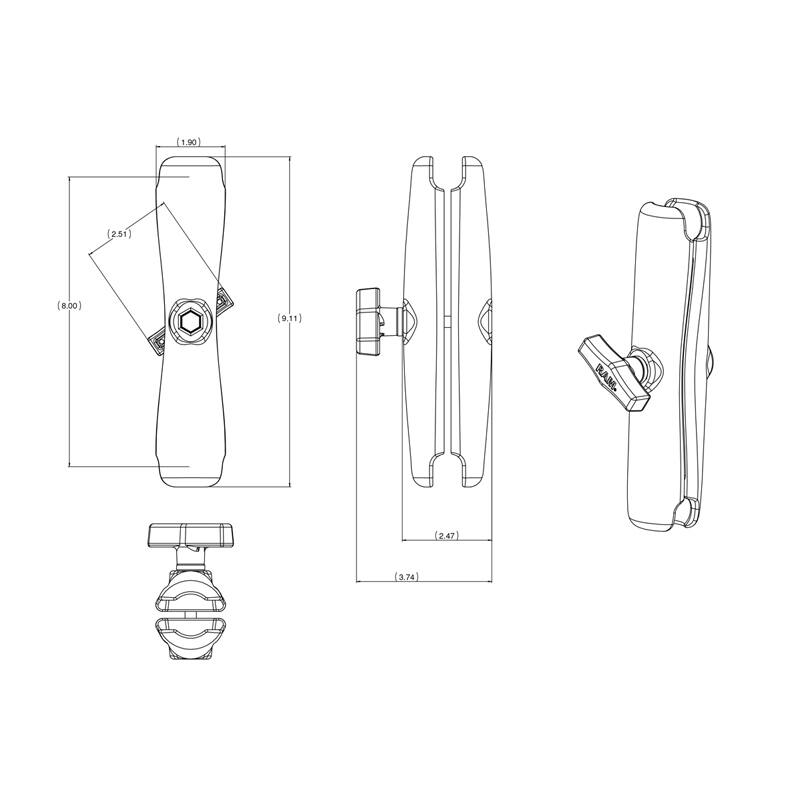

Arm Dimensions:
Overall Length:
232mm (9.125" )
Socket-To-Socket Length:
203mm (8" )
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
1.5" Rubber Ball Size
Weight
1.06kg (2.34lbs )
Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)
Components:
RAM-201U-D RAM DBL SOCKET ARM C BALL D LENGTH
RAM-2461U RAM 90MM VESA PLATE STD BALL
