RAM Double Ball Mount with 2 Diamond Base Plates - B Series (1" Ball) - Long

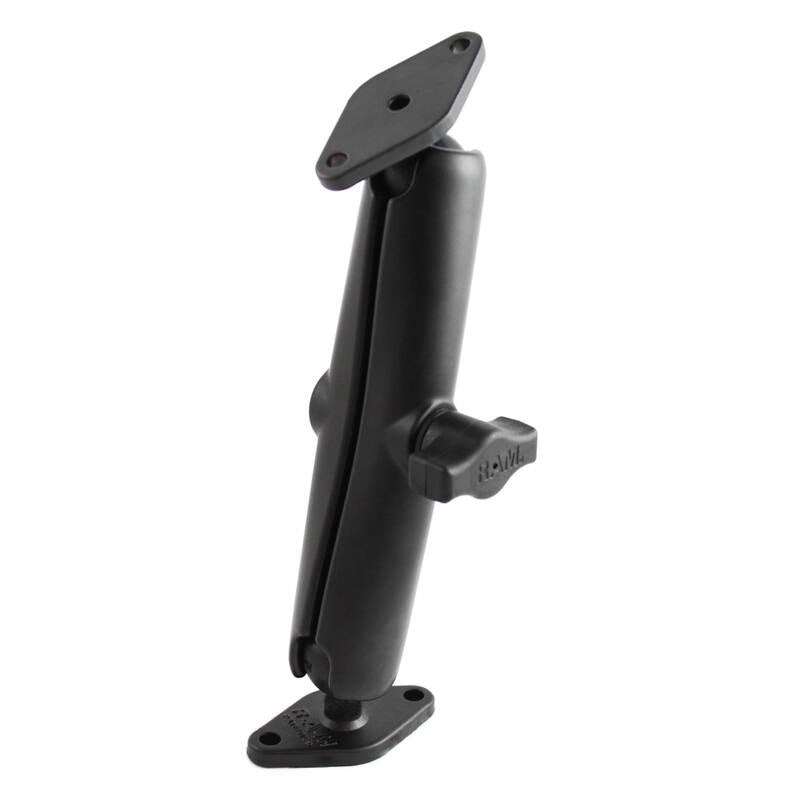

RAM-B-102U-C RAM® Double Ball Mount with Two Diamond Plates – B Size Long

The RAM-B-102U-C is a drill-down mounting solution built from a long B Series double socket arm and two diamond AMPS base plates, giving extra reach with near-infinite adjustment for lighter device holders.

Key Features

• Drill-down mounting solution; choose either diamond plate, both featuring the 2-hole AMPS pattern for attaching lighter device holders

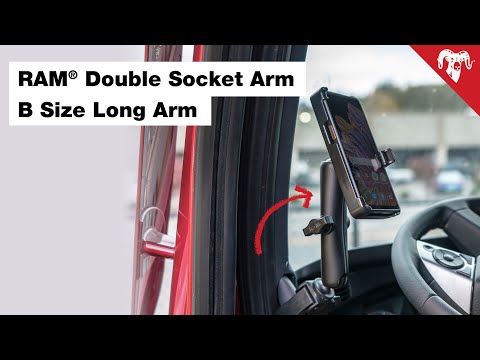

• Includes two diamond ball bases and a long B Size double socket arm for extended reach
• RAM® ball-and-socket technology allows near-infinite adjustability
• Powder-coated, marine-grade aluminium construction
• Backed by RAM Mounts' lifetime warranty

Works With

Either diamond plate bolts down using the 2-hole AMPS pattern, while the matching 1" ball connects to any RAM® cradle or holder built for a B Size (1") ball, including many third-party AMPS holders.

Dimensions & Specifications

• Overall height: 185.7mm (7.31")
• Arm length: 152mm (6") overall, 134mm (5.25") socket-to-socket
• Diamond plate: 61.7 x 33.3mm (2.43 x 1.31")
• Hole pattern: 2-hole AMPS, 48.6mm (1.912") centre-to-centre
• Ball size: 1" rubber ball, B Size
• Material: powder-coated marine-grade aluminium
• Weight: 327g (0.72 lbs)
• Load rating: 907g (2 lbs) standard use, 454g (1 lb) heavy-duty use

What's Included

• RAM-B-238U diamond base with 1" ball (x2)
• RAM-B-201U-C long double socket arm for B Size 1" balls

FAQs

Q: What size screws do the diamond plates take?
A: The 2-hole AMPS pattern most commonly takes #8, #10, M4, or M5 screws. If you're pairing this with a RAM® holder, the holder comes with the hardware needed; surface-mount hardware for your own application isn't included.
